- Ideal for thin doors 1/2" up to 1-1/8" thick, compatible with various door types
- Airtight magnetic seal provides excellent insulation, withstanding winds up to 50 mph
- Flap remains flexible in extreme temperatures from -40°F to 110°F
- Durable aluminum frame with customizable magnet strength for pet training and wind resistance
- Sturdy locking cover to block access when needed (inside frame only)
- Lifetime Warranty and Easy 90-Day Returns for peace of mind
Product Details
Sizing & Fit
Installation Guide
FAQs
Reviews
Product Details
-

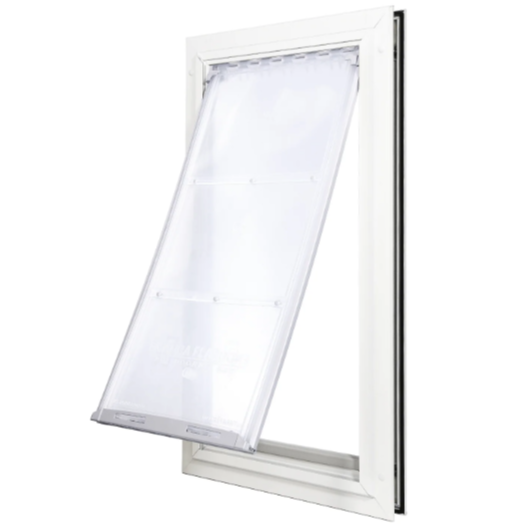

Designed specifically for thin doors: Fits solid core doors, hollow core doors, metal doors, and storm doors 1/2" up to 1-1/8" thick
- Superior insulation: Airtight magnetic lining around the flap ensures maximum energy efficiency and weather resistance
- Resilient in extreme conditions: Flap withstands winds up to 50 mph and remains flexible in temperatures as low as -40°F
- Durable and sleek: Sturdy aluminum frame with an attractive design that complements any home's aesthetic
- Accommodates pets of all sizes: Taller and narrower flap design caters to a range of pet sizes and needs
- Adjustable magnet strength: Customize the pet door's magnet strength for training purposes or to increase wind resistance
- Secure Locking Cover: Features a locking cover as strong as 16 gauge steel to block access when needed
- Easy installation: Installation in thin doors is made simple with the Endura Flap Single Flap Pet Door
- Made in the USA: High-quality construction and materials ensure long-lasting performance
- Lifetime Warranty and Easy 90-Day Returns: Purchase confidently with a lifetime warranty and hassle-free returns
- Suitable for various climates: Designed for four-season use, maintaining comfort and insulation in severe weather conditions
- Adaptable for pets' needs: Magnets can be removed or adjusted to better suit pets' preferences and abilities
- Highly praised by homeowners: Appreciated for its sleek design, durability, and superior insulation properties
Please Note: If the magnets seem too strong for your pet, you can remove some of them to better suit their needs. On some sizes, they may need to be replaced for proper insulation. Refer to the video called Removing Side Magnets in the Videos section.
For doors more than 1-1/8" thick, see the Endura Single Flap Door Mount or the Endura Double Flap Door Mount.
Size Chart
- Small Single Flap: 6"w x 11"h
- MediumSingle Flap: 8"w x 15"h
- Large Single Flap: 10"w x 19"h
- Extra Large Single Flap: 12"w x 23"h
Flap Dimensions:
Single Flap: 6"w x 11"h
The entry way your dog goes through.Outside Frame Dimensions
10 1/8"w x 16 3/4"h
The outer edge of the pet door.
Rough Cut Out:
9 1/4"w x 15 1/8"h
The size of the hole needed to fit your pet door into your wall.Flap Dimensions:
Single Flap: 8"w x 15"h
The entry way your dog goes through.Outside Frame Dimensions
12 1/8"w x 20 13/16"h
The outer edge of the pet door.
Rough Cut Out:
11 5/16"w x 19 3/16"h
The size of the hole needed to fit your pet door into your wall.Flap Dimensions:
Single Flap: 10"w x 19"h
The entry way your dog goes through.Outside Frame Dimensions
14 3/16"w x 24 13/16"h
The outer edge of the pet door.
Rough Cut Out:
13 3/8"w x 23 3/16"h
The size of the hole needed to fit your pet door into your wall.Flap Dimensions:
Single Flap: 12"w x 23"h
The entry way your dog goes through.Outside Frame Dimensions
16 1/4"w x 28 7/8"h
The outer edge of the pet door.
Rough Cut Out:
15 1/2"w x 27 3/16"h
The size of the hole needed to fit your pet door into your wall.Flap Size | Flap Dimension | Rough Cut Out | Outside Frame Dimension | Recommended Pet Height |
|---|---|---|---|---|
Small | 6" w x 11" h | 9 -1 ⁄ 4" w x 15-1 ⁄ 8" h | 10-1 ⁄ 8" w x 16-3 ⁄ 4" h | 9" - 16" |
Medium | 8" w x 15" h | 11-5 ⁄ 16" w x 19-3 ⁄ 16" h | 12-1 ⁄ 8" w x 20-13 ⁄ 16" h | 9" - 22" |
Large | 10" w x 19" h | 13-3 ⁄ 8" w x 23-3 ⁄ 16" h | 14-3 ⁄ 16" w x 24-13 ⁄ 16" h | 9" - 28" |
Extra Large | 12" w x 23" h | 15-1 ⁄ 2" w x 27-3 ⁄ 16" h | 16-1 ⁄ 4" w x 28-7 ⁄ 8" h | 9" - 36" |
1 - Single Flap: Flap on the inside of the wall (same side as locking cover).
Find The Best Pet Door Size For My Pet
A
Pet Height: inches
B
Pet Width: inches
Installation Instructions
Click to view the Single Flap Door Mount (1-1/8" to 1-3/4" thick) Instructions.
Printable Version
Difficulty
Steps
Time Required
Sections
Flags
Parts
- 1 Installation Template
- Short Screws (1")
- Medium Screws (1-1/4")
- Long Screws (1-1/2")
- 4 Screw Covers
- 1 Installation Magnet
- 1 Flap Frame
- 1 Trim Frame
- 1 Tube of Silicone
- 1 Locking Cover
Tools
- Pencil
- Drill with 3/8" (9,5 mm) drill bit
- Level
- Measuring Tape
- Jigsaw or Reciprocating Saw
Please read instructions & notes thoroughly before installation.
Single Flap Door Mount
Step 1 Prep Your Door
- If possible, remove the door from its hinges using a screwdriver and hammer to tap out the hinge pins. Lay the door flap for installation. Tape the provided template to the door. The top edge of the cut-out line should be at least 3” (7,6 cm) above the pet's shoulders.
Step 2 Drill the Holes
- Once you are certain the pet door will work with your door, make sure the template is level, and mark the outline with a pencil. Remove the template and drill holes through the corners just inside of the lines using a ⅜” (9,5 mm) drill bit.
Step 3 Saw An Opening
- Using a jigsaw, cut along the marked lines, making sure to cut straight.
Step 4 Check Weatherstripping
- Ensure the weatherstripping is firmly pressed in the groove on both frames. Weatherstripping indicated in red.
Step 5 Position the Frames
- Place the trim frame on the outside of the door and the flap frame on the inside.
Step 6 Position Screws
- Select appropriate screws and insert them into the pet door from the inside.
| Door Thickness | Screw Length |
|---|---|
| 1/2" to 3/4" | Short Screws (1") |
| 3/4" to 1" | Medium Screws (1-1/4") |
| 1" to 1-1/8" | Long Screws (1-1/2") |
Step 7 Screw Door Into Place
- Once the pet door is leveled, tighten the screws so that the weatherstripping compresses.
Step 8 Attach Screw Covers
- Push the four screw covers in by hand to cover the screws.
Step 9 Seal With Silicone
- Apply silicone where the two frames meet. Also apply silicone where the outside frame meets the door.
FAQ
Warranty
Endura Flap products have a lifetime warranty against defects in materials and workmanship under standard regular use. Endura Flap® Pet Doors Are 100% Designed, Engineered, and Manufactured in the USA. They are handmade for quality work in San Luis Obispo, California.
We will replace any defective parts at no cost to you. Defective parts may include incorrectly sized flaps, bent or dented frames, or improperly fitted parts.
Customers living outside of the continental United States are responsible for shipping costs as well as duties and taxes (if applicable) for any replacement parts or services covered under the warranty policy regardless of the replacement part or service's original cost.
Important Note:
Endura Flap® pet doors have a lifetime warranty for normal wear & tear and manufacturing defects (dog-chewing is not covered).
Damage caused by not using the product as intended, improper installation, and chewing is not covered under this warranty.Endura Flap Pet Doors used in a commercial application like a Kennel or Boarding facility have a three year warranty.
