  • Endura Flap Vinyl Sliding Glass Cat Door designed for harsh weather and vinyl sliding glass doors
  • Easy DIY installation in channel-style tracks 1-1/2" to 1-3/4" thick
  • 3/16" clear safety glass which is 59% thicker than the standard for enhanced durability and increased energy efficiency
  • Secure locking cover and C-Clamp lock for added security
  • Flap withstands winds up to 50mph and extreme temperatures from -40 to 110 degrees

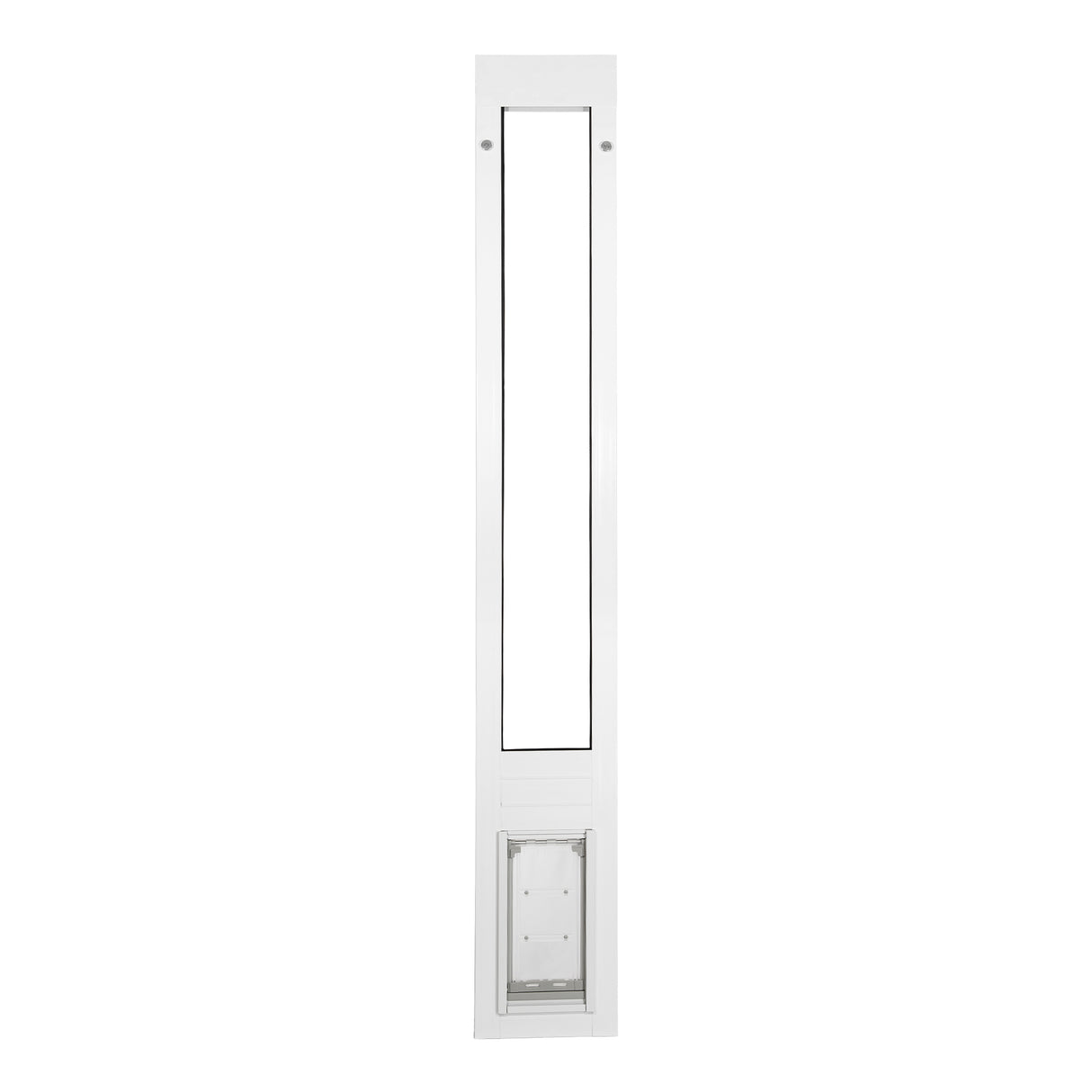

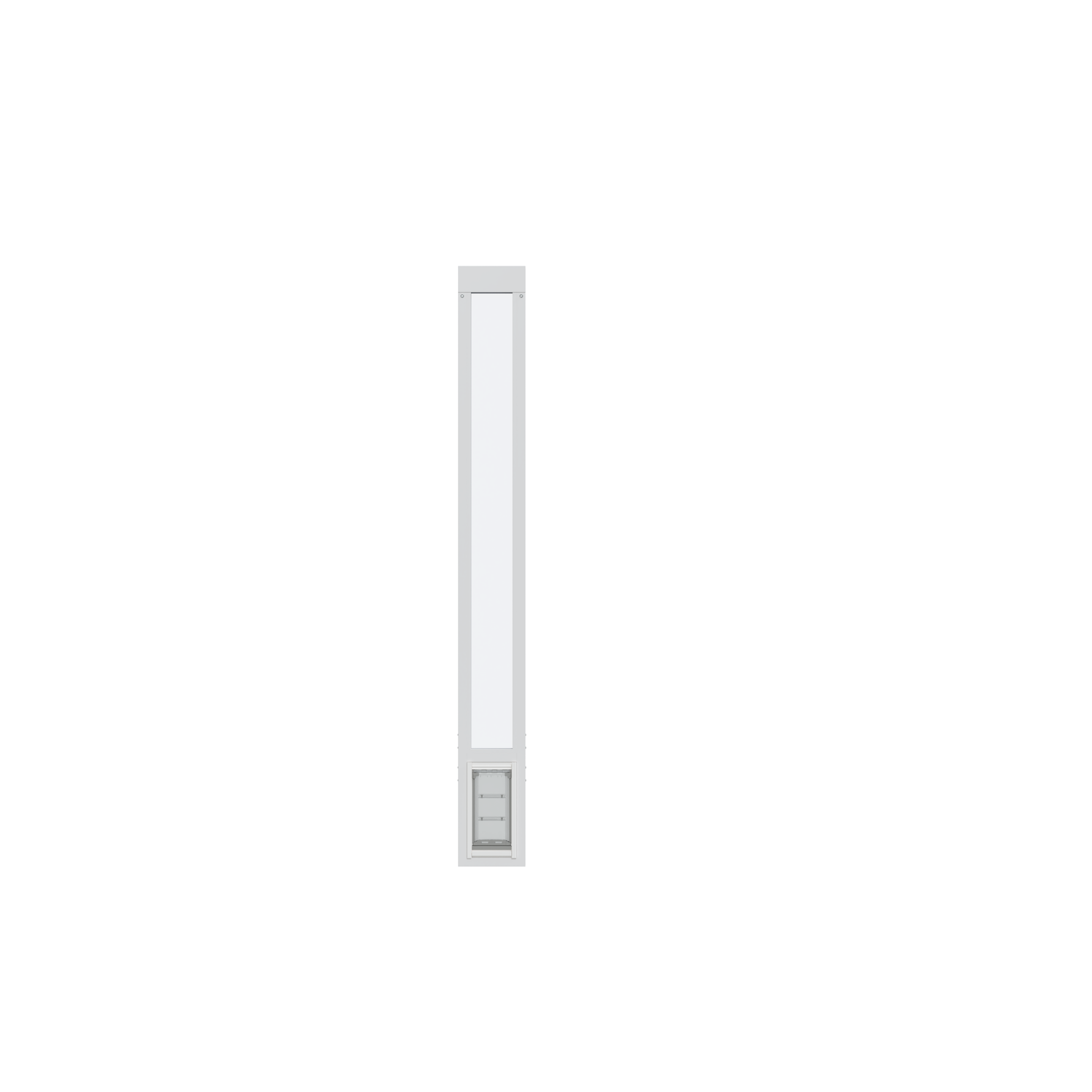

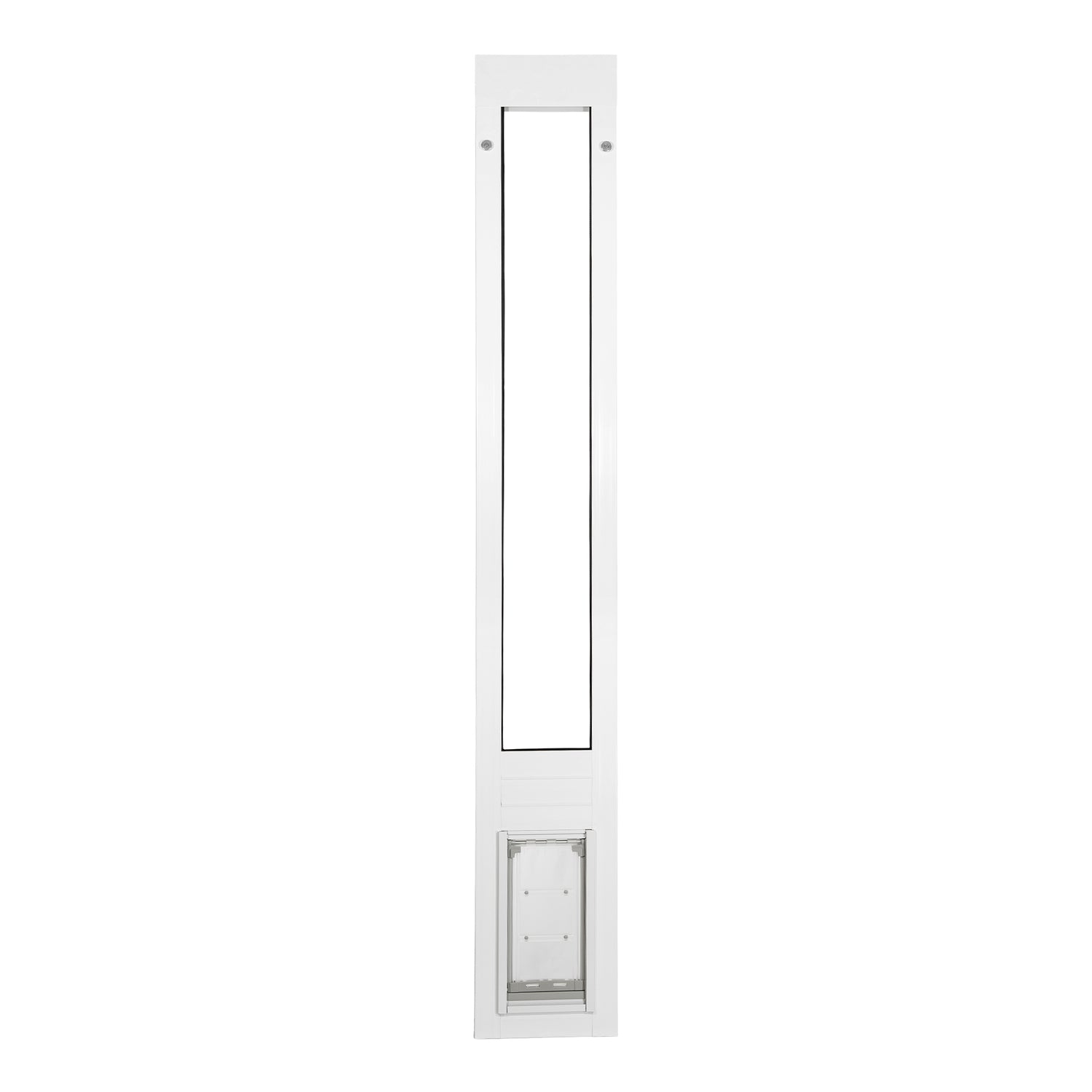

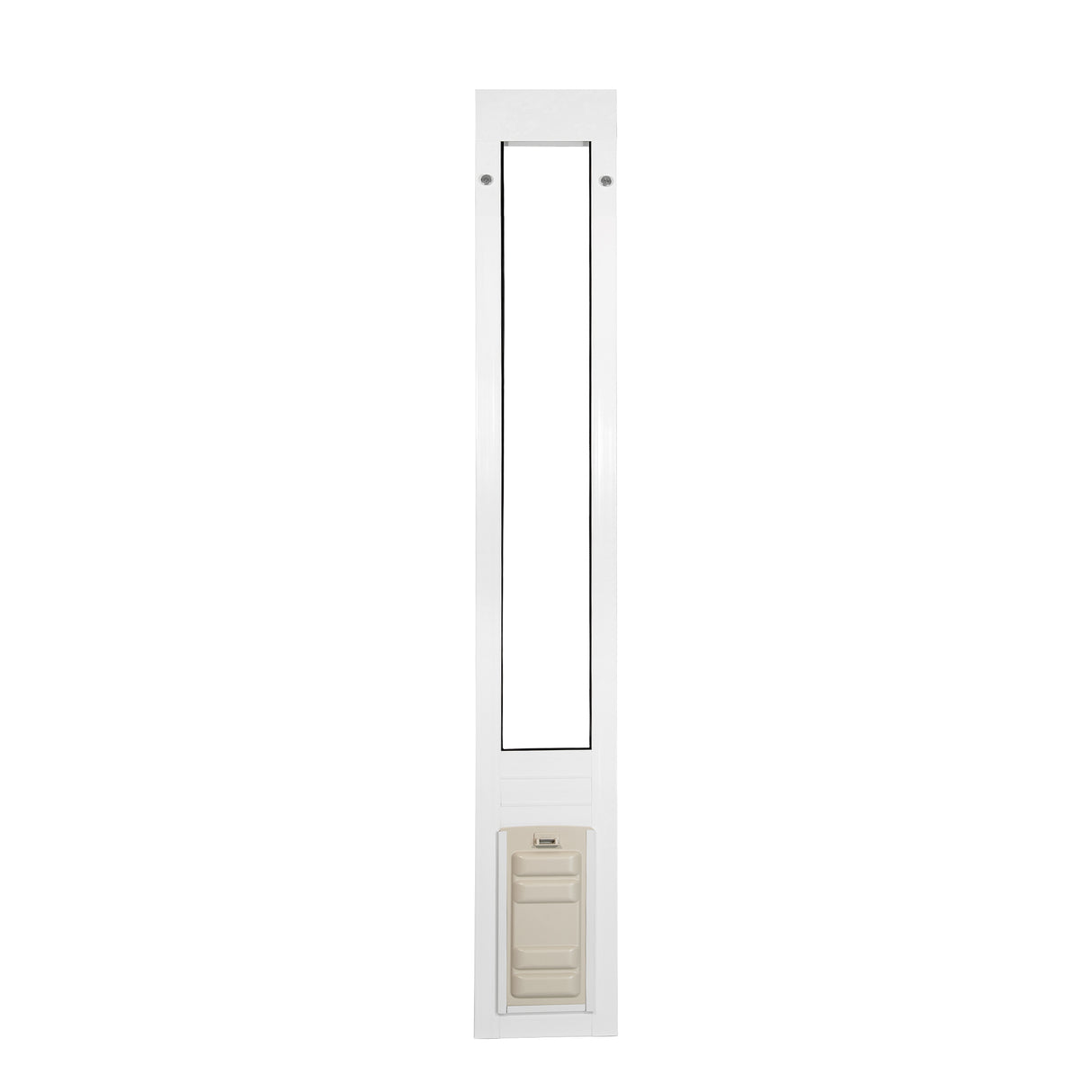

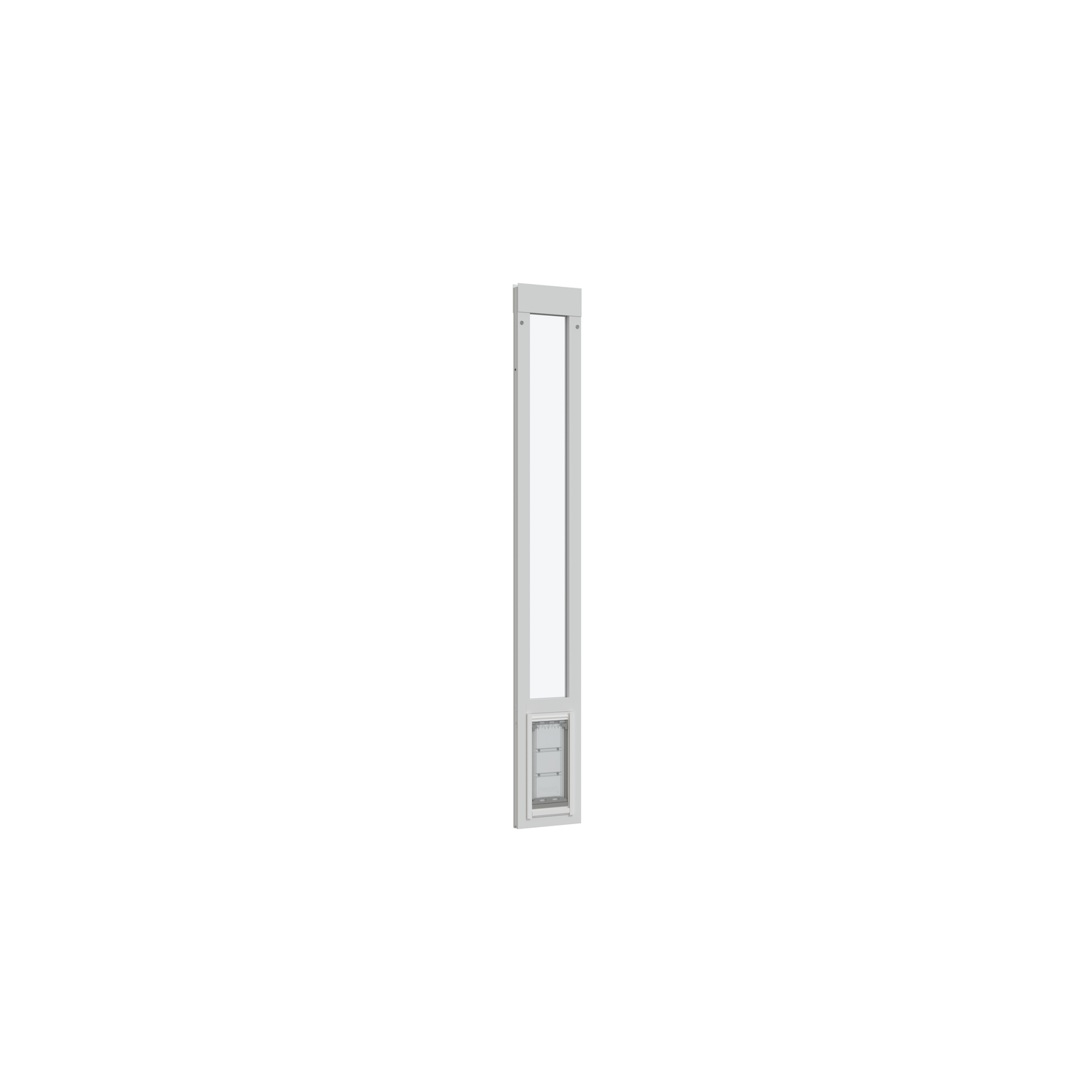

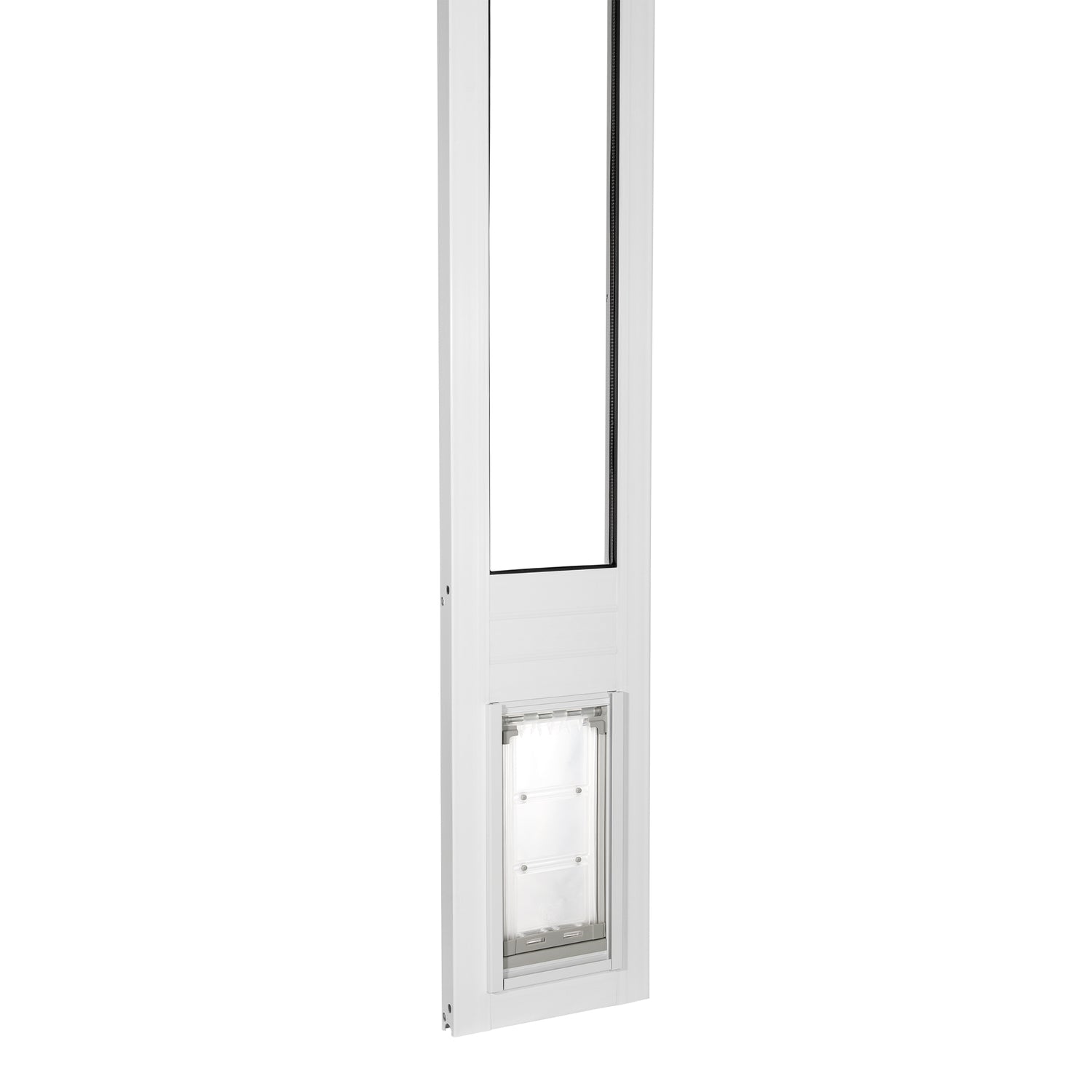

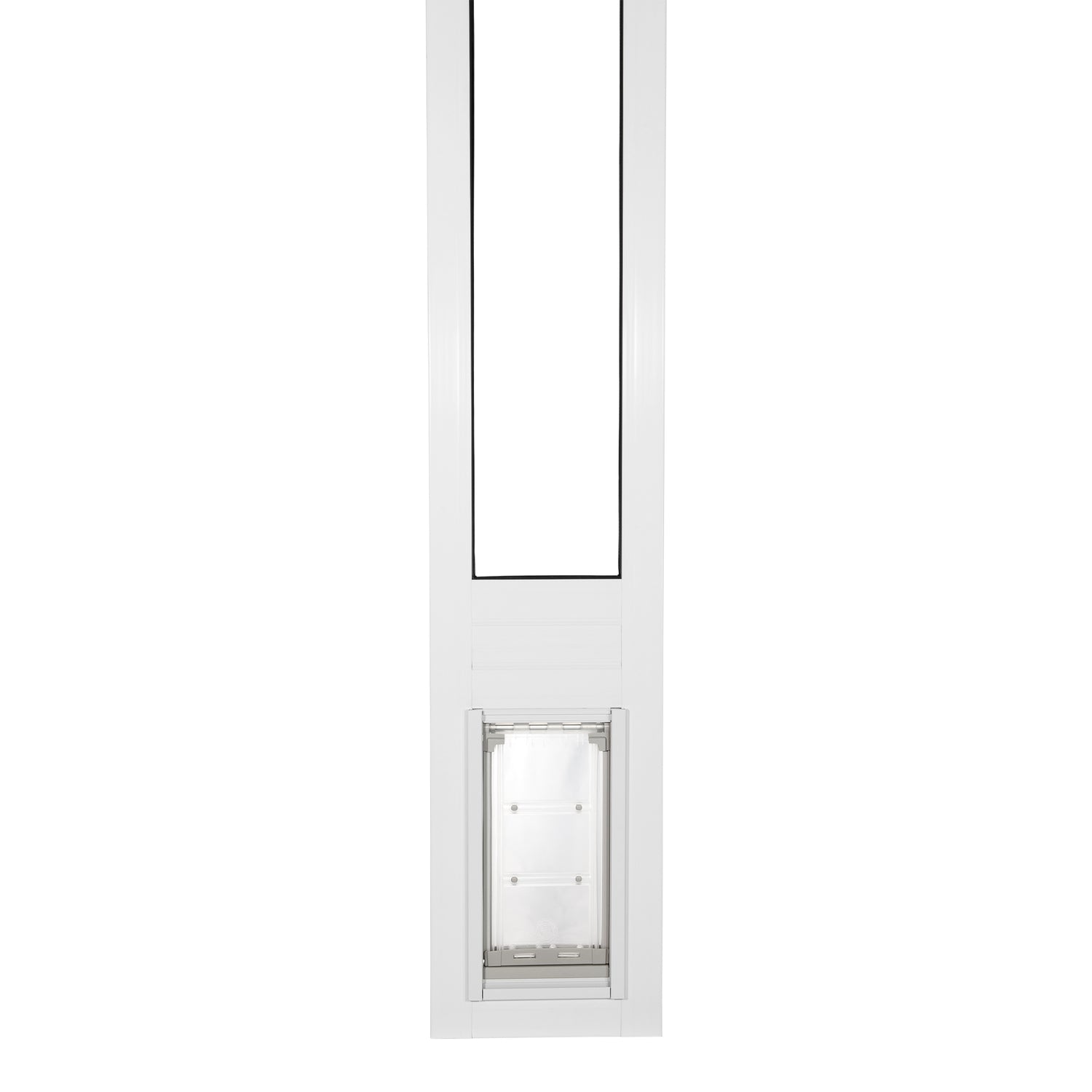

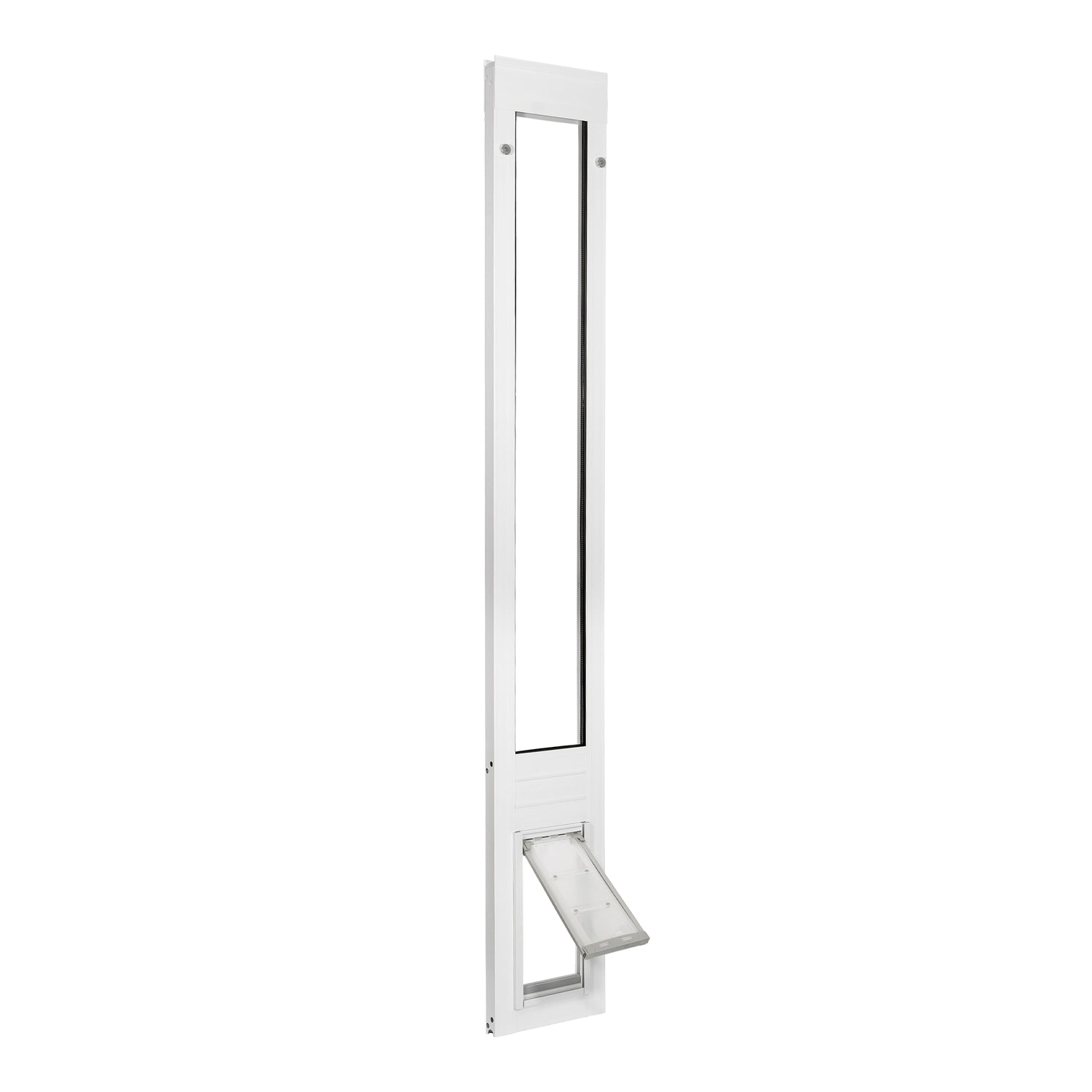

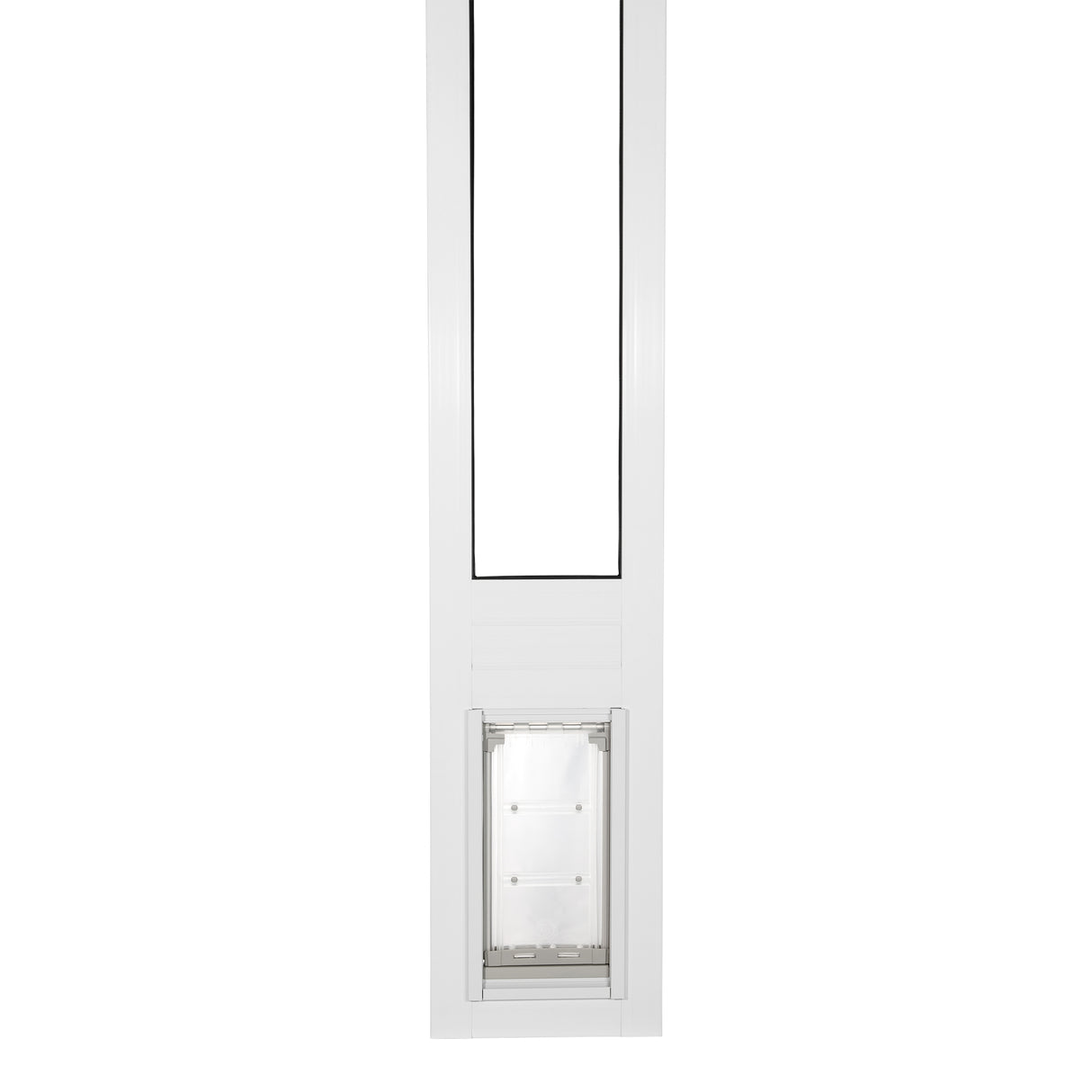

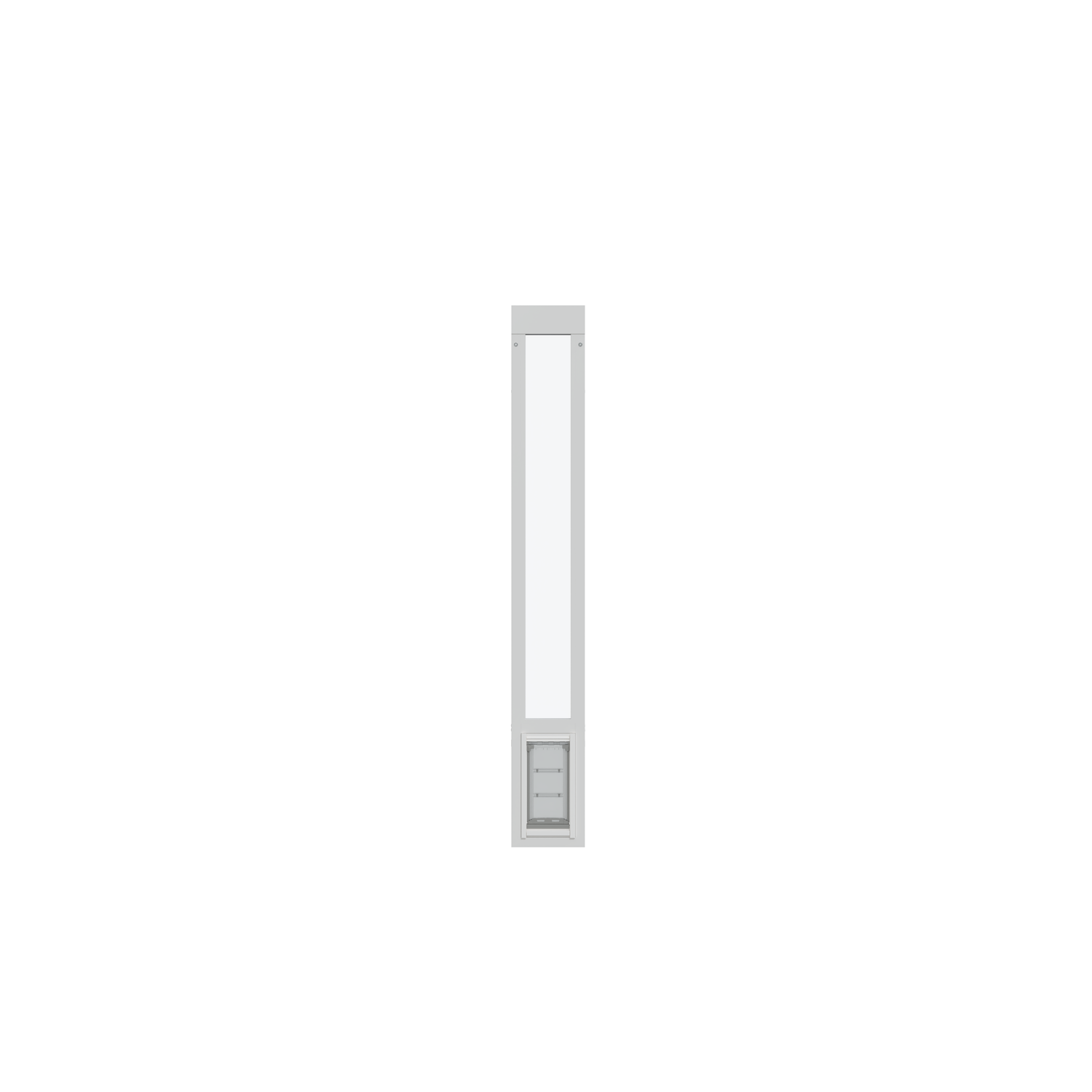

Endura Flap Vinyl Sliding Glass Cat Door

2 reviews
Made in the USA USA flag icon
Regular price $579.99 USD

Fast & Free Shipping in the USA.

Satisfaction Guarantee -

Lifetime Warranty

Flap Size
Height Adjustment Range


Questions

What's in the box?

  • Vinyl Panel Pet Door
  • Weatherstrip Seal Roll
  • Center Post Weather Seal Draft Stopper
  • Sliding Door C-Clamp Lock

Can an intruder remove a dog door for sliding glass doors from the outside?

No, the adjustment locks are on the inside of the panel, so once installed, the Endura Flap Panel cannot be lifted out and removed without first loosening the adjustment locks from inside the home.

Can I install it myself?

It is meant to easily be put in and removed. You just have to loosen the screws at the top, fit it into the track, and then tighten them. Then to remove it you simply loosen them again and pop it out.

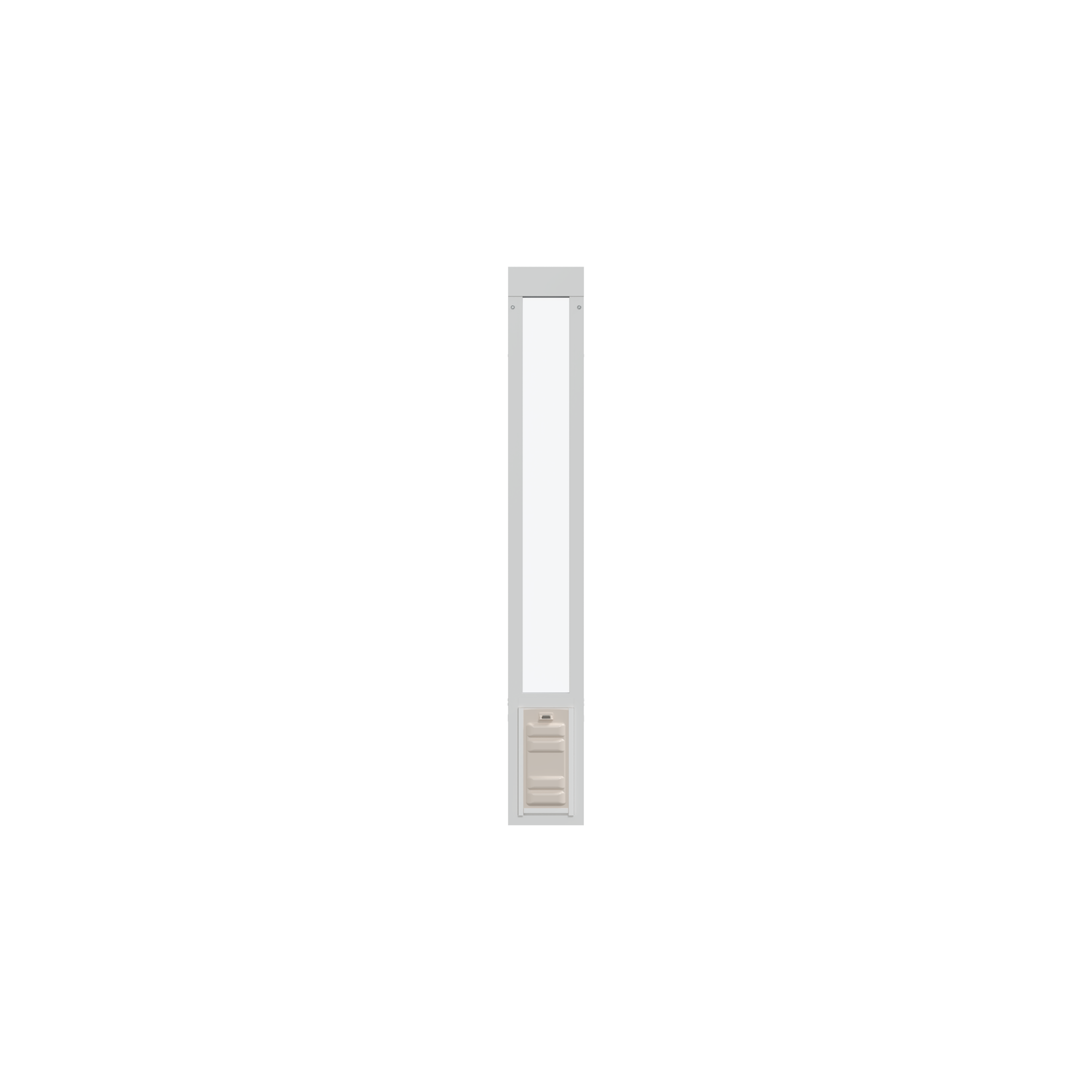

Can you lock the pet door?

It comes with a closing cover, and you slide that in on the inside of the house. It is a very secure ABS plastic material that is as strong as a 16 gauge steel.

Explore all questions
Product Details

Product Details

  • Designed specifically for vinyl sliding glass doors: This cat door panel seamlessly fits into channel-style tracks at least 1-1/2" thick (will not work with monorail tracks)
  • Durable and weather resistant: Engineered to withstand extreme heat and cold, making it perfect for severe weather climates
  • Simple DIY installation: The spring-loaded design allows for easy installation, perfect for any homeowner

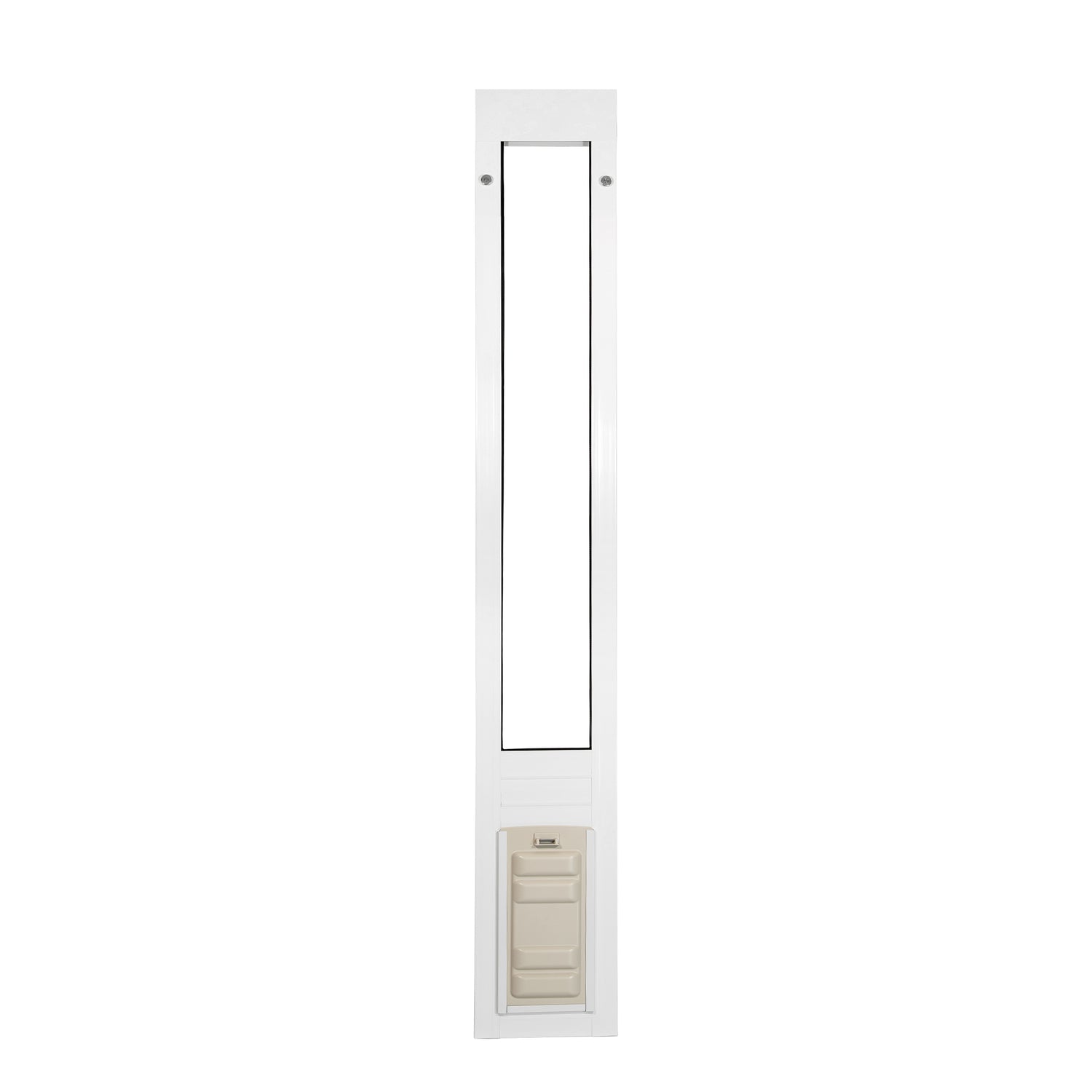

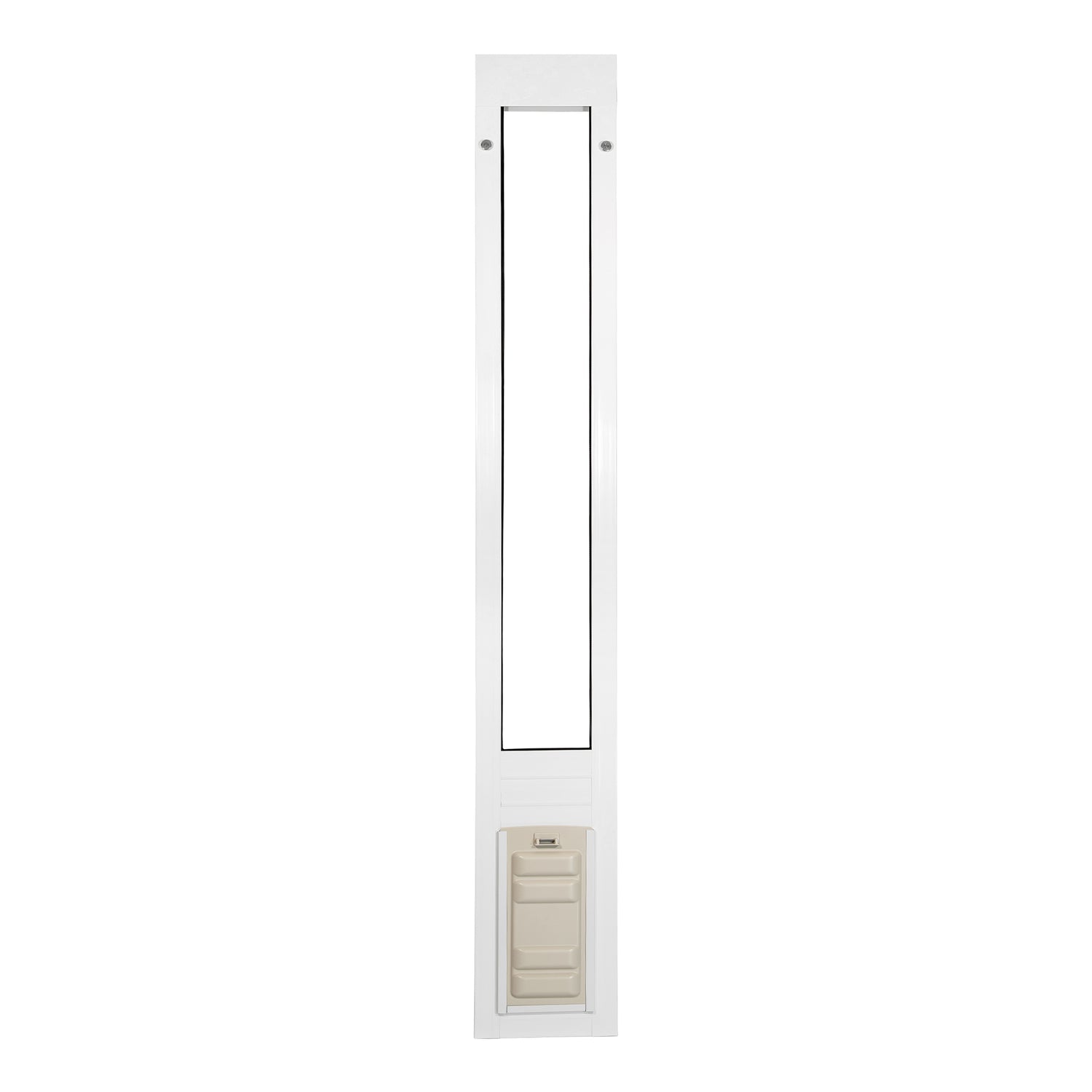

  • Secure and safe: Comes with a secure locking cover and C-Clamp lock to protect your home and control cat access when needed
  • Exceptional wind resistance: Flap lined with magnets on three sides, able to stay shut in winds up to 50mph

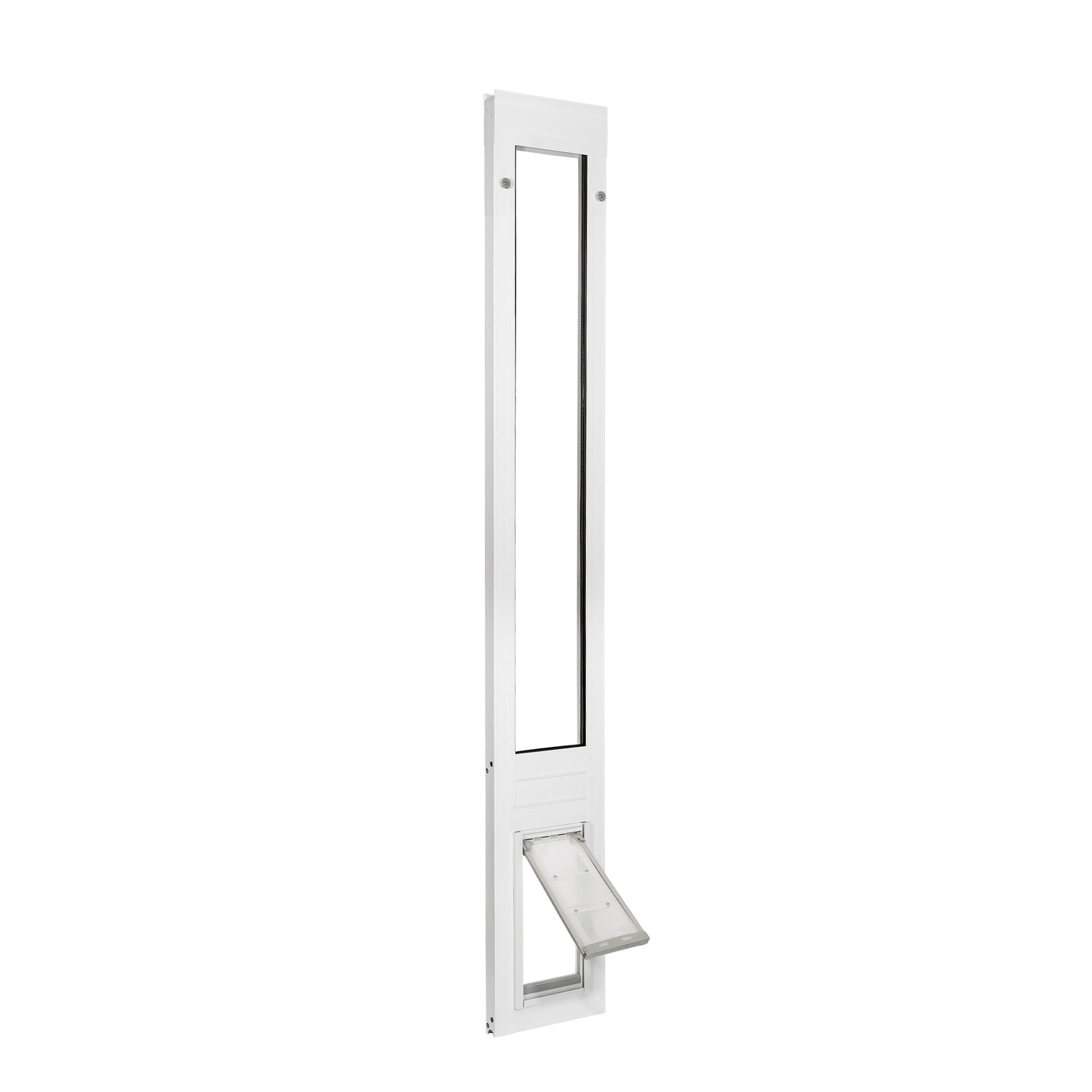

  • Flexible and durable flap: Rotates on a rod to prevent tearing, maintaining flexibility in extreme temperatures
  • Customizable height: The panel can be trimmed up to 5/16" from the top if needed for a perfect fit
  • Paintable vinyl frame: Although available only in white, the vinyl frame can be painted to match your home's color scheme
  • Suitable for various pet sizes: Ideal for cats, large cats, small dogs, medium dogs, large dogs, and X-Large dogs
  • Insulates well: This cat door panel keeps your home protected from the elements while providing freedom for your pet
  • Aesthetic appeal: The Endura Flap Vinyl Sliding Glass Cat Door adds a touch of elegance to your home while serving its practical purpose
  • High-quality construction: This door is built to last, ensuring durability and reliability for years to come
  • Enjoy peace of mind: The thumbscrews are on the inside, preventing intruders from loosening them from the outside
  • Easy for pets to use: The flap is slightly foggy but still see-through, making it easy for pets to adapt and utilize the door

Need help installing? Check out our Vinyl Sliding Glass Door Installation page.

Sizing & Fit

Size Chart

Flap Dimensions:

6"w x 11"h

The entry way your dog goes through.

Overall Panel Width

10 3/8"

How wide your panel is.
flap dimensions
epanel width
step over height

Step-Over Height

4”

The distance from the bottom of the panel to the bottom of your flap.
Flap SizeFlap DimensionStep Over HeightOverall Panel WidthStock NORecommended Pet Height
Small6" w x 11" h4"10 3/8"01PPV069" - 15"

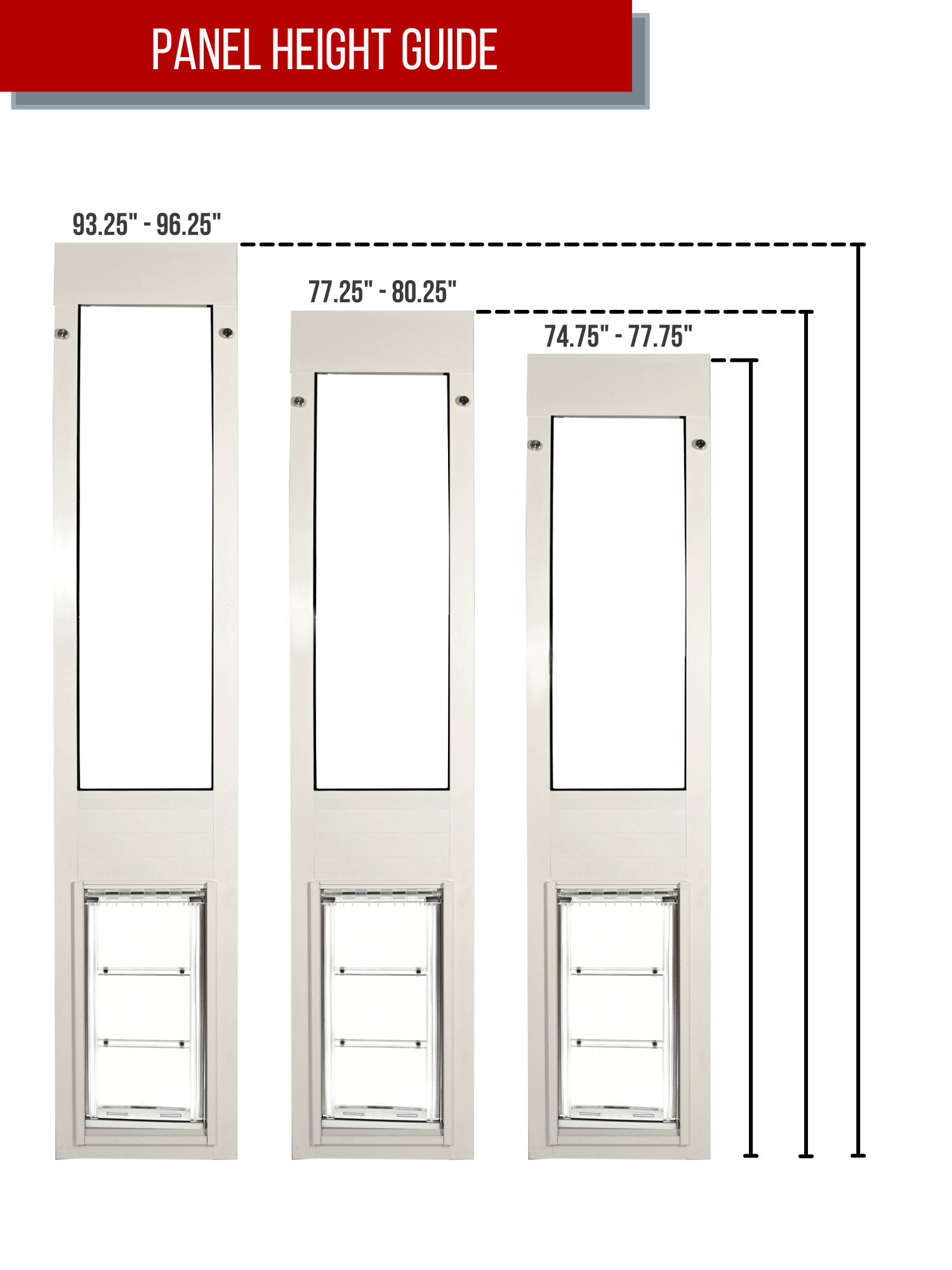

Height Options:

  • Short: 74 ¾" - 77 ¾"
  • Regular: 77 ¼" - 80 ¼"
  • Tall: 93  ¼" - 96  ¼""



Step-Over is non-adjustable for all vinyl Endura Flap panels. Wondering how to measure your track? Review our Track Measuring Guide.

Installation Guide

Installation Information

One-Piece Panel

Installation icon Printable Version
Installation icon Difficulty Easy
Installation icon Steps 5
Installation icon Time Required 0.5 hours

Parts

  • Vinyl Panel Pet Door
  • Weatherstrip Seal Roll
  • Center Post Weather Seal Draft Stopper
  • Sliding Door C-Clamp Lock

Tools

  • Flathead Screwdriver

Please read instructions & notes thoroughly before installation.

Step 1 Loosen Height Adjustment Locks

Loosen Height Adjustment Locks
  • Loosen the height adjustment locks at the top of the pet panel with the screwdriver. This allows the spring mechanism to move freely up and down.

Step 2 Test Fit the Panel in Your Track

Test Fit the Panel in Your Track
  • You want to put the pet door in your track before applying any weather stripping to ensure it fits. If the panel fits well, proceed to the next step. See the Troubleshooting Section if you encounter difficulties.
  • To insert the panel into the top track, push up against the spring mechanism and swing the bottom of the panel up and over the threshold.
  • Seat the panel on top of the small guide rail in the track.
  • If you can't quite get it in the track, try swinging in from the outside as the outside track wall may be shorter.

Step 3 Apply Weatherstripping

Apply Weatherstripping
Apply Weatherstripping
Apply Weatherstripping
  • Once you're sure the panel fits, remove it from the frame and lay it on its side on the ground.
  • For foam weatherstripping: Peel the backing off the foam weatherstripping. Press it along both edges of the panel, trimming as needed with scissors to ensure a snug fit.
  • For rubber weatherstripping: Clean the edge of your sliding door or window with rubbing alcohol to help the weatherstripping stick properly. Starting at the top or bottom, peel and press the strip into place with the folded edge facing indoors—align angled cuts if you have two pieces. For best results, apply the seal to the sliding door or window, but it can go on the pet door panel if needed.
  • Foam weatherstripping is applied onto both sides of the panel, but the rubber weather stripping only applies on the side of the slider door. Your panel will come with one type of weather stripping. You do not need both types.

Step 4 Install the Draft Stopper

Install the Draft Stopper
Install the Draft Stopper
Install the Draft Stopper
  • The center post weather seal strip (draft stopper) should be installed on the inside of the home.
  • It can install on either the back edge of the sliding door panel or the leading edge of the stationary panel.
  • This strip prevents air from leaking between the sliding glass door and the stationary panel.
  • Trim with scissors as needed. Clean the edge of your patio door with rubbing alcohol before installing to assure a good seal.
  • Repeat step two to install the panel in your track.

Step 5 Install the Panel

Install the Panel
  • If you haven't already, insert the panel back into your sliding door track the same way you did earlier: pushing up against the spring mechanism and swinging the bottom into place. Push it snug into the side track!
  • Make sure everything is sitting securely.
  • Tighten the height adustment locks in the spring mechanism.
  • And that's it! Your pet door is installed and ready for use. Now, watch your pet strut through their new door like they own the place!

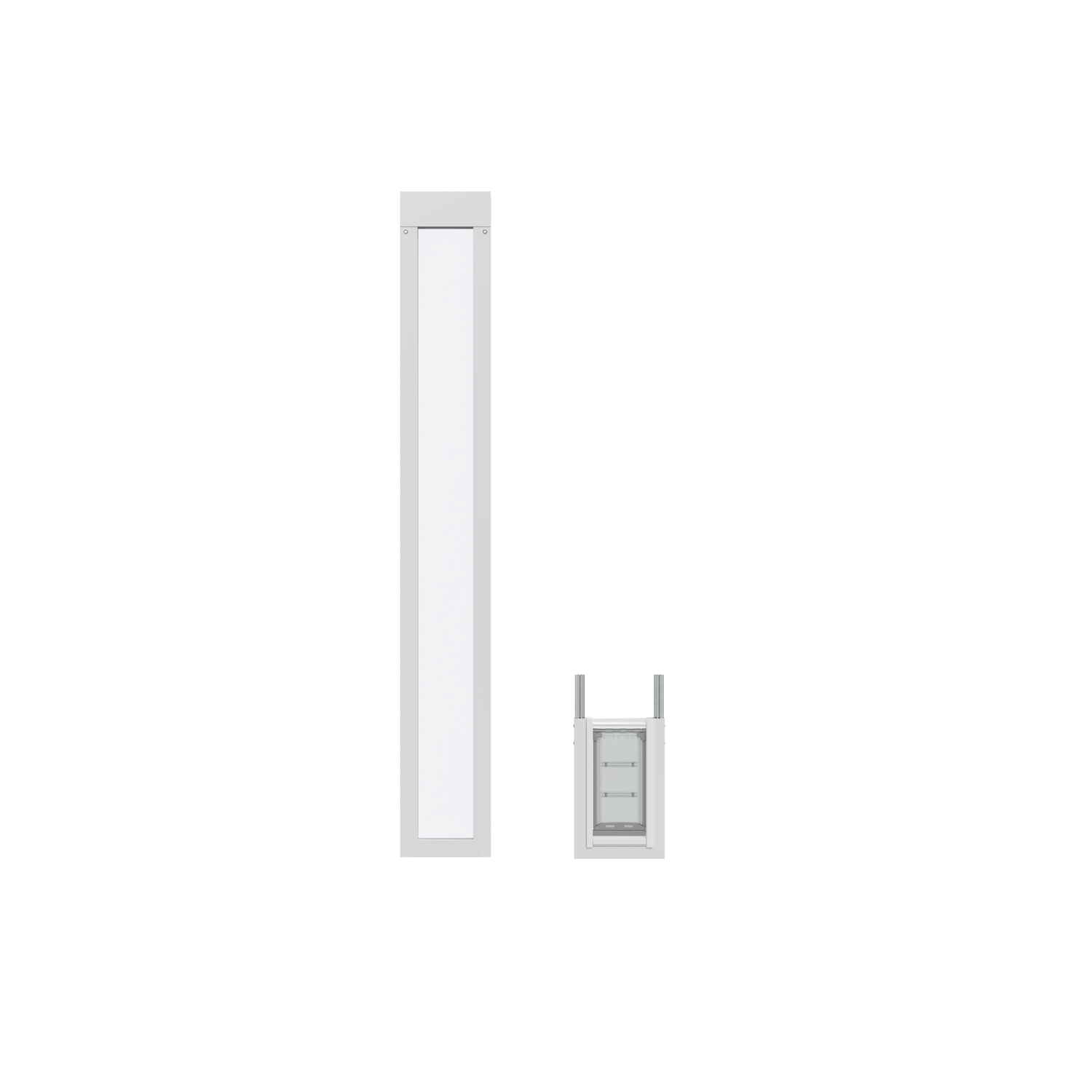

Two-Piece Panel

Installation icon Printable Version
Installation icon Difficulty Easy
Installation icon Steps 7
Installation icon Time Required 0.5 hours

Parts

  • Vinyl Panel Pet Door
  • Weatherstrip Seal Roll
  • Center Post Weather Seal Draft Stopper
  • Sliding Door C-Clamp Lock

Tools

  • Flathead Screwdriver

Please read instructions & notes thoroughly before installation.

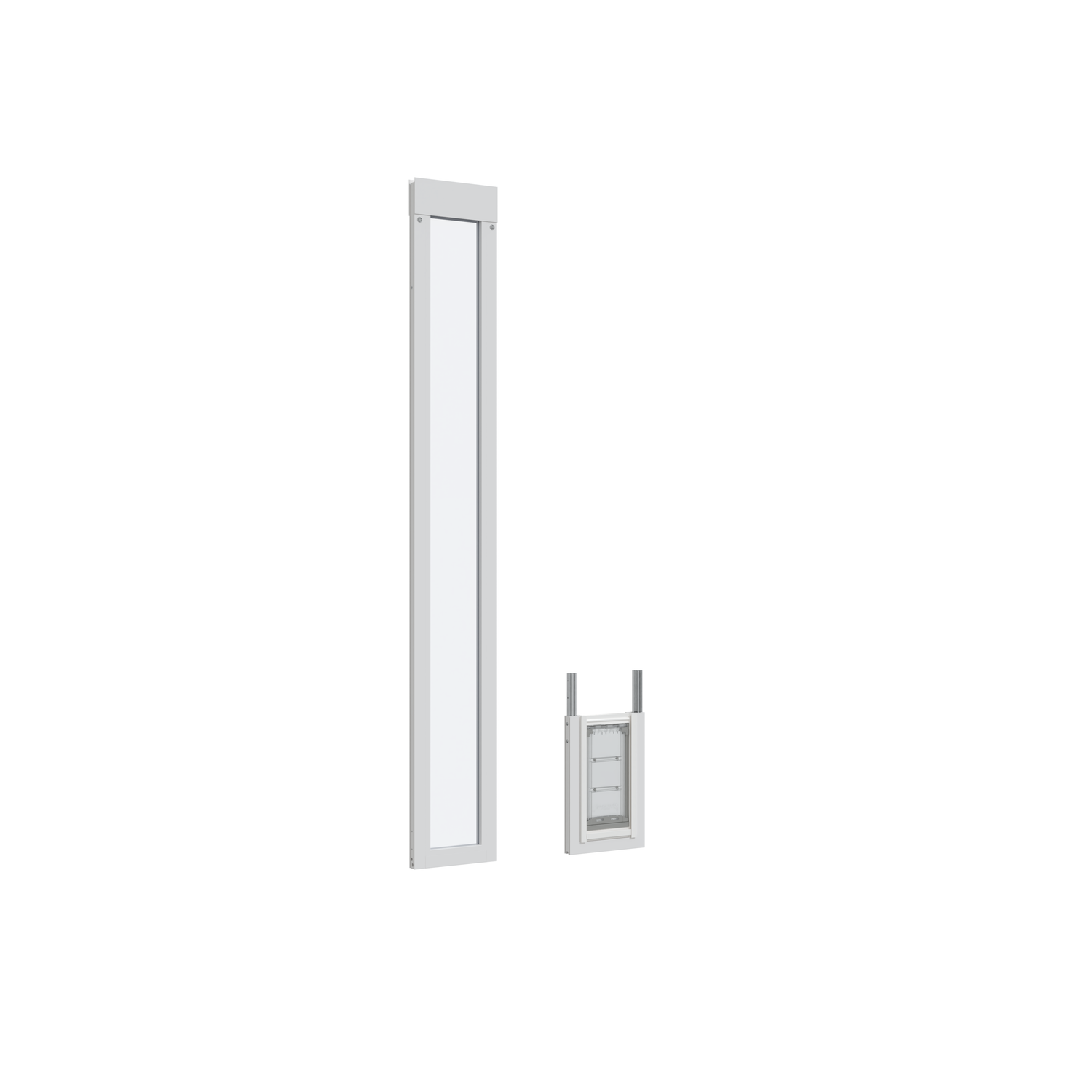

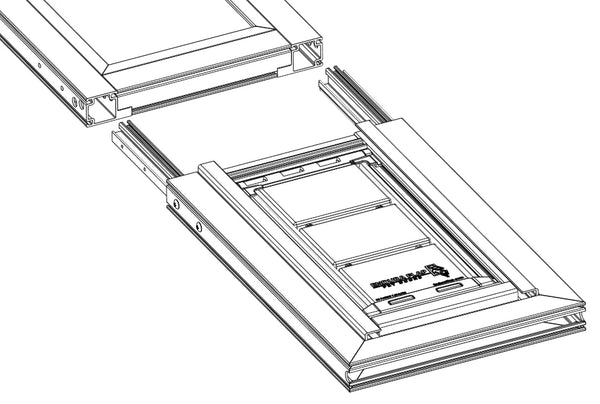

Step 1 Align the Connectors

Align the Connectors
  • Align the aluminum connectors extending from the bottom flap panel section with the top glass panel section. Remove the 4 sectional connectors screws before joining the sections.
  • Press the aluminum connectors into the holes at the bottom of the top glass panel section.
  • Ensure locking cover & height adjustment locks are on the same side!

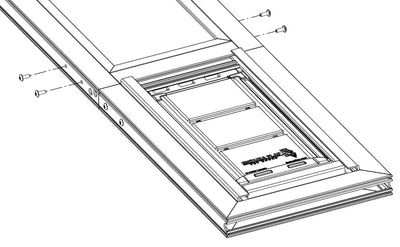

Step 2 Assemble the Panel

Assemble the Panel
Assemble the Panel
Assemble the Panel
  • To fully seat the connectors, gently tap the bottom edge of the panel against the ground
  • Tip: Place a towel or soft surface underneath to protect your floor, and the panel!
  • Fasten the two panels together using the four sectional connector screws.

Step 3 Loosen Height Adjustment Locks

Loosen Height Adjustment Locks
  • Loosen the height adjustment locks at the top of the pet panel with the screwdriver. This allows the spring mechanism to move freely up and down.

Step 4 Test Fit the Panel in Your Track

Test Fit the Panel in Your Track
  • You want to put the pet door in your track before applying any weather stripping to ensure it fits. If the panel fits well, proceed to the next step. See the Troubleshooting Section if you encounter difficulties.
  • To insert the panel into the top track, push up against the spring mechanism and swing the bottom of the panel up and over the threshold.
  • Seat the panel on top of the small guide rail in the track.
  • If you can't quite get it in the track, try swinging in from the outside as the outside track wall may be shorter.

Step 5 Apply Weatherstripping

Apply Weatherstripping
Apply Weatherstripping
Apply Weatherstripping
  • Once you're sure the panel fits, remove it from the frame and lay it on its side on the ground.
  • For foam weatherstripping: Peel the backing off the foam weatherstripping. Press it along both edges of the panel, trimming as needed with scissors to ensure a snug fit.
  • For rubber weatherstripping: Clean the edge of your sliding door or window with rubbing alcohol to help the weatherstripping stick properly. Starting at the top or bottom, peel and press the strip into place with the folded edge facing indoors—align angled cuts if you have two pieces. For best results, apply the seal to the sliding door or window, but it can go on the pet door panel if needed.
  • Foam weatherstripping is applied onto both sides of the panel, but the rubber weather stripping only applies on the side of the slider door. Your panel will come with one type of weather stripping. You do not need both types.

Step 6 Install the Draft Stopper

Install the Draft Stopper
Install the Draft Stopper
Install the Draft Stopper
  • The center post weather seal strip (draft stopper) should be installed on the inside of the home.
  • It can install on either the back edge of the sliding door panel or the leading edge of the stationary panel.
  • This strip prevents air from leaking between the sliding glass door and the stationary panel.
  • Trim with scissors as needed. Clean the edge of your patio door with rubbing alcohol before installing to assure a good seal.
  • Repeat step two to install the panel in your track.

Step 7 Install the Panel

Install the Panel
  • If you haven't already, insert the panel back into your sliding door track the same way you did earlier: pushing up against the spring mechanism and swinging the bottom into place. Push it snug into the side track!
  • Make sure everything is sitting securely.
  • Tighten the height adustment locks in the spring mechanism.
  • And that's it! Your pet door is installed and ready for use. Now, watch your pet strut through their new door like they own the place!
