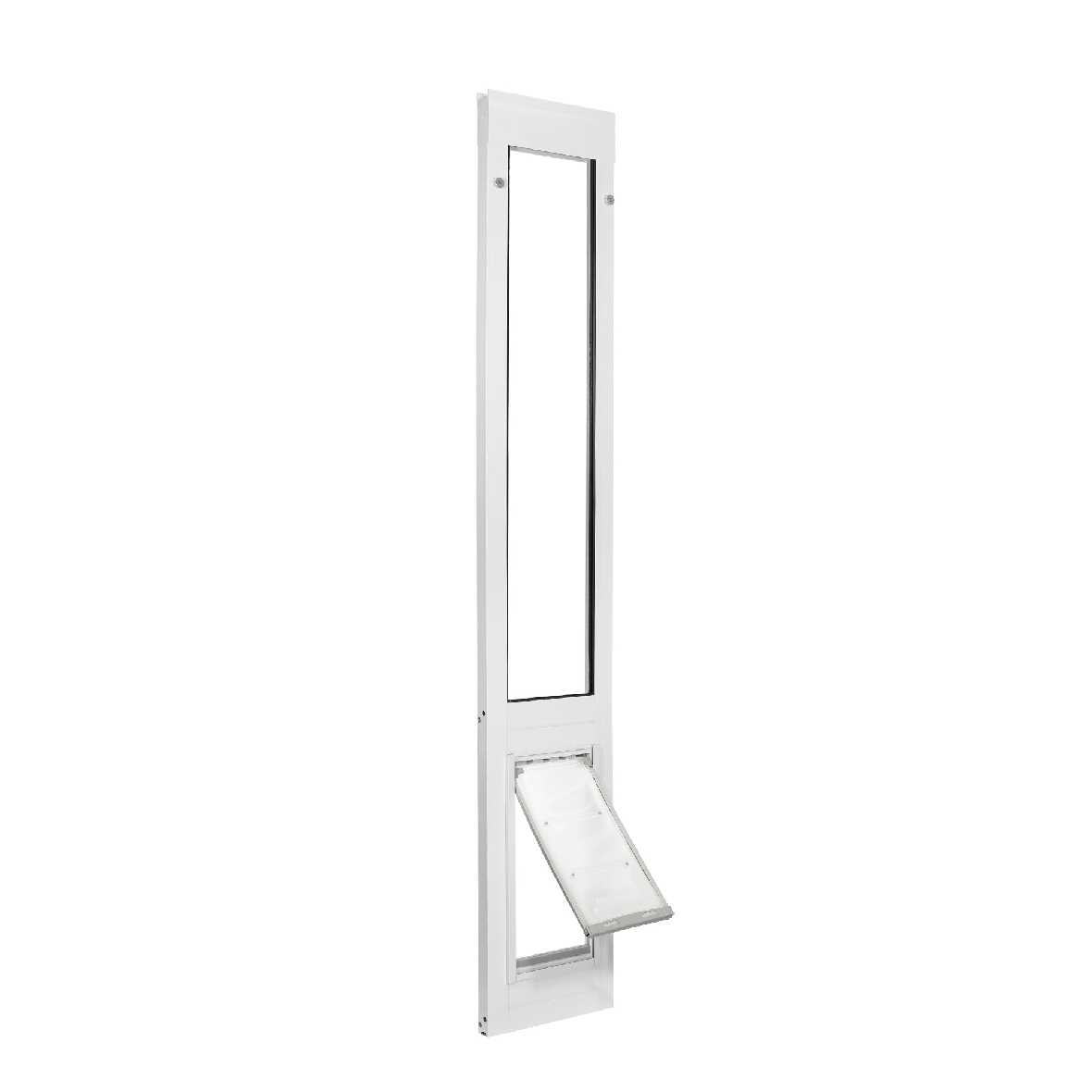

Features a flexible Endura Flap with three sided magnetic seal, which will keep your home feeling more comfortable by reducing drafts and air exchange compared to typical patio inserts

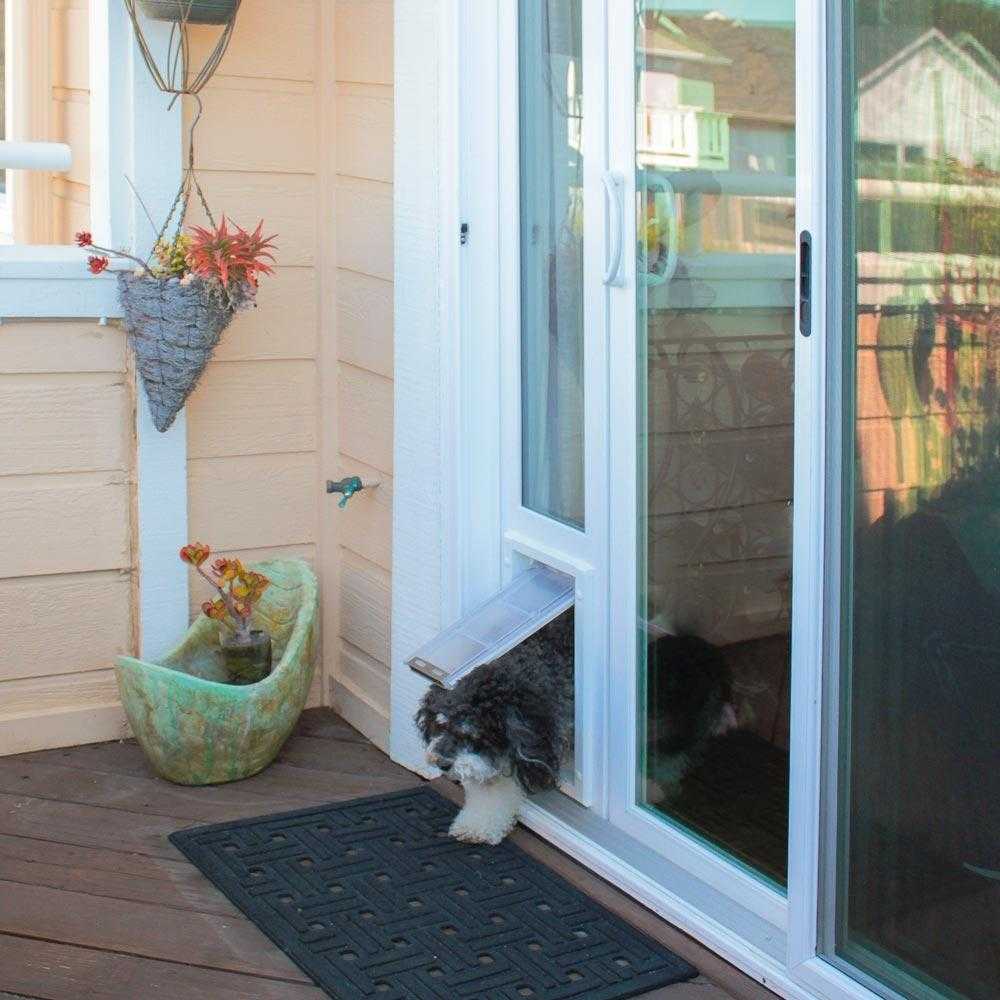

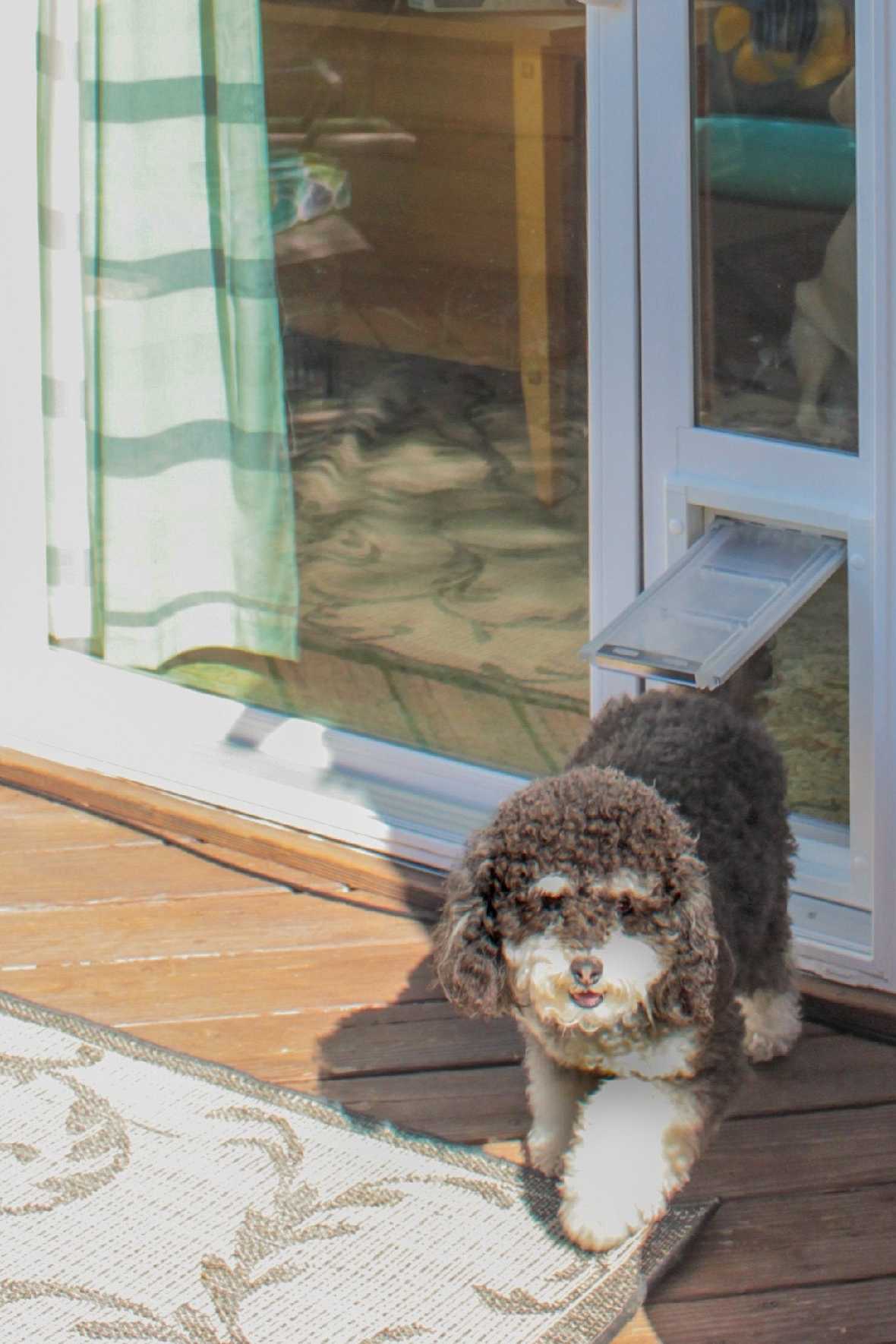

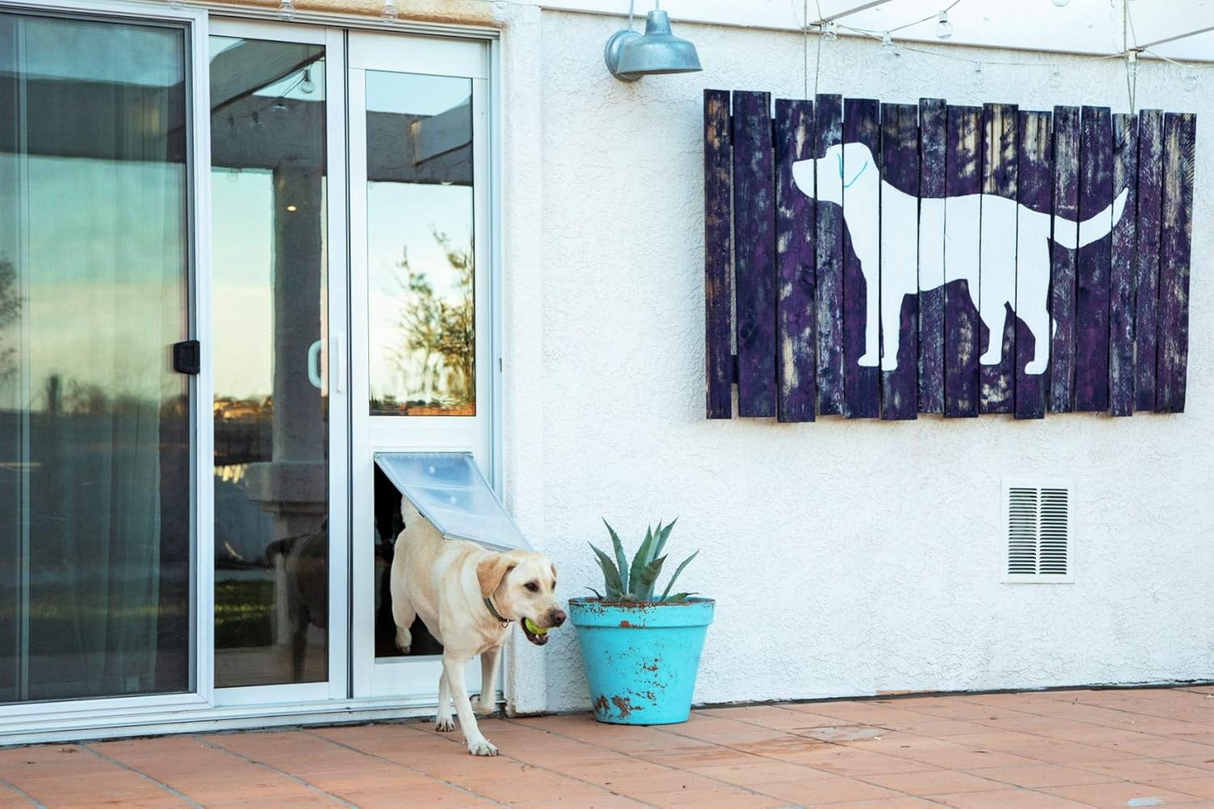

Gives pets a comfortable everyday path in and out through the patio door without leaving the slider open
Blends into vinyl sliding doors with a clean white frame and clear safety glass for a more integrated look
Installs and removes more easily for rentals and seasonal use with a spring loaded panel design

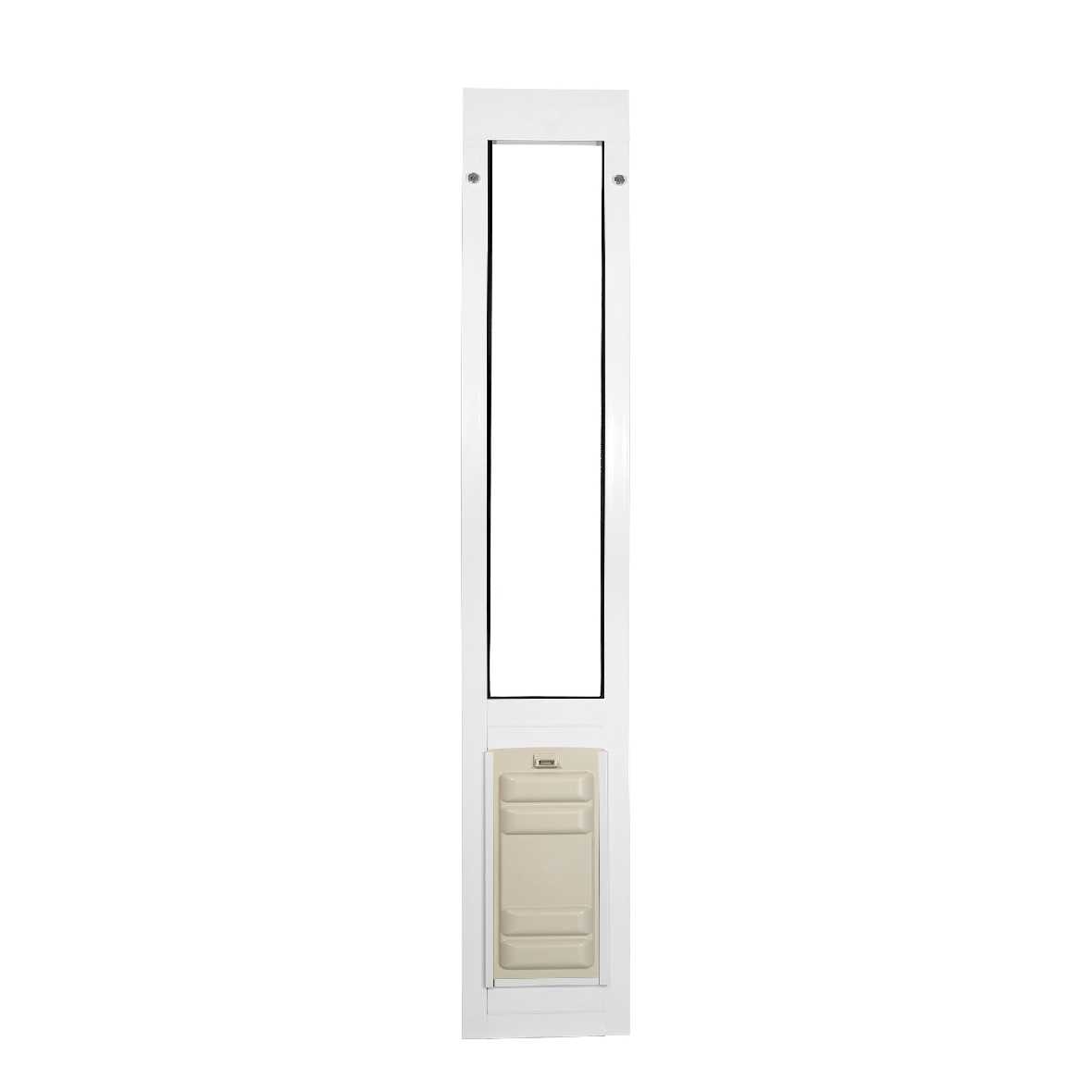

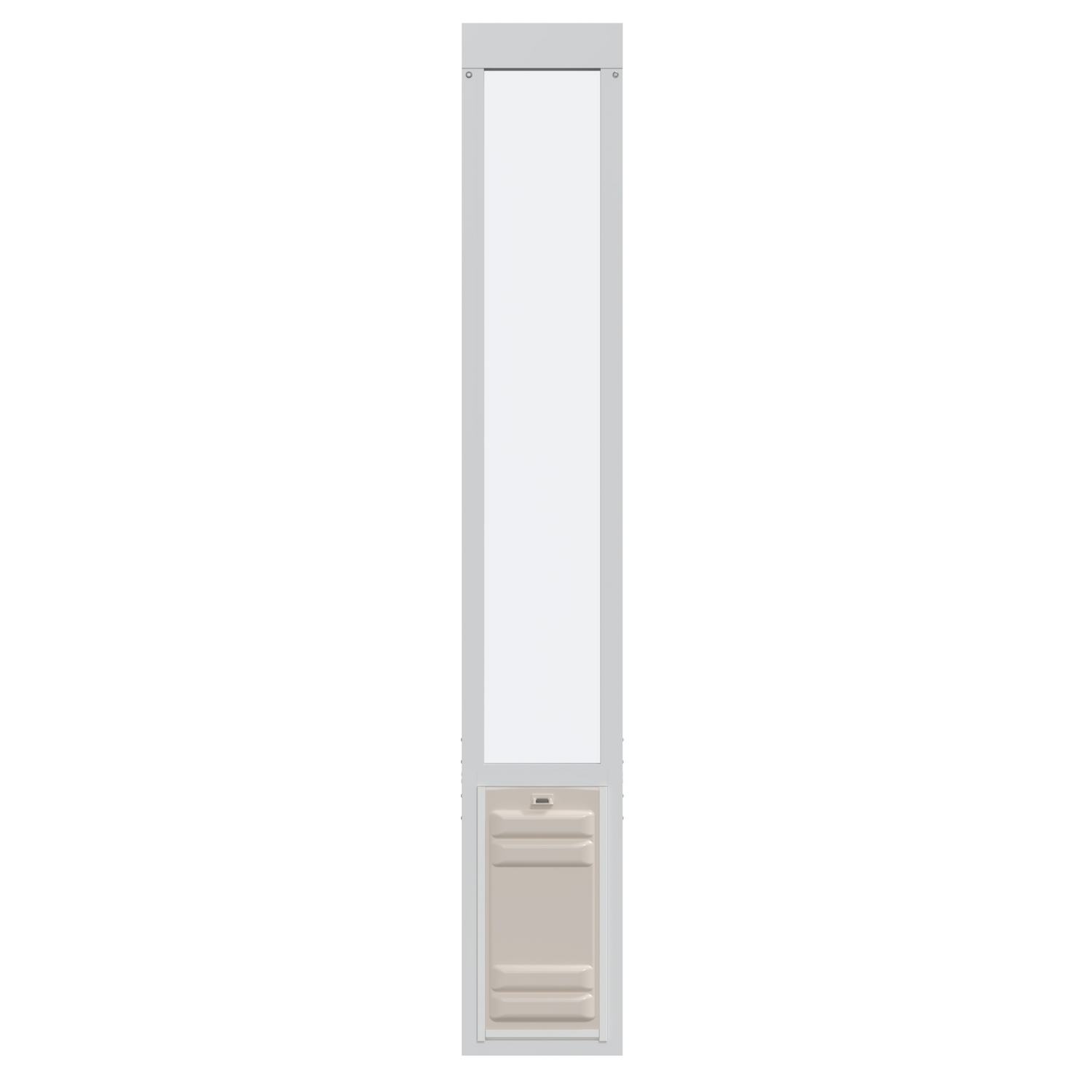

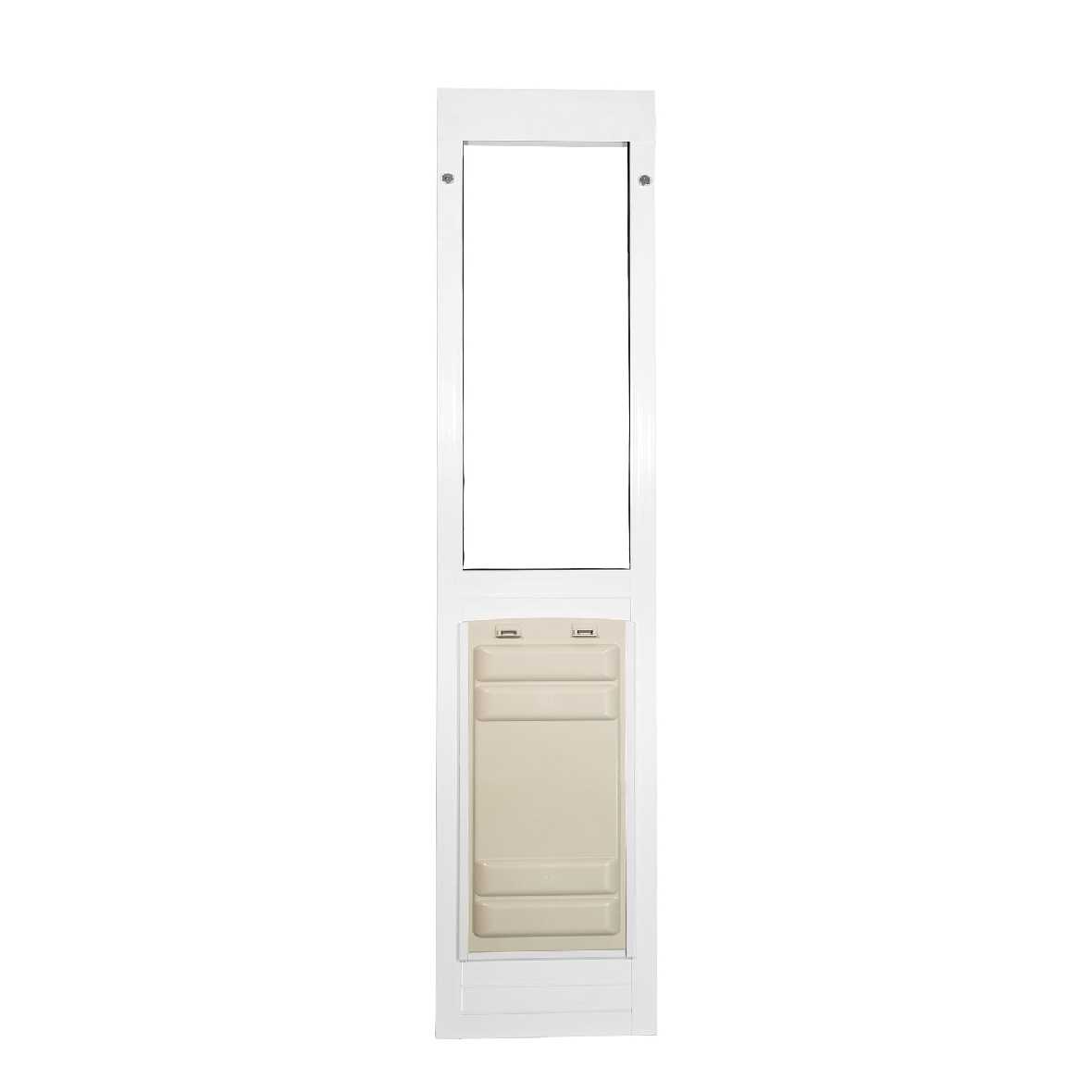

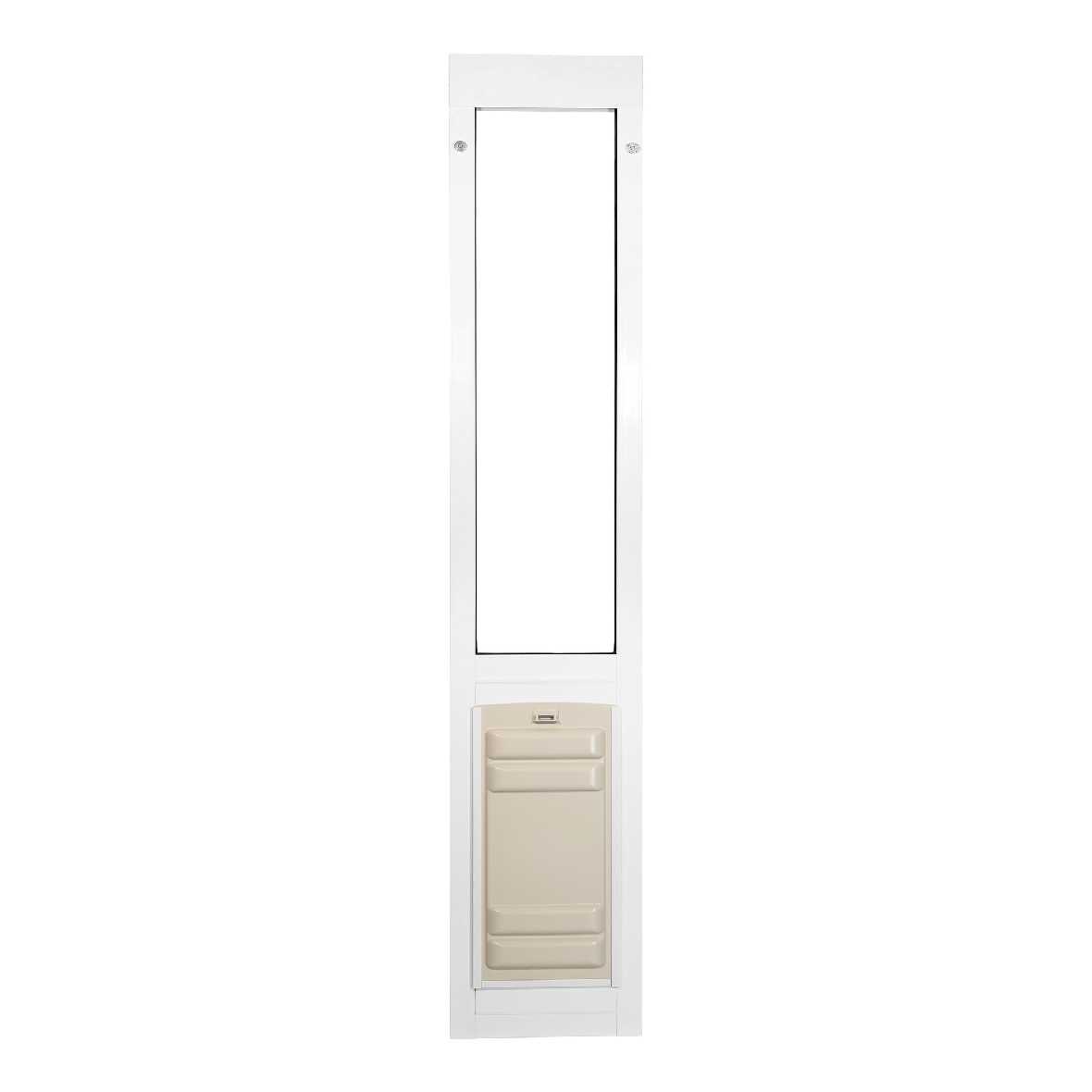

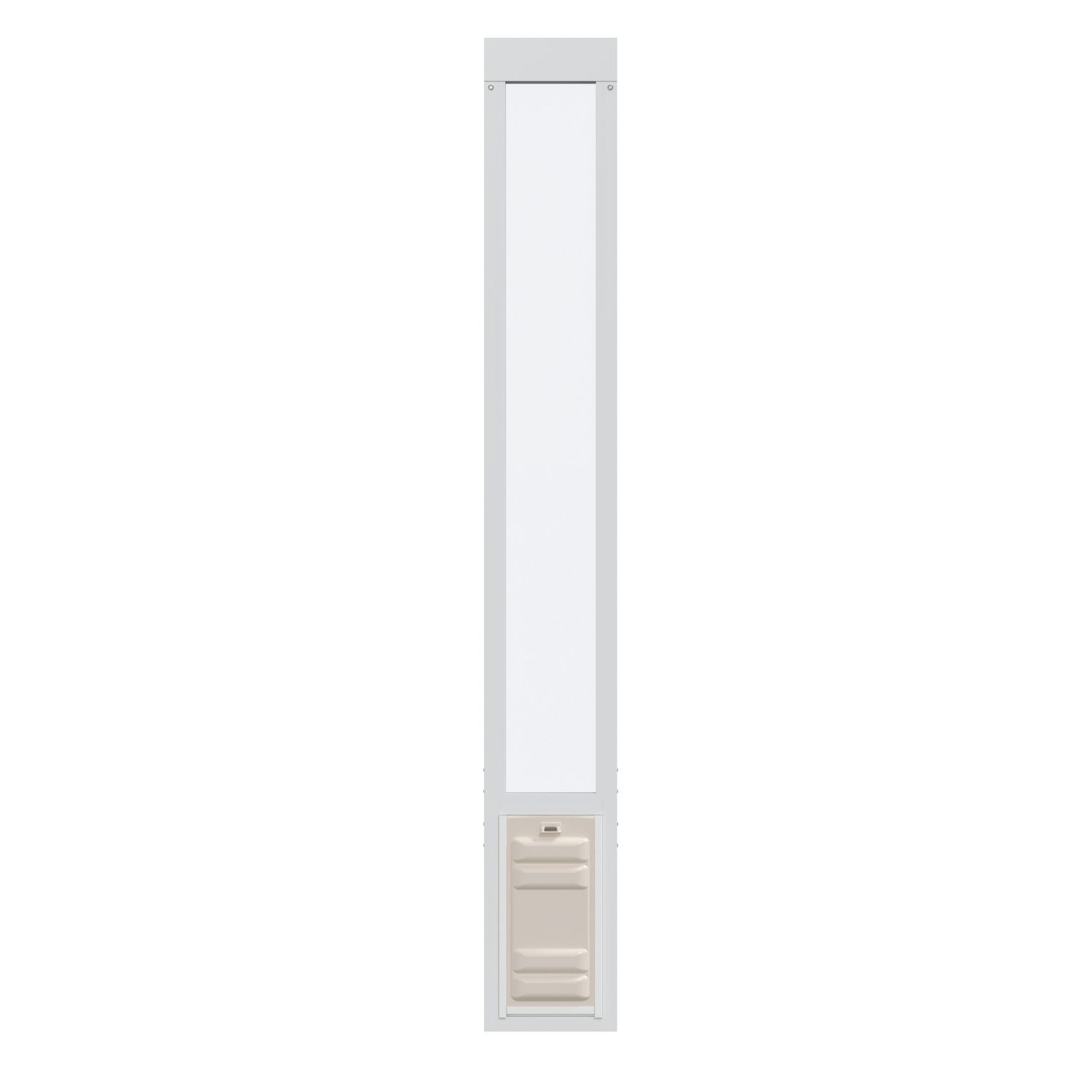

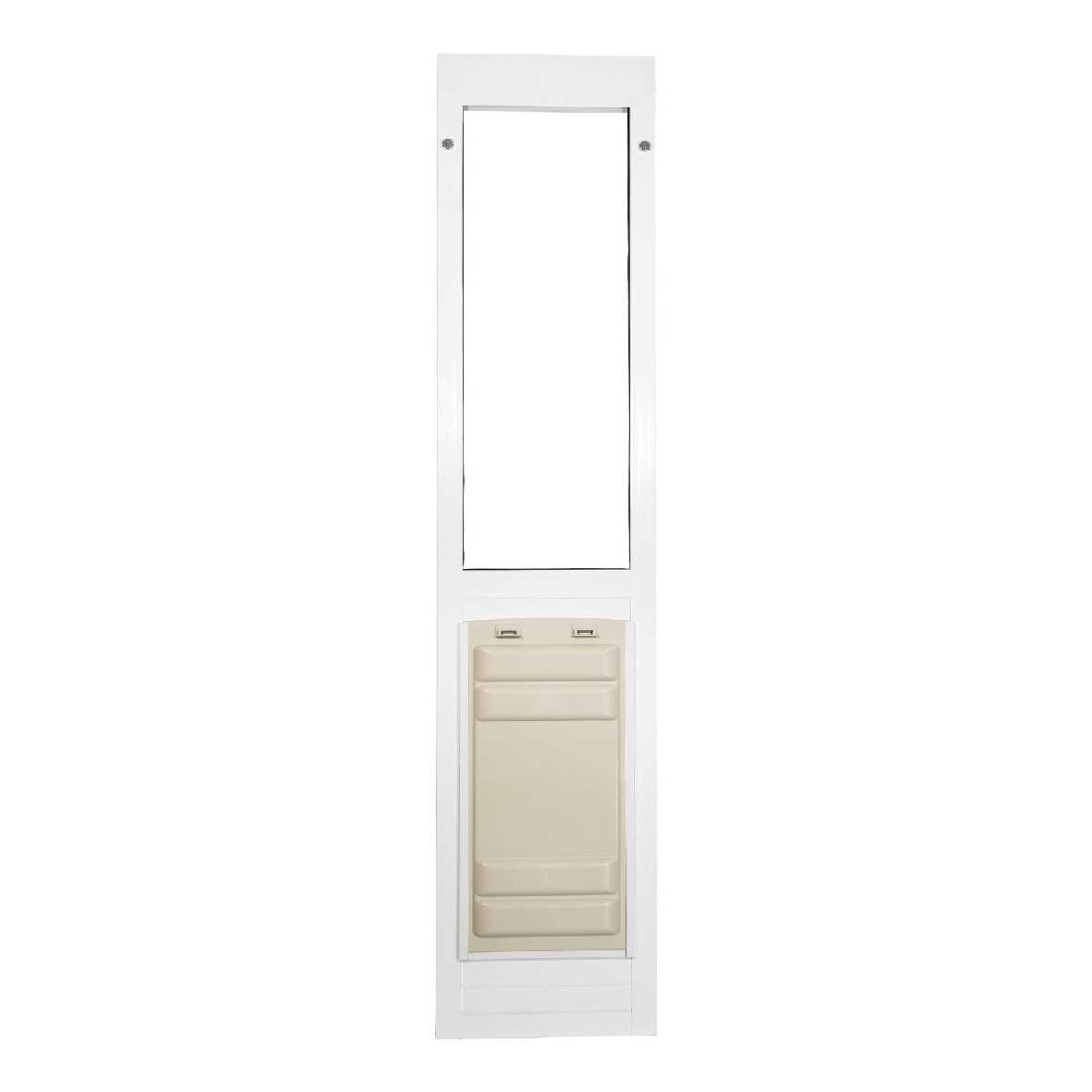

Includes a steel grade locking cover for added control when the opening is not in use
Made in the USA and engineered for durable daily use

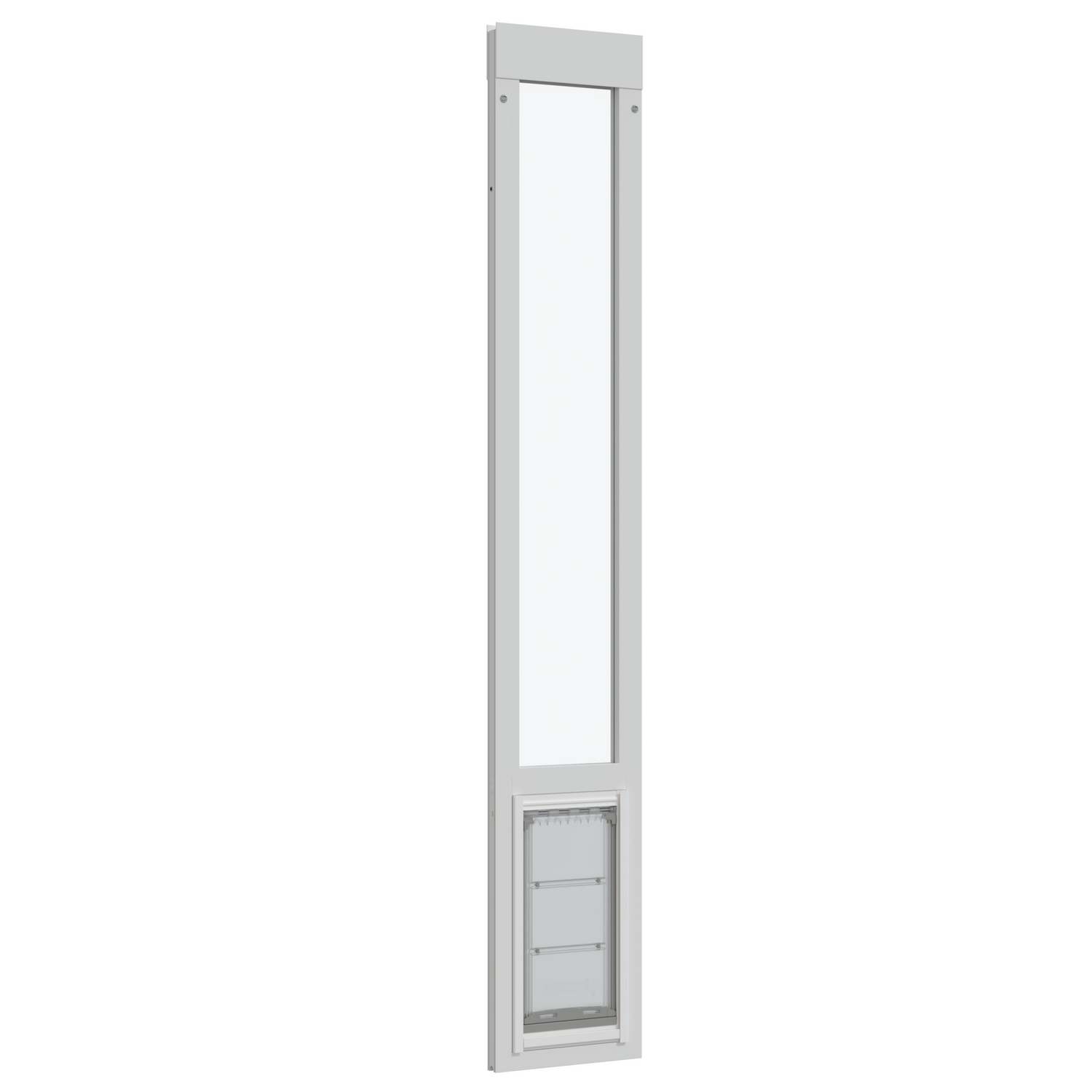

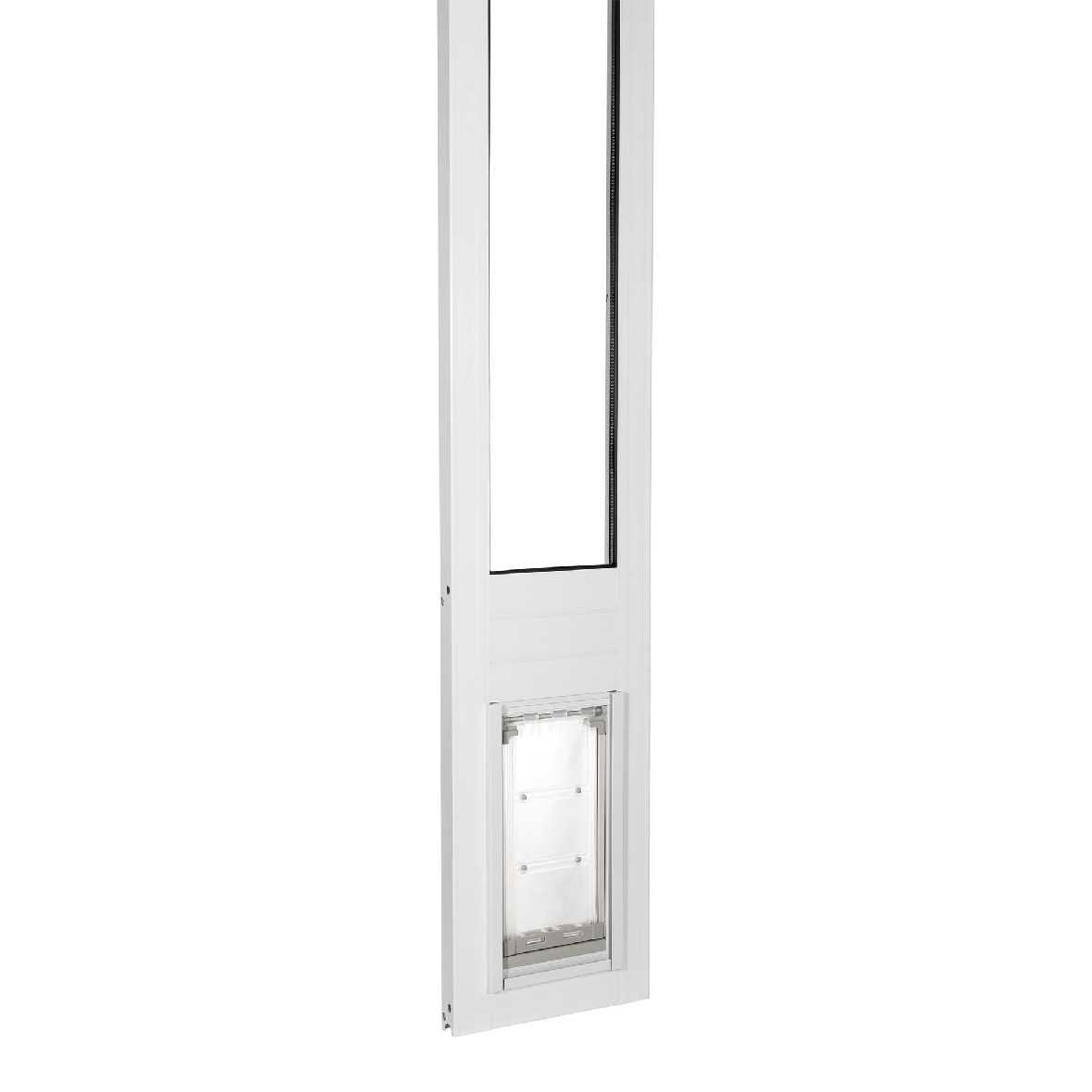

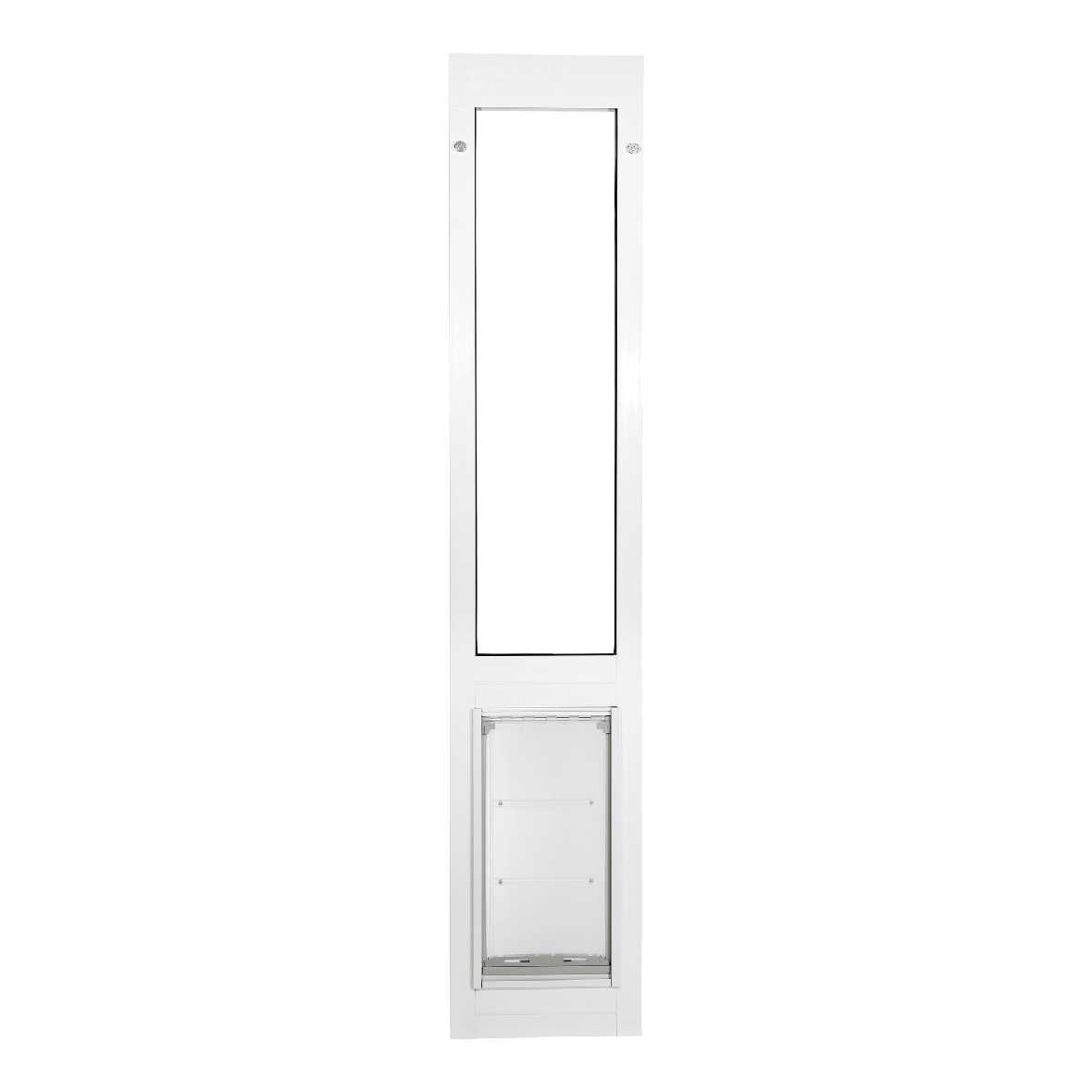

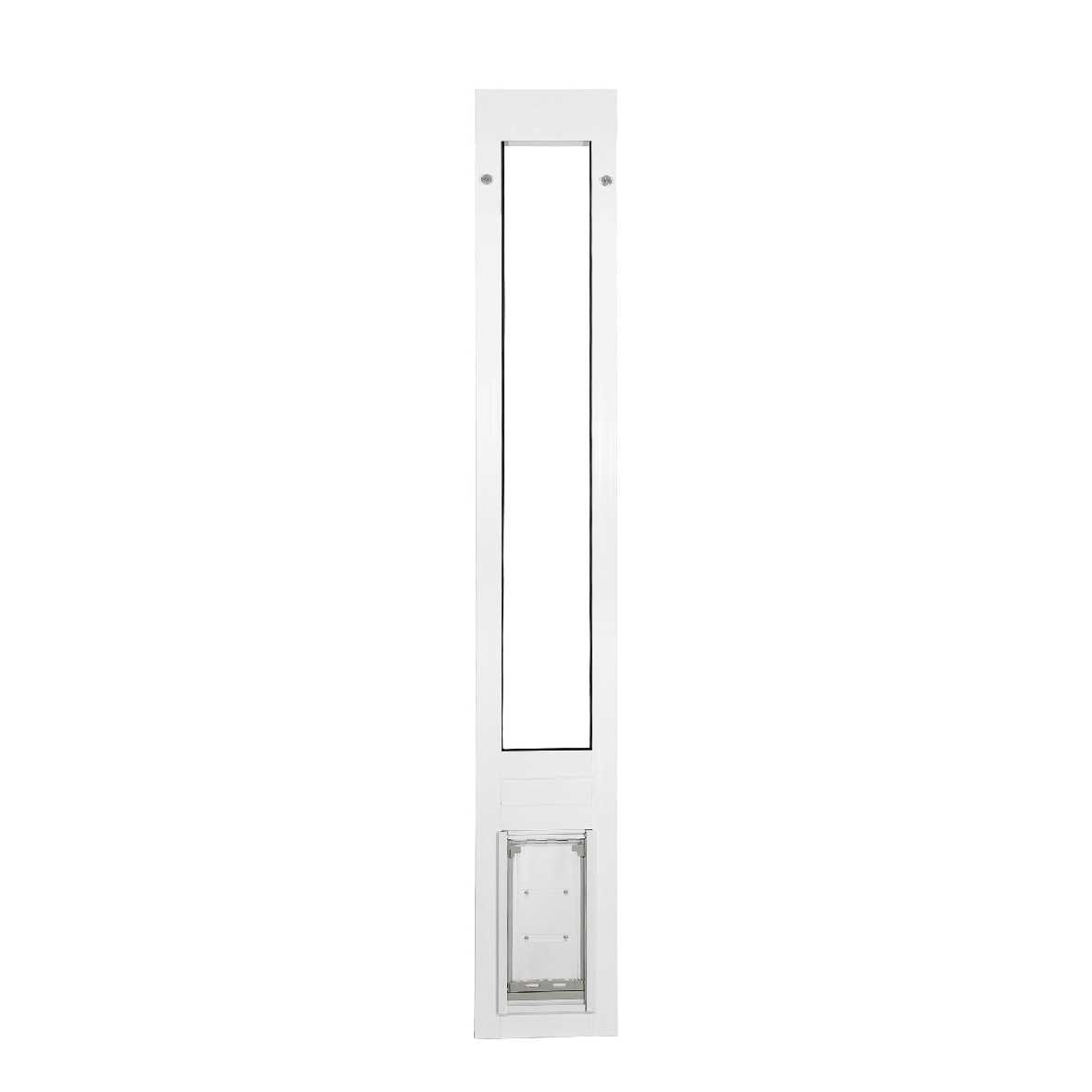

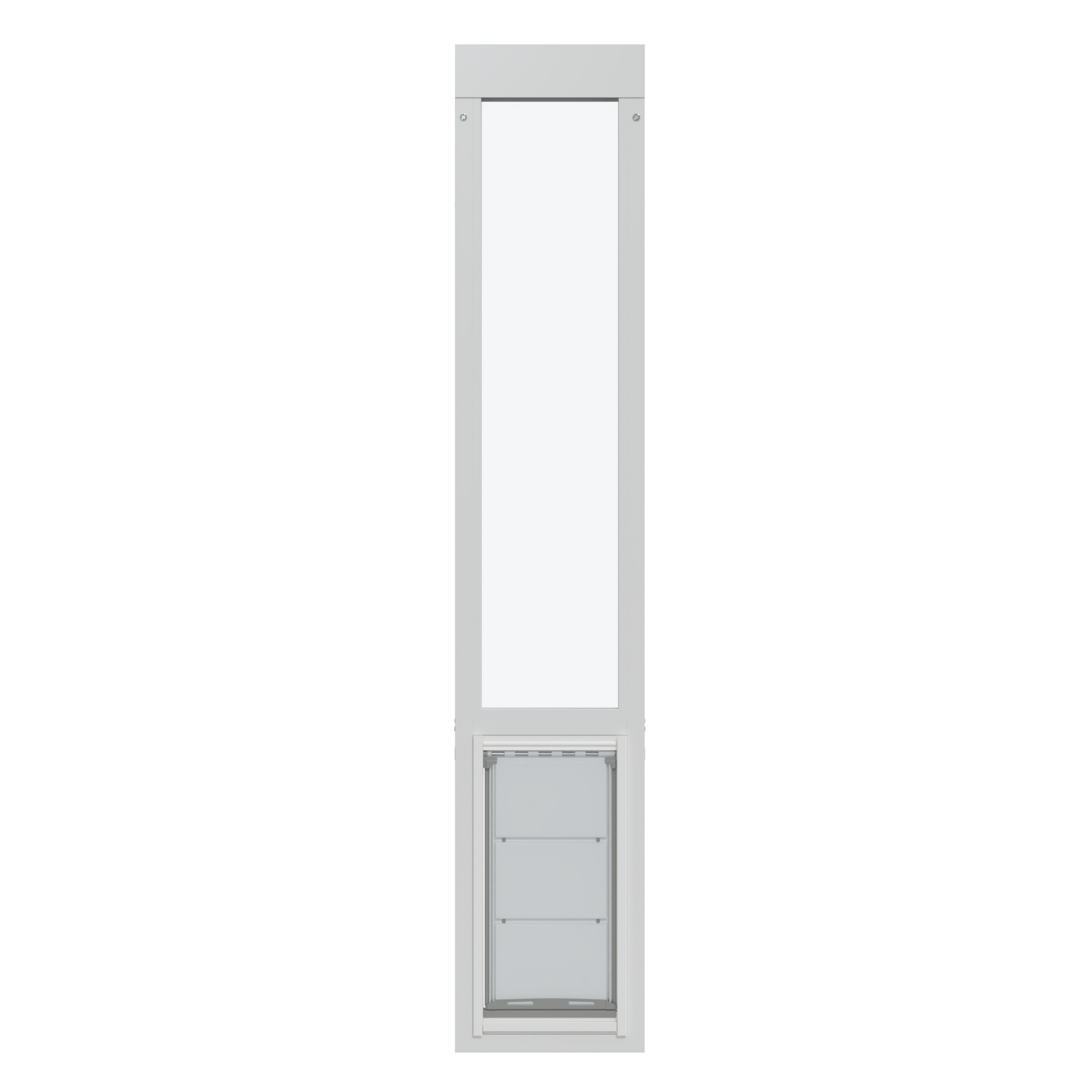

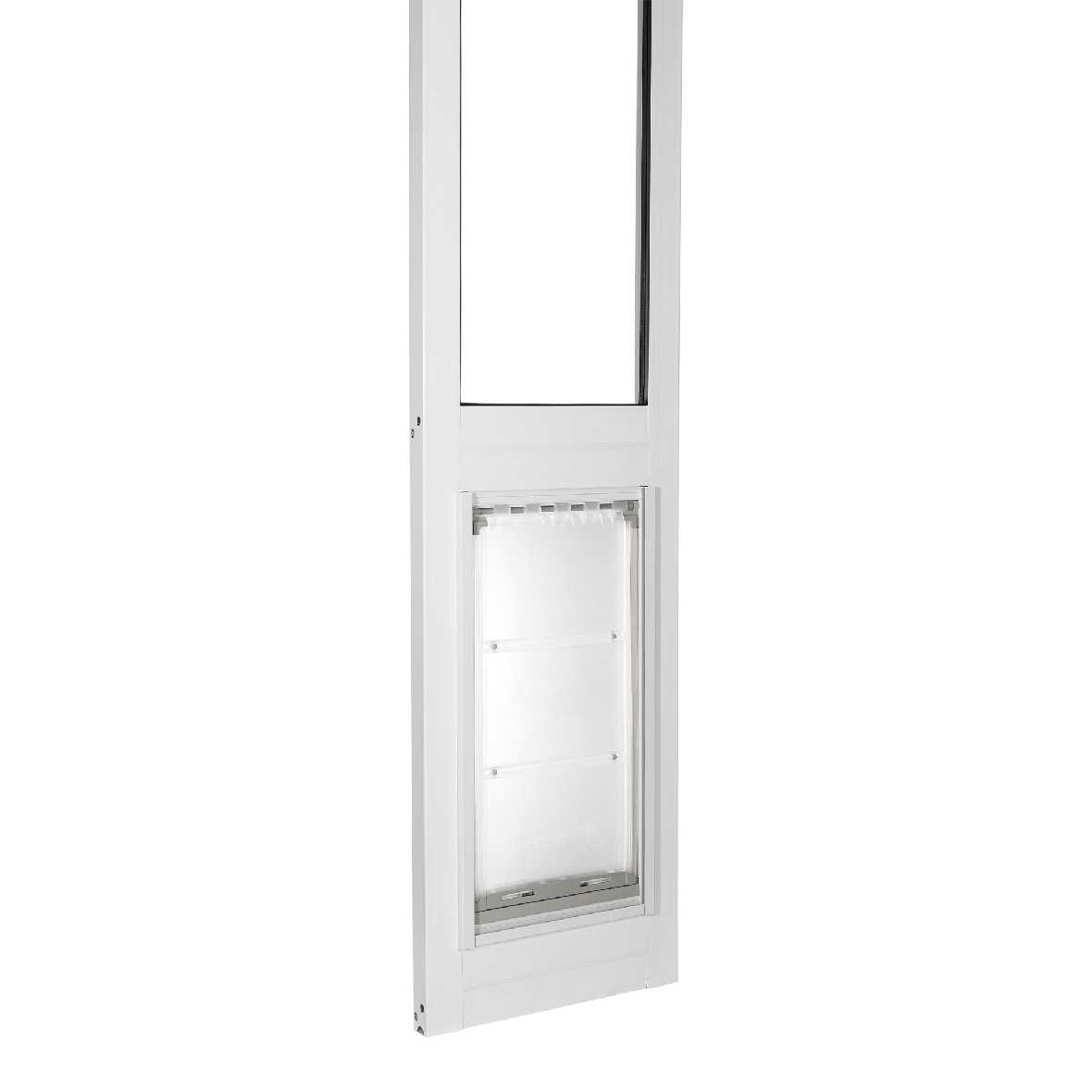

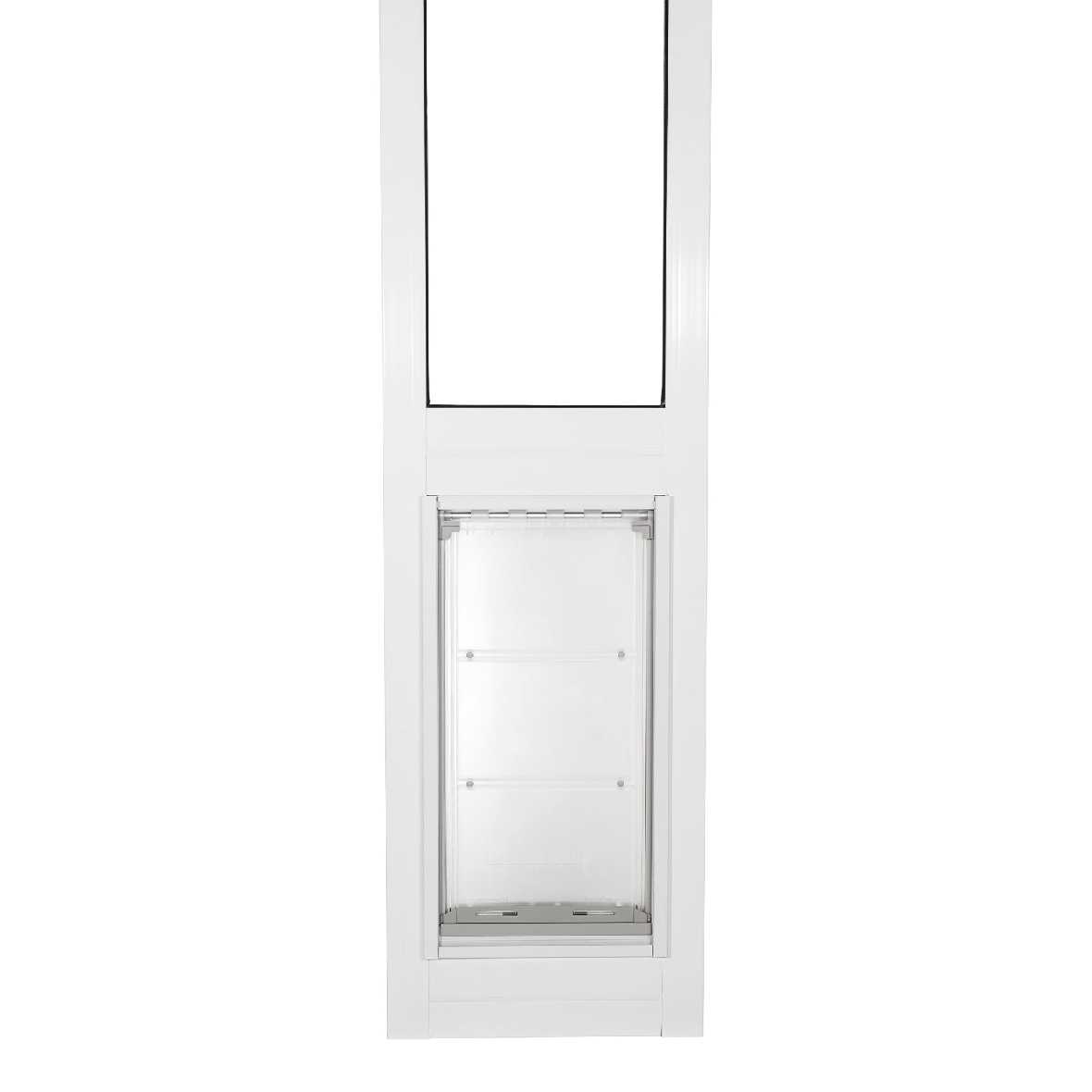

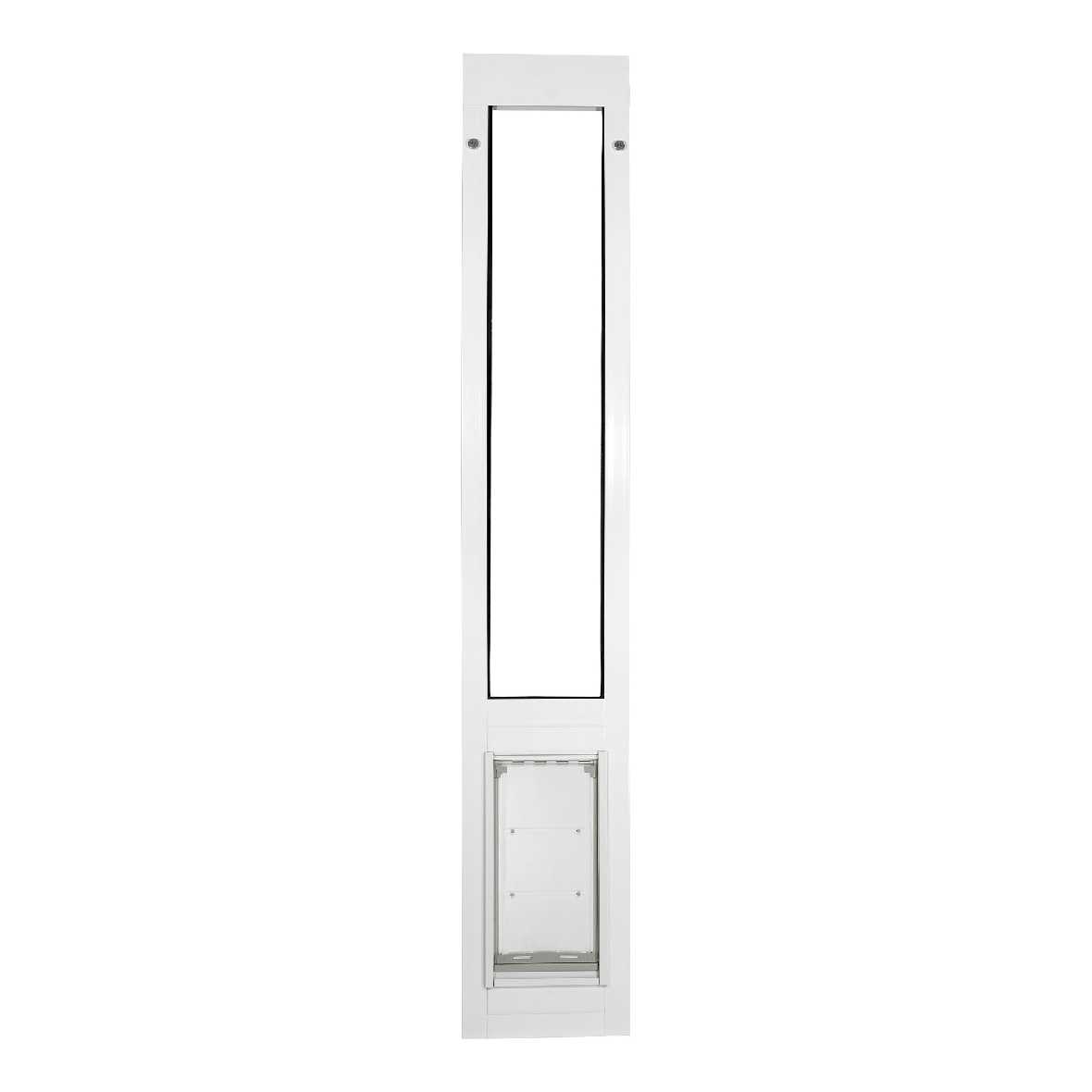

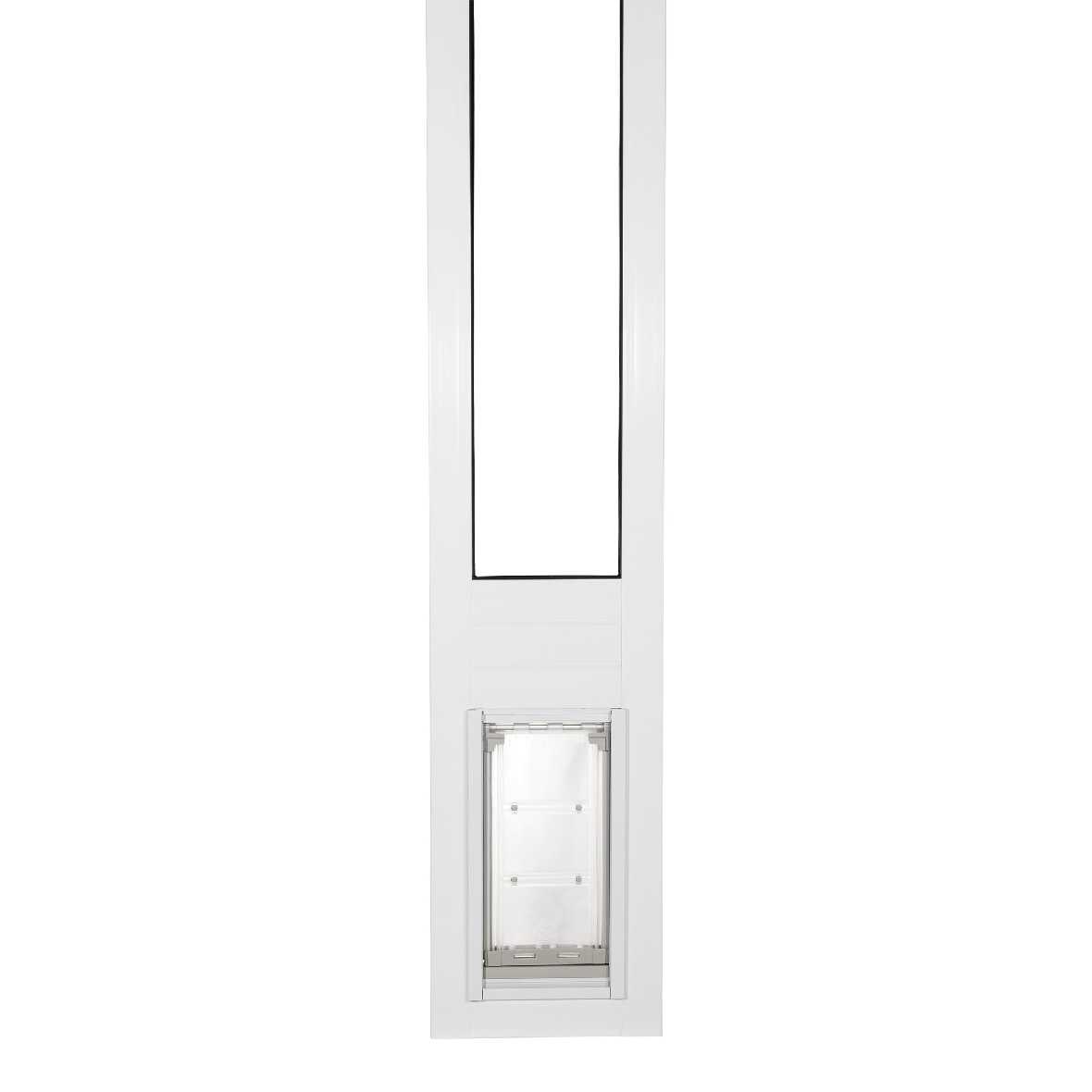

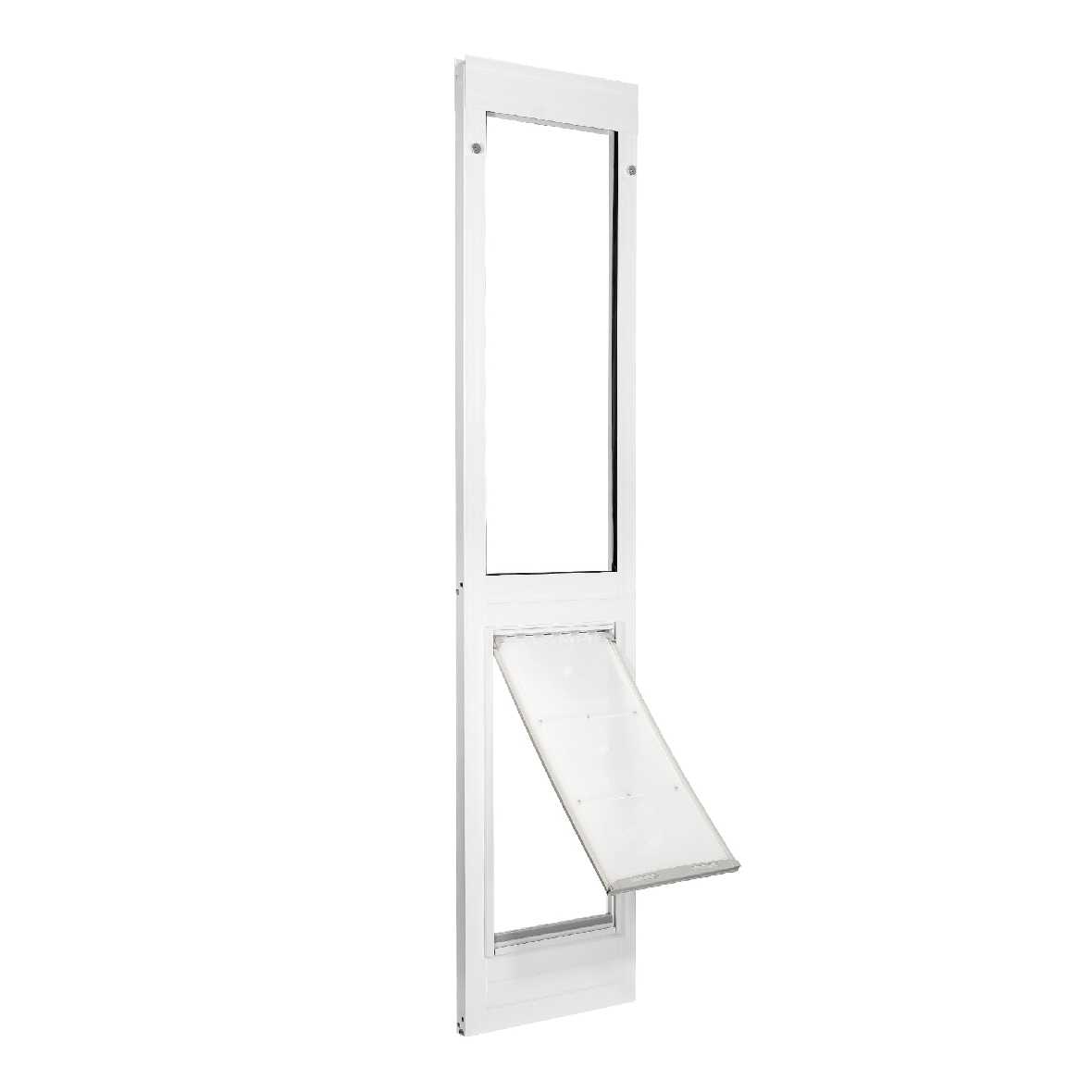

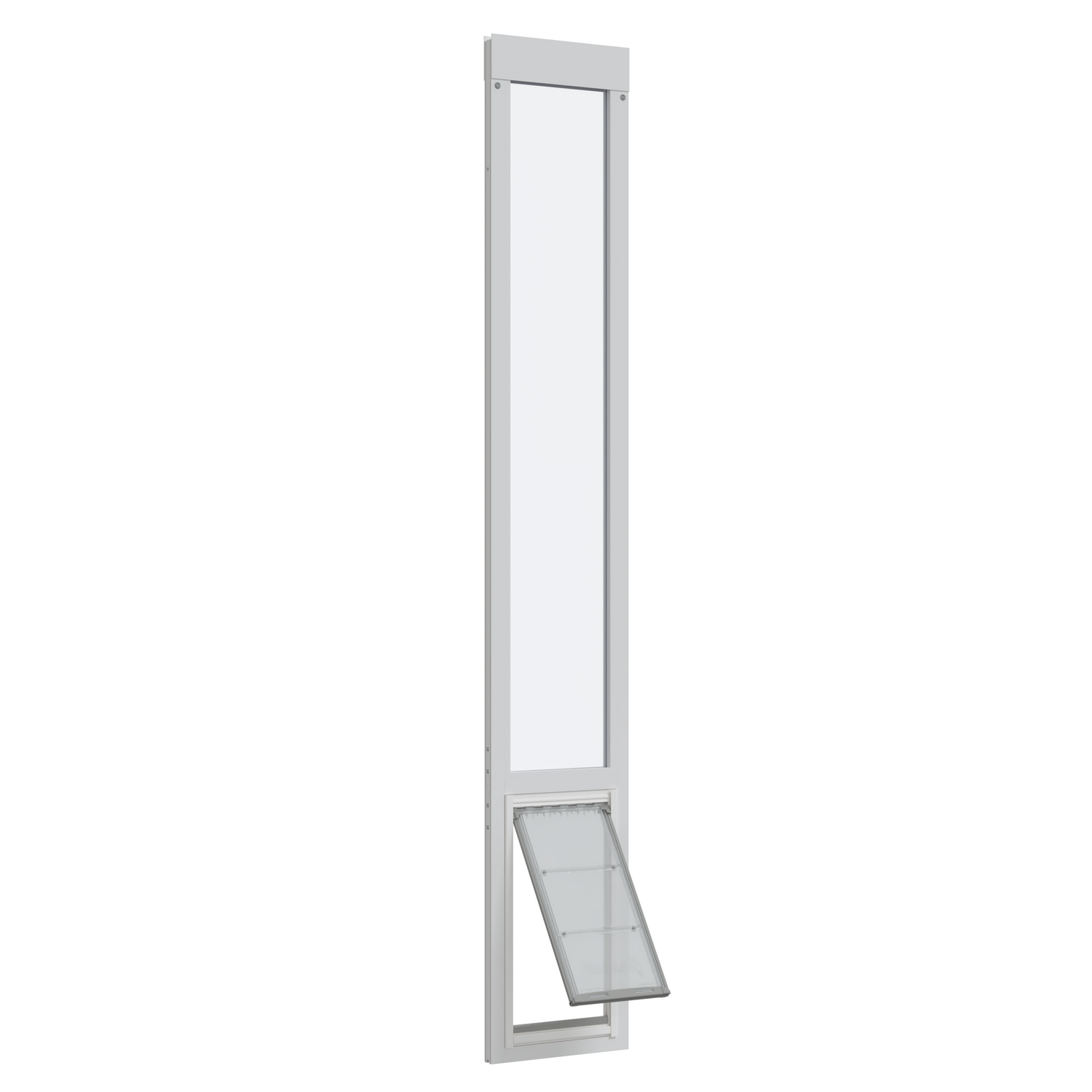

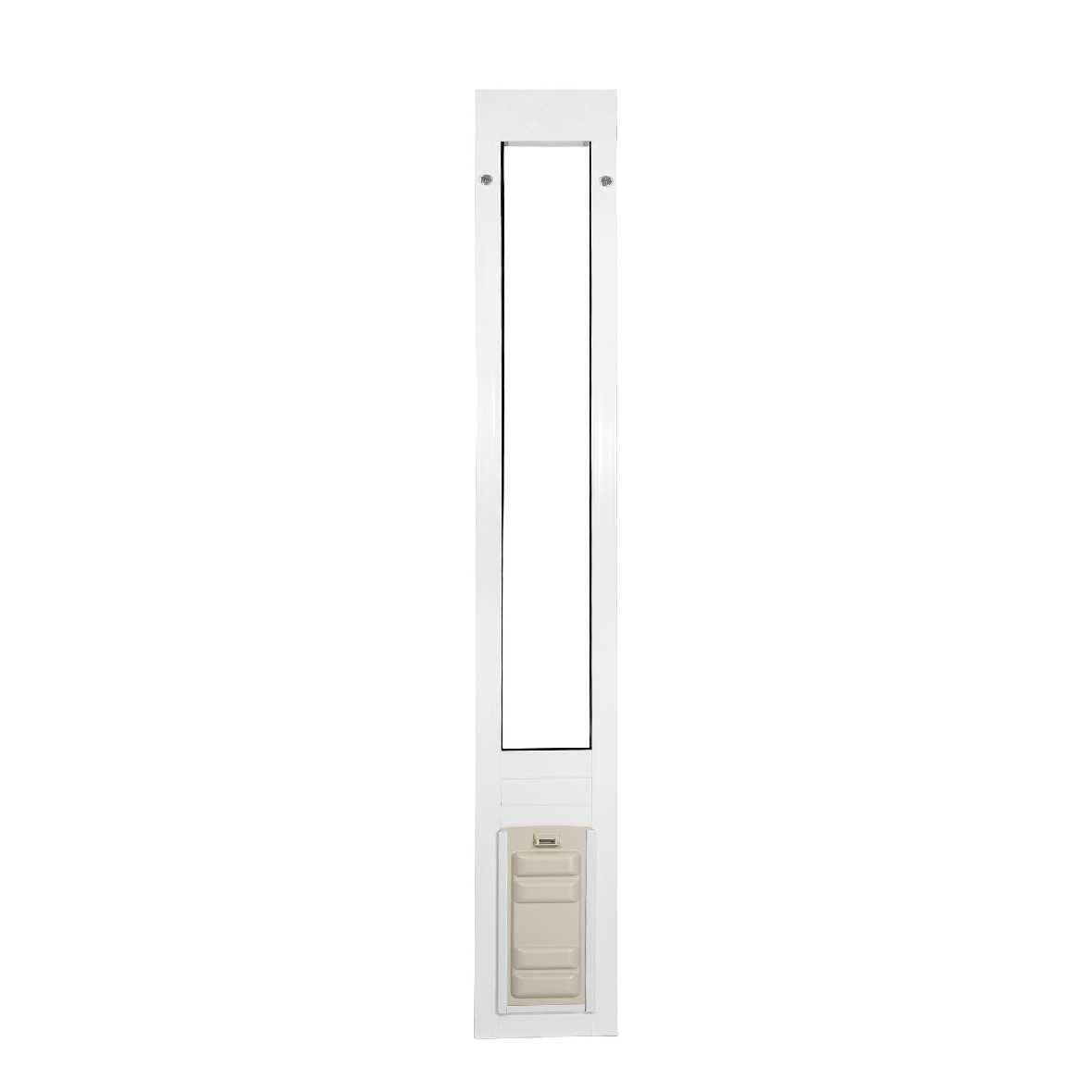

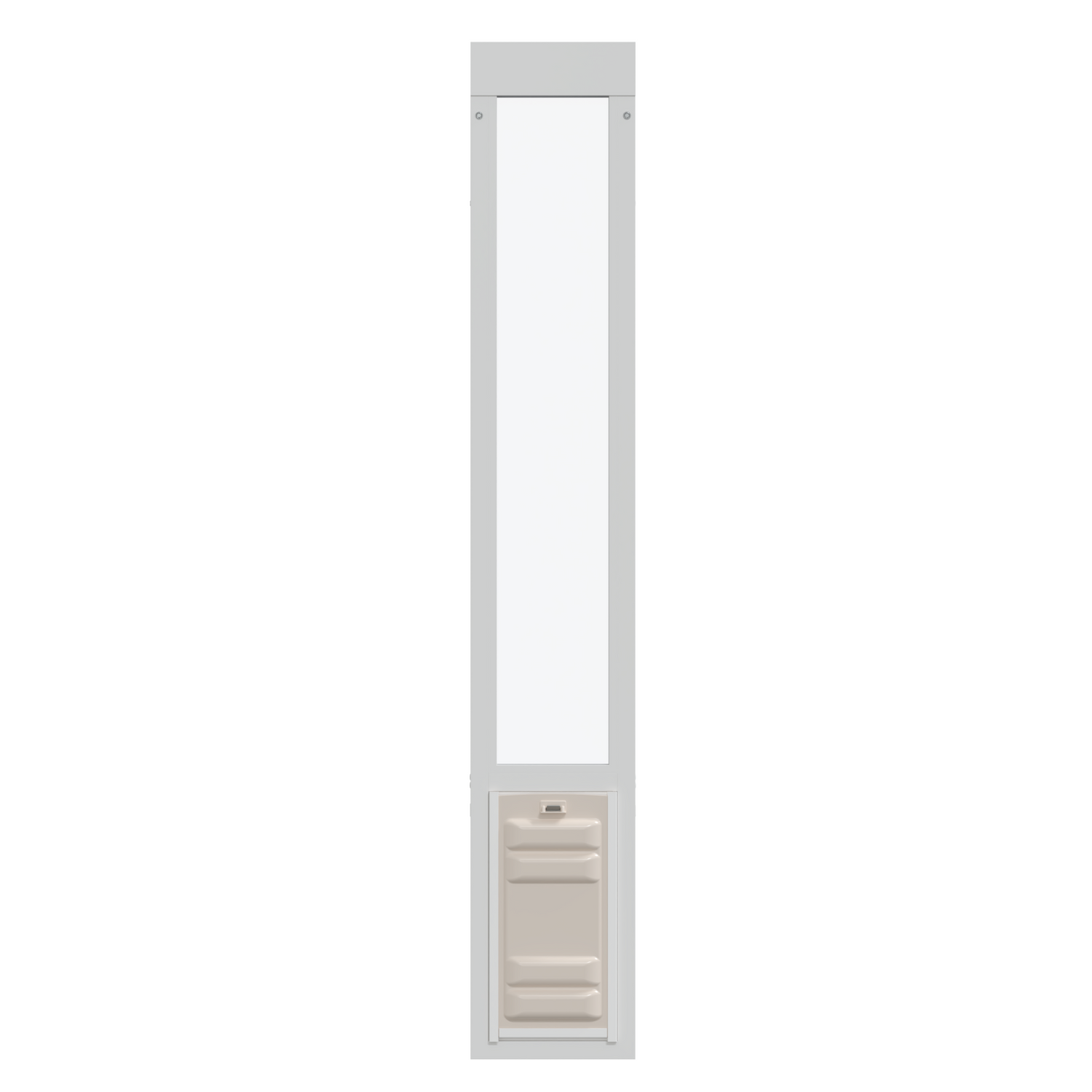

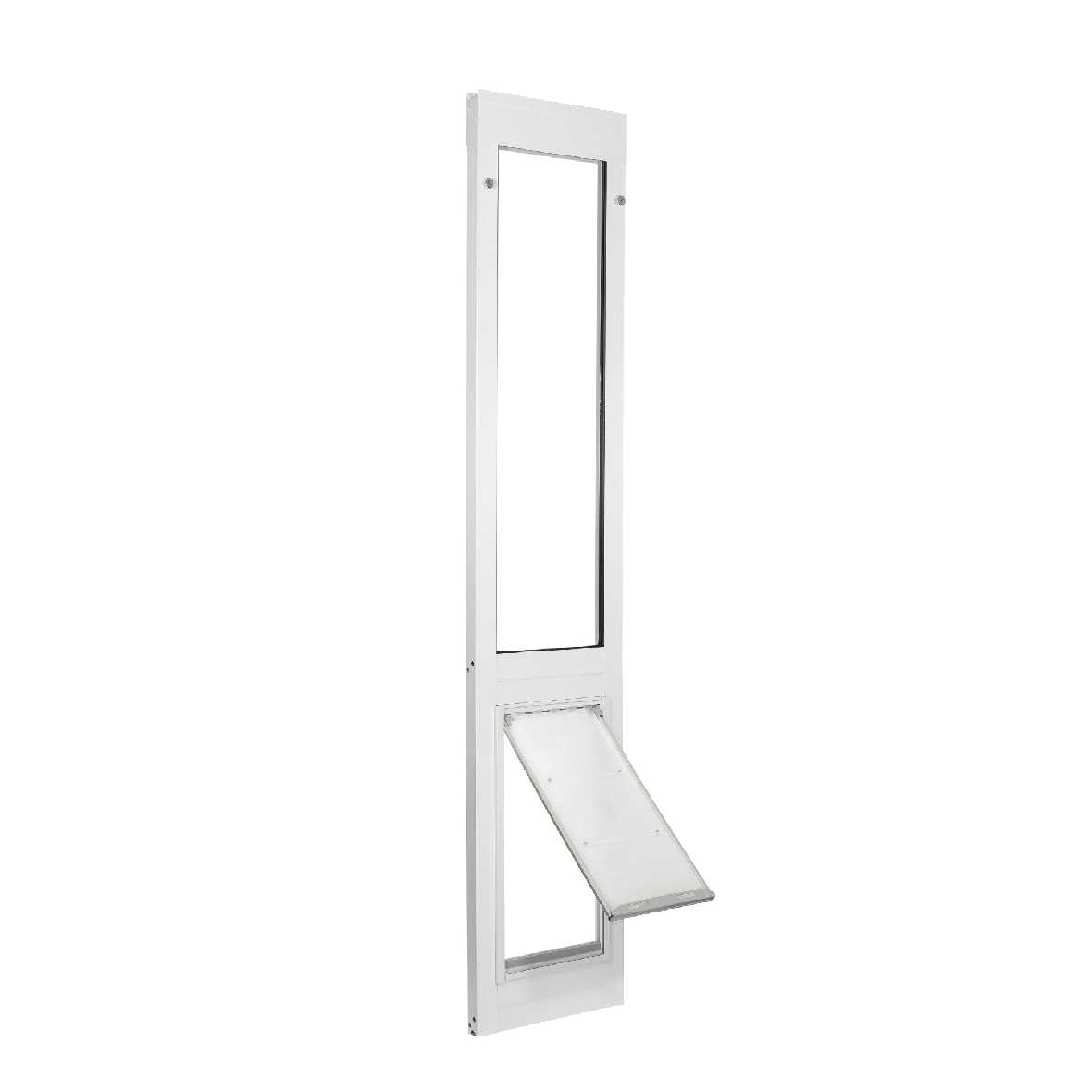

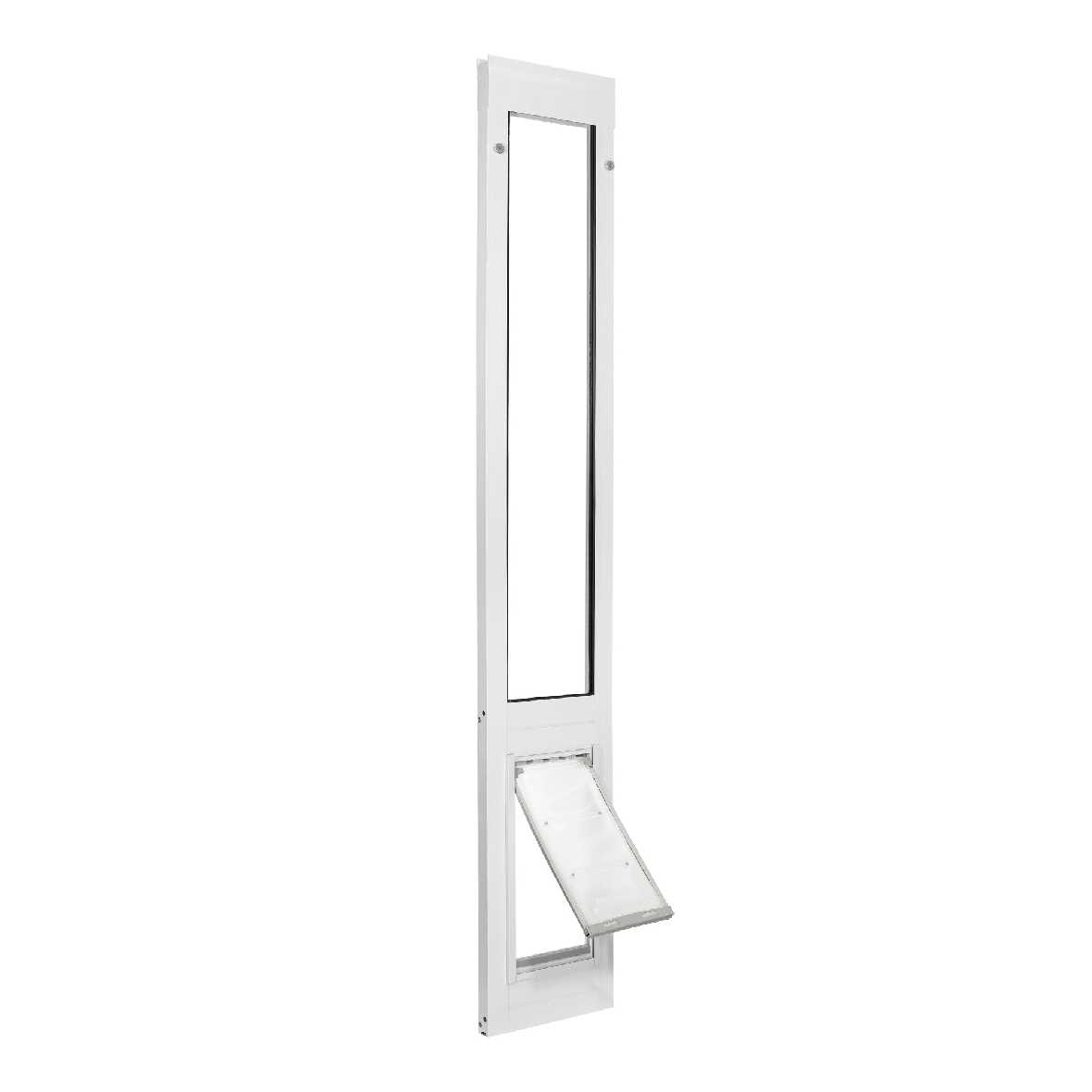

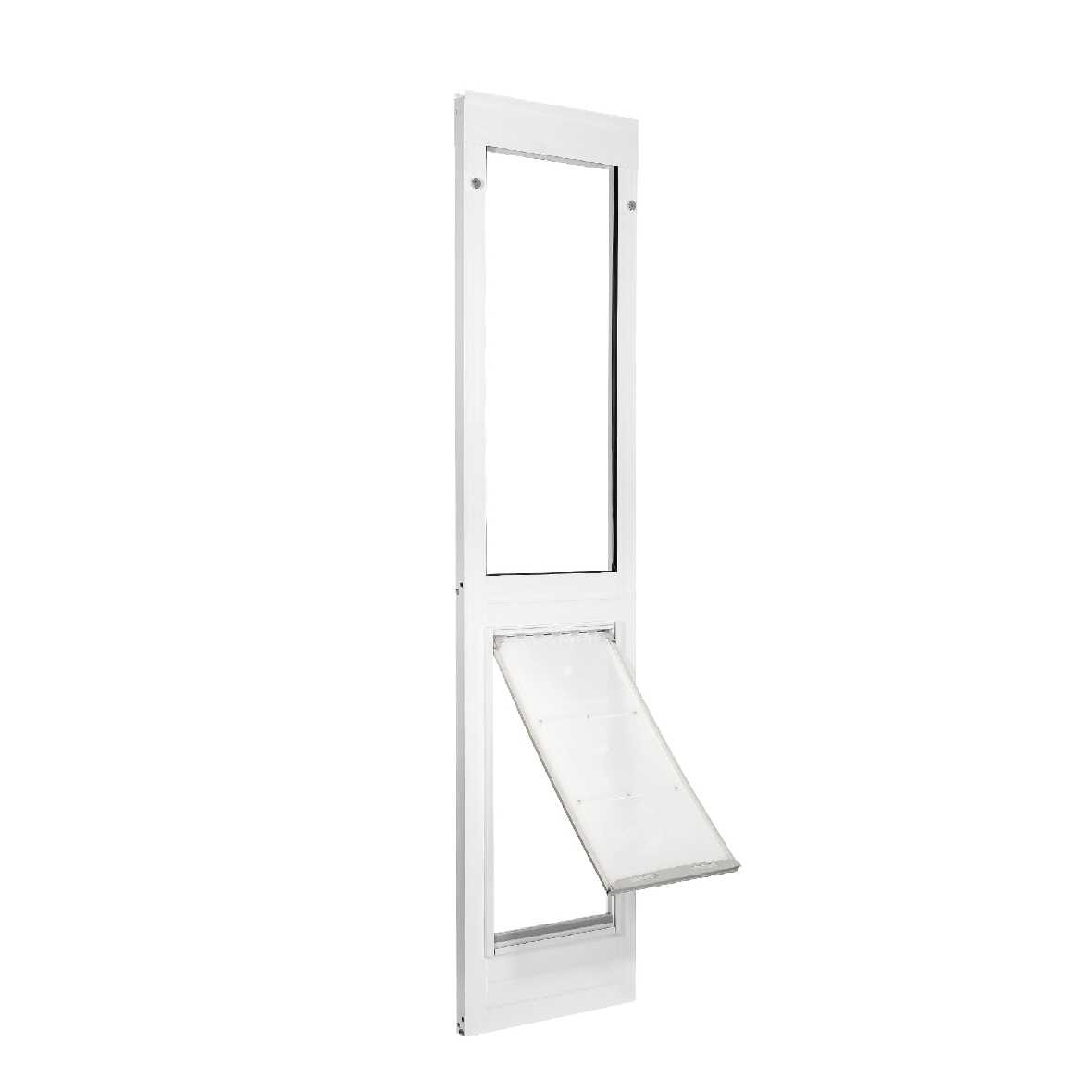

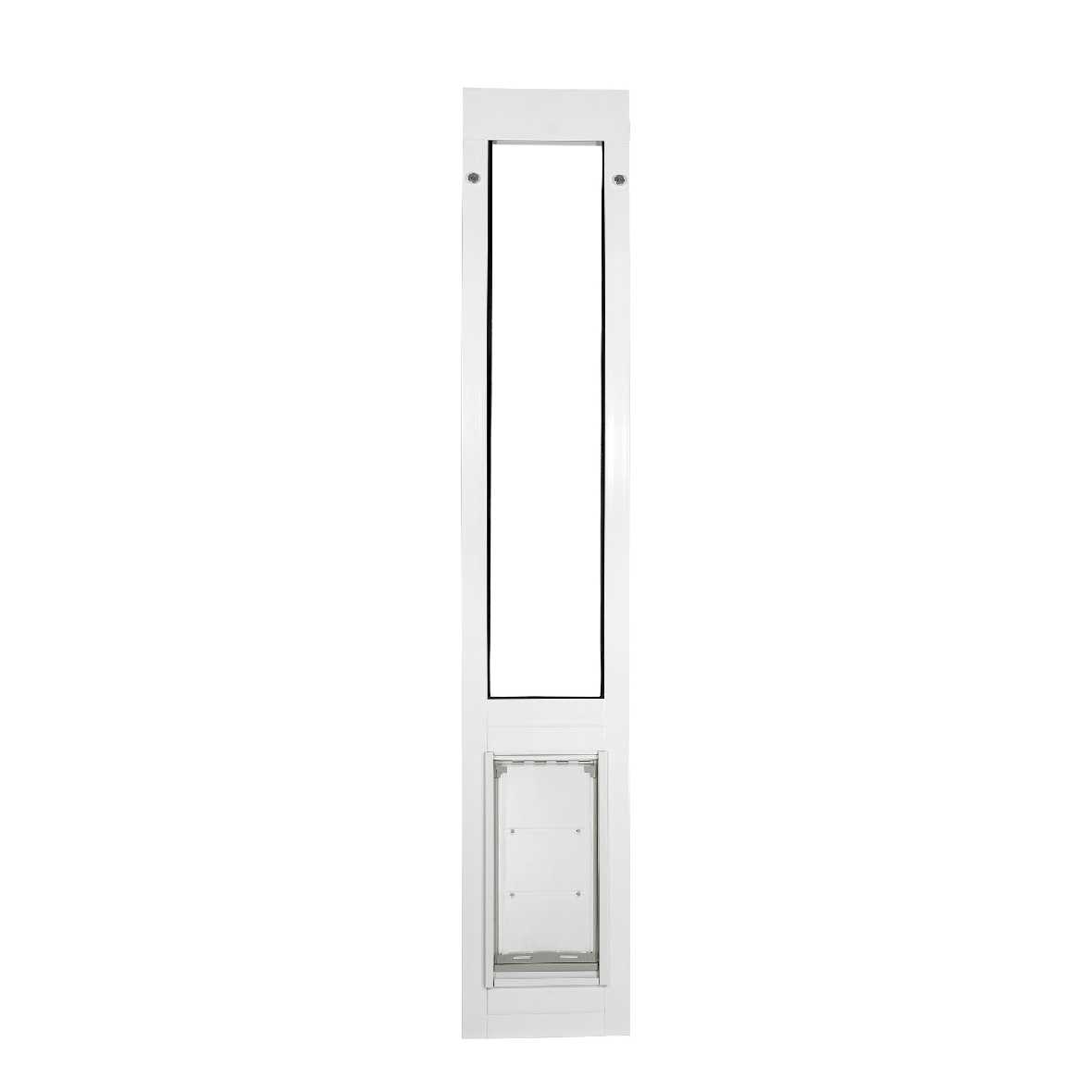

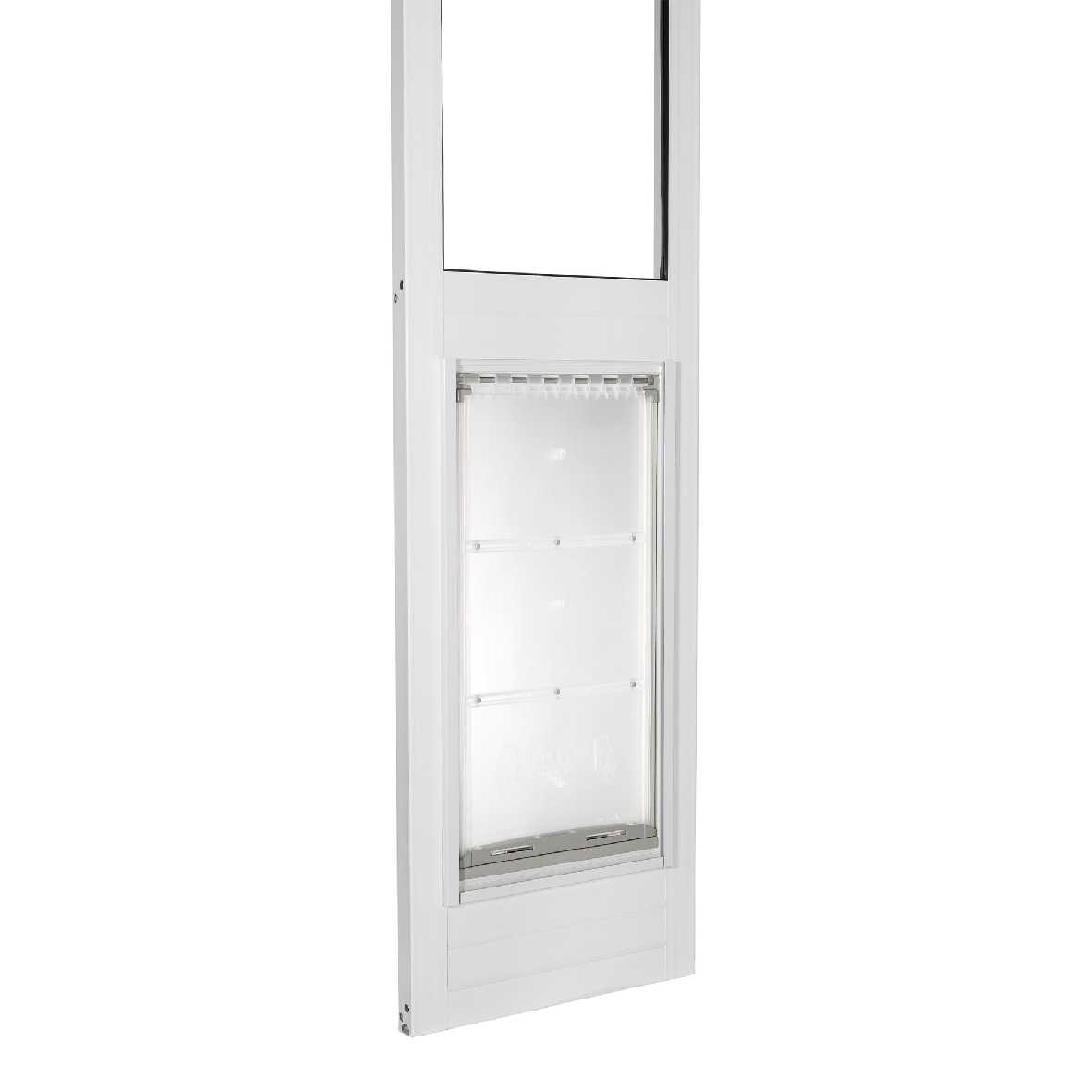

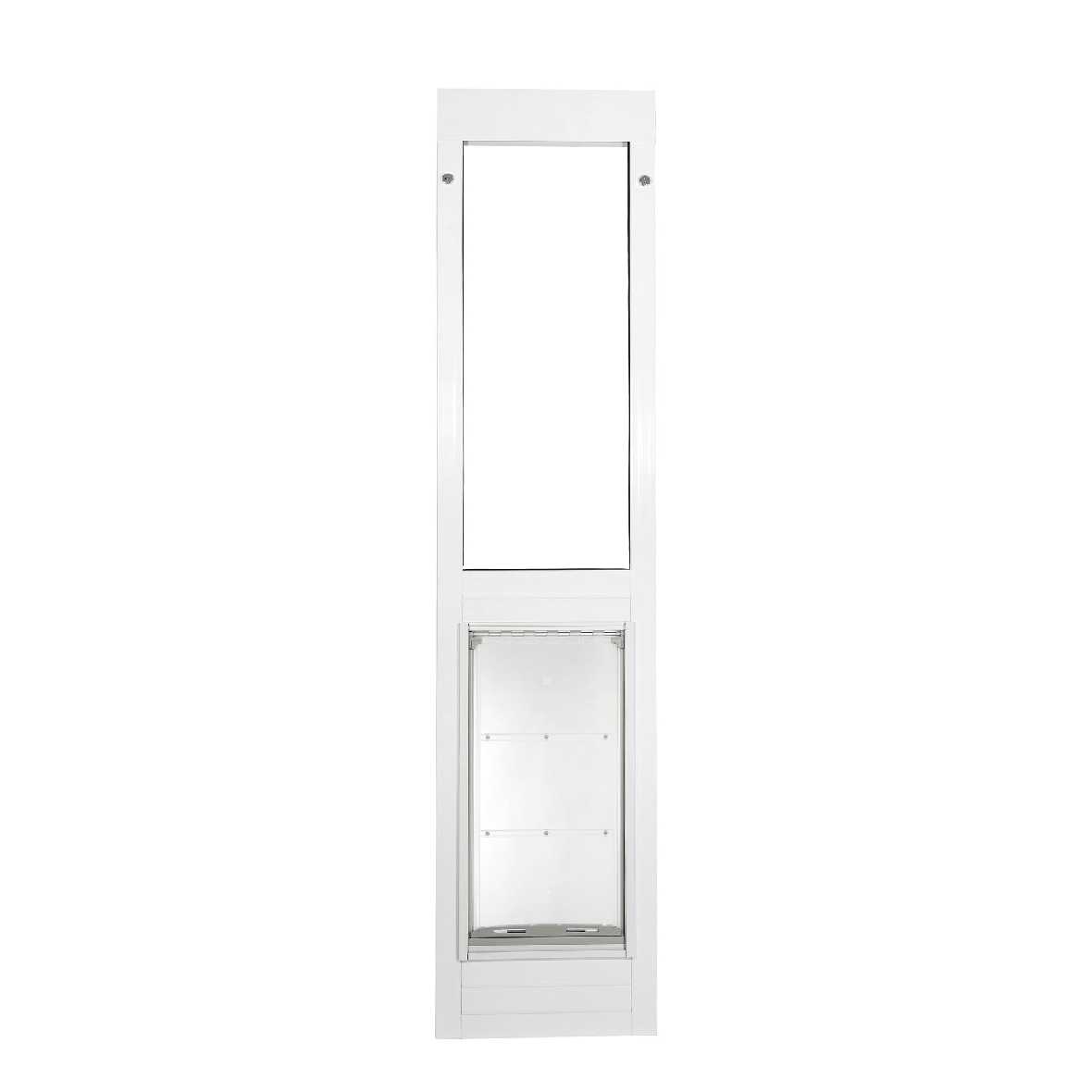

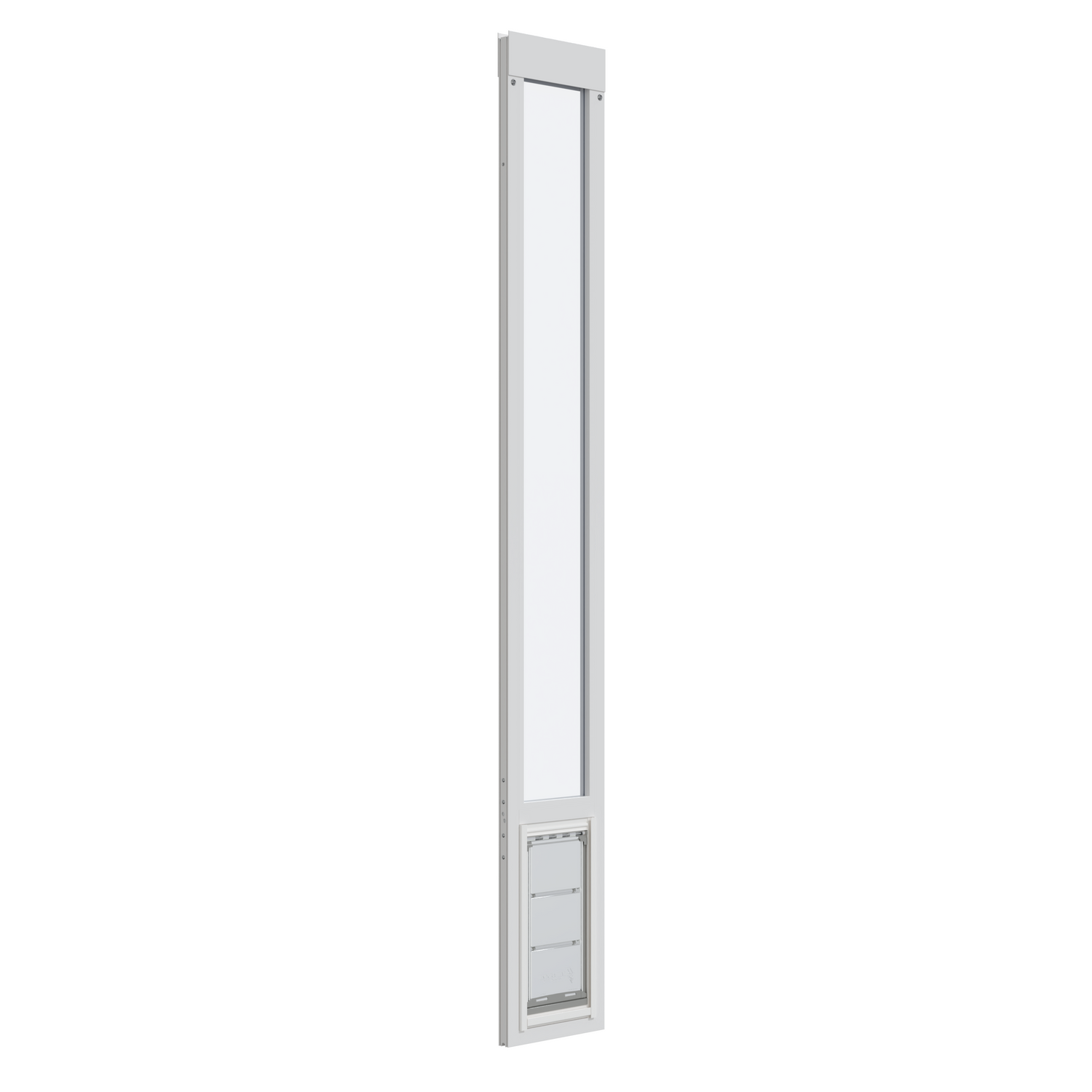

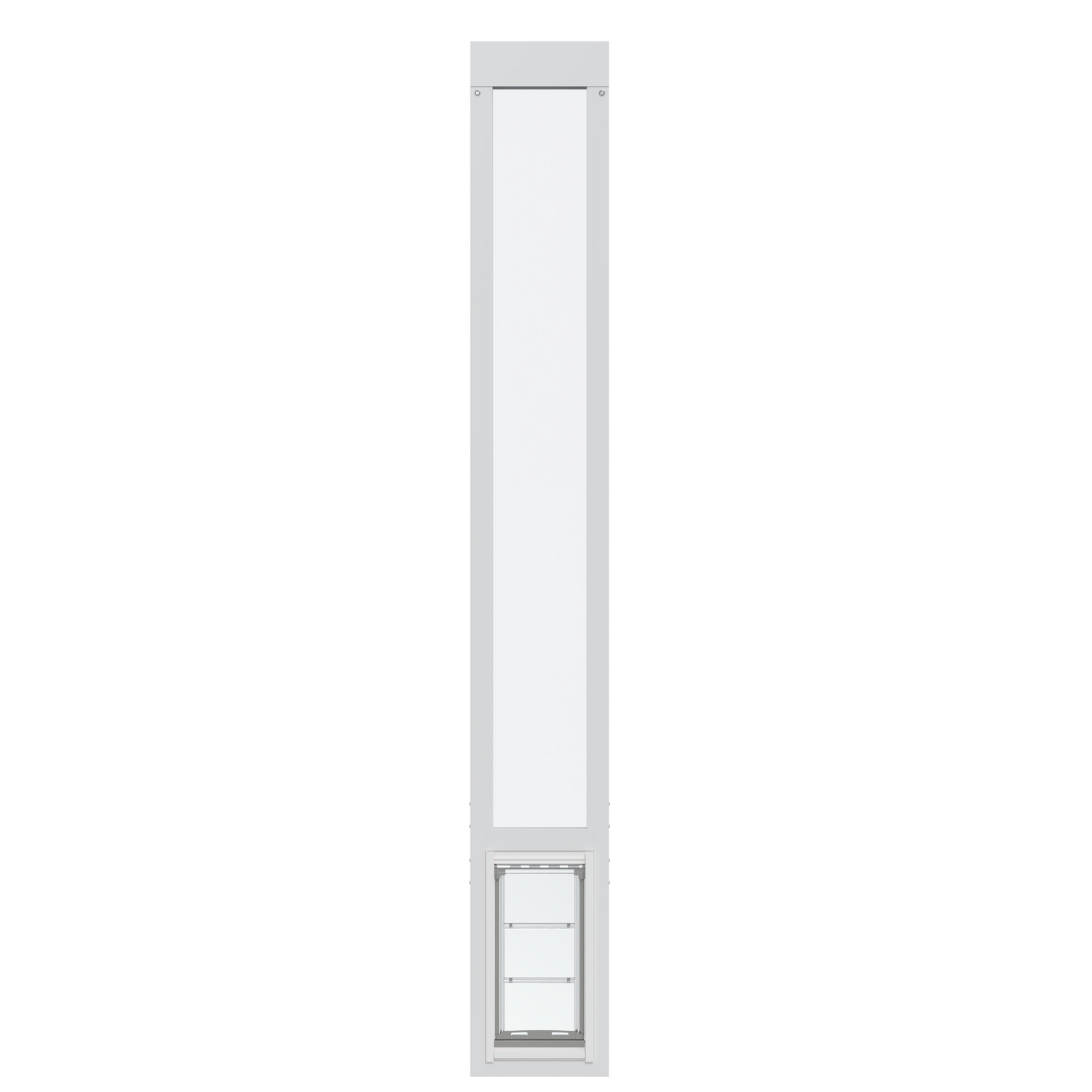

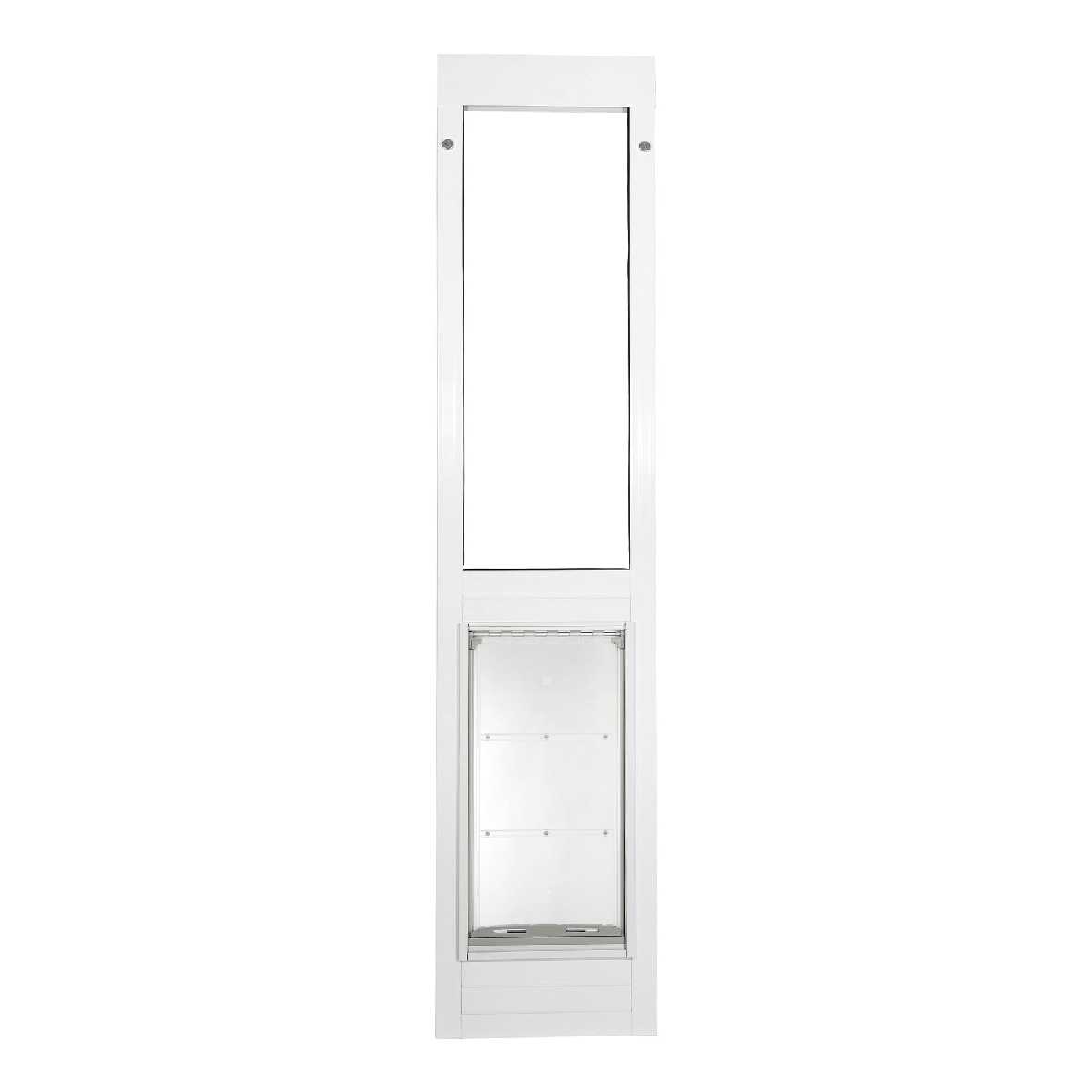

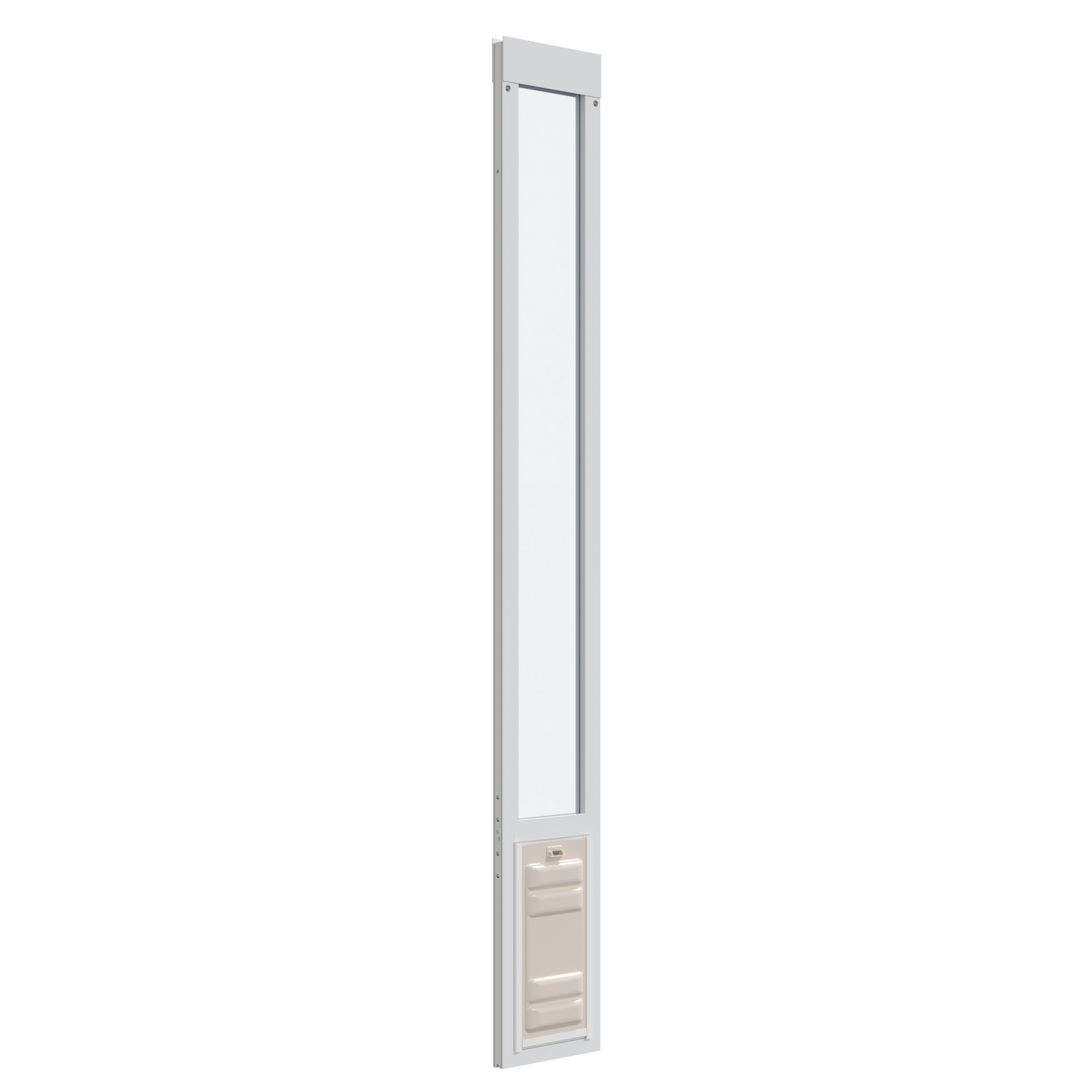

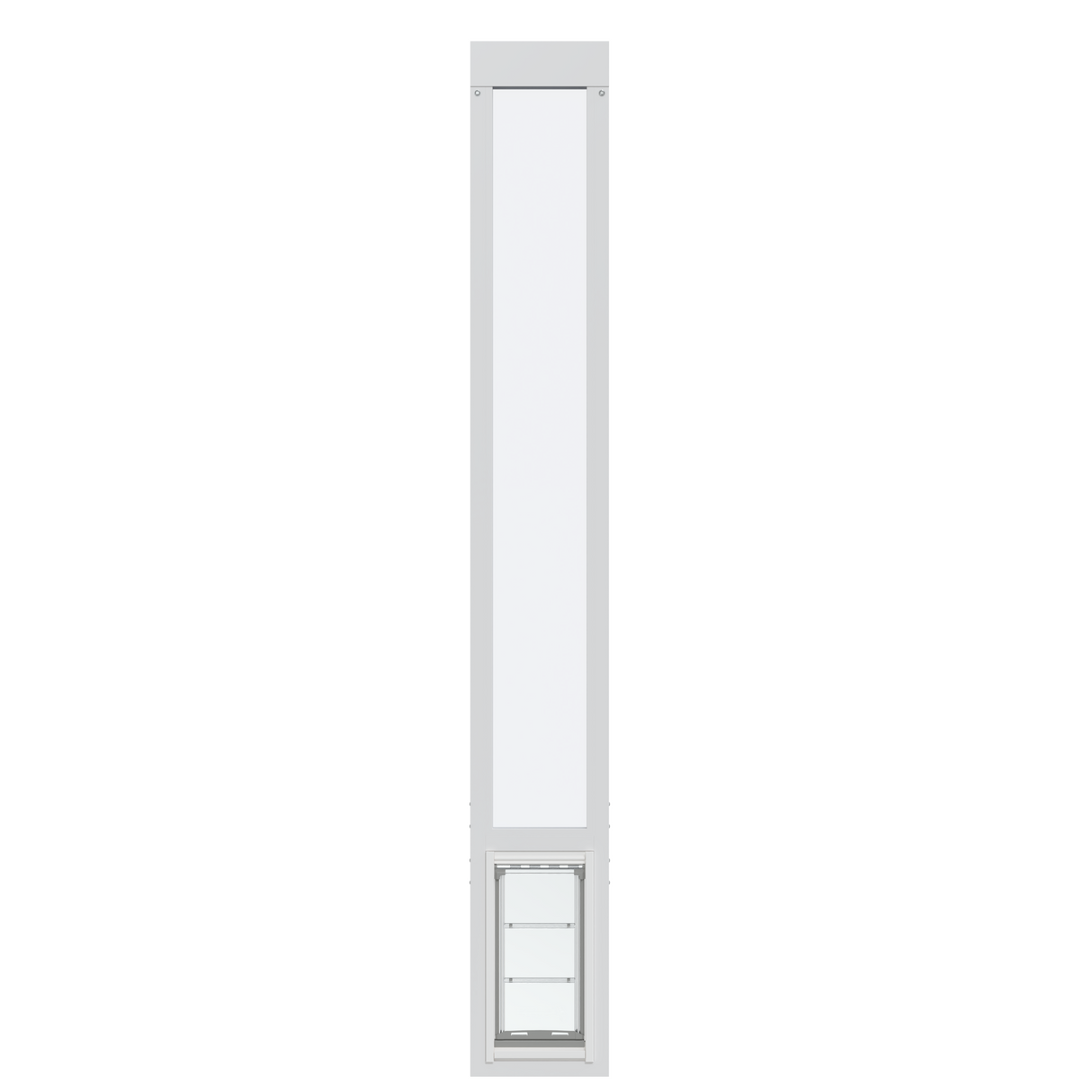

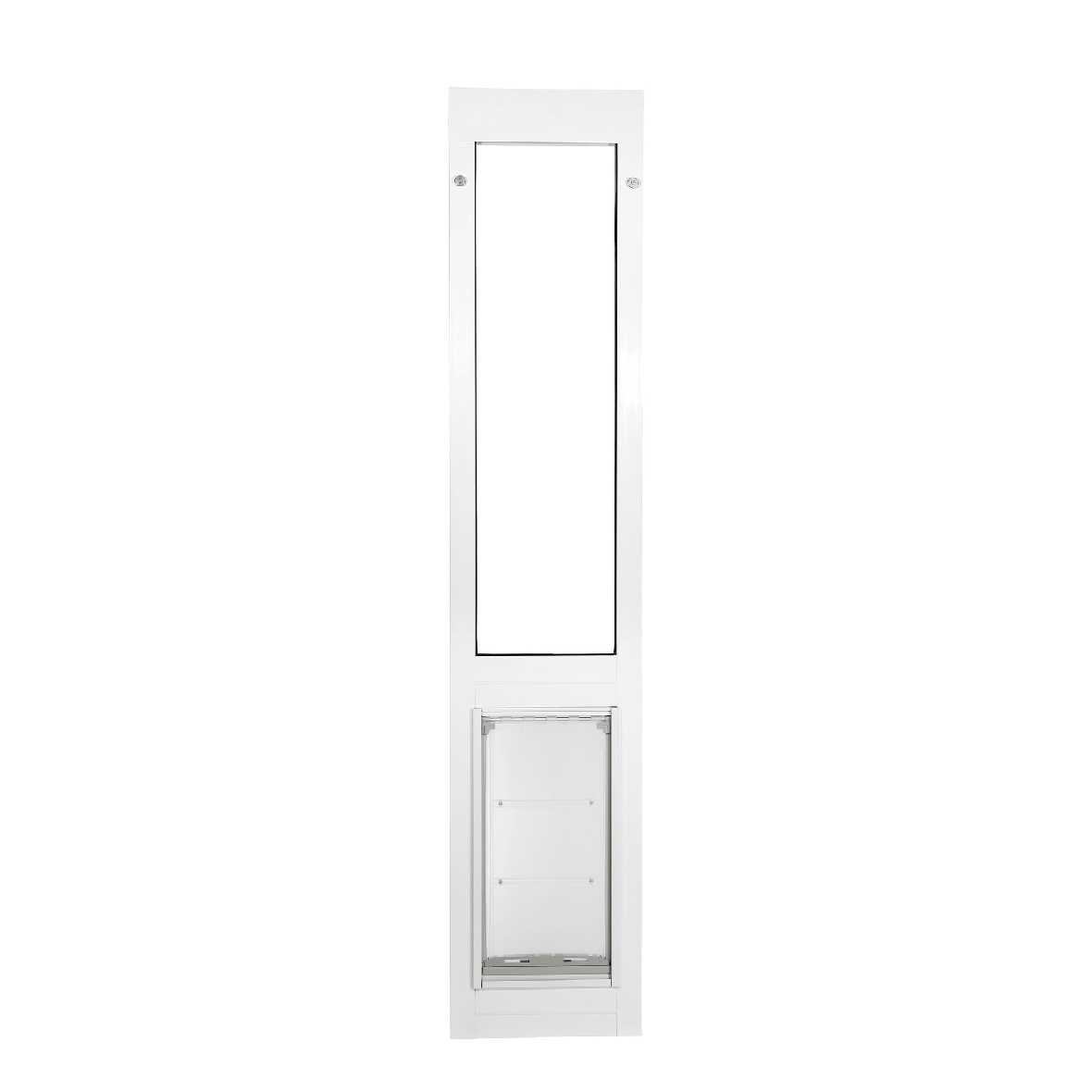

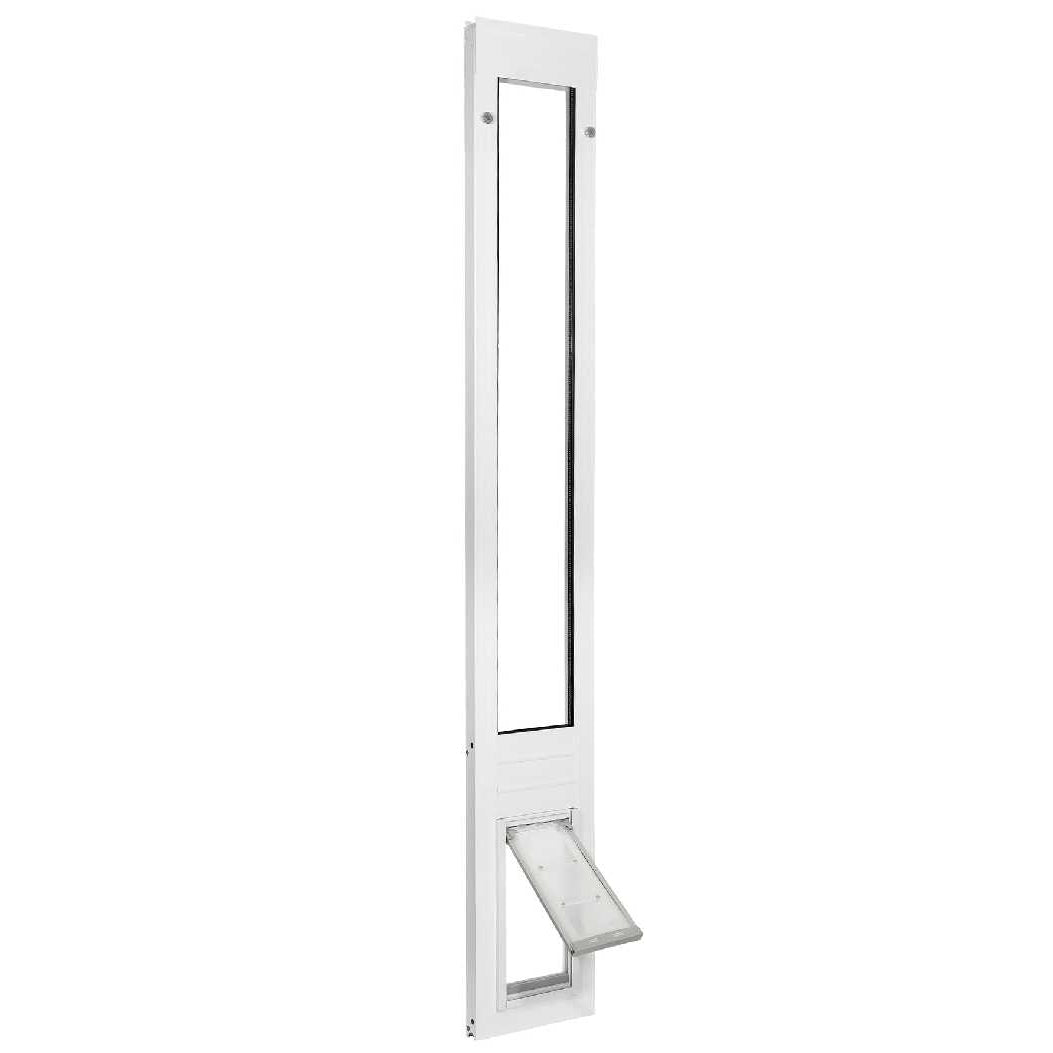

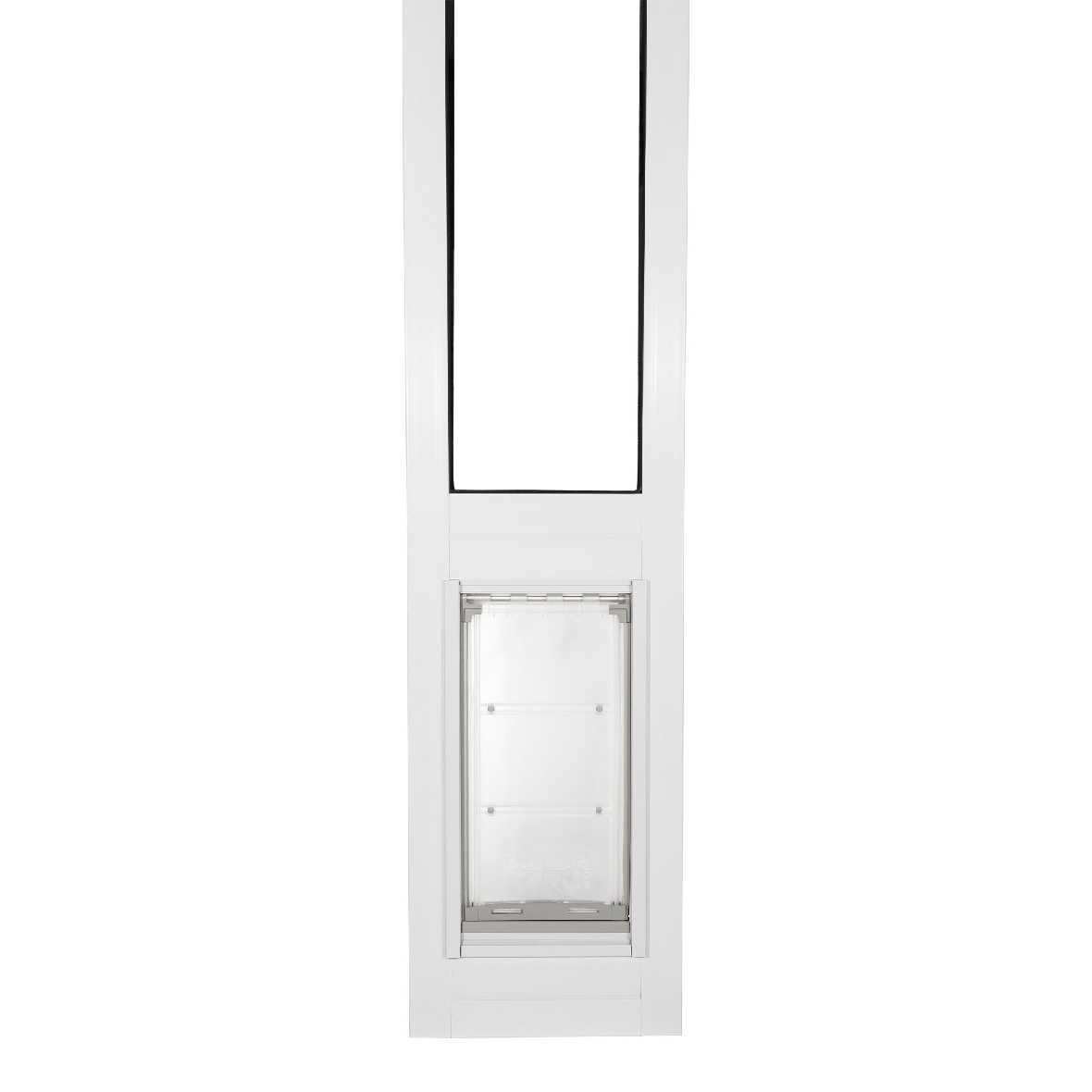

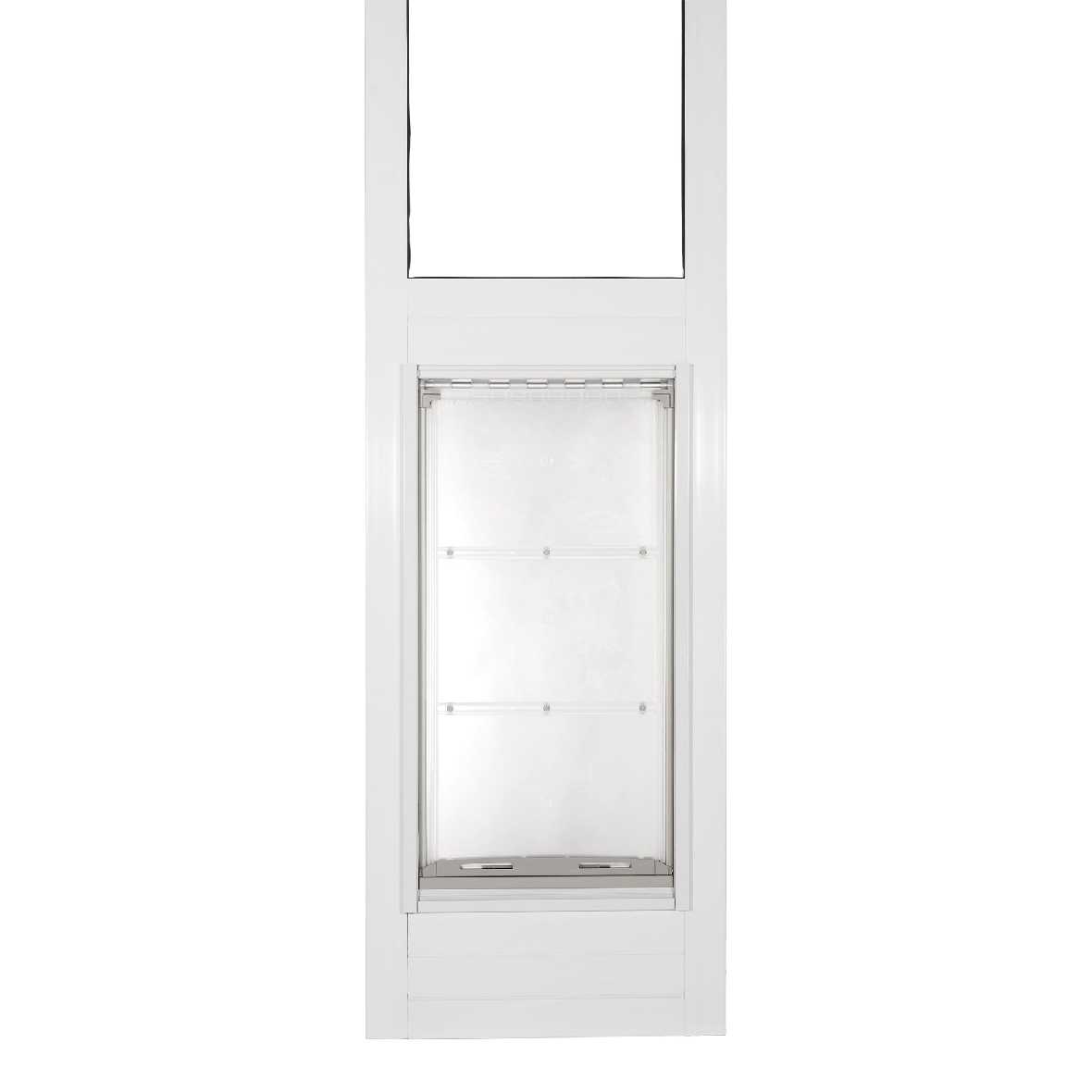

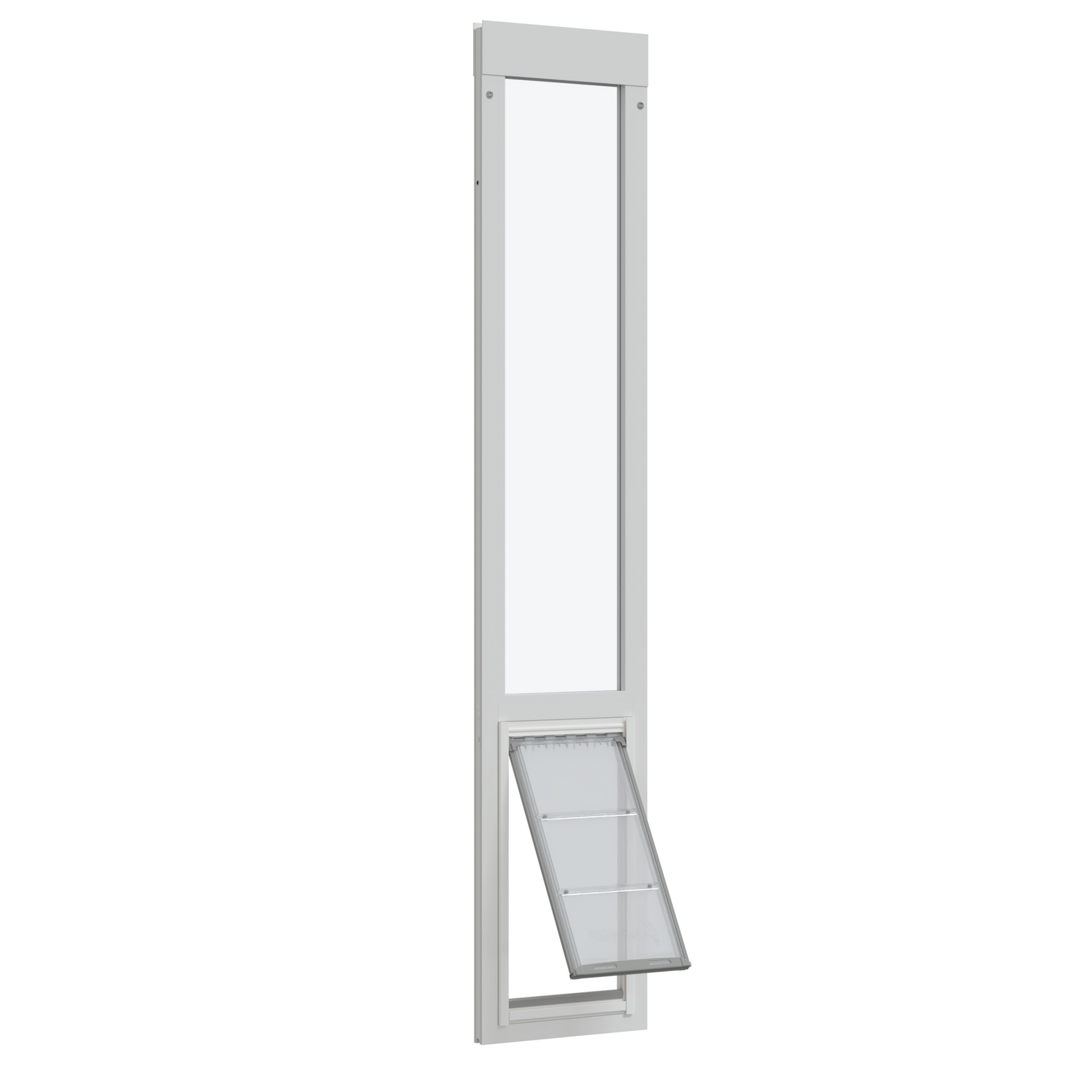

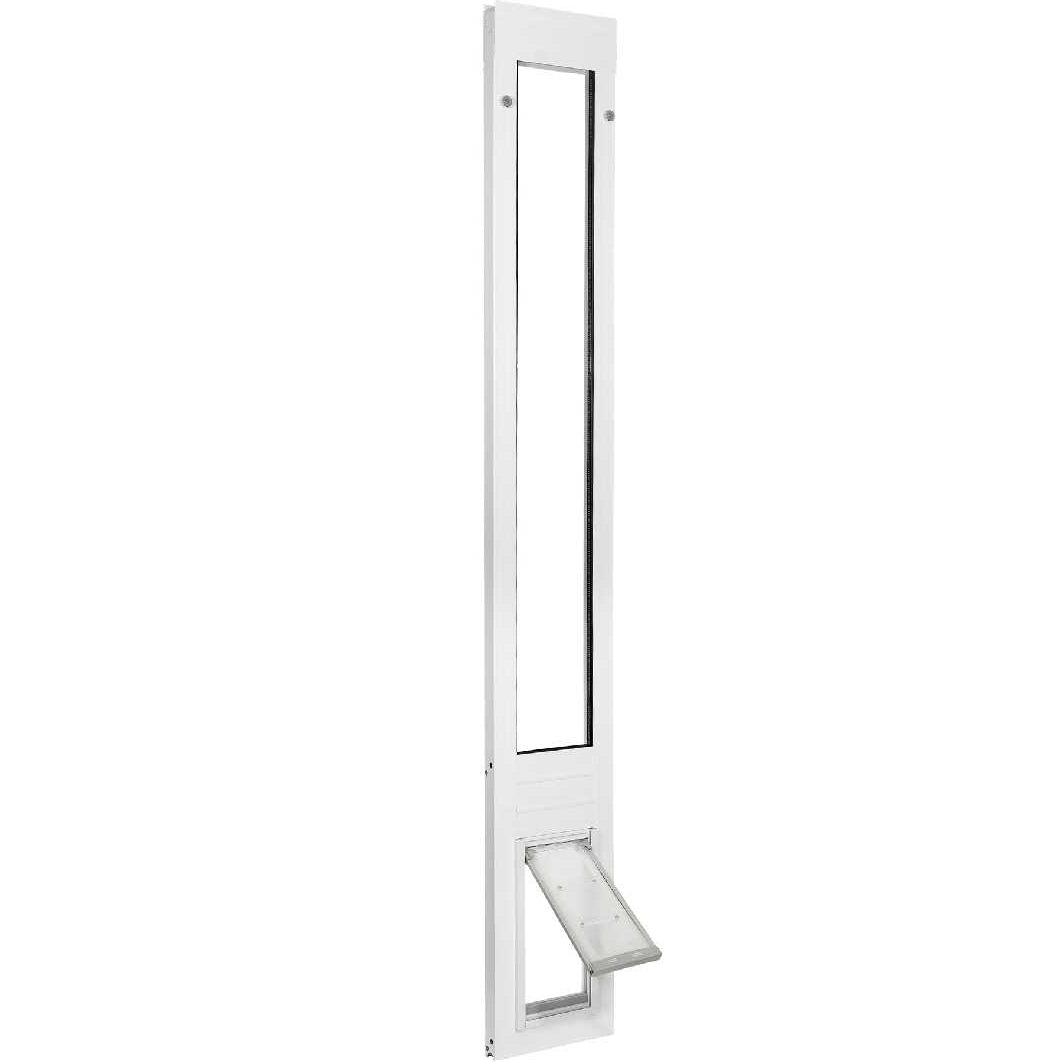

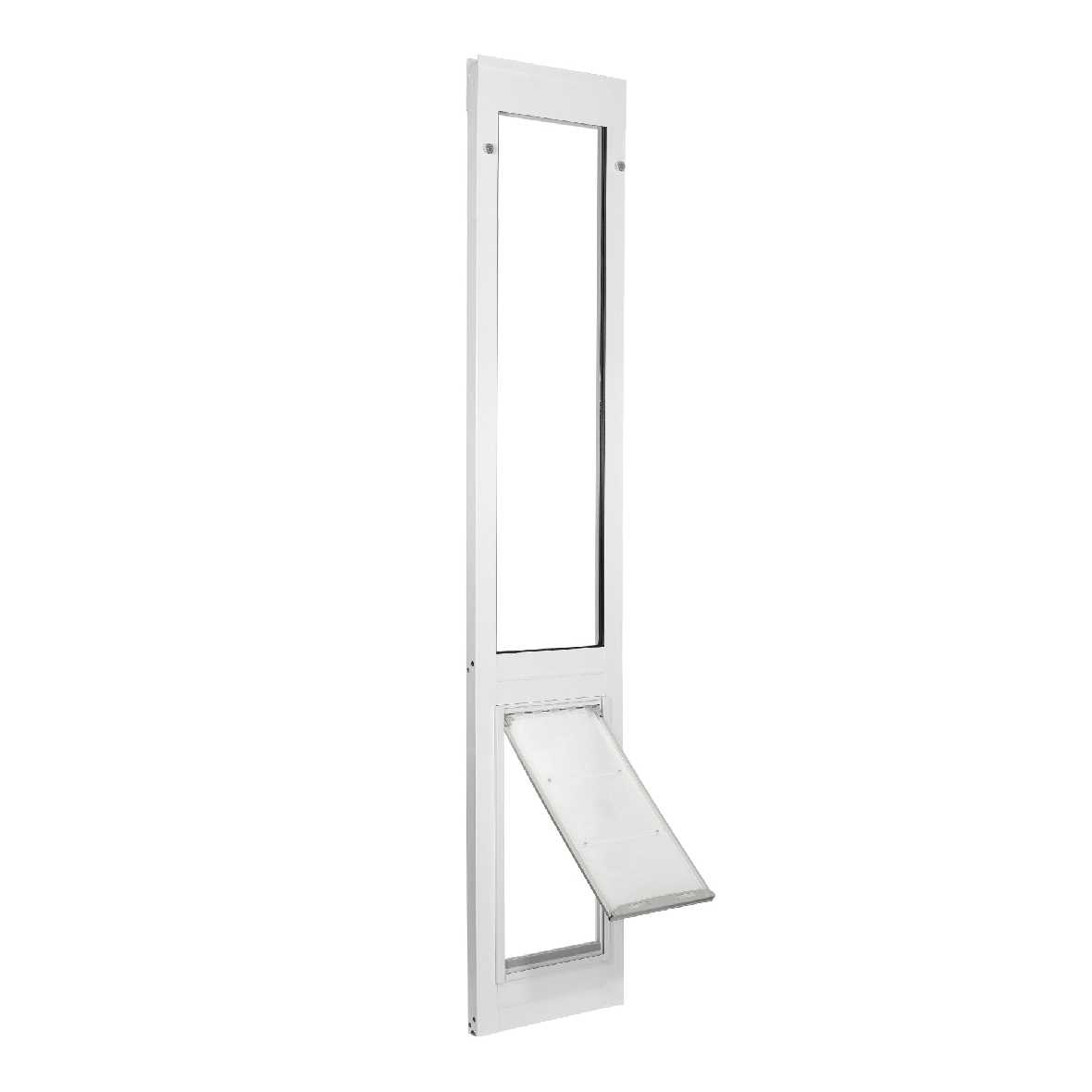

Endura Flap Vinyl Sliding Glass Dog Door

Bright clean patio door access

Made in the USA USA flag icon

$579.99 USD

Fast & Free Shipping in the USA.

Satisfaction Guarantee -

Flap Size

Height Adjustment Range

74.75" - 77.75" 77.25" - 80.25" 93.25" - 96.25" Custom Panel Height

Your Sliding Glass Door Track Height Please enter numbers only. No letters or special characters allowed. For panels 107" and over, please reach out to our customer support team for assistance at customerservice@enduraflap.com, or 800-826-2871.

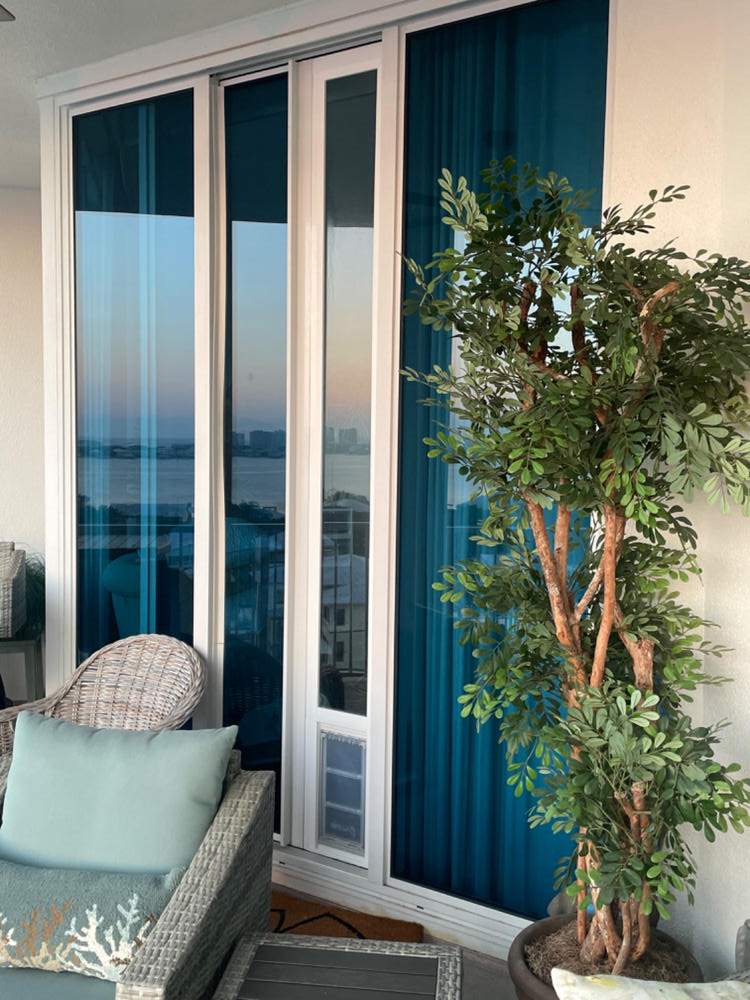

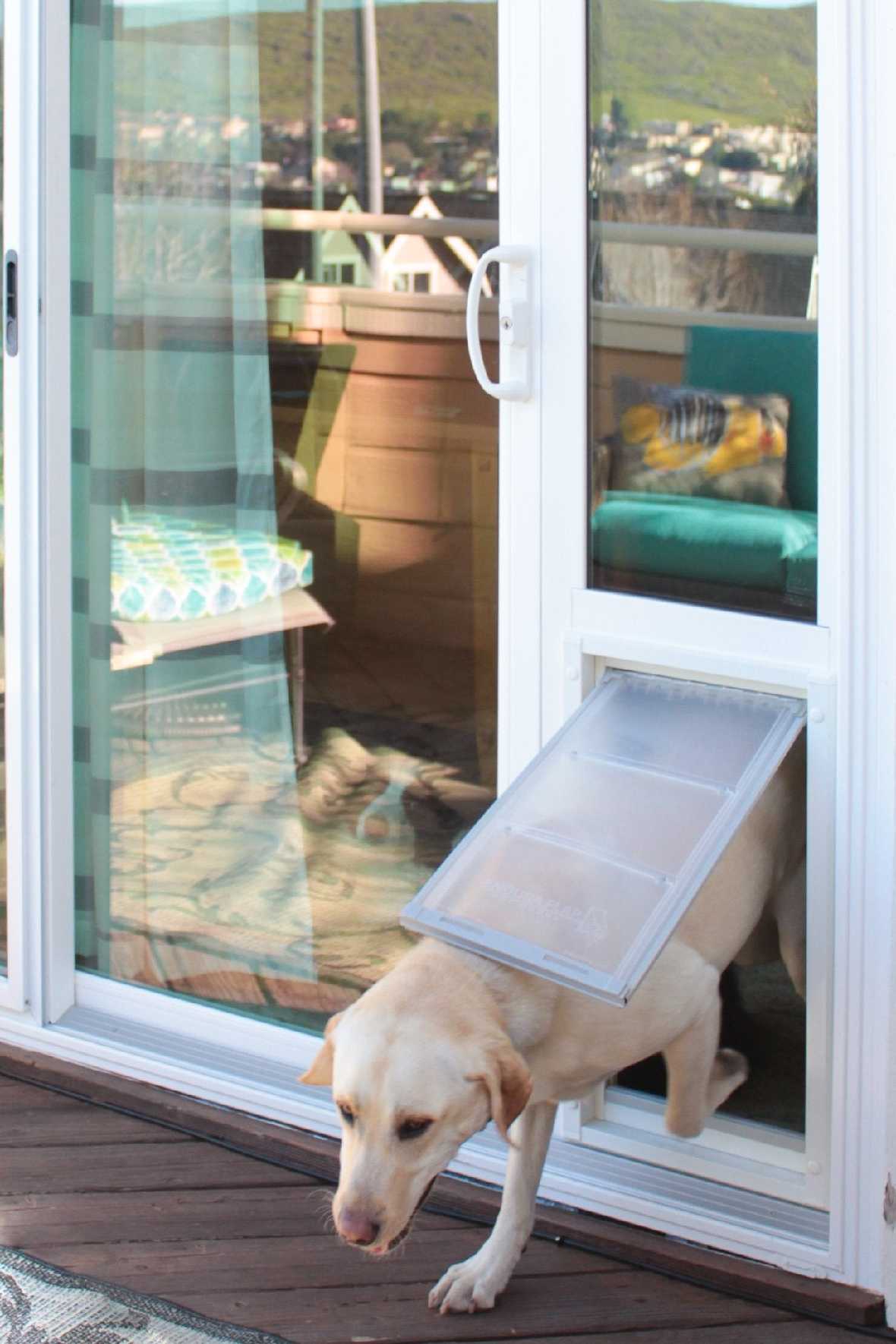

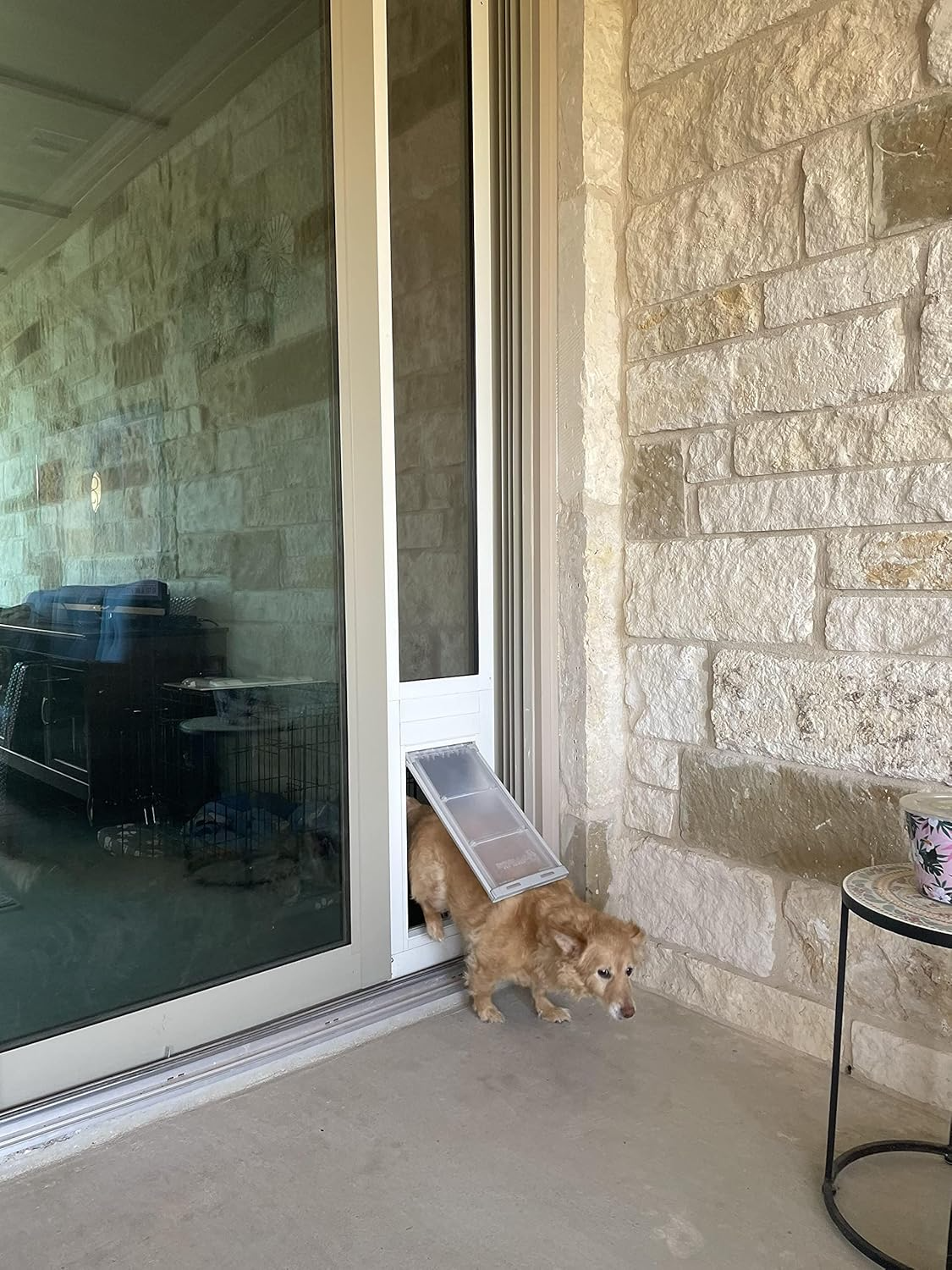

Comfortable patio door pet access that blends into vinyl sliding glass doors with a track matched panel fit, pairing a single Endura Flap that suits a wide range of pets with a three sided magnetic seal that helps reduce drafts.

Installation & Fit

Fits standard sliding glass doors that use a U-shaped track of minimum 1-1/2" thickness
Seats into the door track as a semi permanent patio panel rather than mounting through the wall or door
Uses a spring loaded panel design that holds position in the track and supports easier removal when needed
Includes a slidelock that adds an extra layer of closure control at the sliding door

Best Suited For

Ideal For

Vinyl sliding glass doors where a clean track fit panel is preferred over more permanent swing door or wall installations
Homes in mild to severe climates that want a tighter seal than typical patio inserts without moving into heavier double flap configuration
Cats and dogs that do better with an easier push through feel from a single flap
Rentals and vacation homes where the ability to remove the panel matters

Not Ideal For

Homeowners who want maximum insulating power during extreme weather in the summer or winter; you may be better suited with the Endura Flap Severe Weather Vinyl Sliding Glass Dog Door

Questions

What's in the box?

Vinyl Panel Pet Door
Weatherstrip Seal Roll
Center Post Weather Seal Draft Stopper
Sliding Door C-Clamp Lock

Can an intruder remove a dog door for sliding glass doors from the outside?

No, the adjustment locks are on the inside of the panel, so once installed, the Endura Flap Panel cannot be lifted out and removed without first loosening the adjustment locks from inside the home.

Can I install it myself?

It is meant to easily be put in and removed. You just have to loosen the screws at the top, fit it into the track, and then tighten them. Then to remove it you simply loosen them again and pop it out.

Can you lock the pet door?

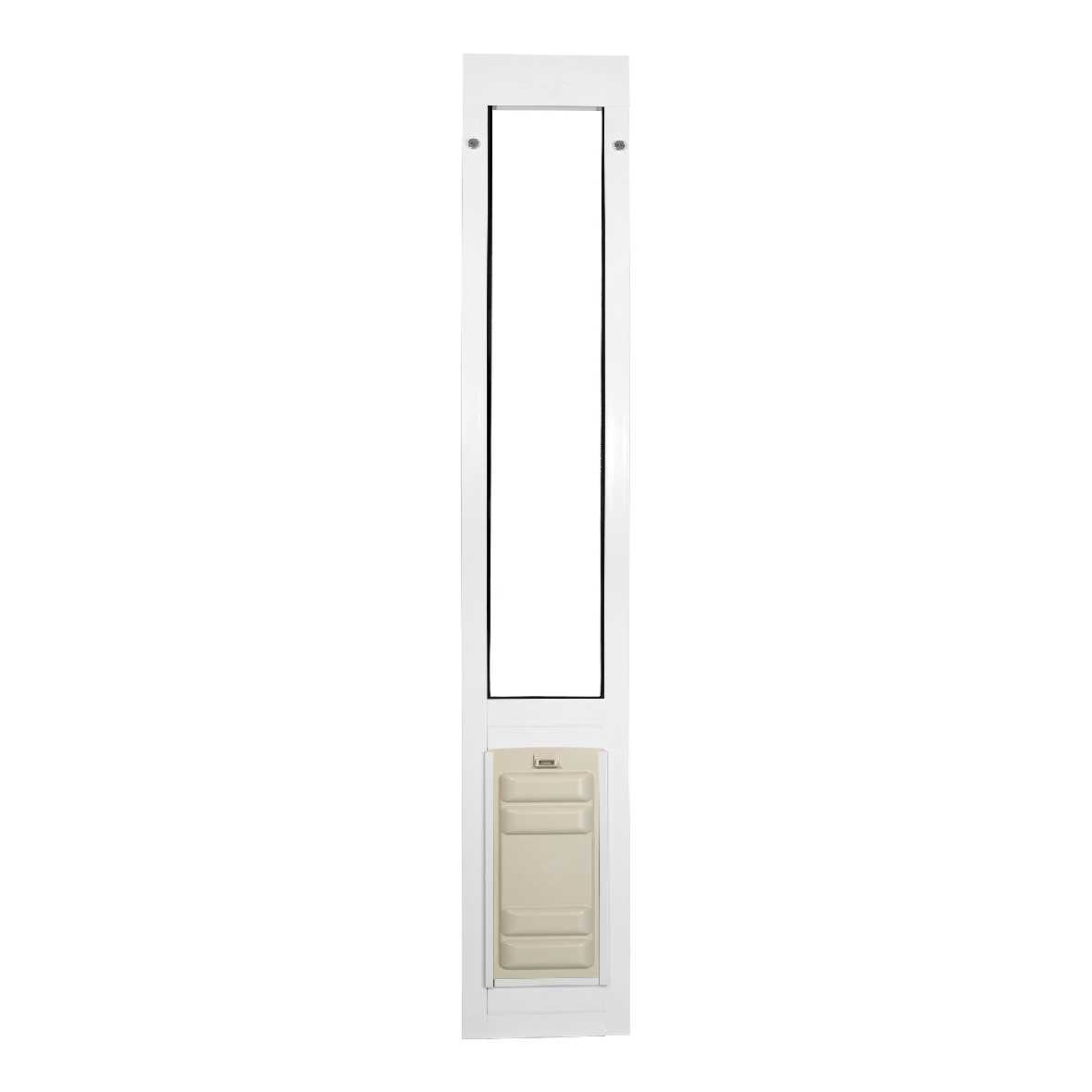

It comes with a closing cover, and you slide that in on the inside of the house. It is a very secure ABS plastic material that is as strong as a 16 gauge steel.

Explore all questions

Endura Flap Vinyl Sliding Glass Dog Door

Small / 74.75" - 77.75" Choose Options

Product Details

This vinyl patio panel is for buyers who want pet access through a sliding glass door that looks tidy, feels intentional, and avoids permanent modification while still keeping the home more comfortable than a typical insert.

Matched for vinyl sliding doors
The frame is built to complement vinyl sliders and fit doors that use a U-shaped track with a minimum 1-1/2 inch thickness. With three standard track height ranges and multiple flap sizes, this pet door is sure to have an option that fits both your sliding door, and your pet family, perfectly. If your sliding door frame doesn't fit within one of the standard height ranges we have available, we can build to custom heights too!

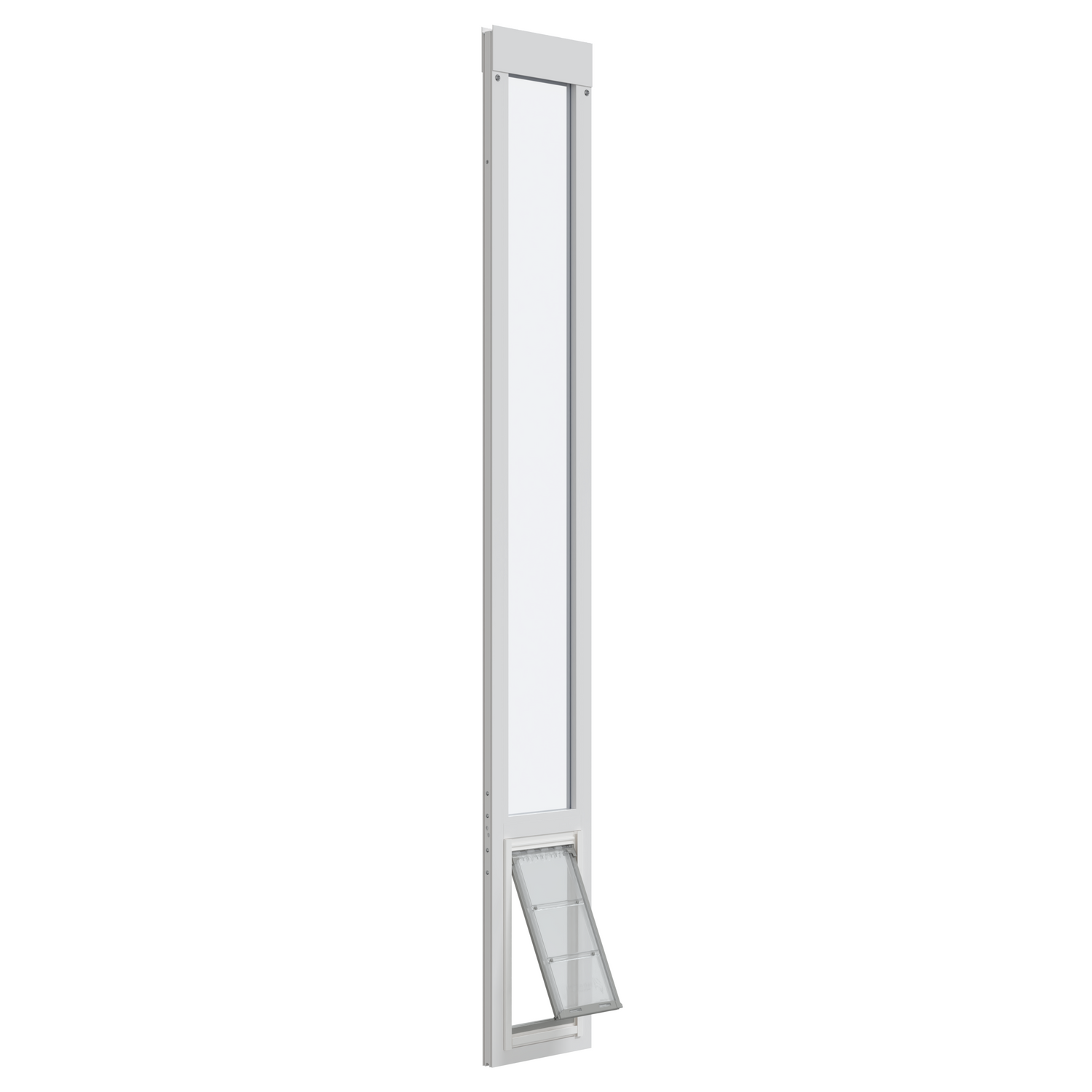

Everyday comfort with an easier flap feel
A single flap design gives many pets a more natural push through experience than heavier double flap systems, which can matter for cats, smaller dogs, and more hesitant pets. The magnetic seal helps the flap return to a closed position so the opening feels more controlled during daily use.

Convenience and control for real living situations
The spring loaded panel design supports easier installation and removal for rentals, vacation homes, and seasonal use where flexibility matters. A locking cover is included for times when you want pet access closed off, such as at night, during travel, or when you need a more controlled routine.

The Endura Flap guarantee
Built in the USA and back by a Lifetime Warranty, the Endura Flap is designed for long term performance you can trust.

Sizing & Fit

Size Chart

Small 6" w x 11" h
Medium 8" w x 15" h
Large 10" w x 19" h
Extra Large 12" w x 23" h
XX Large 14" w x 27" h

Flap Dimensions:

6" w x 11" h

The entry way your dog goes through.

Overall Panel Width

10 7/16"

How wide your panel is.

Step-Over Height

The distance from the bottom of the panel to the bottom of your flap.

Flap Dimensions:

8" w x 15" h

The entry way your dog goes through.

Overall Panel Width

14 3/8"

How wide your panel is.

Step-Over Height

The distance from the bottom of the panel to the bottom of your flap.

Flap Dimensions:

10" w x 19" h

The entry way your dog goes through.

Overall Panel Width

16 7/16"

How wide your panel is.

Step-Over Height

6 3/8"

The distance from the bottom of the panel to the bottom of your flap.

Flap Dimensions:

12" w x 23" h

The entry way your dog goes through.

Overall Panel Width

18 1/2"

How wide your panel is.

Step-Over Height

6 3/8"

The distance from the bottom of the panel to the bottom of your flap.

Flap Dimensions:

14" w x 27" h

The entry way your dog goes through.

Overall Panel Width

18 5/8"

How wide your panel is.

Step-Over Height

6 3/8"

The distance from the bottom of the panel to the bottom of your flap.

Flap Size	Flap Dimension	Step Over Height	Overall Panel Width	Recommended Pet Height
Small	6" w x 11" h	3"	10 7/16"	9" -14"
Medium	8" w x 15" h	3"	12 1/2"	9" - 21"
Large	10" w x 19" h	6 3/8"	14 1/2"	9" - 32"
Extra Large	12" w x 23" h	6 3/8"	16 5/8"	9" - 38"
XX Large	14" w x 27" h	6 3/8"	18 5/8"	9" - 42"

Height Options:

Short: 74 ¾" - 77 ¾"
Regular: 77 ¼" - 80 ¼"
Tall: 93 ¼" - 96 ¼"

Step-Over is non-adjustable for all vinyl Endura Flap panels. Wondering how to measure your track? Review our Track Measuring Guide.

Installation Guide

Installation Information

One-Piece Panel Two-Piece Panel

One-Piece Panel

Printable Version

Difficulty Easy

Steps 5

Time Required 0.5 hours

Parts

Vinyl Panel Pet Door
Weatherstrip Seal Roll
Center Post Weather Seal Draft Stopper
Sliding Door C-Clamp Lock

Tools

Flathead Screwdriver

Please read instructions & notes thoroughly before installation.

Step 1 Loosen Height Adjustment Locks

Loosen the height adjustment locks at the top of the pet panel with the screwdriver. This allows the spring mechanism to move freely up and down.

Step 2 Test Fit the Panel in Your Track

You want to put the pet door in your track before applying any weather stripping to ensure it fits. If the panel fits well, proceed to the next step. See the Troubleshooting Section if you encounter difficulties.
To insert the panel into the top track, push up against the spring mechanism and swing the bottom of the panel up and over the threshold.
Seat the panel on top of the small guide rail in the track.
If you can't quite get it in the track, try swinging in from the outside as the outside track wall may be shorter.

Step 3 Apply Weatherstripping

Once you're sure the panel fits, remove it from the frame and lay it on its side on the ground.
For foam weatherstripping: Peel the backing off the foam weatherstripping. Press it along both edges of the panel, trimming as needed with scissors to ensure a snug fit.
For rubber weatherstripping: Clean the edge of your sliding door or window with rubbing alcohol to help the weatherstripping stick properly. Starting at the top or bottom, peel and press the strip into place with the folded edge facing indoors—align angled cuts if you have two pieces. For best results, apply the seal to the sliding door or window, but it can go on the pet door panel if needed.
Foam weatherstripping is applied onto both sides of the panel, but the rubber weather stripping only applies on the side of the slider door. Your panel will come with one type of weather stripping. You do not need both types.

Step 4 Install the Draft Stopper

The center post weather seal strip (draft stopper) should be installed on the inside of the home.
It can install on either the back edge of the sliding door panel or the leading edge of the stationary panel.
This strip prevents air from leaking between the sliding glass door and the stationary panel.
Trim with scissors as needed. Clean the edge of your patio door with rubbing alcohol before installing to assure a good seal.
Repeat step two to install the panel in your track.

Step 5 Install the Panel

If you haven't already, insert the panel back into your sliding door track the same way you did earlier: pushing up against the spring mechanism and swinging the bottom into place. Push it snug into the side track!
Make sure everything is sitting securely.
Tighten the height adustment locks in the spring mechanism.
And that's it! Your pet door is installed and ready for use. Now, watch your pet strut through their new door like they own the place!

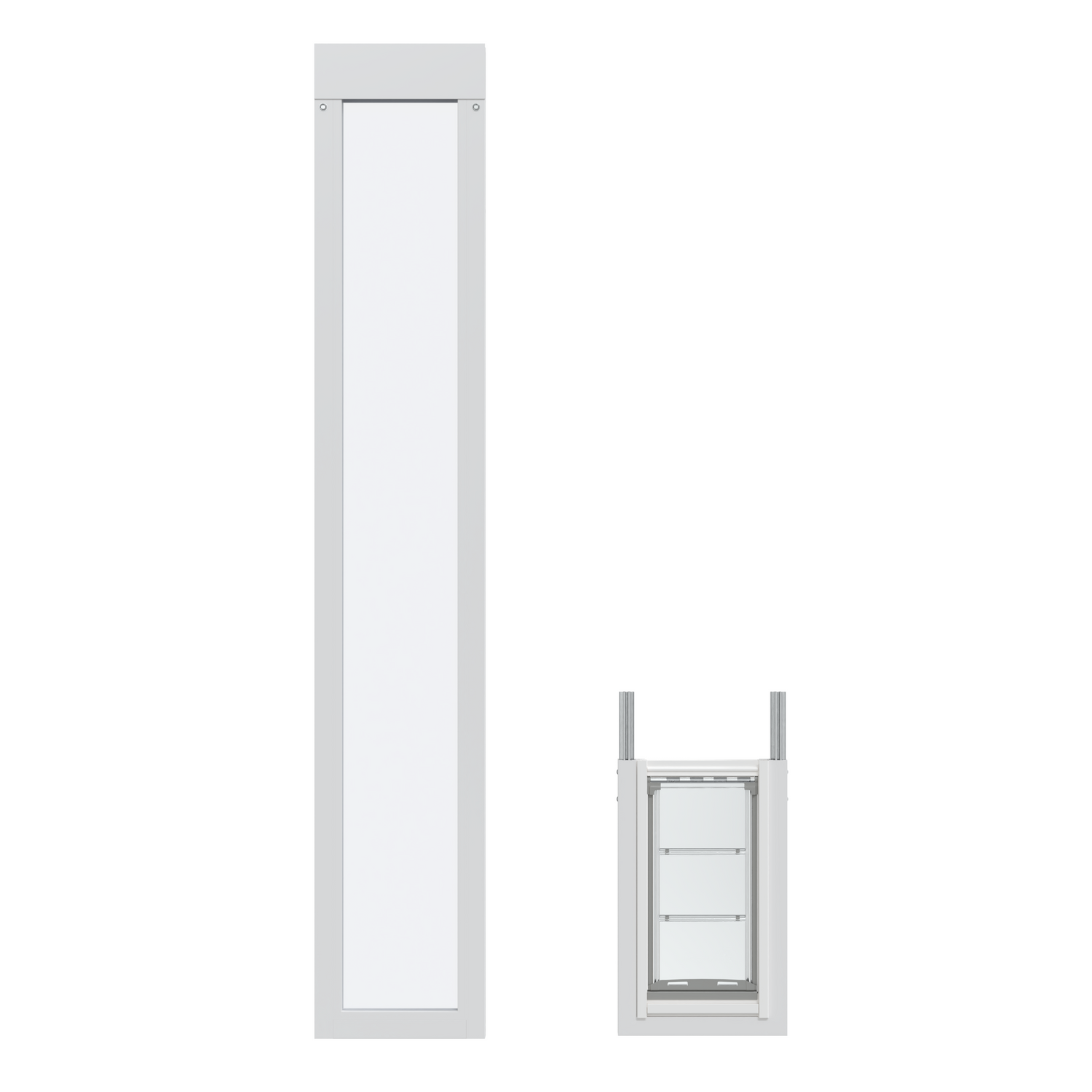

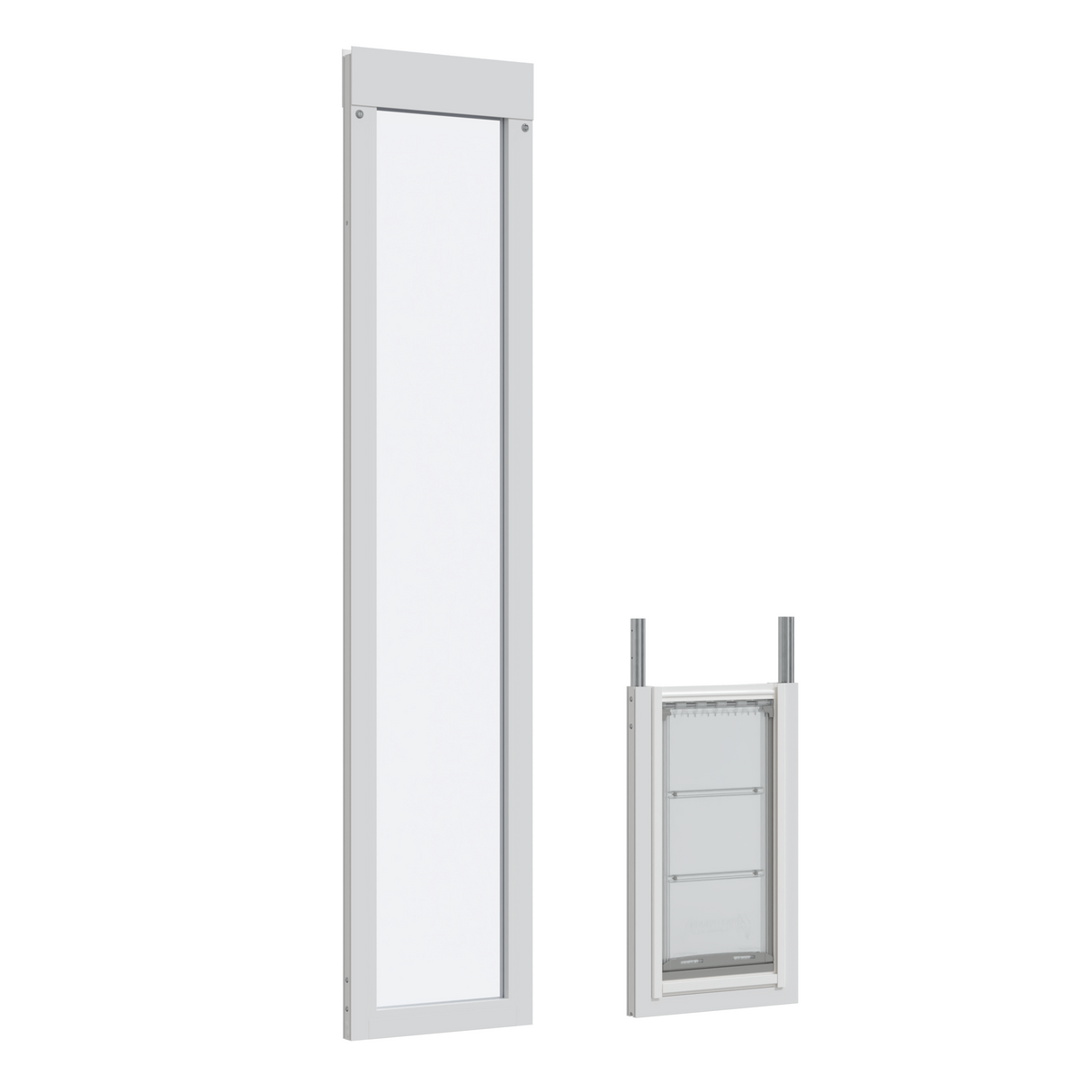

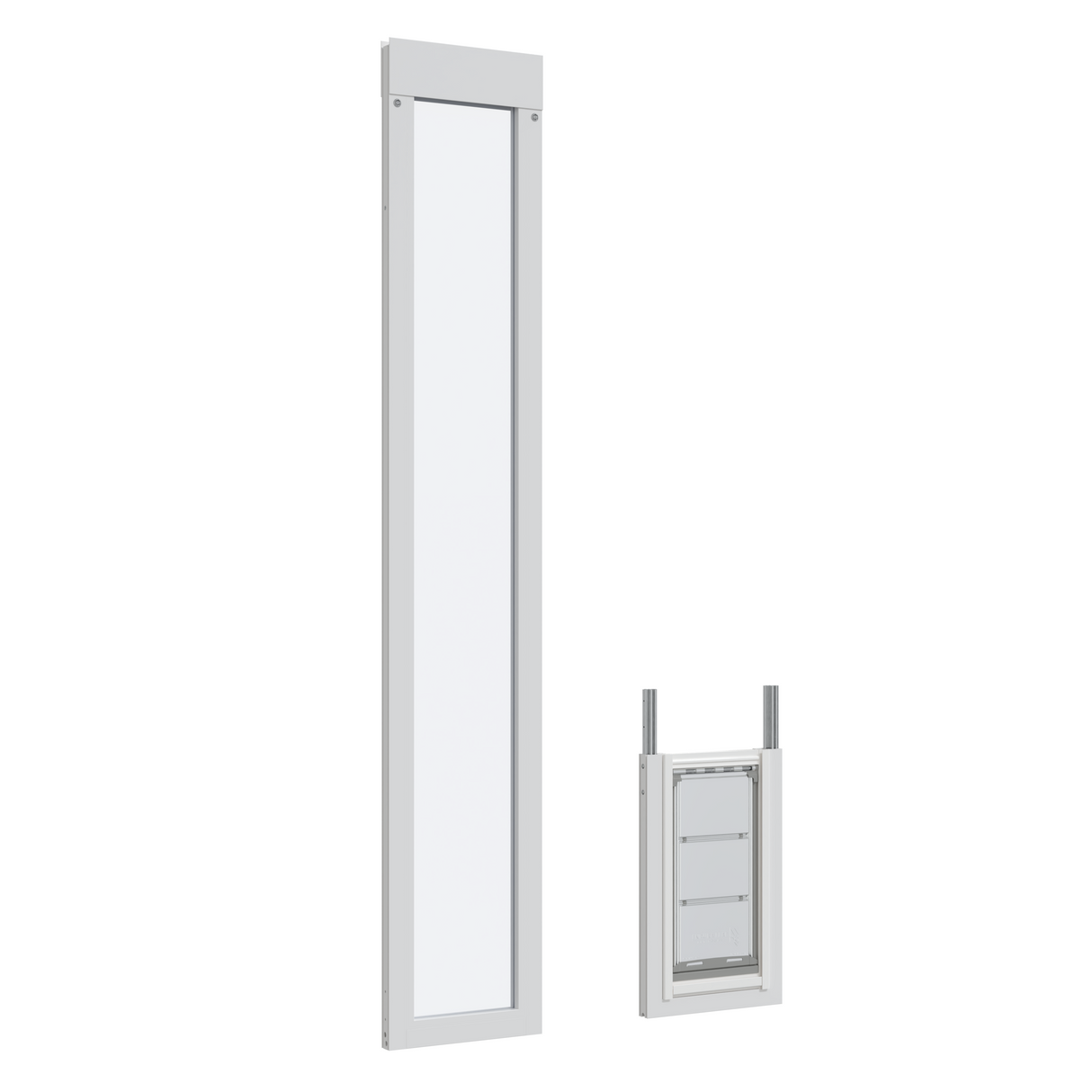

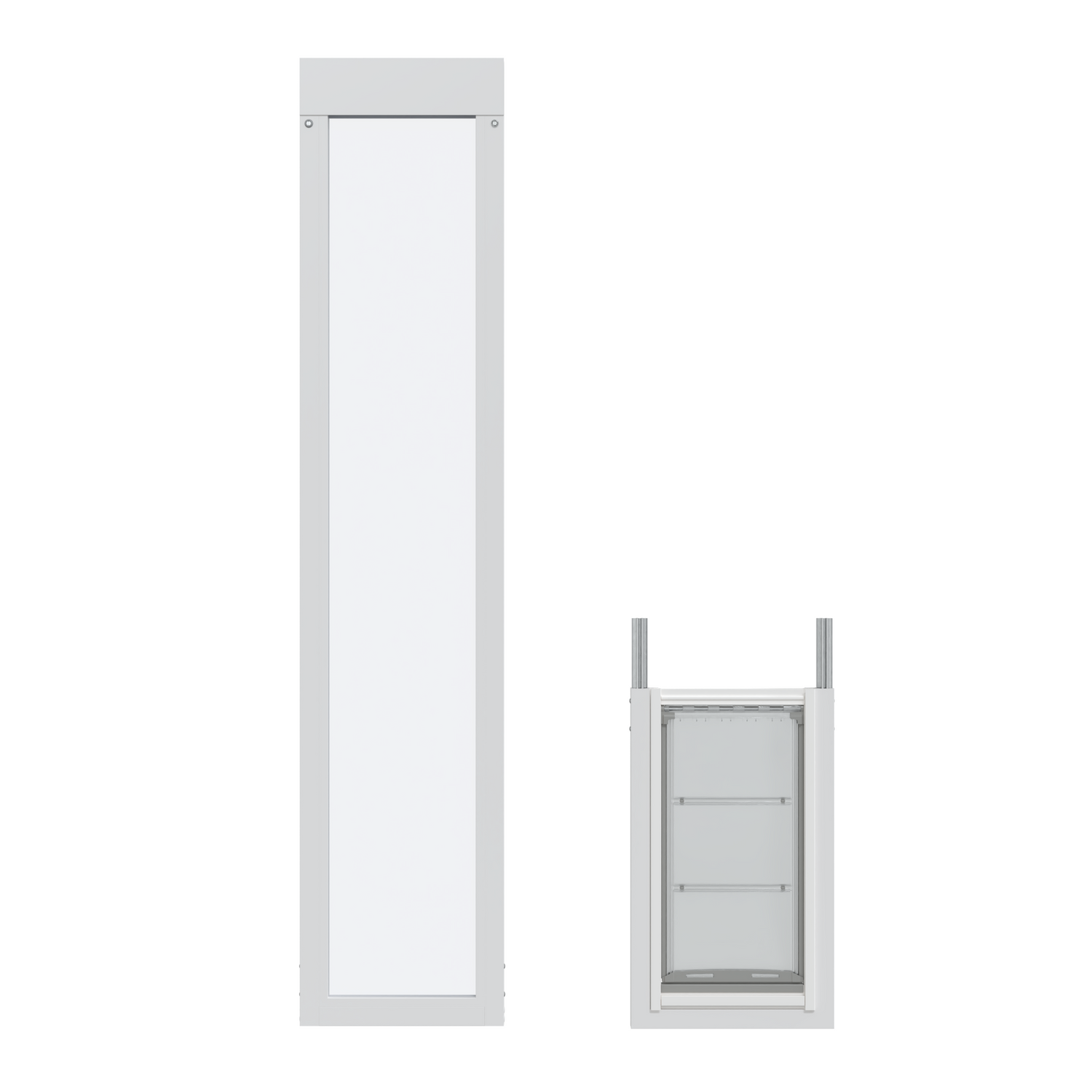

Two-Piece Panel

Printable Version

Difficulty Easy

Steps 7

Time Required 0.5 hours

Parts

Vinyl Panel Pet Door
Weatherstrip Seal Roll
Center Post Weather Seal Draft Stopper
Sliding Door C-Clamp Lock

Tools

Flathead Screwdriver

Please read instructions & notes thoroughly before installation.

Step 1 Align the Connectors

Align the aluminum connectors extending from the bottom flap panel section with the top glass panel section. Remove the 4 sectional connectors screws before joining the sections.
Press the aluminum connectors into the holes at the bottom of the top glass panel section.
Ensure locking cover & height adjustment locks are on the same side!

Step 2 Assemble the Panel

To fully seat the connectors, gently tap the bottom edge of the panel against the ground
Tip: Place a towel or soft surface underneath to protect your floor, and the panel!
Fasten the two panels together using the four sectional connector screws.

Step 3 Loosen Height Adjustment Locks

Loosen the height adjustment locks at the top of the pet panel with the screwdriver. This allows the spring mechanism to move freely up and down.

Step 4 Test Fit the Panel in Your Track

You want to put the pet door in your track before applying any weather stripping to ensure it fits. If the panel fits well, proceed to the next step. See the Troubleshooting Section if you encounter difficulties.
To insert the panel into the top track, push up against the spring mechanism and swing the bottom of the panel up and over the threshold.
Seat the panel on top of the small guide rail in the track.
If you can't quite get it in the track, try swinging in from the outside as the outside track wall may be shorter.

Step 5 Apply Weatherstripping

Once you're sure the panel fits, remove it from the frame and lay it on its side on the ground.
For foam weatherstripping: Peel the backing off the foam weatherstripping. Press it along both edges of the panel, trimming as needed with scissors to ensure a snug fit.
For rubber weatherstripping: Clean the edge of your sliding door or window with rubbing alcohol to help the weatherstripping stick properly. Starting at the top or bottom, peel and press the strip into place with the folded edge facing indoors—align angled cuts if you have two pieces. For best results, apply the seal to the sliding door or window, but it can go on the pet door panel if needed.
Foam weatherstripping is applied onto both sides of the panel, but the rubber weather stripping only applies on the side of the slider door. Your panel will come with one type of weather stripping. You do not need both types.

Step 6 Install the Draft Stopper

The center post weather seal strip (draft stopper) should be installed on the inside of the home.
It can install on either the back edge of the sliding door panel or the leading edge of the stationary panel.
This strip prevents air from leaking between the sliding glass door and the stationary panel.
Trim with scissors as needed. Clean the edge of your patio door with rubbing alcohol before installing to assure a good seal.
Repeat step two to install the panel in your track.

Step 7 Install the Panel

If you haven't already, insert the panel back into your sliding door track the same way you did earlier: pushing up against the spring mechanism and swinging the bottom into place. Push it snug into the side track!
Make sure everything is sitting securely.
Tighten the height adustment locks in the spring mechanism.
And that's it! Your pet door is installed and ready for use. Now, watch your pet strut through their new door like they own the place!

Videos

Endura Flap High-Quality Design

Endura Flap Impact Test

Leaf Blower Test

Variable Magnetic Resistance

How to Remove Side Magnets for Easier Use

FAQs

FAQ

Can an intruder remove a dog door for sliding glass doors from the outside? No, the adjustment locks are on the inside of the panel, so once installed, the Endura Flap Panel cannot be lifted out and removed without first loosening the adjustment locks from inside the home.
Can I install it myself? It is meant to easily be put in and removed. You just have to loosen the screws at the top, fit it into the track, and then tighten them. Then to remove it you simply loosen them again and pop it out.
Can you lock the pet door? It comes with a closing cover, and you slide that in on the inside of the house. It is a very secure ABS plastic material that is as strong as a 16 gauge steel.
Do the Endura Flap panels require tools for installation? All panel sizes will require a flathead screwdriver for the height adjustment locks. Panels that ship in two pieces (sectionals) will need to be assembled with 4 hex screws and a hex wrench, all of which are provided for sectionals. The following panels ship in one piece: Panels under 80 ¼" with a Small, Medium, or Large flap. The following panels ship in two pieces: Panels over 80 ¼" with a Small, Medium, Large, or Extra-Large flap and panels under 80 ¼" with an Extra-Large flap. Shipping a tall and/or wide panel in two pieces saves customers on shipping costs since it can be shipped in a smaller box.
Does it come in any color other than white? While our vinyl panels are only built in white, you can paint the vinyl to match your home using an appropriate paint for the material. You will want to use a bonding primer and a vinyl-safe acrylic paint in the color of your choice.
Does it lock? We do include a c-clamp lock. It is not designed to mate with your existing sliding door lock. You can also use a Charley-Bar or dowel in the track.
Does the Endura Flap dog door sliding door come with locking covers for security? Yes, these dog doors come with locking covers to ensure safety for your pet and home. Endura Flaps have locking covers that slide over them on the side facing inside your home and are made of sturdy, heavy-duty ABS plastic. The cover has the equivalent strength of 16 gauge steel and will reliably prevent intruders or wildlife from entering.
Does this insulate well? The Endura Flap has superior insulating capabilities! The flap has magnets that seal all the way around, and will stay closed in wind gusts up to 50mph.
Does this insulate well in severe weather? This door has superior insulating capabilities. The double flaps have magnets that seal all the way around, and will stay closed in wind gusts up to 50mph. The Low-e glass also compliments the insulating value of you new vinyl door. It is our #1 recommendation for extreme climates.
Does this keep mice, rats, and other pests out? This is a manual door, so there is no guarantee that critters will not get in. However, the Endura Flap has incredibly strong magnets that are hard for small critters to push through and get in.
Does this panel work with vinyl sliders? Yes, the endura flap 3e is compatible with most vinyl sliding patio doors for a vinyl-pet slider that matches your existing track. At 1" thick, it is thicker than most aluminum panels, so it will fit better in a vinyl track. The track width may not line up exactly with the panel, but it is only an issue with the aesthetics, not functionality.
How do I install this pet door into a slider where the doors meet in the middle? Installation can work the same way as with standard sliding doors. In order for the panel insert to remain secure and stable, you will need to make one of your sliders stationary. In essence, you will only be allowed to slide and walk through one of your two sliders.
How do I lock my sliding glass door when there is a pet door insert installed? All doors will include at least a track lock to prevent the sliding door from being moved. The Endura Flap Slidelock (automatically included with our Dual Pane Glass aluminum panels, and the Severe Weather Vinyl panels) can also be used to provide a robust, deadbolt style external lock for your sliding door. You can also quickly find other security methods, such as a Charley-bar, via other retailers or perhaps your local home goods store.

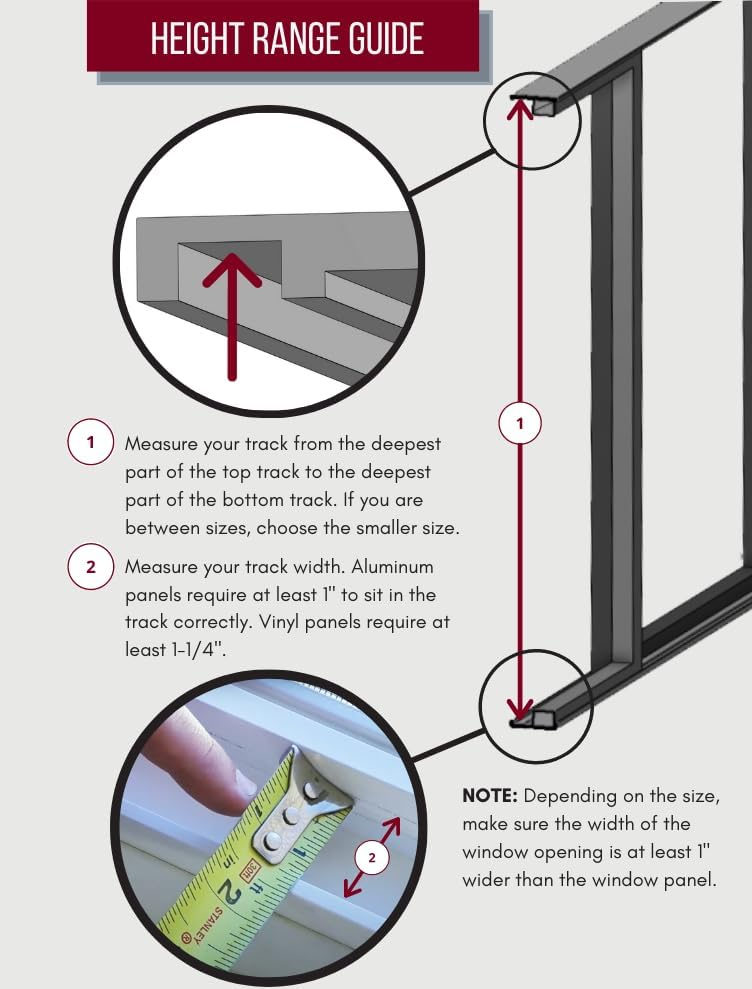

How do I measure my door to get the correct height adjustment size? Measure from the innermost part of the bottom track to the innermost top part of the track. If there is a pencil railing, include that in the measurement because the panel straddles the railing.
I am looking at the multi dog sized doors for a sliding patio door. What are the differences between a vinyl dog door and an aluminum? The primary differences between vinyl and aluminum dog doors for sliding patio doors, besides the material , are in their thickness, energy efficiency, and material compatibility. Vinyl doors are typically 1.5" thick, offer better insulation, and match well with vinyl sliding doors due to their energy-efficient nature and thicker frames. Aluminum doors, on the other hand, are 1" thick, less insulating but highly durable, and they pair well with aluminum sliding doors for a consistent look and maintenance ease. \n \n When choosing between them, we recommend getting the panel that matches your sliding glass door's track material (aluminum with aluminum, or vinyl with vinyl) and will fit into your track's width.
I have a hurricane patio door. Will this pet door work for me? Hurricane door track styles vary widely, so they are case-by-case. Please reach out to customer service to discuss your pet door options for your sliding door.
If I custom order a short version of the Liberty Pet Door panel, could I install it into my window track? While it's possible, a more suitable option would be the Liberty Pet Door for Horizontal Sliding Windows, which is already available in standard window sizes.
Is the Endura Flap clear? It is a little foggy, but it is see through.
Is the flap flexible? It is flexible, but since it is two pieces sandwiched together it is a little stiffer and heavier than the more economical vinyl flaps.
Is there an electronic version of this panel? We do hope to offer that option in the future, but right now we are offering only the Endura Flap options.
Is this door good in a cold winter climate? I want something effective in our winter months. Yes, the Endura Flap has been tested in -40°F. The dual-pane glass provides excellent insulation value.
Is this the same as the Thermo Panel 3e? The Endura Flap Thermo Panel 3e is the aluminum frame version for sliding glass doors.
My sliding door track has a triangular guide rail. Will this pet door still work? Some sliding glass door tracks have a triangle-shaped guide rail instead of a cylindrical pencil rail running along the middle. This pet door panel has an arch along the bottom that is designed to sit on top of a cylindrical pencil rail. Pencil rails are shorter in height than triangular guide rails, which means that the pet door panel would wobble on top of it rather than sitting flush with the rest of the track. To accommodate the pet door panel you will need to build up the sides of the triangular guide rail so that the tip is less than ¼” tall. Please reach out to customer service if you have any questions about this process.
What are some breeds of dogs these will fit? Small would be Chihuahuas, Yorkies, and cats. Medium would be good for Corgis, Jack Russell Terriers, and French Bulldogs. Large would fit most Labs, Goldens, and Pit Bulls. Extra Large would be good for most Rottweilers, German Shepherds on the large side, and English Labs.
What do I do if this does not come in size that will fit my door? If none of these sizes will fit your door, you can order a custom fit Endura Flap Thermo Panel 3e.
What do the Step Over Range dimensions mean? The step over is the part of the panel under the actual door opening. Depending on the flap size purchased, the stepover can range from 3"-7". This means that you can adjust it to any stepover within that range. So if you have a puppy, you can keep adjusting it as he/she grows.
What does the recommended pet height mean? That column is what we recommend be the range of pet height that would be suitable for that particular flap size. So for example if you pet is 20"tall and could fit though a 10" wide opening, then you could go with the large flap.
What if my track is wider than 1-1/2"? It can still work if your track is wider, but if the channel in the bottom, top, or side measures less than that you will not be able to fit it into place properly.
What is the thickness of the Endura Flap aluminum panel? The Endura Flap Thermo Panel 3e is 1" thick. It is only thick enough for a single flap, not a double flap.
Will there be enough room for me to get through after the panel is installed? That depends on how wide your sliding glass door opens and how wide the panel you purchase is. Those dimensions can be found under the "Overall Panel Width" column.
Will this fit my aluminum sliding glass door? It could, but you risk condensation and an improper fit. Aluminum sliders have a narrow track, which vinyl panels may be too wide for. Generally we recommend trying to match your slider door track width as closely as possible, and matching material can also help with reducing condensation build-up.
Will this form condensation like the aluminum panels? No condensation should form if you match the material of the pet door frame with the material of your sliding glass door. For example, if you have a vinyl slider, your panel should also be made of vinyl. Please note: aluminum components in the pet door are conductive and may still feel quite cold in the winter months.
Will this panel work if my sliding glass door has a buried track? Some sliding glass doors have buried tracks. Since this panel has an arch along the bottom that is designed to sit on top of a pencil rail, it will not be secure in a slider with a buried track without modifications. We recommend securing the panel to the track wall with L brackets or toenailing it to the track wall. Toenailing is the process of fastening the panel to the track by driving a nail at roughly a 45-degree angle into the panel and through the track wall. Please note that these modifications result in a semi-permanent installation. If you needed to remove the panel in the future you would first have to remove the L brackets or nails. Additionally, please note that this process would leave holes in the pet door panel and it would no longer be returnable. Please reach out to customer service to further discuss your options for a buried track.
Will this pet door work with Anderson and Pella sliding doors? Anderson and Pella sliding glass doors have an inner track wall but no outer track wall. Additionally, the pencil rail is on the outer edge of the track rather than in the middle. Since this pet door panel is designed to sit between two track walls and on top of a centered pencil rail, it cannot be installed in Anderson or Pella doors without modifications. We recommend building out your track and using L brackets or toenailing to secure the bottom of the panel to the inner track wall. Building out the track means adding a piece of wood or vinyl that is the same height as the pencil rail to the space next to the pencil rail. This creates a flat surface for the pet door panel to sit on. Next, you will need to secure the panel to the track wall. To do this, you can use L brackets or you can toenail the panel into the track wall. Toenailing is the process of fastening the panel to the track by driving a nail at roughly a 45-degree angle into the panel and through the track wall. Please note that these modifications result in a semi-permanent installation. If you needed to remove the panel in the future you would first have to remove the L brackets or nails. Additionally, please note that this process would leave holes in the pet door panel and it would no longer be returnable. Please reach out to customer service to further discuss this process or different options for an Anderson or Pella sliding door.

Can an intruder remove a dog door for sliding glass doors from the outside?

No, the adjustment locks are on the inside of the panel, so once installed, the Endura Flap Panel cannot be lifted out and removed without first loosening the adjustment locks from inside the home.

Can I install it myself?

Can you lock the pet door?

It comes with a closing cover, and you slide that in on the inside of the house. It is a very secure ABS plastic material that is as strong as a 16 gauge steel.

Do the Endura Flap panels require tools for installation?

All panel sizes will require a flathead screwdriver for the height adjustment locks. Panels that ship in two pieces (sectionals) will need to be assembled with 4 hex screws and a hex wrench, all of which are provided for sectionals. The following panels ship in one piece: Panels under 80 ¼" with a Small, Medium, or Large flap. The following panels ship in two pieces: Panels over 80 ¼" with a Small, Medium, Large, or Extra-Large flap and panels under 80 ¼" with an Extra-Large flap. Shipping a tall and/or wide panel in two pieces saves customers on shipping costs since it can be shipped in a smaller box.

Does it come in any color other than white?

While our vinyl panels are only built in white, you can paint the vinyl to match your home using an appropriate paint for the material. You will want to use a bonding primer and a vinyl-safe acrylic paint in the color of your choice.

Does it lock?

We do include a c-clamp lock. It is not designed to mate with your existing sliding door lock. You can also use a Charley-Bar or dowel in the track.

Does the Endura Flap dog door sliding door come with locking covers for security?

Yes, these dog doors come with locking covers to ensure safety for your pet and home. Endura Flaps have locking covers that slide over them on the side facing inside your home and are made of sturdy, heavy-duty ABS plastic. The cover has the equivalent strength of 16 gauge steel and will reliably prevent intruders or wildlife from entering.

Does this insulate well?

The Endura Flap has superior insulating capabilities! The flap has magnets that seal all the way around, and will stay closed in wind gusts up to 50mph.

Does this insulate well in severe weather?

This door has superior insulating capabilities. The double flaps have magnets that seal all the way around, and will stay closed in wind gusts up to 50mph. The Low-e glass also compliments the insulating value of you new vinyl door. It is our #1 recommendation for extreme climates.

Does this keep mice, rats, and other pests out?

This is a manual door, so there is no guarantee that critters will not get in. However, the Endura Flap has incredibly strong magnets that are hard for small critters to push through and get in.

Does this panel work with vinyl sliders?

Yes, the endura flap 3e is compatible with most vinyl sliding patio doors for a vinyl-pet slider that matches your existing track. At 1" thick, it is thicker than most aluminum panels, so it will fit better in a vinyl track. The track width may not line up exactly with the panel, but it is only an issue with the aesthetics, not functionality.

How do I install this pet door into a slider where the doors meet in the middle?

Installation can work the same way as with standard sliding doors. In order for the panel insert to remain secure and stable, you will need to make one of your sliders stationary. In essence, you will only be allowed to slide and walk through one of your two sliders.

How do I lock my sliding glass door when there is a pet door insert installed?

All doors will include at least a track lock to prevent the sliding door from being moved. The Endura Flap Slidelock (automatically included with our Dual Pane Glass aluminum panels, and the Severe Weather Vinyl panels) can also be used to provide a robust, deadbolt style external lock for your sliding door. You can also quickly find other security methods, such as a Charley-bar, via other retailers or perhaps your local home goods store.

How do I measure my door to get the correct height adjustment size?

Measure from the innermost part of the bottom track to the innermost top part of the track. If there is a pencil railing, include that in the measurement because the panel straddles the railing.

I am looking at the multi dog sized doors for a sliding patio door. What are the differences between a vinyl dog door and an aluminum?

The primary differences between vinyl and aluminum dog doors for sliding patio doors, besides the material , are in their thickness, energy efficiency, and material compatibility. Vinyl doors are typically 1.5" thick, offer better insulation, and match well with vinyl sliding doors due to their energy-efficient nature and thicker frames. Aluminum doors, on the other hand, are 1" thick, less insulating but highly durable, and they pair well with aluminum sliding doors for a consistent look and maintenance ease. \n \n When choosing between them, we recommend getting the panel that matches your sliding glass door's track material (aluminum with aluminum, or vinyl with vinyl) and will fit into your track's width.

I have a hurricane patio door. Will this pet door work for me?

Hurricane door track styles vary widely, so they are case-by-case. Please reach out to customer service to discuss your pet door options for your sliding door.

If I custom order a short version of the Liberty Pet Door panel, could I install it into my window track?

While it's possible, a more suitable option would be the Liberty Pet Door for Horizontal Sliding Windows, which is already available in standard window sizes.

Is the Endura Flap clear?

It is a little foggy, but it is see through.

Is the flap flexible?

It is flexible, but since it is two pieces sandwiched together it is a little stiffer and heavier than the more economical vinyl flaps.

Is there an electronic version of this panel?

We do hope to offer that option in the future, but right now we are offering only the Endura Flap options.

Is this door good in a cold winter climate? I want something effective in our winter months.

Yes, the Endura Flap has been tested in -40°F. The dual-pane glass provides excellent insulation value.

Is this the same as the Thermo Panel 3e?

The Endura Flap Thermo Panel 3e is the aluminum frame version for sliding glass doors.

My sliding door track has a triangular guide rail. Will this pet door still work?

Some sliding glass door tracks have a triangle-shaped guide rail instead of a cylindrical pencil rail running along the middle. This pet door panel has an arch along the bottom that is designed to sit on top of a cylindrical pencil rail. Pencil rails are shorter in height than triangular guide rails, which means that the pet door panel would wobble on top of it rather than sitting flush with the rest of the track. To accommodate the pet door panel you will need to build up the sides of the triangular guide rail so that the tip is less than ¼” tall. Please reach out to customer service if you have any questions about this process.

What are some breeds of dogs these will fit?

Small would be Chihuahuas, Yorkies, and cats. Medium would be good for Corgis, Jack Russell Terriers, and French Bulldogs. Large would fit most Labs, Goldens, and Pit Bulls. Extra Large would be good for most Rottweilers, German Shepherds on the large side, and English Labs.

What do I do if this does not come in size that will fit my door?

If none of these sizes will fit your door, you can order a custom fit Endura Flap Thermo Panel 3e.

What do the Step Over Range dimensions mean?

The step over is the part of the panel under the actual door opening. Depending on the flap size purchased, the stepover can range from 3"-7". This means that you can adjust it to any stepover within that range. So if you have a puppy, you can keep adjusting it as he/she grows.

What does the recommended pet height mean?

That column is what we recommend be the range of pet height that would be suitable for that particular flap size. So for example if you pet is 20"tall and could fit though a 10" wide opening, then you could go with the large flap.

What if my track is wider than 1-1/2"?

It can still work if your track is wider, but if the channel in the bottom, top, or side measures less than that you will not be able to fit it into place properly.

What is the thickness of the Endura Flap aluminum panel?

The Endura Flap Thermo Panel 3e is 1" thick. It is only thick enough for a single flap, not a double flap.

Will there be enough room for me to get through after the panel is installed?

That depends on how wide your sliding glass door opens and how wide the panel you purchase is. Those dimensions can be found under the "Overall Panel Width" column.

Will this fit my aluminum sliding glass door?

It could, but you risk condensation and an improper fit. Aluminum sliders have a narrow track, which vinyl panels may be too wide for. Generally we recommend trying to match your slider door track width as closely as possible, and matching material can also help with reducing condensation build-up.

Will this form condensation like the aluminum panels?

No condensation should form if you match the material of the pet door frame with the material of your sliding glass door. For example, if you have a vinyl slider, your panel should also be made of vinyl. Please note: aluminum components in the pet door are conductive and may still feel quite cold in the winter months.

Will this panel work if my sliding glass door has a buried track?

Some sliding glass doors have buried tracks. Since this panel has an arch along the bottom that is designed to sit on top of a pencil rail, it will not be secure in a slider with a buried track without modifications. We recommend securing the panel to the track wall with L brackets or toenailing it to the track wall. Toenailing is the process of fastening the panel to the track by driving a nail at roughly a 45-degree angle into the panel and through the track wall. Please note that these modifications result in a semi-permanent installation. If you needed to remove the panel in the future you would first have to remove the L brackets or nails. Additionally, please note that this process would leave holes in the pet door panel and it would no longer be returnable. Please reach out to customer service to further discuss your options for a buried track.

Will this pet door work with Anderson and Pella sliding doors?

Anderson and Pella sliding glass doors have an inner track wall but no outer track wall. Additionally, the pencil rail is on the outer edge of the track rather than in the middle. Since this pet door panel is designed to sit between two track walls and on top of a centered pencil rail, it cannot be installed in Anderson or Pella doors without modifications. We recommend building out your track and using L brackets or toenailing to secure the bottom of the panel to the inner track wall. Building out the track means adding a piece of wood or vinyl that is the same height as the pencil rail to the space next to the pencil rail. This creates a flat surface for the pet door panel to sit on. Next, you will need to secure the panel to the track wall. To do this, you can use L brackets or you can toenail the panel into the track wall. Toenailing is the process of fastening the panel to the track by driving a nail at roughly a 45-degree angle into the panel and through the track wall. Please note that these modifications result in a semi-permanent installation. If you needed to remove the panel in the future you would first have to remove the L brackets or nails. Additionally, please note that this process would leave holes in the pet door panel and it would no longer be returnable. Please reach out to customer service to further discuss this process or different options for an Anderson or Pella sliding door.

Reviews

Endura Flap Vinyl Sliding Glass Dog Door

Lifetime Warranty

Installation & Fit

Best Suited For

Questions

Endura Flap Vinyl Sliding Glass Dog Door

Small / 74.75" - 77.75" Choose Options

Product Details

Size Chart

Flap Dimensions:

Overall Panel Width

Step-Over Height

Flap Dimensions:

Overall Panel Width

Step-Over Height

Flap Dimensions:

Overall Panel Width

Step-Over Height

Flap Dimensions:

Overall Panel Width

Step-Over Height

Flap Dimensions:

Overall Panel Width

Step-Over Height

Installation Information

One-Piece Panel

Parts

Tools

Step 1 Loosen Height Adjustment Locks

Step 2 Test Fit the Panel in Your Track

Step 3 Apply Weatherstripping

Step 4 Install the Draft Stopper

Step 5 Install the Panel

Two-Piece Panel

Parts

Tools

Step 1 Align the Connectors

Step 2 Assemble the Panel

Step 3 Loosen Height Adjustment Locks

Step 4 Test Fit the Panel in Your Track

Step 5 Apply Weatherstripping

Step 6 Install the Draft Stopper

Step 7 Install the Panel

Videos

Endura Flap High-Quality Design

Endura Flap Impact Test

Leaf Blower Test

Variable Magnetic Resistance

How to Remove Side Magnets for Easier Use

FAQ

Customer Reviews

Endura Flap Vinyl Sliding Glass Dog Door
