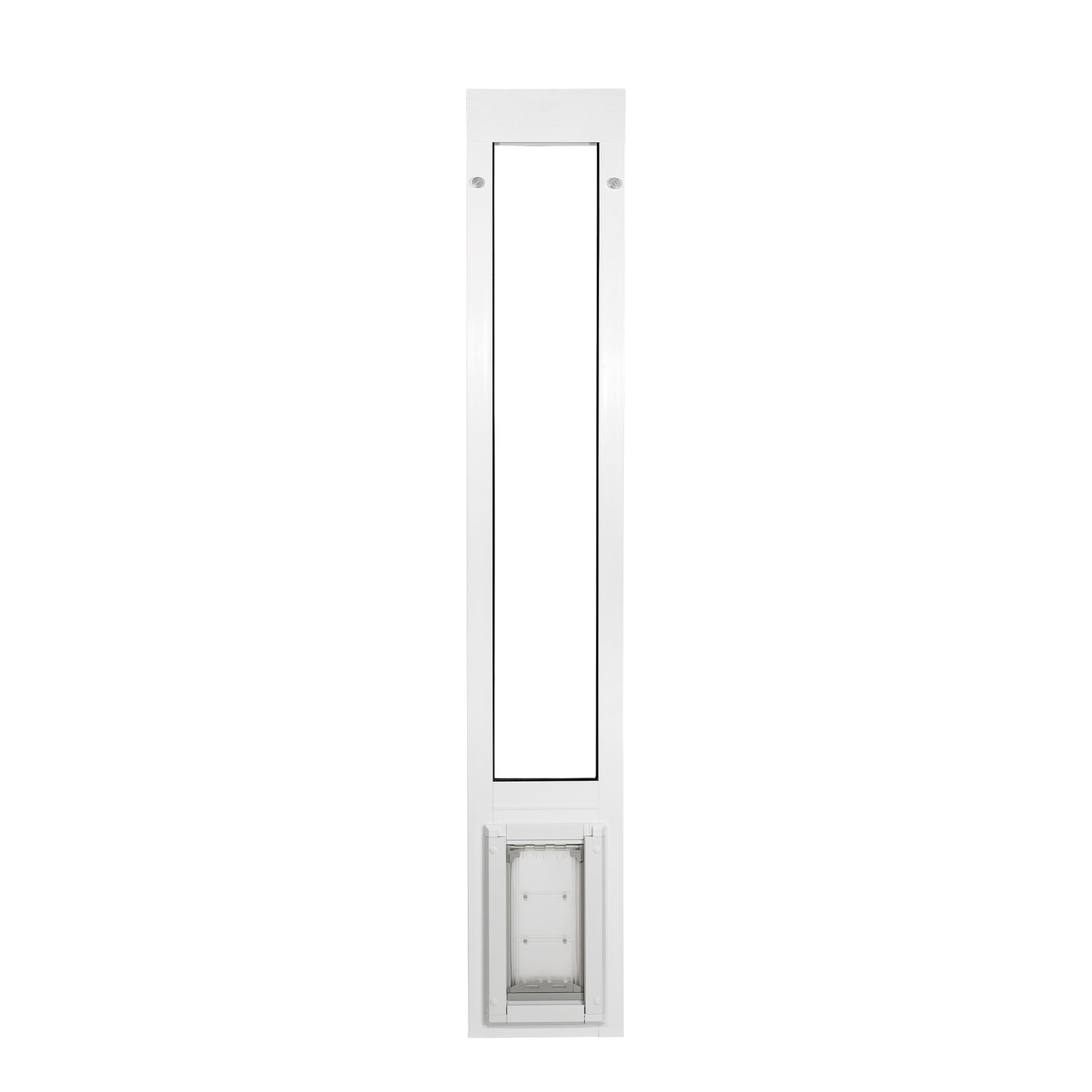

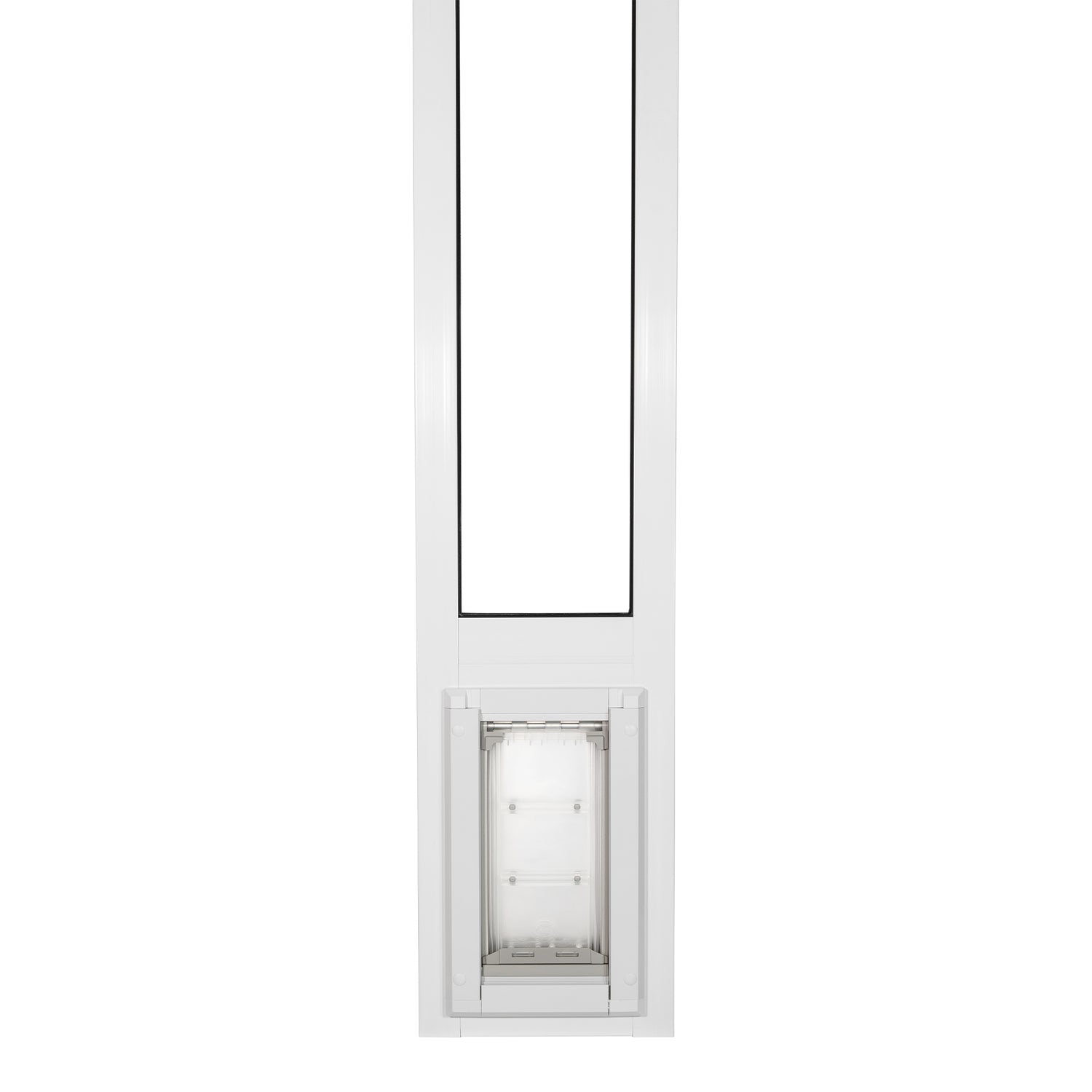

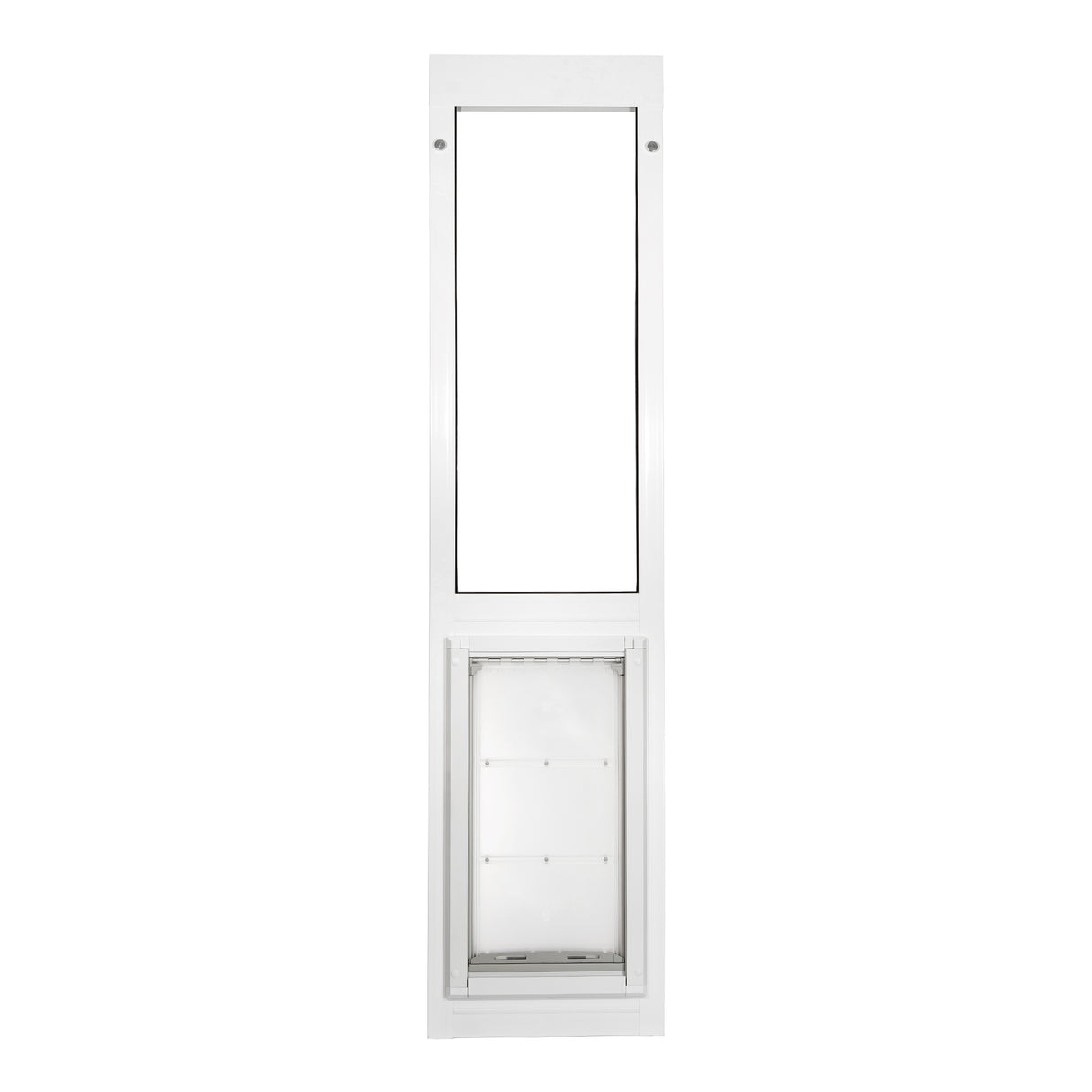

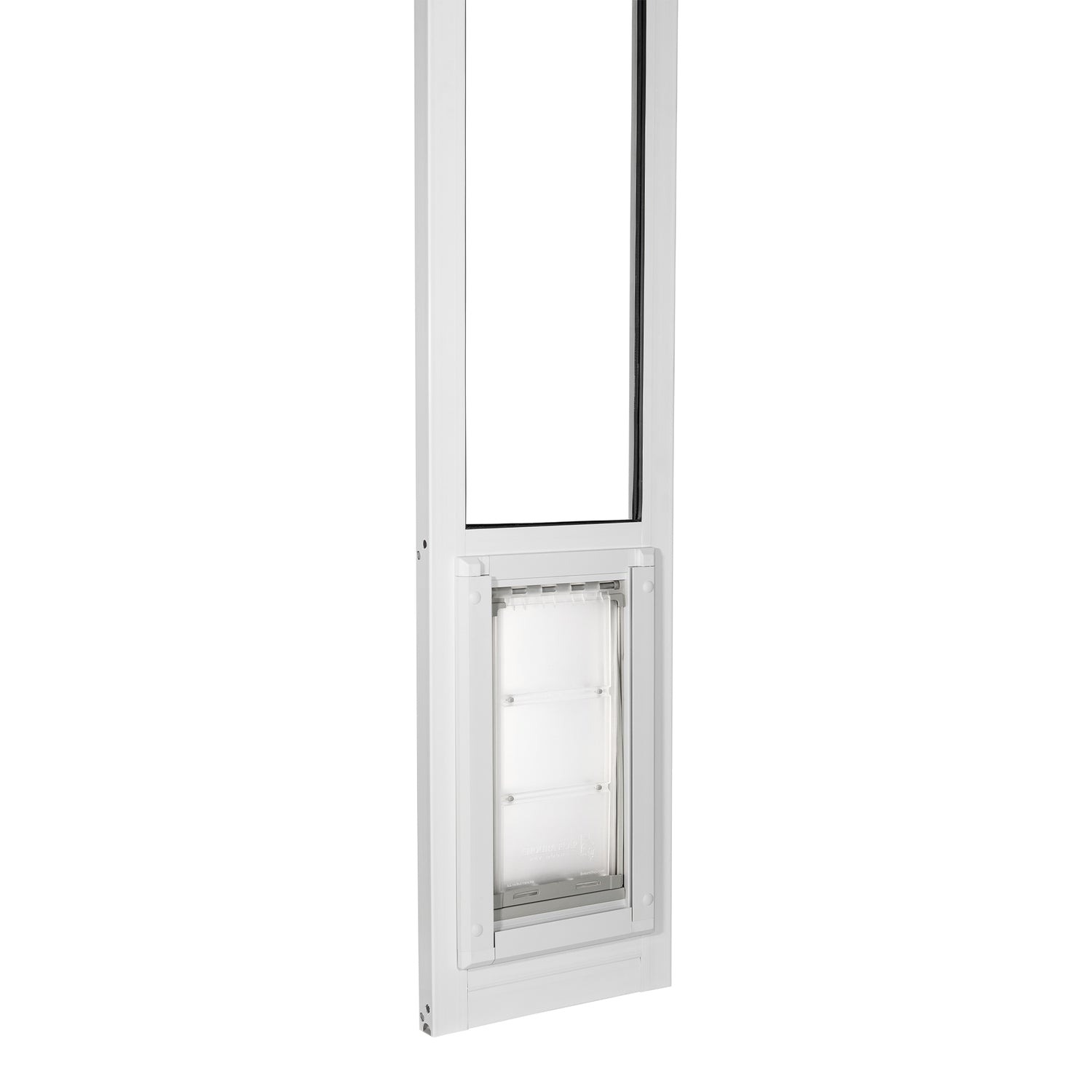

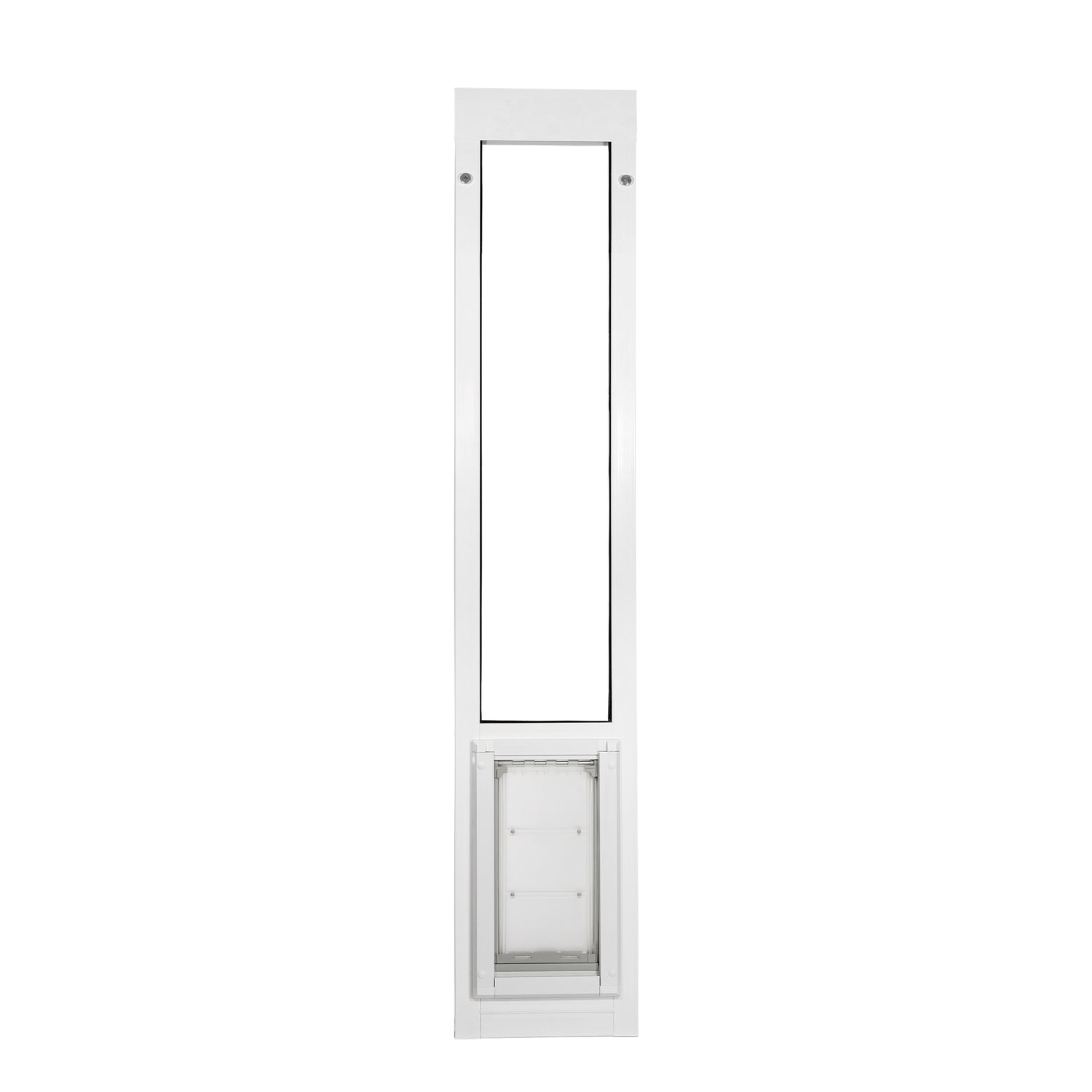

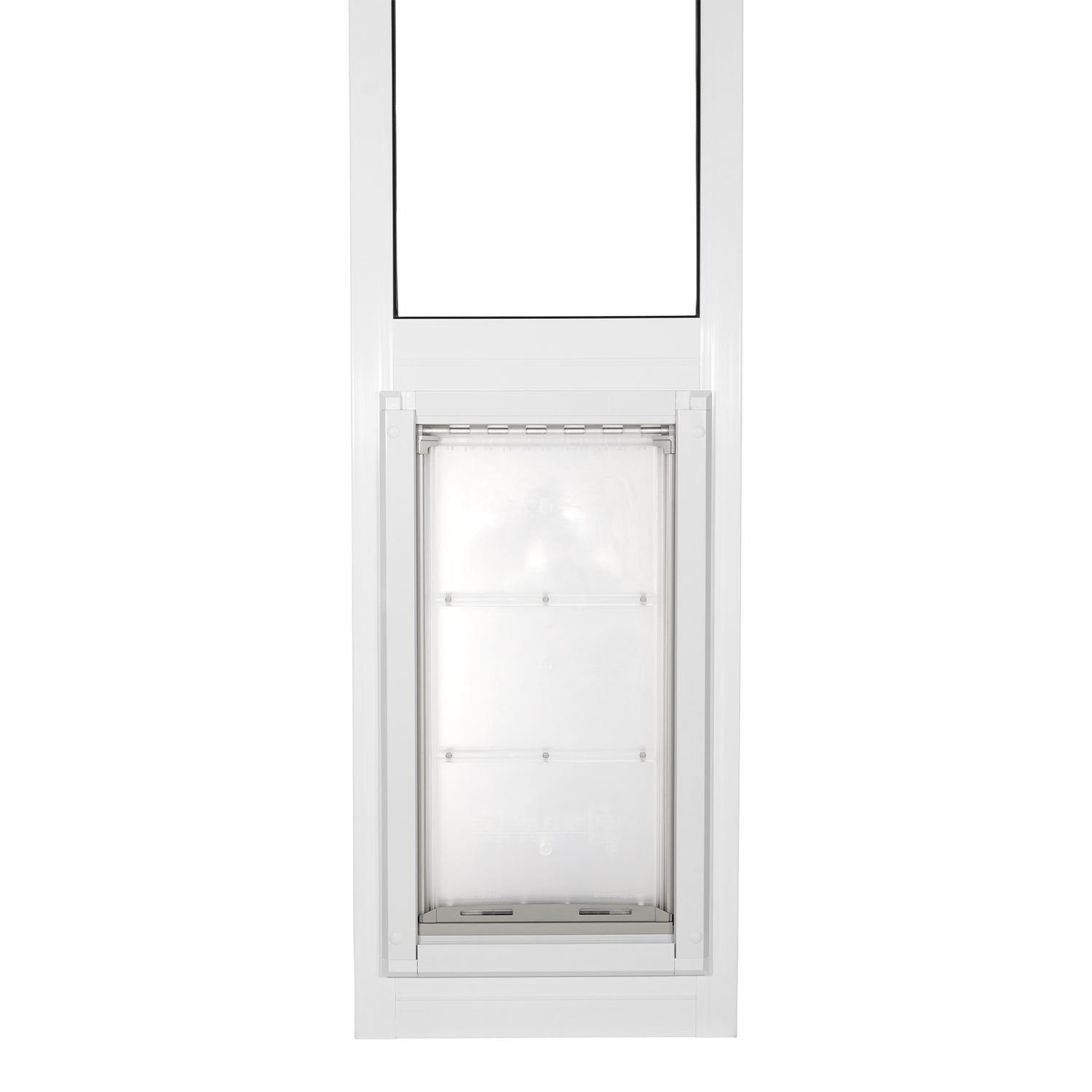

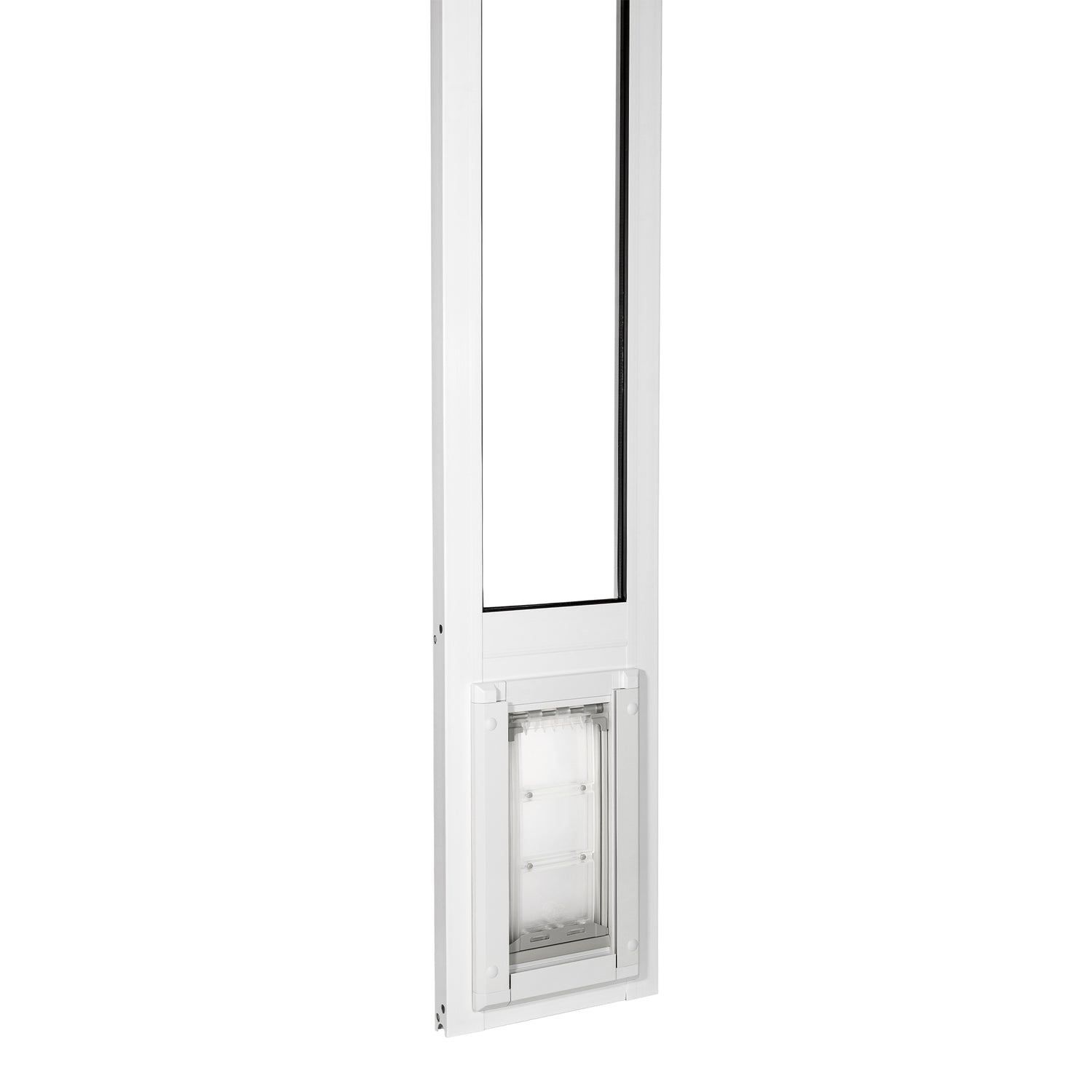

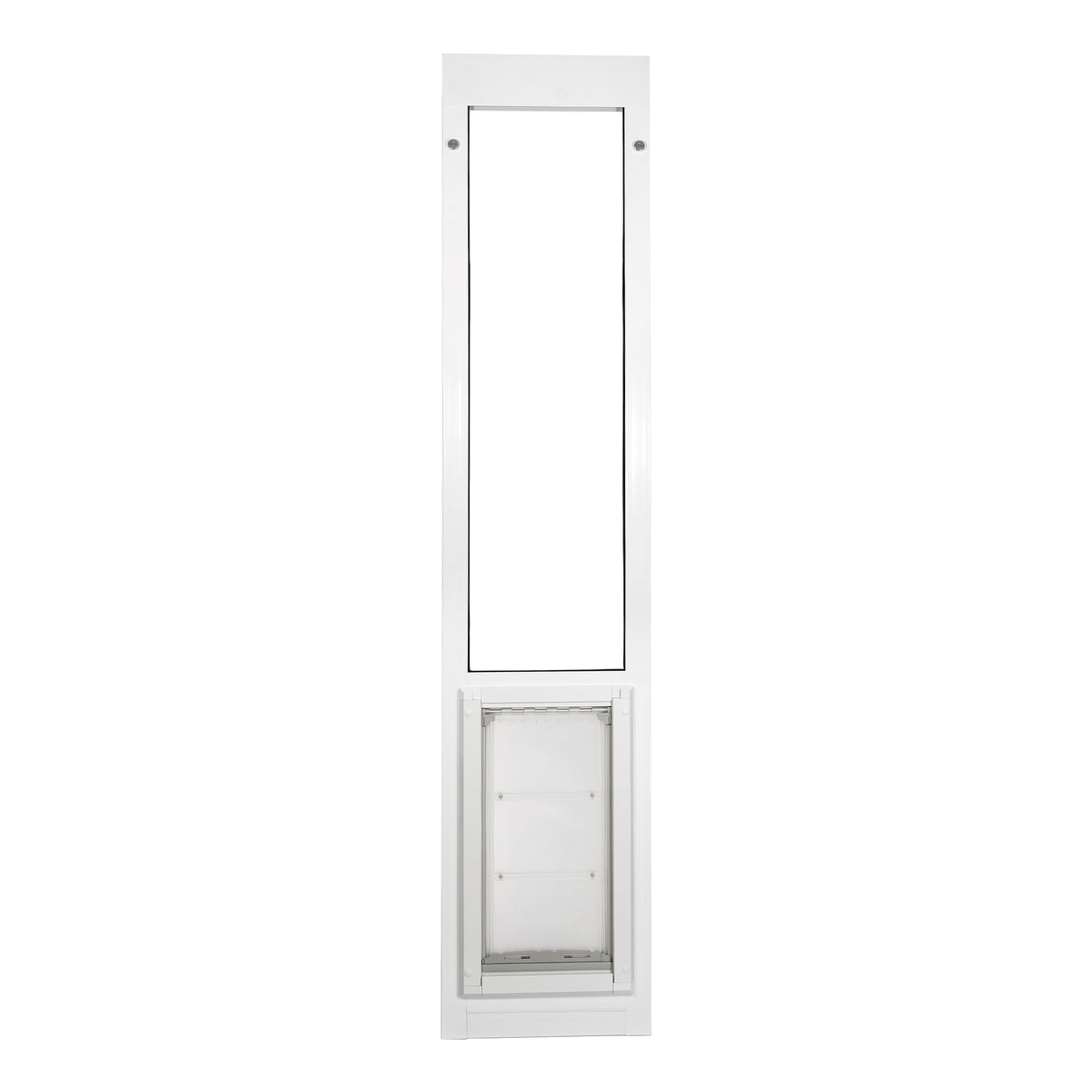

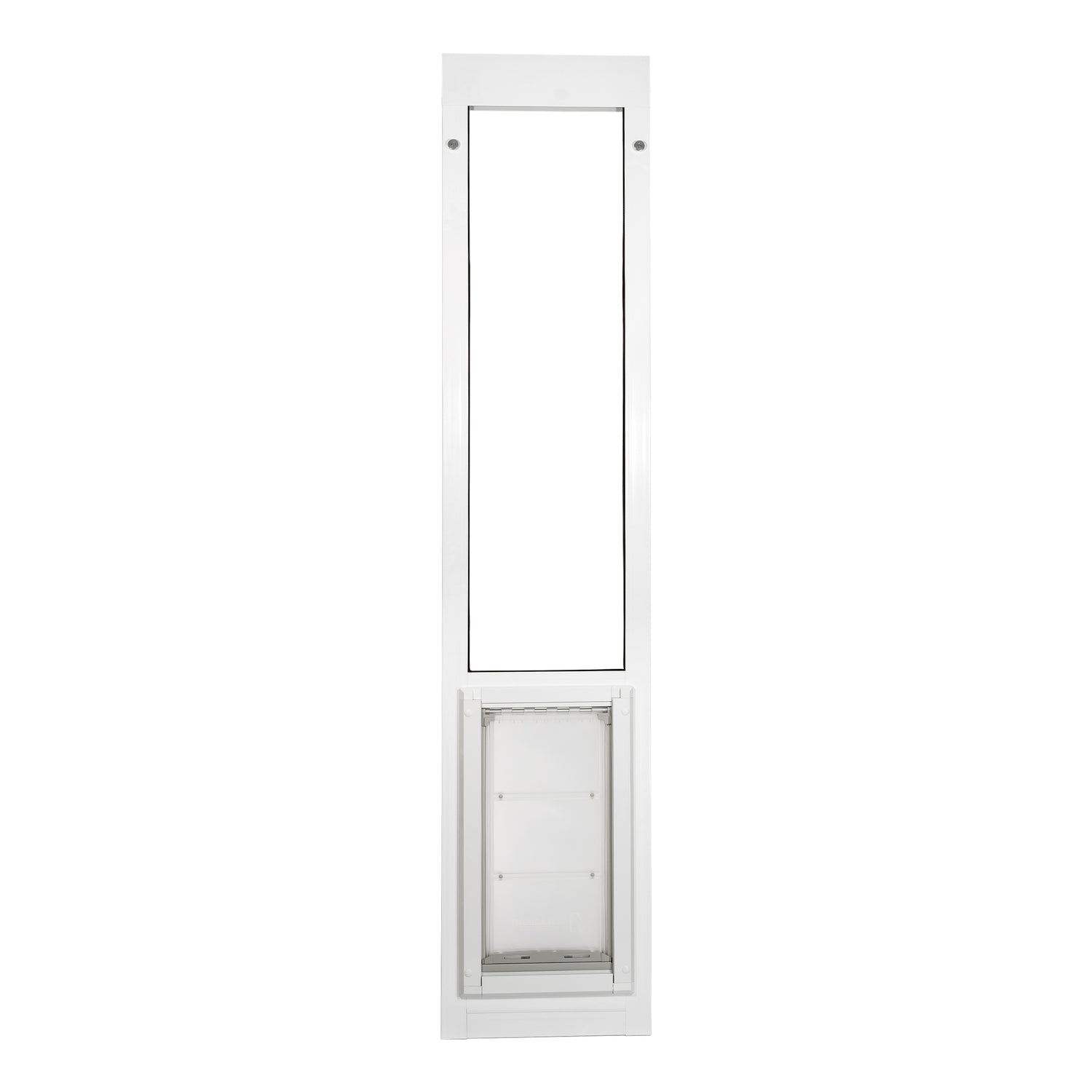

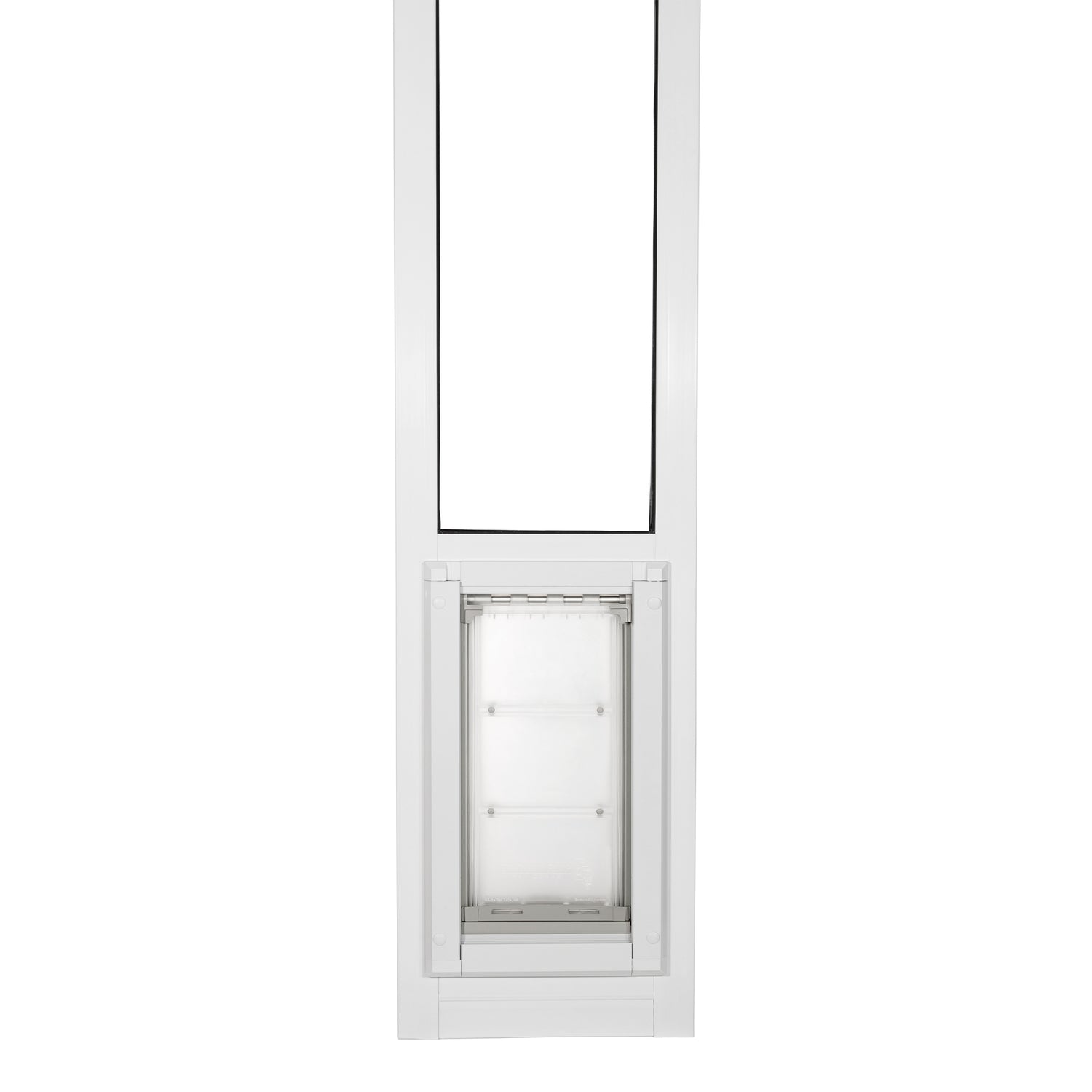

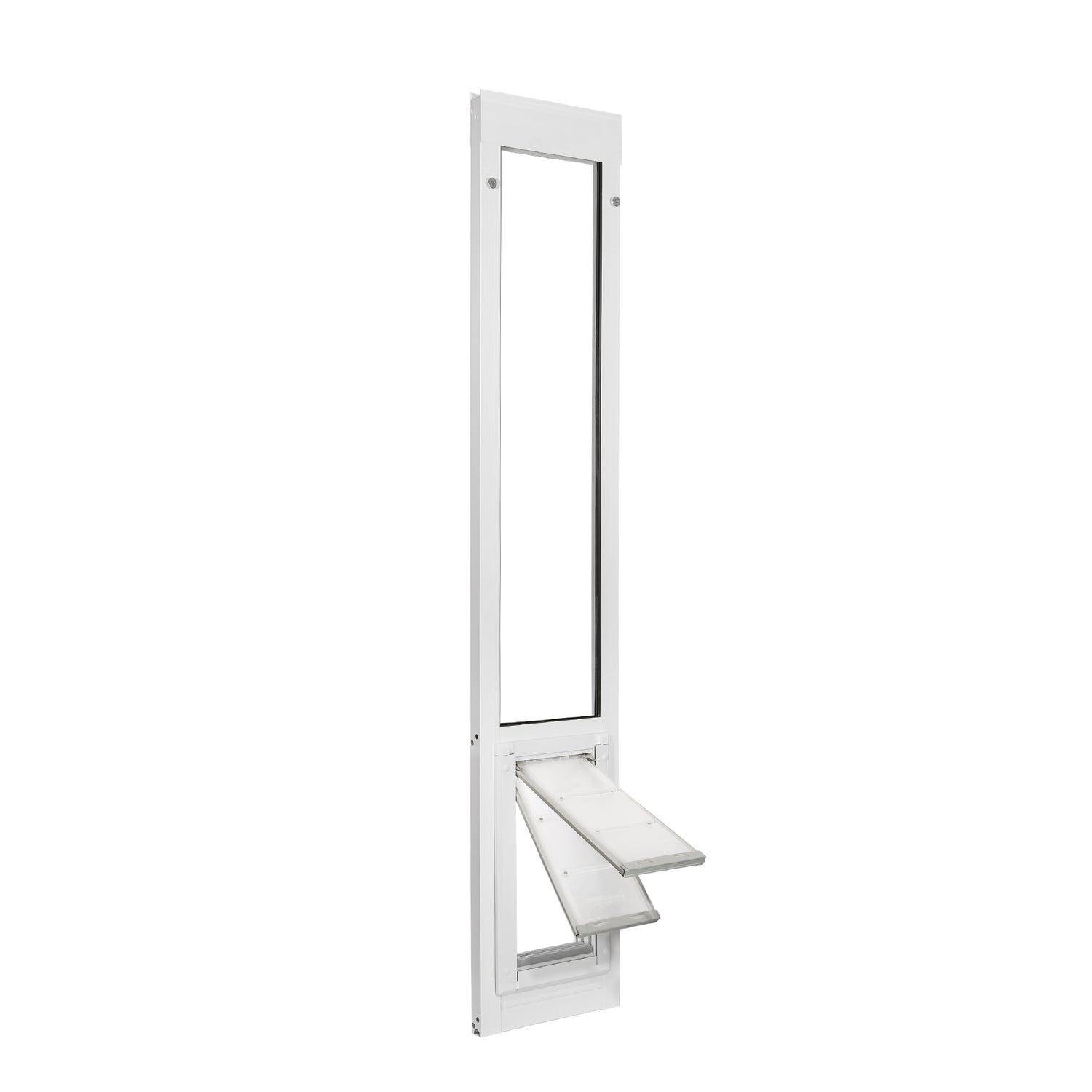

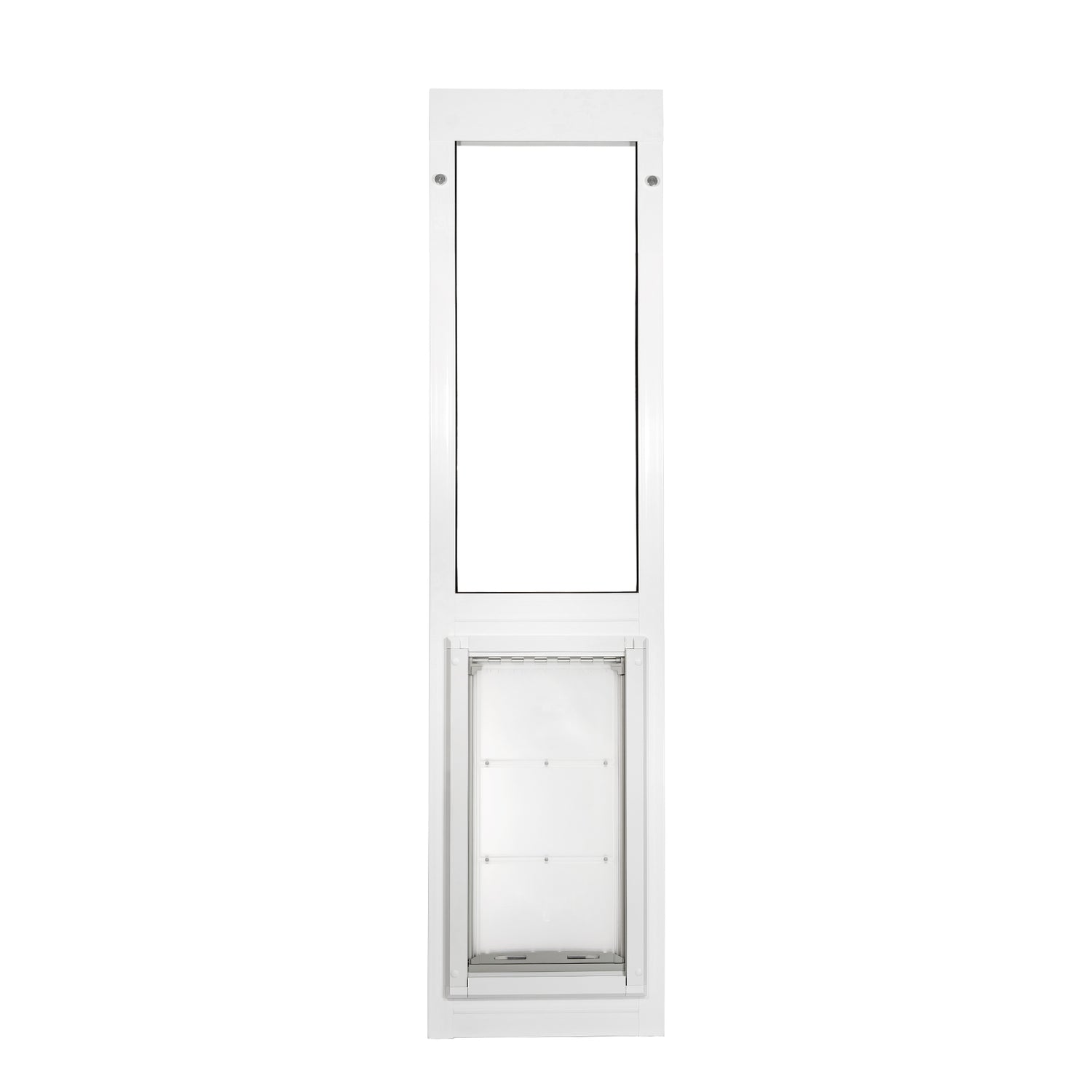

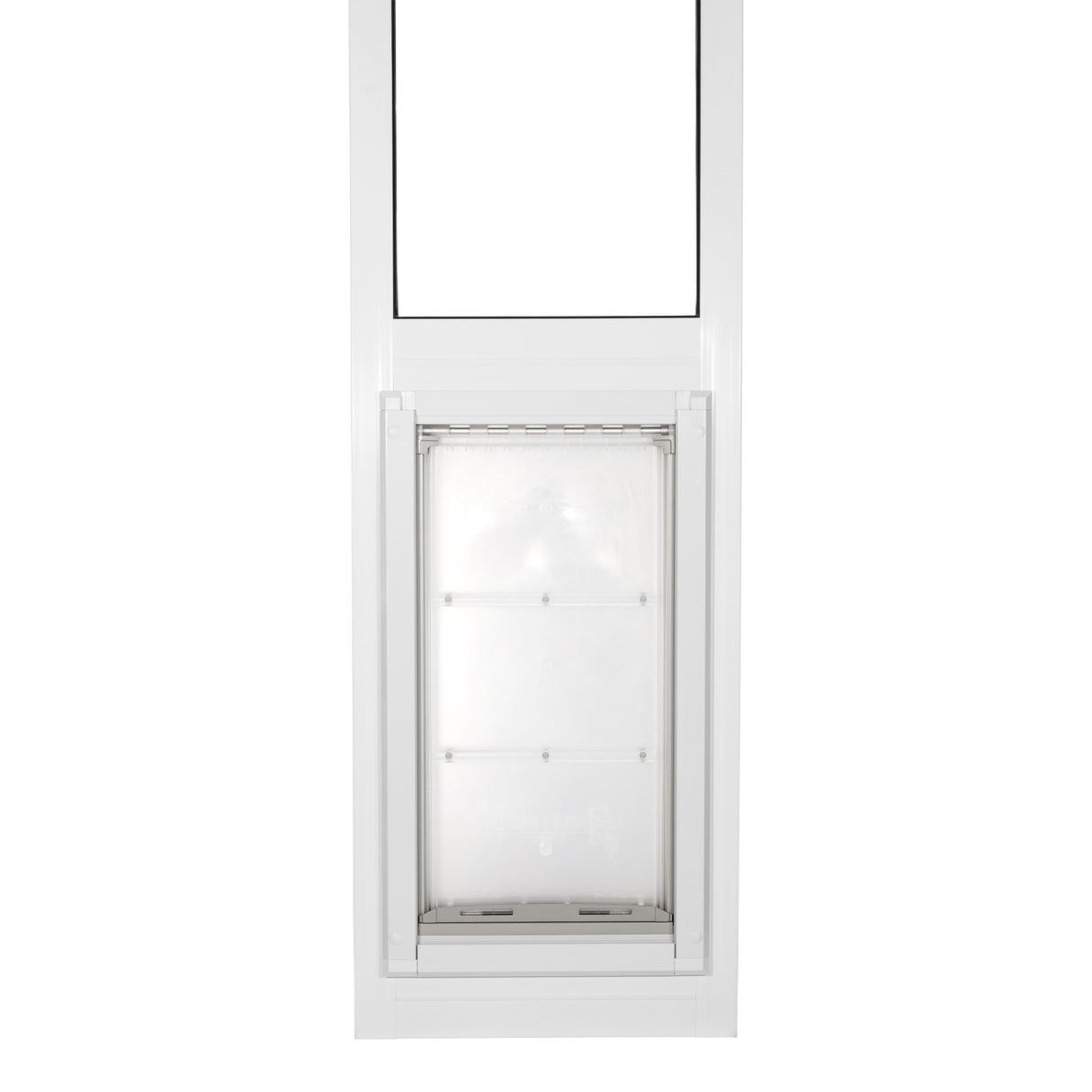

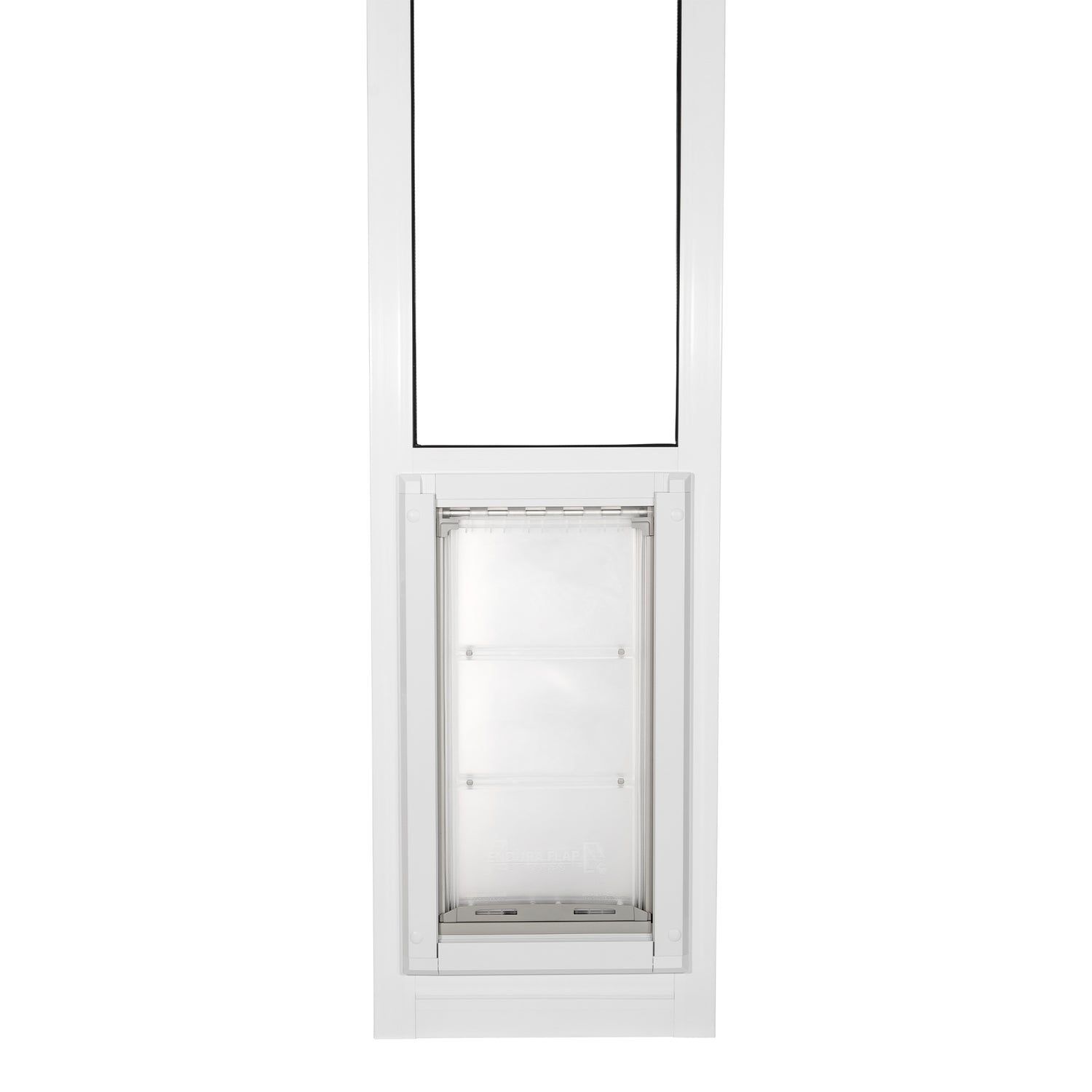

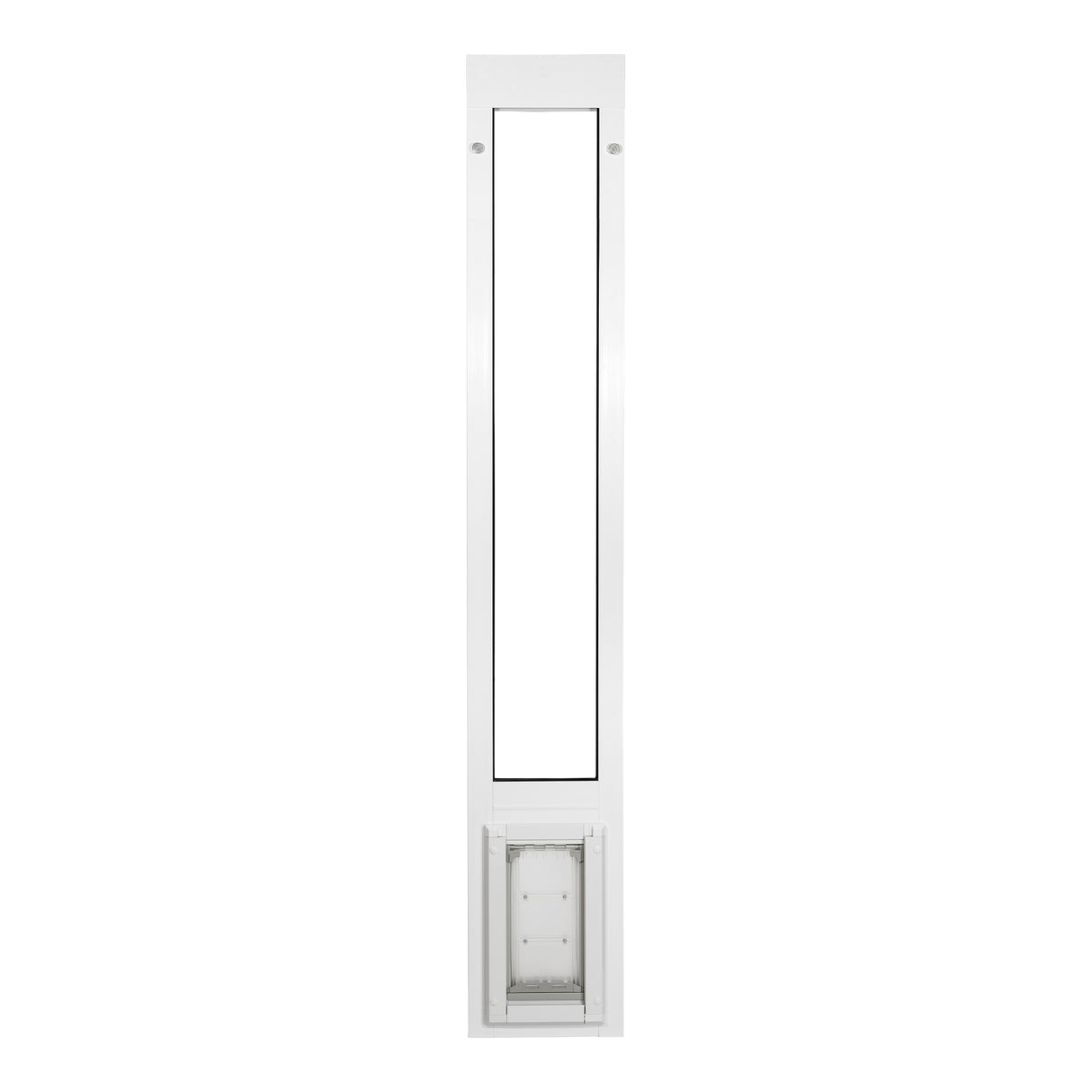

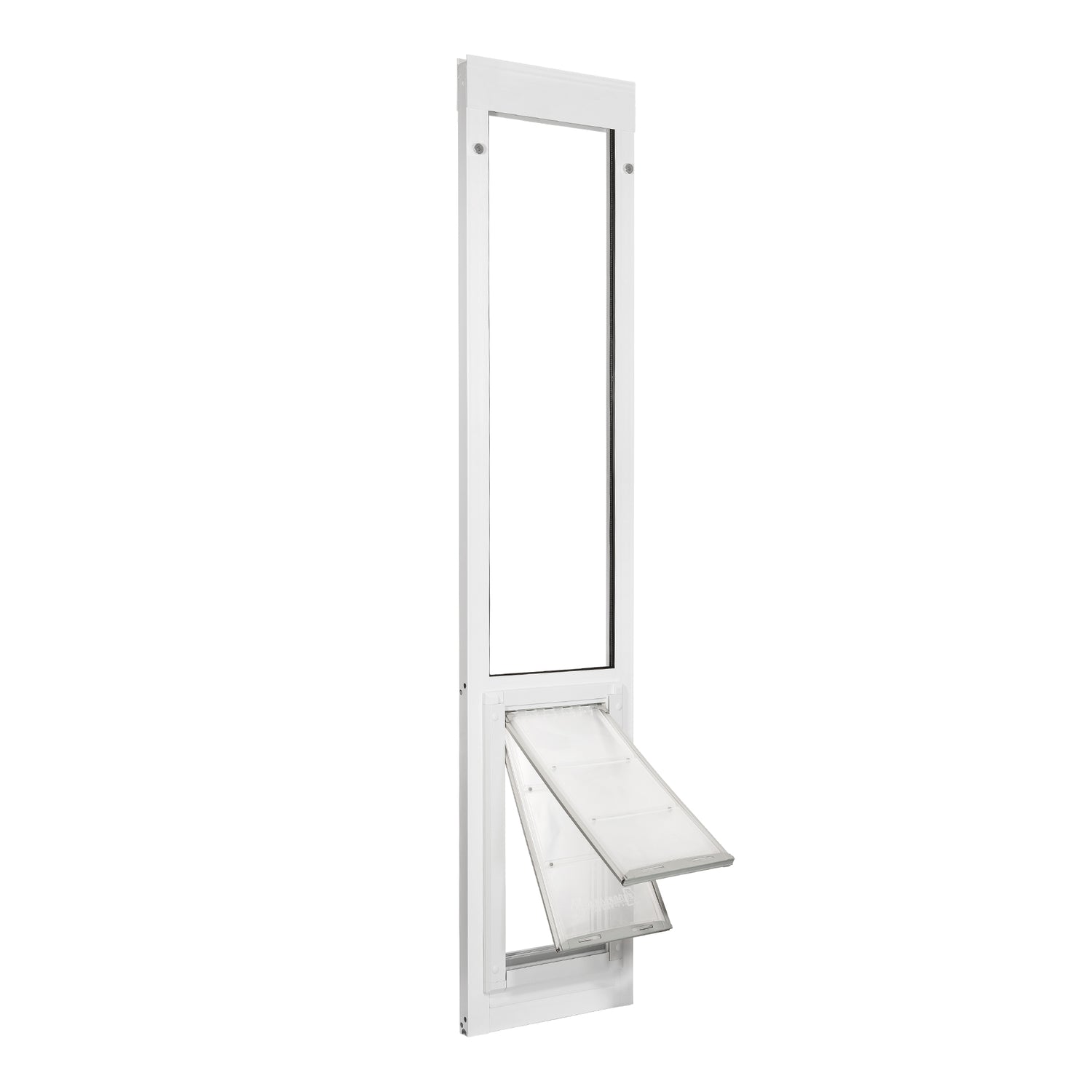

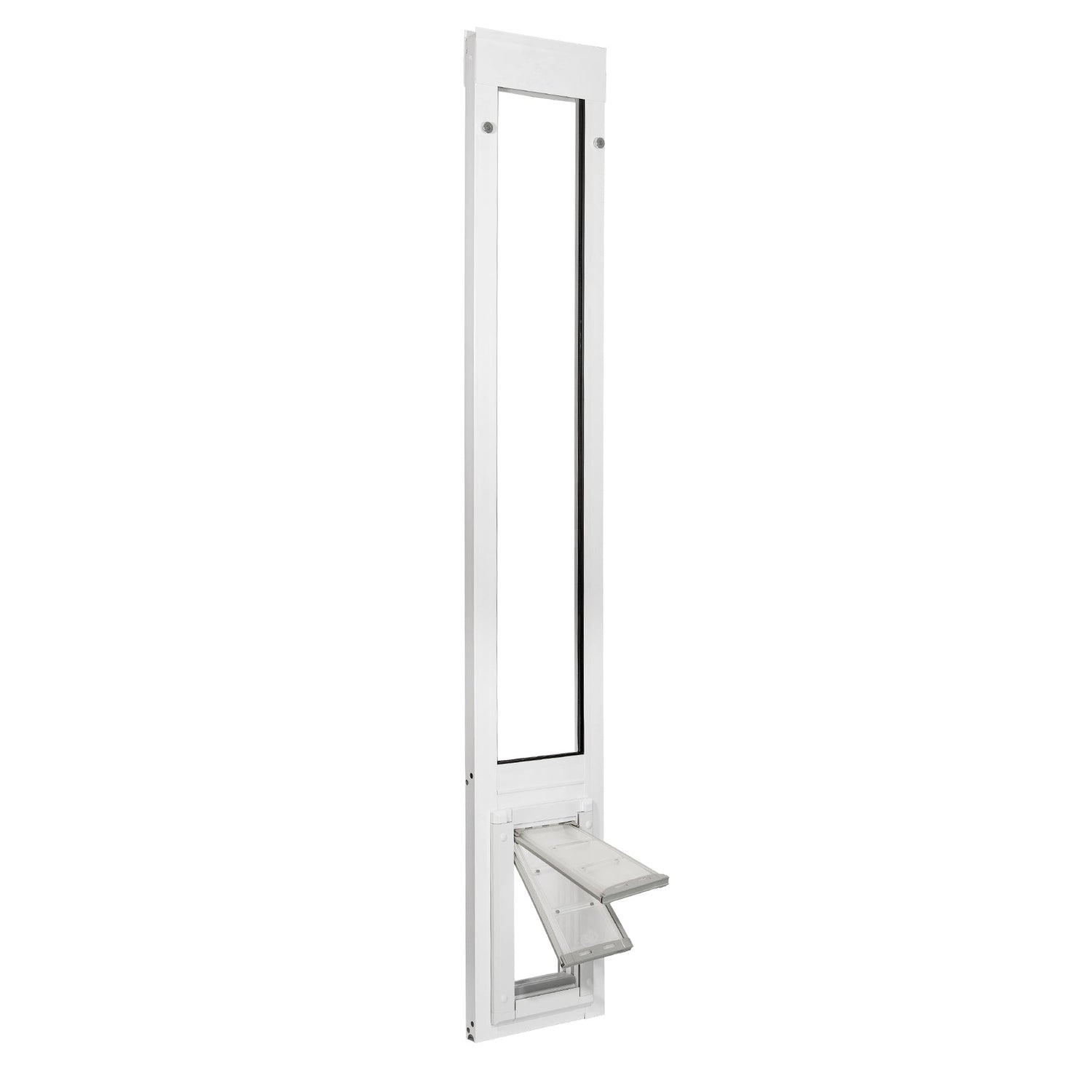

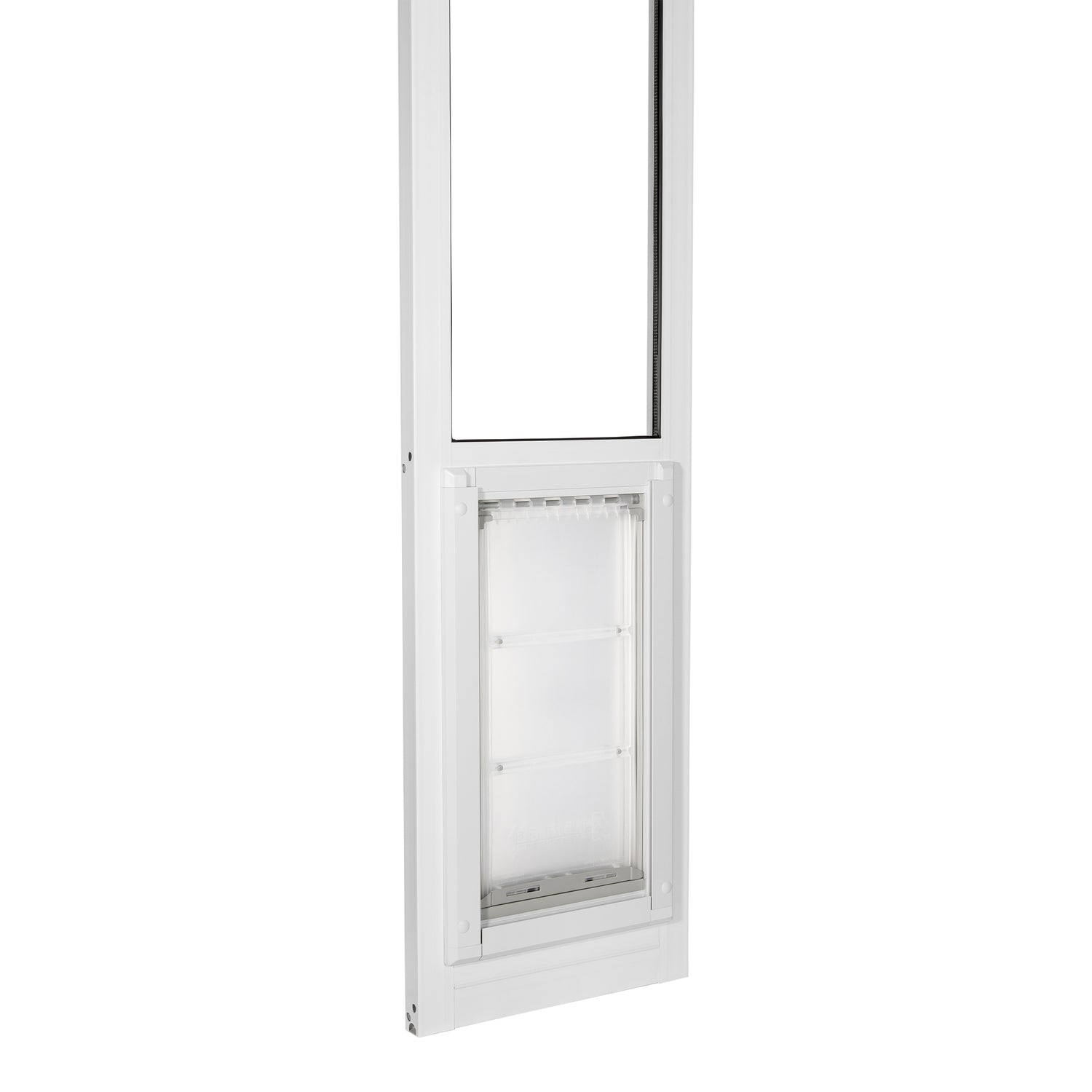

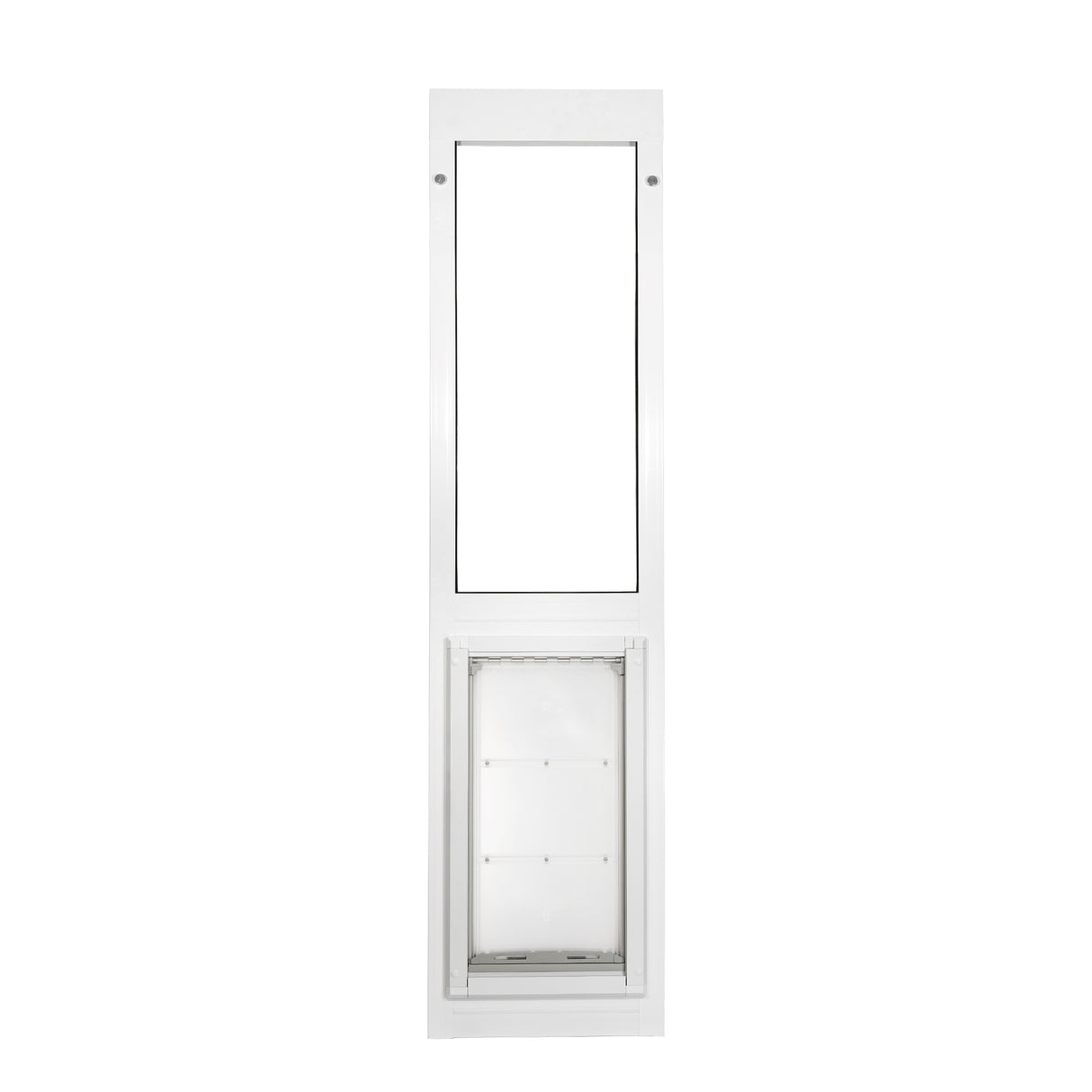

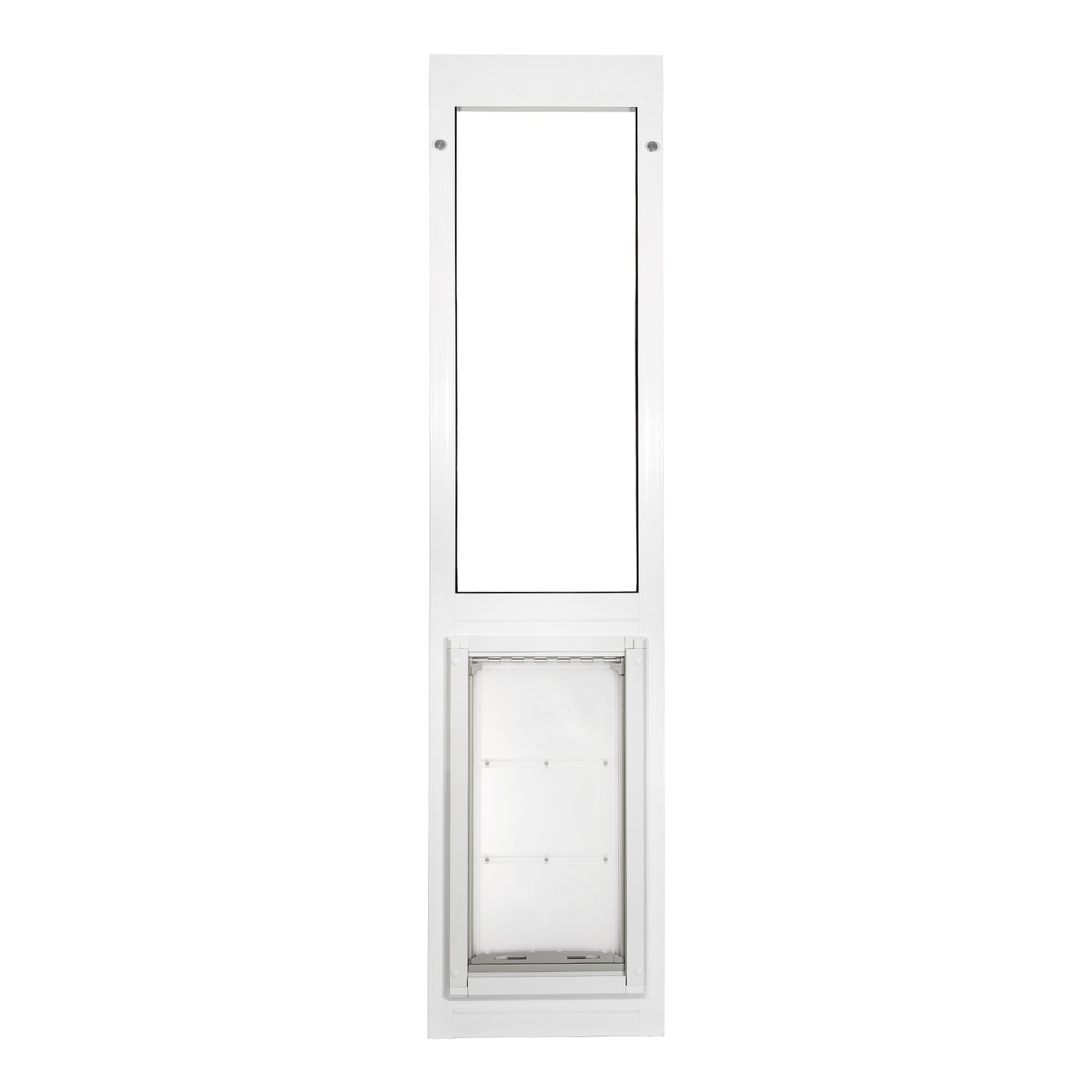

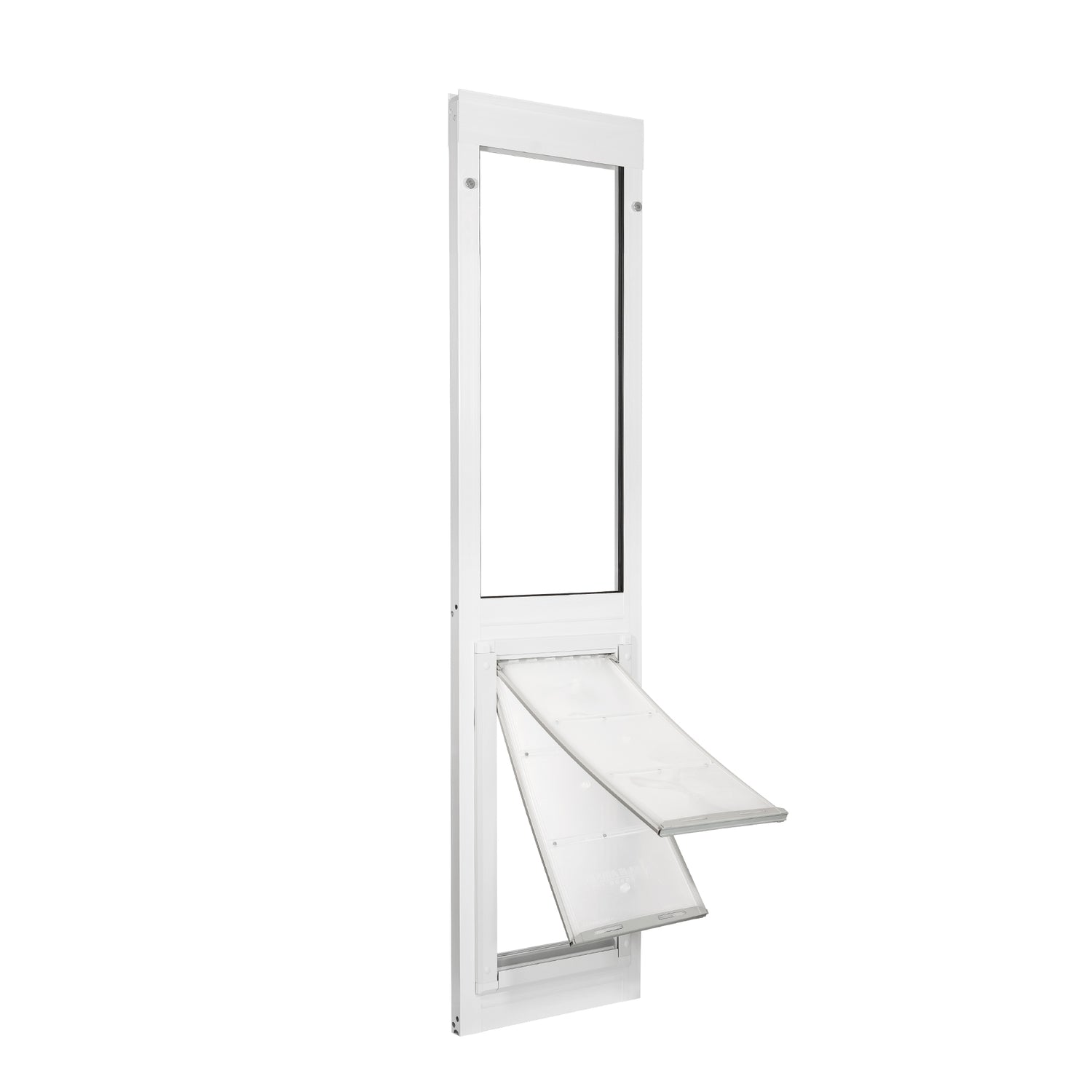

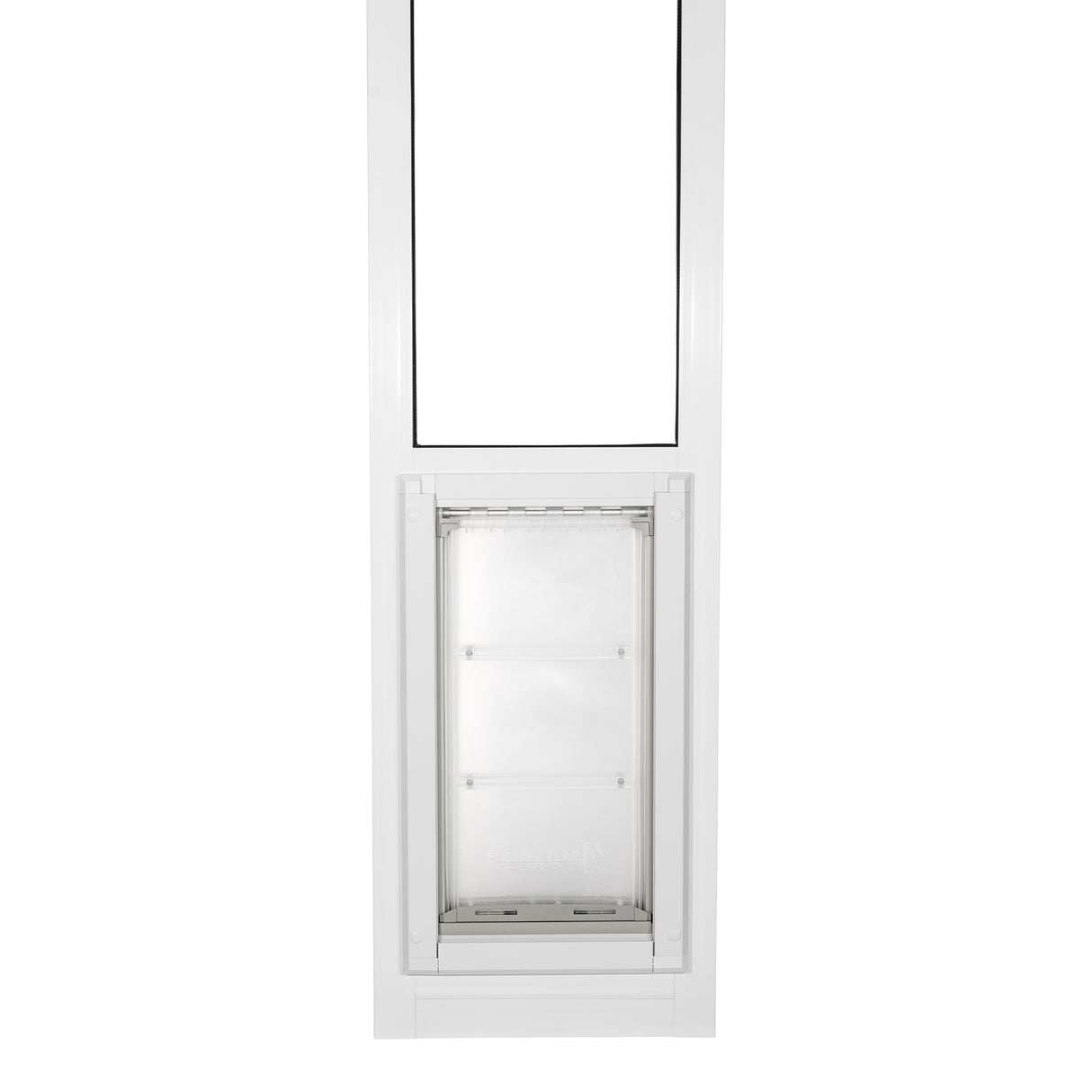

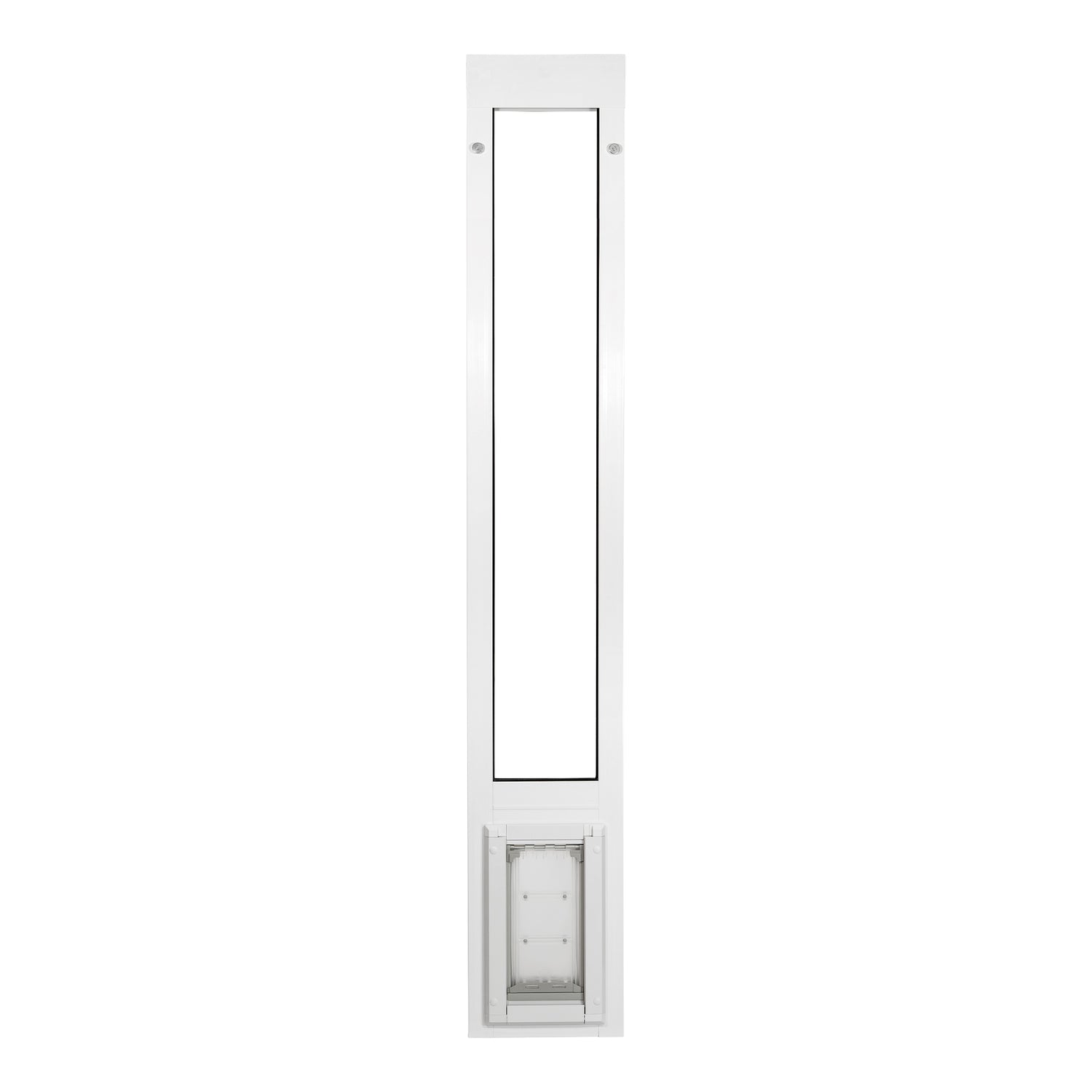

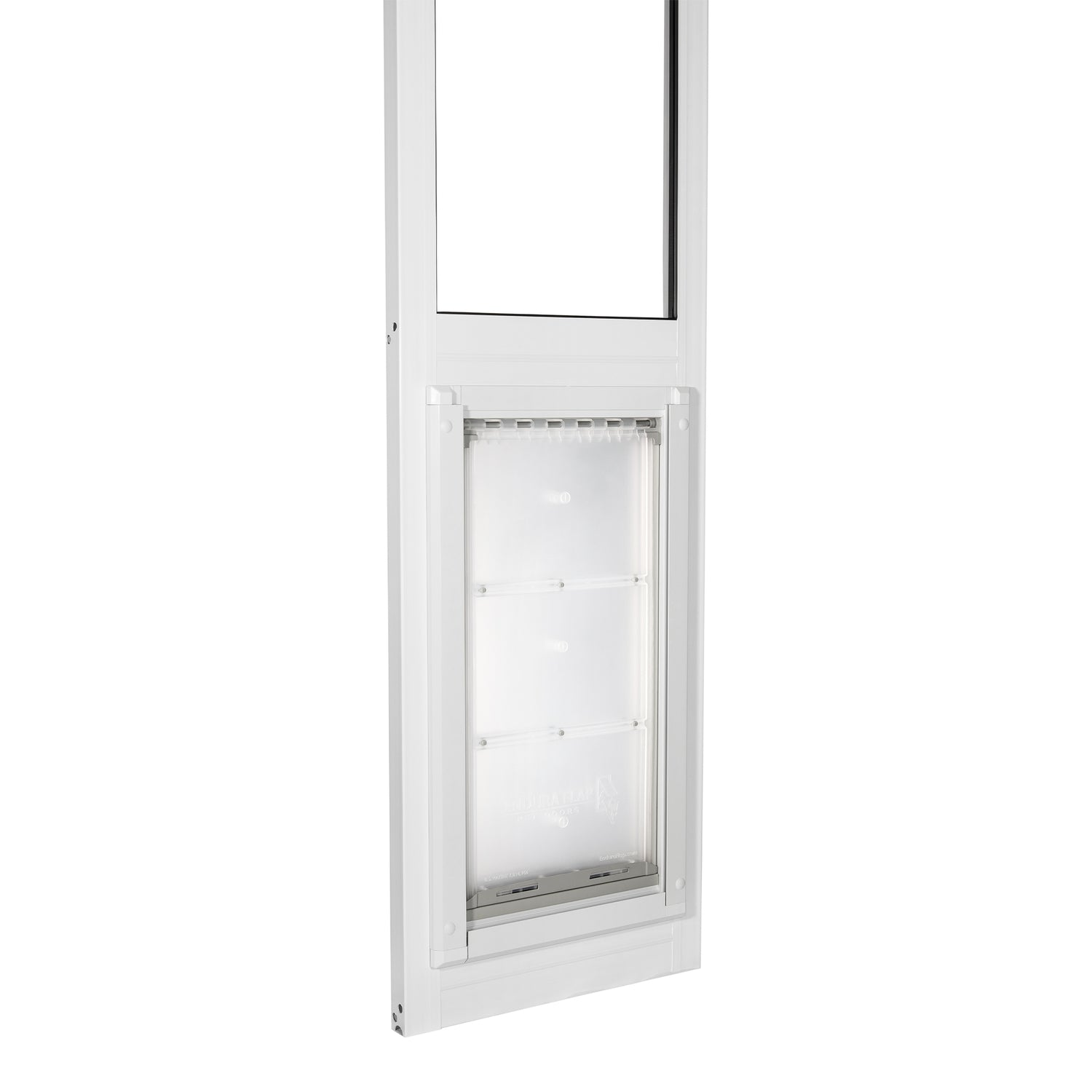

Endura Flap Severe Weather Vinyl Sliding Glass Dog Door

Endura Flap Severe Weather Vinyl Sliding Glass Dog Door

Regular price
$689.99
Sale price
$689.99
Unit price
per

This field is required.

  • Designed for vinyl sliding glass doors in severe weather climates
  • Insulated dual-flap system remains flexible in -40°F to 110°F temperatures
  • 1/2" clear, insulated, dual pane Low E safety glass for max energy efficiency
  • Semi-permanent installation compatible with 1.5" thick 'U' shaped tracks
  • Available in various sizes for cats and dogs up to X-Large
  • Approximately one month to build your custom pet door; reach out to our customer service team for expedited shipping options
Withstands Extreme Weather Withstands Extreme Weather
High-Quality Home Improvement High-Quality Home Improvement
Simple Installation in Minutes Simple Installation in Minutes

Product Details

  • Severe weather solution: The Endura Flap Severe Weather Vinyl Sliding Glass Dog Door is perfect for extreme climates, protecting your home from the elements

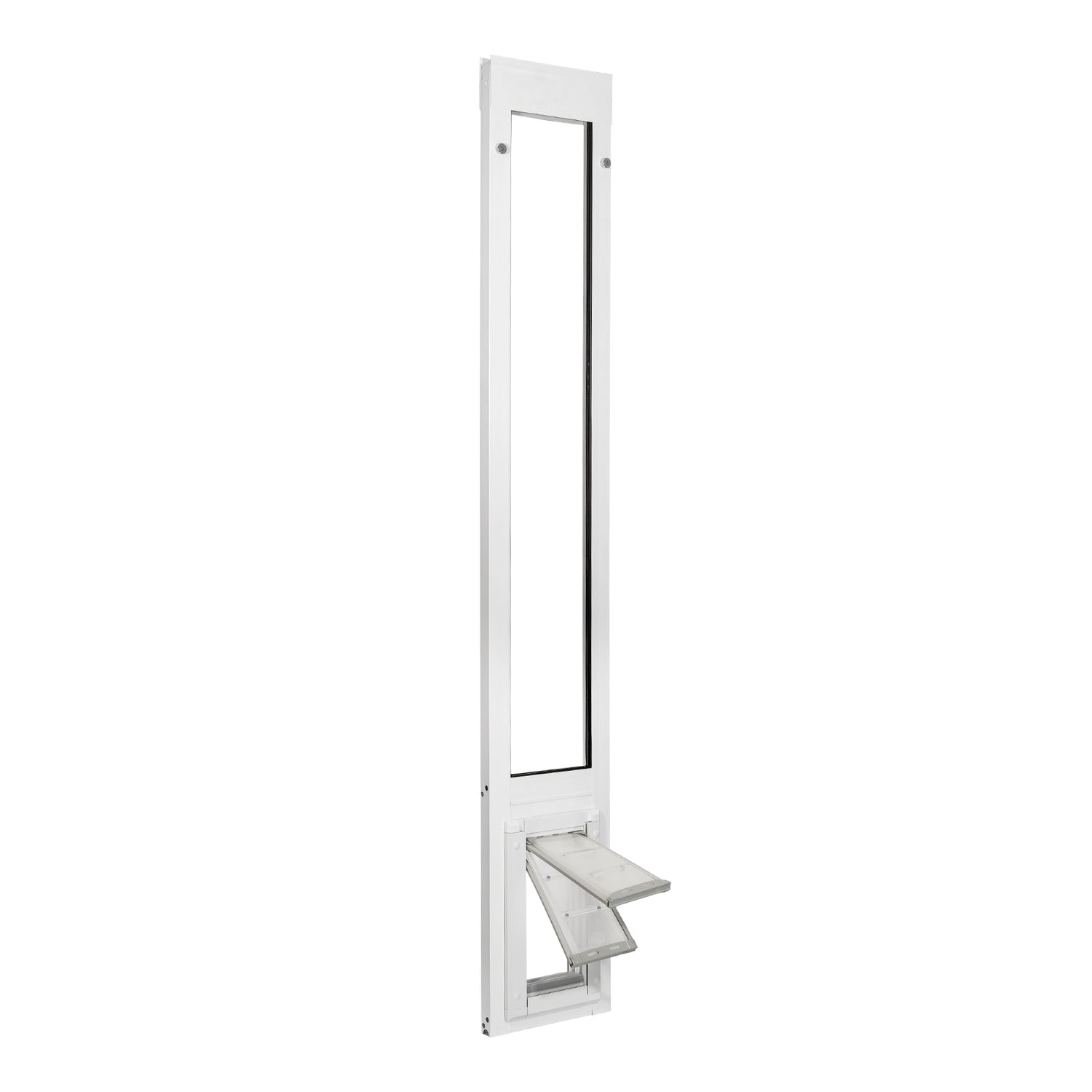

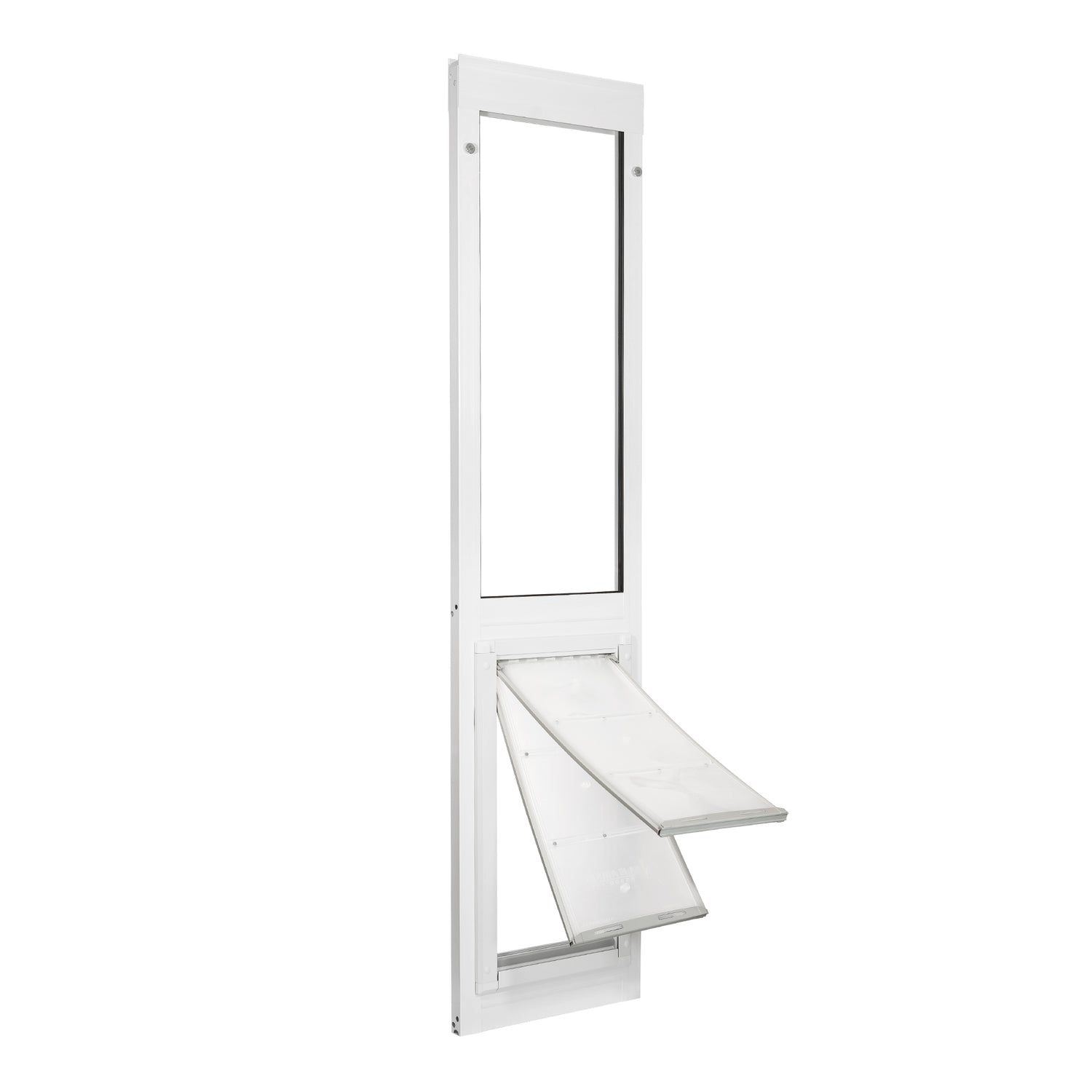

  • Insulated dual-flap system: Two flaps offer enhanced insulation, maintaining flexibility in temperatures ranging from -40°F to 110°F
  • Energy-efficient glass: Dual pane, Low-E safety glass minimizes UV rays and infrared light, ensuring energy efficiency and comfortable indoor temperatures
  • Compatibility: Designed for vinyl sliding glass doors with 1.5" thick 'U' shaped tracks, making it suitable for various door configurations  (will not work with monorail tracks)
  • Various sizes available: Accommodates pets of all sizes, from cats and small dogs to extra-large dogs, providing convenience and freedom for your furry friend

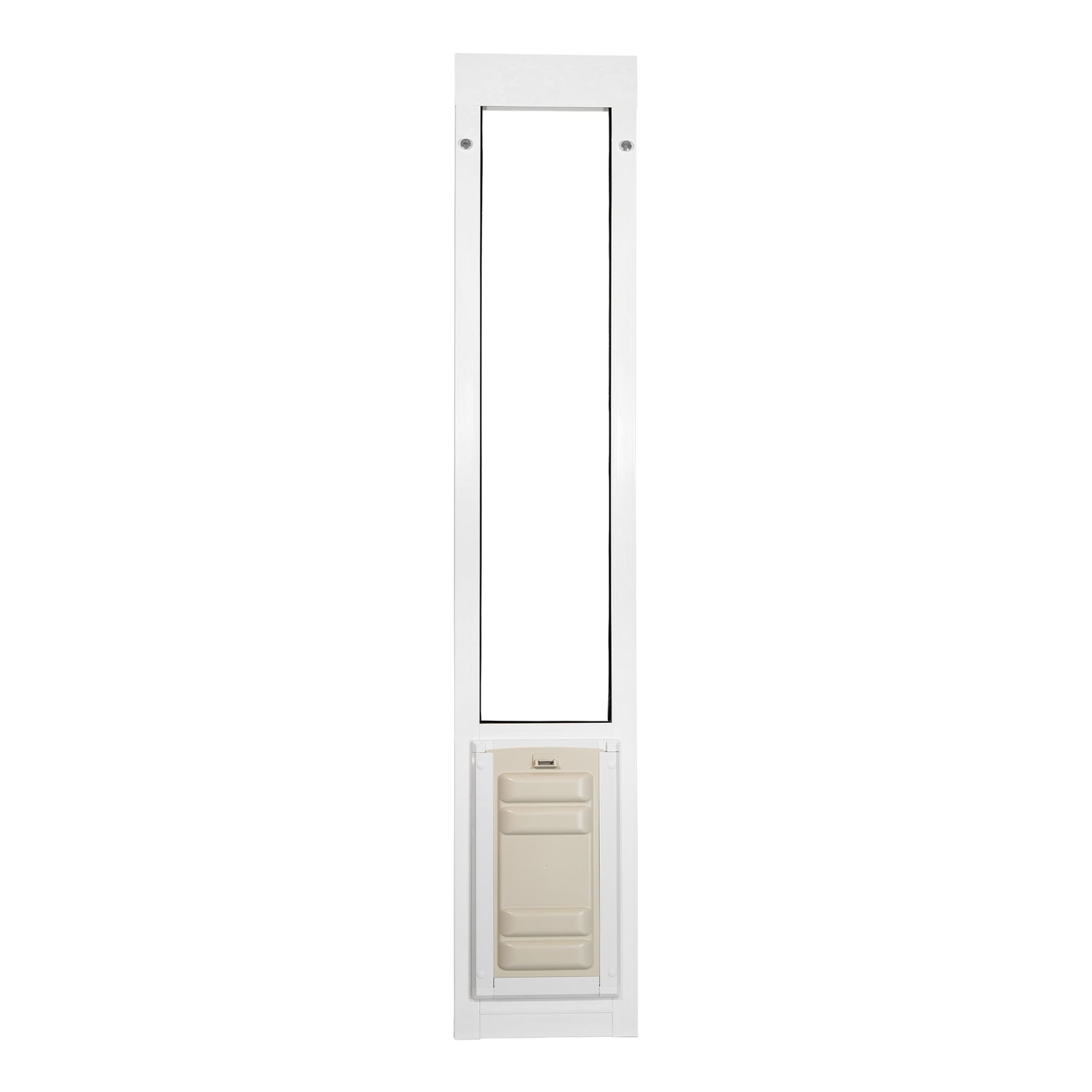

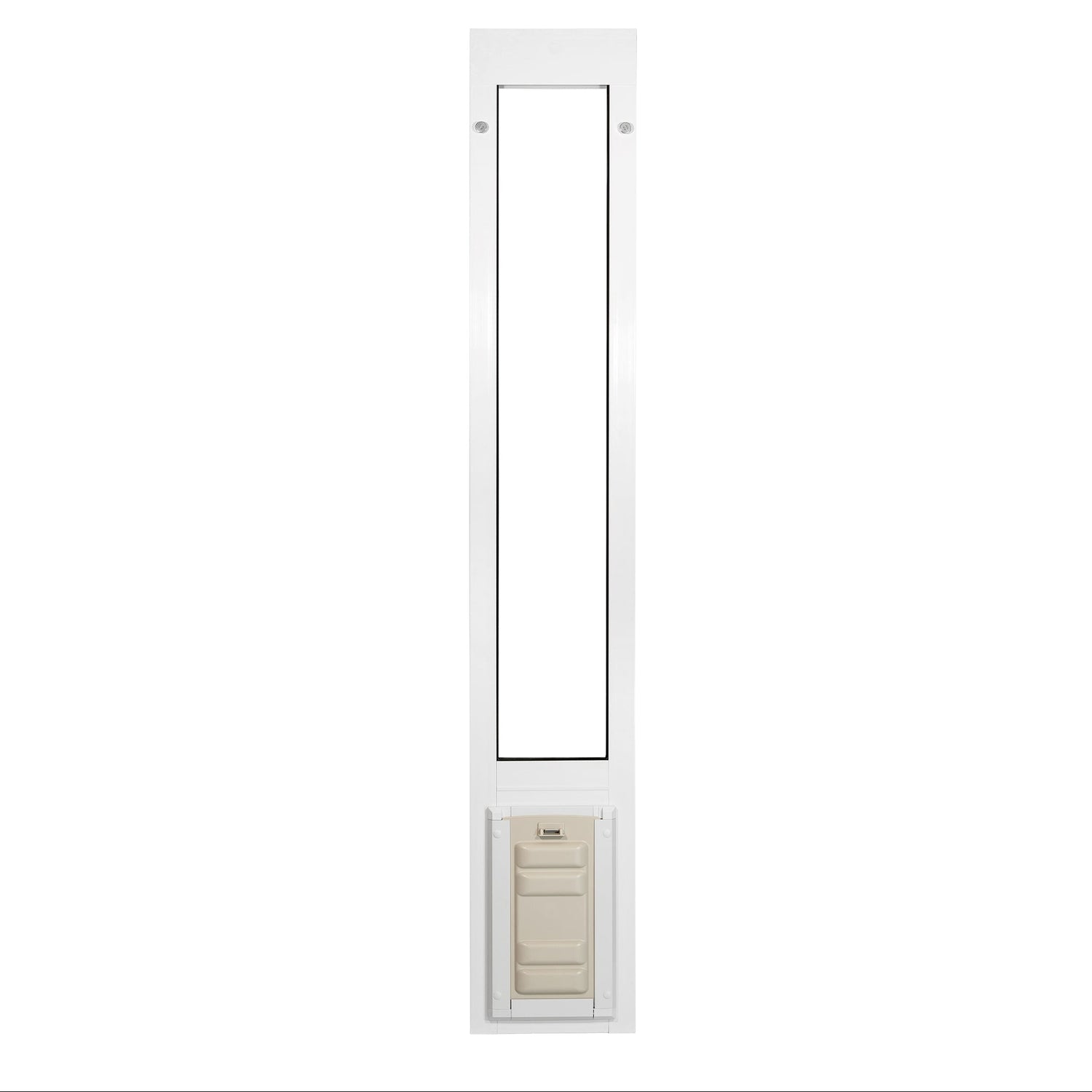

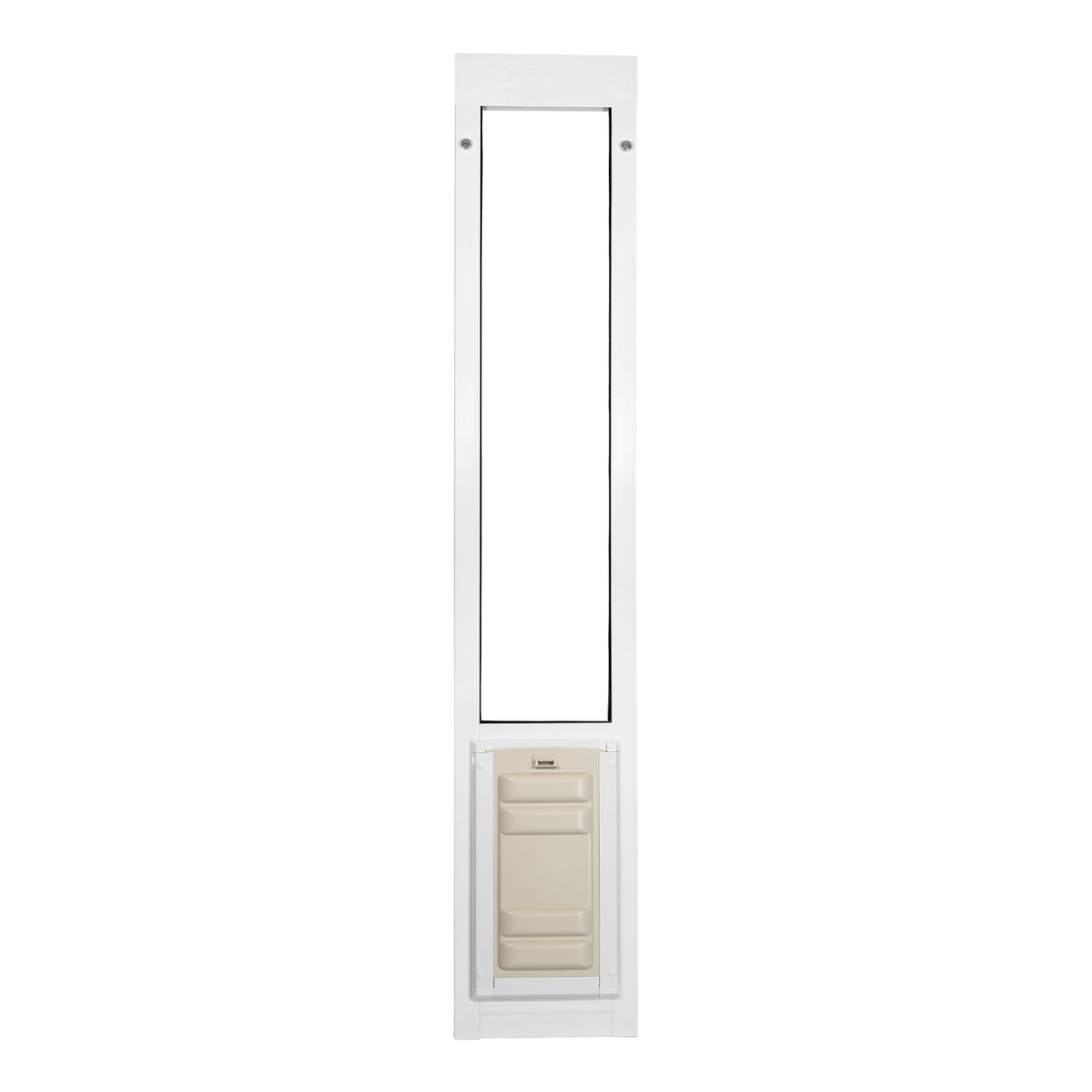

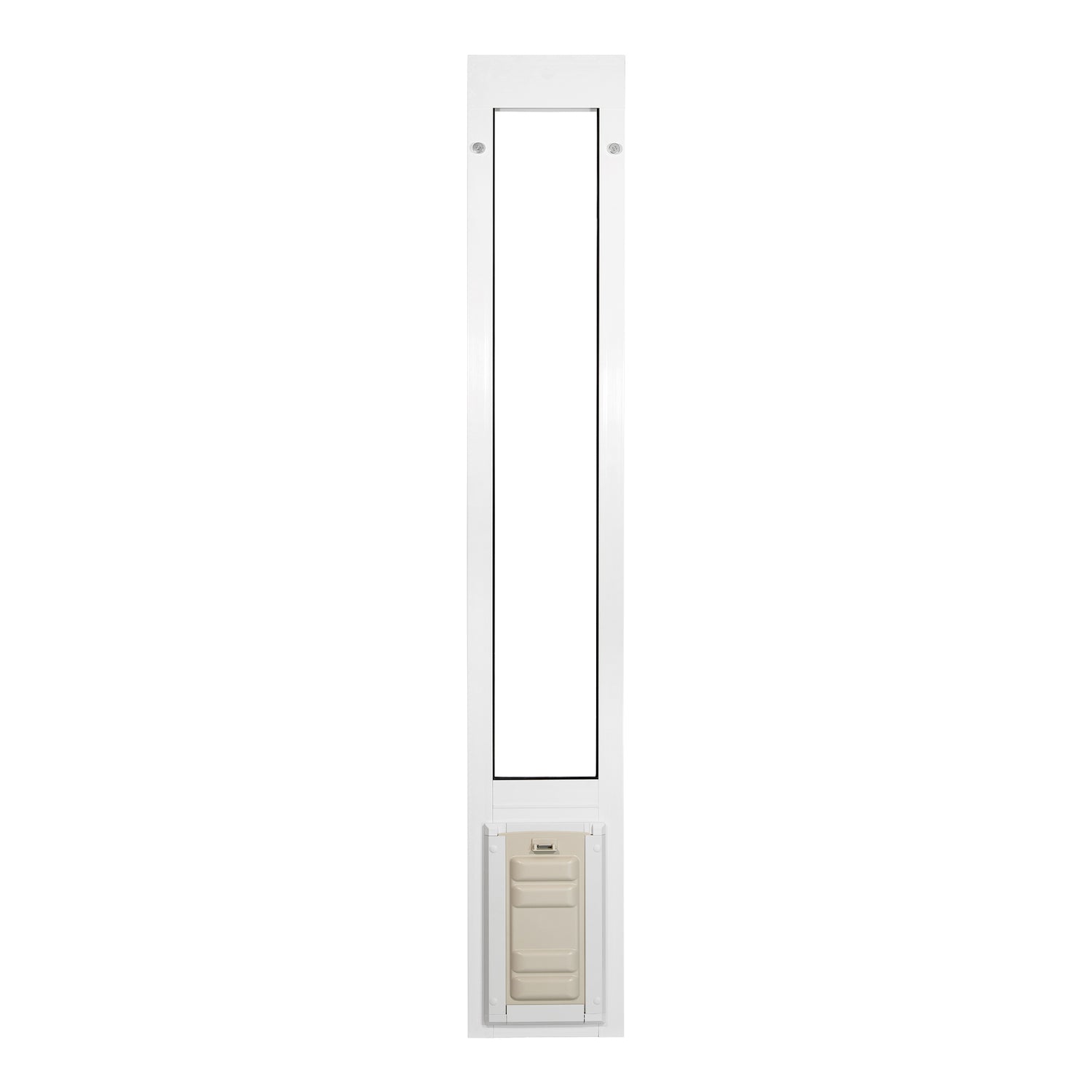

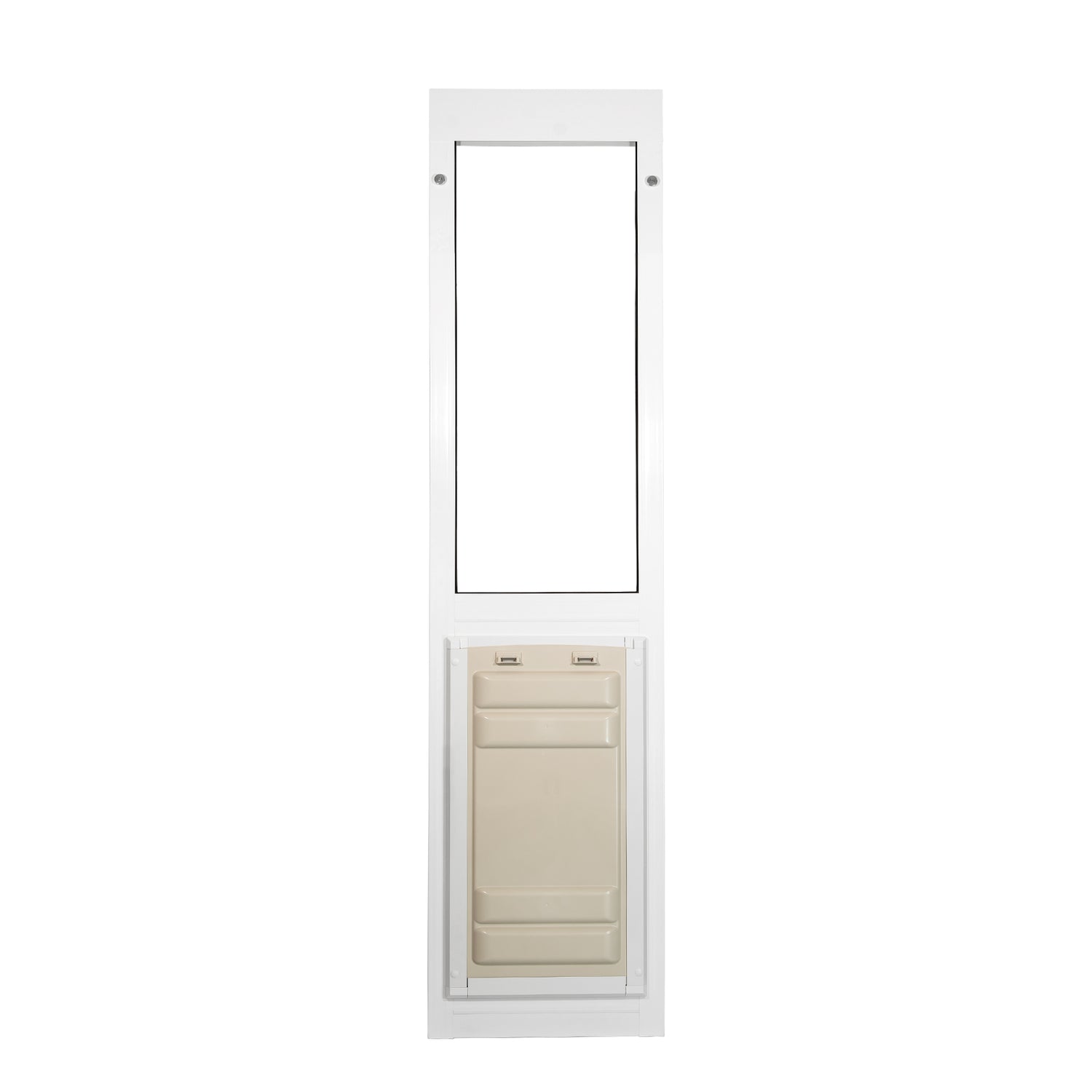

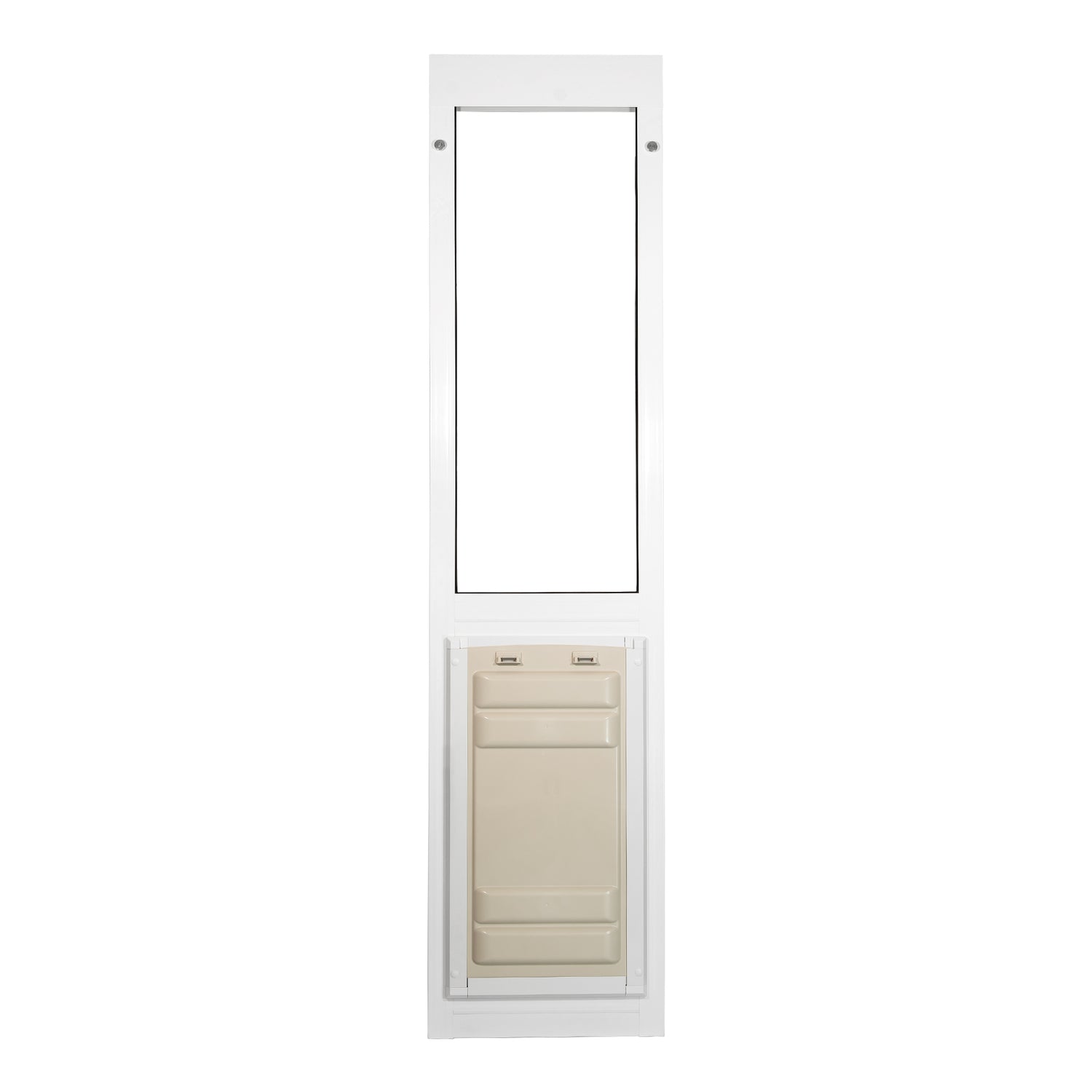

  • Secure locking cover: Included locking cover and c-clamp lock allow you to secure the pet door when necessary for added safety
  • Easy semi-permanent installation: The spring-loaded design makes it ideal for rentals and vacation homes without permanent alterations
  • Aesthetically pleasing: The white vinyl frame seamlessly integrates with your existing sliding glass door for a cohesive look
  • Low-maintenance flap: UV-resistant flap material won't warp or yellow in the sun, ensuring long-lasting durability and performance
  • Wind resistance: Flap lined with magnets on all sides, able to stay shut in winds up to 50 mph, providing additional protection against the elements
  • Customizable height: 5/16" can be trimmed off the top of the pet door panel if a slightly shorter height is needed
  • Easy-to-follow instructions: Comprehensive installation instruction booklet included for a hassle-free setup experience
  • Invest in quality: Although a premium investment, this American-made dog door offers lasting durability and improved insulation compared to standard alternatives

Need help installing? Check out our Vinyl Sliding Glass Door Installation page.

Size Chart

Flap Dimensions:

6"w x 10"h

The entry way your dog goes through.

Overall Panel Width

12 3/8"

How wide your panel is.
flap dimensions
epanel width
step over height

Step-Over Height

4”

The distance from the bottom of the panel to the bottom of your flap.

Flap Dimensions:

8"w x 14"h

The entry way your dog goes through.

Overall Panel Width

14 3/8"

How wide your panel is.
flap dimensions
epanel width
step over height

Step-Over Height

4”

The distance from the bottom of the panel to the bottom of your flap.

Flap Dimensions:

10"w x 18"h

The entry way your dog goes through.

Overall Panel Width

16 7/16

How wide your panel is.
flap dimensions
epanel width
step over height

Step-Over Height

6”

The distance from the bottom of the panel to the bottom of your flap.

Flap Dimensions:

12"w x 22"h

The entry way your dog goes through.

Overall Panel Width

18 1/2"

How wide your panel is.
flap dimensions
epanel width
step over height

Step-Over Height

6”

The distance from the bottom of the panel to the bottom of your flap.
Flap SizeFlap DimensionStep Over HeightOverall Panel WidthRecommended Pet Height
Small6" w x 10" h4" - 6"12 3/8"8" - 14"
Medium8" w x 14" h4" - 6"14 3/8"

8" - 21"
Large 10" w x 18" h4", 6", or 8"16 7/16"

8" - 27"
Extra Large 12" w x 22" h4", 6", or 8"18 1/2"8" - 34"

Height Options:

  • Short: 74 ¾" - 77 ¾"
  • Regular: 77 ¼" - 80 ¼"
  • Tall: 93 1⁄4" – 96 1⁄4" (additional cost)



If your measured track height is near the bottom of the adjustment range then you should review a Track Measuring Guide.

Find The Best Pet Door Size For My Pet


A

Pet Height: inches

B

Pet Width: inches

Please fill the above fields.

Additional Information

Weight

30.6994

Color

White

Flap Material

Flexible

Your Maximum Pet Size

Cats, Large Cats, Small Dogs, Medium Dogs, Large Dogs, X-Large Dogs

Climate Suitability

Severe-4 Season

House Locking Method

C-Clamp Lock

Sealing Value

Very High

Wind Resistance

Very High

Installation Instructions

Click to view the Single Flap Vinyl Sliding Glass Pet Door Instructions.

Installation icon Printable Version
Installation icon Difficulty Easy
Installation icon Steps 10
Installation icon Time Required 0.5 hours
Installation icon Sections 01
Installation icon Flags 01

Parts

  • 1 Vinyl Panel Pet Door
  • 1 Weatherstrip Seal Roll
  • 1 Center Post Weather Seal Draft Stopper

Tools

  • Flathead screwdriver
  • #2 Philips head screw driver
  • Non-metal hammer
  • Scissors

Please read instructions & notes thoroughly before installation. If you need to adjust the step-over, complete steps A-F prior to installing the panel in your track.

Step 1 Loosen Height Adjustment Locks

  • Note: Horizontal Cross pieces have Edge Guides on each end. Carefully remove these parts and keep them together. This will help with assembly and orientation and when reassembling the piece.
  • Loosen the height adjustment locks at the top of the panel. This allows the spring mechanism to move freely up and down.

Step 2 Insert Panel Into Track

  • Insert the panel into the upper track of your door frame, push the panel into the spring mechanism, then swing the bottom of the panel up and over the threshold into the lower track rail.
  • If you can’t clear the track, try swinging in from the outside, as the outside track wall may be shorter. If the panel still doesn’t fit, see the FAQ for guidance.

Step 3 Apply Weatherstrip

  • Once you are confident that the panel fits, remove the panel from the track and lay it on its side on the ground.
  • Apply the foam weatherstrip seal by peeling back the paper and exposing the adhesive. Unroll it along the edge of the panel, pressing to ensure it adheres. Install on both sides and trim to fit with scissors.

Step 4 Place Panel In Track

  • Place the panel back into the sliding glass door, then tighten the height adjustment locks to lock it in place.

Step 5 Install the Draft Stopper

  • The center post weather seal strip (draft stopper) should be installed on the inside of the home.
  • It can install on either the back edge of the sliding door panel or the leading edge of the stationary panel.
  • This strip prevents air from leaking between the sliding glass door and the stationary panel.
  • Trim with scissors as needed. Clean the edge of your patio door with rubbing alcohol before installing to assure a good seal.
  • Repeat step two to install the panel in your track.

The following steps are only applicable if you need to adjust the step-over height. Complete these steps prior to installing the panel in your track.

Step A Separate Flap Frames

  • Lay the entire panel on a flat surface. Use a #2 Philips head screwdriver to unscrew the four frame screws from the flap frames to separate them, then set them aside.

Step B Loosen Side-Screws

  • Loosen both the middle and bottom sets of side-screws by one turn.

Step C Adjust Stepover Height

  • Once the bottom and middle side-screws are loosened, slide the spacer(s) down to the bottom of the panel. Pull the adjustable seal extrusion(s) down and out to place it between the adjustable spacer and the adjacent crosspiece.
  • You can move the spacer(s) above or below the flap to raise or lower it until the desired flap height is achieved.

Step D Replace Side and Middle Screws

  • Once the desired flap height is achieved, replace and tighten the bottom side-screws and tighten the middle side-screws.

Step E Reattach Flap Frames

  • To reinstate the pet door assembly, sandwich the interior and exterior frames on either side of the pane how they came. Insert the four frame screws through the pet door frames.
  • Do not fully tighten the screws until all four are inserted and the pet door is leveled.
  • If the white connector pieces fall off of the Bottom Crosspiece, this step's diagram pictures how to orient the connector back onto both sides of the Bottom Crosspiece.

Step F Add Hole Plugs

  • Use the wooden of a hammer, a rubber mallet, or another non-metal tool to tap the hole plugs over the eight exposed frame screws.

How to Adjust Stepover Height

FAQ

What if my panel is slightly too tall?

You can trim up to 5/16" off the spring-loaded adjustment piece at the top. Remove the adjustment piece with a #2 Philips head screwdriver and use scissors to cut down the flanges. Be careful not to cut too low.

What if my panel is slightly too short?

We ofer height extensions that will add 1 1/2" to the top of the panel that you slide into the channel at the top. These are made from the same vinyl as the panel so the color will match exactly. If the extension makes the panel feel unstable, you can secure it with screws.

What if the panel is wobbling slightly back and forth?

If your track is wider than 1 1/2", you can use small wooden shims or extra weather-stripping to fill the gap inside the top and bottom tracks. By placing the material inside the tracks you won't be able to see it, but it will stabilize the panel.

Locking Your Door

Since you cannot lock your sliding glass door to the panel, we have provided you with a sliding door clamp lock to secure your home.

Installing the sliding door clamp:

This clamp as a screw that tightens by hand to prevent the sliding door from moving beyond the clamp's placement. For doors manufactured with the glass slider on the inside track, the lock can usually be installed on the door's raised track.

If you aren't able to use the lock that comes with the panel:

A great alternative to locking your sliding glass door is a Charley bar or dowel. Both block the slider from opening. When engaged, you cannot pull the sliding door away from the pet door panel.

My slider isn't closing evenly against the panel?

Your slider may not be level, which can happen in older houses. In that case, you may be able to adjust the wheels on the slider enough to line it back up. It will depend on your door, but you should be able to adjust a screw near the bottom of the door.

Turning the screw will adjust the wheels slightly. If the slider is level then it could be an issue with the metal height adjustment lock at the top of the panel. You can also use a rubber mallet to tap the curve into a straight line.

If the height adjustment lock is hitting the edge this can mean that the bottom of the panel is going further into the jamb that it can at the top. A gap appears that gets wider as you go down the panel. You can use wood shims or weatherstripping in the jamb to push out the bottom of the panel.

Videos

Adjusting the Stepover


Installation Video


How to Measure Your Door for a Sliding Glass Pet Door


How to Adjust the Magnet Strength of Your Endura Flap


The Leaf Blower Test


Endura Flap Dog Doors Durability

FAQ

Is this the same as the Thermo Panel 3e?

This is very similar in that it has the same height ranges, flap sizes, and Low-e glass. However, this vinyl panel is specifically made to fit better in the wider vinyl slider tracks. Read about the differences between vinyl and aluminum pet door panels here.

Will it fit all vinyl sliding glass doors?

This panel fits doors that have a recessed track at least 1-1/2" wide, with a rail in the bottom that is about the size of a pencil. The panel is made with a small channel that will case over that little rail

Does it lock?

We do include a c-clamp lock to lock the panel in place in your slider track. However, the panel does not mate with your existing sliding door lock. You can also use a Charley bar or wooden dowel for additional security.

Can an intruder remove it from the outside?

The thumbscrews are on the inside of the house so you cannot loosen them from the outside.

Does the flap lock?

The severe weather vinyl sliding door panel comes with a secure locking cover to block access to the flap when needed.

Does this panel insulate well?

Yes, it insulates very well. The flap is lined with magnets on three sides to stay shut in winds up to 50mph. The glass in the panel is Low-E for maximum insulation.

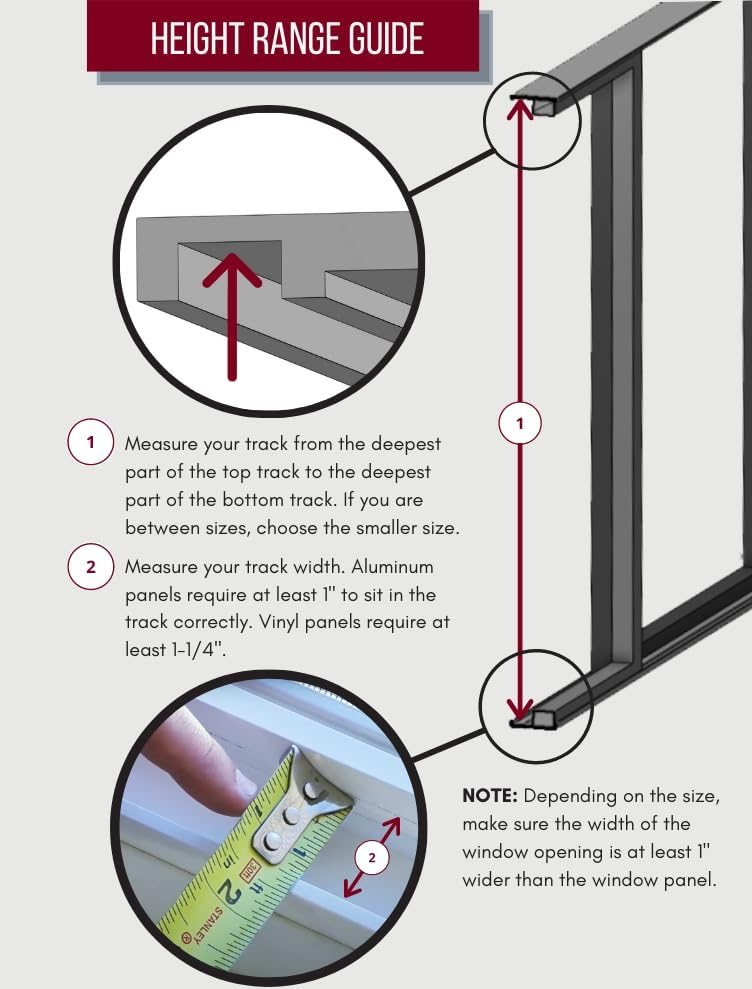

How do I measure for it?

You will want to measure from the deepest part (down past the little metal rail) in the bottom, then all the way up to the deepest part inside the top track for your track height.

Does it come in any color other than white?

No, but the vinyl can be painted to match your home.

What if my track is wider than 1-1/2"?

It will still work if your track is wider, but if the channel in the bottom, top, or side measures less than that you will not be able to fit it into place properly.

Does your door have to be vinyl?

No, this can work for aluminum sliders with tracks at least 1.5" thick.

Is the flap flexible?

It is flexible, but since it is two pieces sandwiched together it is a little stiffer and heavier than the more economical vinyl flaps.

Is the flap clear?

It is a little foggy, but it is see-through so it's easy for pets to use.

Will this form condensation like the aluminum panels?

Nope! One of the benefits of a vinyl panel is that it won't "sweat" in cold weather the way aluminum panels can.

My sliding door track has a triangular guide rail. Will this pet door still work?

Some sliding glass door tracks have a triangle-shaped guide rail instead of a cylindrical pencil rail running along the middle. This pet door panel has an arch along the bottom that is designed to sit on top of a cylindrical pencil rail. Pencil rails are shorter in height than triangular guide rails, which means that the pet door panel would wobble on top of it rather than sitting flush with the rest of the track. To accommodate the pet door panel you will need to build up the sides of the triangular guide rail so that the tip is less than ¼” tall. Please reach out to customer service if you have any questions about this process.

Will this panel work if my sliding glass door has a buried track?

Some sliding glass doors have buried tracks. Since this panel has an arch along the bottom that is designed to sit on top of a pencil rail, it will not be secure in a slider with a buried track without modifications. We recommend securing the panel to the track wall with L brackets or toenailing it to the track wall. Toenailing is the process of fastening the panel to the track by driving a nail at roughly a 45-degree angle into the panel and through the track wall. Please note that these modifications result in a semi-permanent installation. If you needed to remove the panel in the future you would first have to remove the L brackets or nails. Additionally, please note that this process would leave holes in the pet door panel and it would no longer be returnable. Please reach out to customer service to further discuss your options for a buried track.

I have a hurricane patio door. Will this pet door work for me?

Hurricane door track styles vary widely, so they are case-by-case. Please reach out to customer service to discuss your pet door options for your sliding door.

Will this pet door work with Anderson and Pella sliding doors?

Anderson and Pella sliding glass doors have an inner track wall but no outer track wall. Additionally, the pencil rail is on the outer edge of the track rather than in the middle. Since this pet door panel is designed to sit between two track walls and on top of a centered pencil rail, it cannot be installed in Anderson or Pella doors without modifications. We recommend building out your track and using L brackets or toenailing to secure the bottom of the panel to the inner track wall. Building out the track means adding a piece of wood or vinyl that is the same height as the pencil rail to the space next to the pencil rail. This creates a flat surface for the pet door panel to sit on. Next, you will need to secure the panel to the track wall. To do this, you can use L brackets or you can toenail the panel into the track wall. Toenailing is the process of fastening the panel to the track by driving a nail at roughly a 45-degree angle into the panel and through the track wall. Please note that these modifications result in a semi-permanent installation. If you needed to remove the panel in the future you would first have to remove the L brackets or nails. Additionally, please note that this process would leave holes in the pet door panel and it would no longer be returnable. Please reach out to customer service to further discuss this process or different options for an Anderson or Pella sliding door.

What do I do if my sliders meet in the middle?

You can install your panel in the middle and anchor one of your doors to it and leave the other one functional; essentially turning your two-door slider into one.

Warranty

Endura Flap products have a lifetime warranty against defects in materials and workmanship under standard regular use. Endura Flap® Pet Doors Are 100% Designed, Engineered, and Manufactured in the USA. They are handmade for quality work in San Luis Obispo, California.

We will replace any defective parts at no cost to you. Defective parts may include incorrectly sized flaps, bent or dented frames, or improperly fitted parts.

Customers living outside of the continental United States are responsible for shipping costs as well as duties and taxes (if applicable) for any replacement parts or services covered under the warranty policy regardless of the replacement part or service's original cost.

Important Note:

Endura Flap® pet doors have a lifetime warranty for normal wear & tear and manufacturing defects (dog-chewing is not covered).

Damage caused by not using the product as intended, improper installation, and chewing is not covered under this warranty.

Endura Flap Pet Doors used in a commercial application like a Kennel or Boarding facility have a three year warranty.

Customer Reviews

Customer Reviews
3.4 Based on 9 Reviews
5 ★
56%
5
4 ★
0%
0
3 ★
11%
1
2 ★
0%
0
1 ★
33%
3
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
KG
12/23/2023
Kalen G.
United States United States

Worth every penny!

Easy to install and seals so well I can leave it in at night during the winter without turning up the heat.

LB
07/30/2022
Lee B.
United States United States

This doggie door is God sent miracle!

No longer have to get up in the middle of the night to let my dogs out or in the morning before I go to work. It may take a little while for your dogs to get the hang of using it, but eventually they will. Some reviews said the foam around the edges is less than adequate. I didn’t have the same opinion. It seemed plenty thick enough for shipping the door. Oh remember to unscrew the chrome knobs a little to release the extension part. I forgot about that lol.

DM
07/11/2022
Derek M.
United States United States

Should of just bought a cheaper door

The quality of this door is terrible. For supporting an American made product I feel like I could have got the same quality from a Chinese made door. The screw holes in the extender piece below the door were in terrible shape when I received the door. It looked like a company with no quality control made the door. My sliding door measured 78.5” and the door didn’t even fit easily. I had to take the top adjustment piece off and jam foam weather seal tap into the top of the door. Also the foam weather seal they send you is junk! I ended up having to make another trip to Home Depot to buy $50 worth of quality rubber weather seal tape to finish the job correctly. You’d think for a “severe weather” friendly door they’d give you the best weather seal tape that also should have been white to match the white vinyl. Who ever made this door cut corners and gave me cheap material. I also should caulk around the extender bottoms piece below the door since I can see sunlight coming through it. Seriously disappointed in purchasing a premium American made dog door. Makes me sad how poorly made it was.

A Endura Flap® Customer
TM
05/24/2022
Tyler M.
United States United States

This is amazing

This is great. I almost didnt buy one after reading the other reviews but I'm glad I did. I dont know why some people have given this negative reviews other than not understanding how to install it properly. Some background - I live in the midwest where windy conditions are common. 30 mph with 50 mph gusts so days. My house faces north/south with my sliding door facing south. In the summer, this means that south wind is blowing against my door all the time. I had been through 3 big box store brand sliding glass door pet doors. None of them could handle the wind and they all started wearing out after 18-24 months. They never sealed very well which meant they let in cold air in the winter and hot air in the summer (as well as bugs in the summer). My endura flap extreme door has been worth every penny. Two days after I installed my door it was very windy and the flaps didn't budge - no air leakage at all. Yes, it was an investment to make but worth it for me.

DG
04/04/2022
David G.
United States United States

Not up to hope & expectation

Door does not close reliably. Old, much cheaper single flap door was better. The foam “seals” where the slider meets the fixed dog-door panel is a cheap and completely, self-defeatingly cheap, ****** solution. Had to tape around the top, bottom, and other side of there panel to prevent wicked draft and heat loss; the foam side is unremediable since it has to move and leaks cold very badly. Plus that cheap foam and standard double-stick tape will break down quickly. Tape is already coming unstuck, foam crumbling. Around “storm flap” of course, leaks heat and allows cold air in at least as badly as cheap, old door that this was Intended to replace. If this was inexpensive, it would still be a disappointment and failure, however, it was VERY expensive to boot, I would never recommend this item. Sales rep on phone was very nice and helpful, and called before shipping to let me know I had ordered an unnecessary and expensive additional part, which she removed from the order and refunded. At least.

Endura Flap Severe Weather Vinyl Sliding Glass Dog Door

Small / 74.75" - 77.75" Edit

Endura Flap Severe Weather Vinyl Sliding Glass Dog Door

Flap Dimensions:

6"w x 10"h

The entry way your dog goes through.

Overall Panel Width

12 3/8"

How wide your panel is.
flap dimensions
epanel width
step over height

Step-Over Height

4”

The distance from the bottom of the panel to the bottom of your flap.

Flap Dimensions:

8"w x 14"h

The entry way your dog goes through.

Overall Panel Width

14 3/8"

How wide your panel is.
flap dimensions
epanel width
step over height

Step-Over Height

4”

The distance from the bottom of the panel to the bottom of your flap.

Flap Dimensions:

10"w x 18"h

The entry way your dog goes through.

Overall Panel Width

16 7/16

How wide your panel is.
flap dimensions
epanel width
step over height

Step-Over Height

6”

The distance from the bottom of the panel to the bottom of your flap.

Flap Dimensions:

12"w x 22"h

The entry way your dog goes through.

Overall Panel Width

18 1/2"

How wide your panel is.
flap dimensions
epanel width
step over height

Step-Over Height

6”

The distance from the bottom of the panel to the bottom of your flap.
Flap SizeFlap DimensionStep Over HeightOverall Panel WidthRecommended Pet Height
Small6" w x 10" h4" - 6"12 3/8"8" - 14"
Medium8" w x 14" h4" - 6"14 3/8"

8" - 21"
Large 10" w x 18" h4", 6", or 8"16 7/16"

8" - 27"
Extra Large 12" w x 22" h4", 6", or 8"18 1/2"8" - 34"

Height Options:

  • Short: 74 ¾" - 77 ¾"
  • Regular: 77 ¼" - 80 ¼"
  • Tall: 93 1⁄4" – 96 1⁄4" (additional cost)



If your measured track height is near the bottom of the adjustment range then you should review a Track Measuring Guide.

Find The Best Pet Door Size For My Pet


A

Pet Height: inches

B

Pet Width: inches

Please fill the above fields.

Weight

30.6994

Color

White

Flap Material

Flexible

Your Maximum Pet Size

Cats, Large Cats, Small Dogs, Medium Dogs, Large Dogs, X-Large Dogs

Climate Suitability

Severe-4 Season

House Locking Method

C-Clamp Lock

Sealing Value

Very High

Wind Resistance

Very High

Installation Instructions

Click to view the Single Flap Vinyl Sliding Glass Pet Door Instructions.

Installation icon Printable Version
Installation icon Difficulty Easy
Installation icon Steps 10
Installation icon Time Required 0.5 hours
Installation icon Sections 01
Installation icon Flags 01

Parts

  • 1 Vinyl Panel Pet Door
  • 1 Weatherstrip Seal Roll
  • 1 Center Post Weather Seal Draft Stopper

Tools

  • Flathead screwdriver
  • #2 Philips head screw driver
  • Non-metal hammer
  • Scissors

Please read instructions & notes thoroughly before installation. If you need to adjust the step-over, complete steps A-F prior to installing the panel in your track.

Step 1 Loosen Height Adjustment Locks

  • Note: Horizontal Cross pieces have Edge Guides on each end. Carefully remove these parts and keep them together. This will help with assembly and orientation and when reassembling the piece.
  • Loosen the height adjustment locks at the top of the panel. This allows the spring mechanism to move freely up and down.

Step 2 Insert Panel Into Track

  • Insert the panel into the upper track of your door frame, push the panel into the spring mechanism, then swing the bottom of the panel up and over the threshold into the lower track rail.
  • If you can’t clear the track, try swinging in from the outside, as the outside track wall may be shorter. If the panel still doesn’t fit, see the FAQ for guidance.

Step 3 Apply Weatherstrip

  • Once you are confident that the panel fits, remove the panel from the track and lay it on its side on the ground.
  • Apply the foam weatherstrip seal by peeling back the paper and exposing the adhesive. Unroll it along the edge of the panel, pressing to ensure it adheres. Install on both sides and trim to fit with scissors.

Step 4 Place Panel In Track

  • Place the panel back into the sliding glass door, then tighten the height adjustment locks to lock it in place.

Step 5 Install the Draft Stopper

  • The center post weather seal strip (draft stopper) should be installed on the inside of the home.
  • It can install on either the back edge of the sliding door panel or the leading edge of the stationary panel.
  • This strip prevents air from leaking between the sliding glass door and the stationary panel.
  • Trim with scissors as needed. Clean the edge of your patio door with rubbing alcohol before installing to assure a good seal.
  • Repeat step two to install the panel in your track.

The following steps are only applicable if you need to adjust the step-over height. Complete these steps prior to installing the panel in your track.

Step A Separate Flap Frames

  • Lay the entire panel on a flat surface. Use a #2 Philips head screwdriver to unscrew the four frame screws from the flap frames to separate them, then set them aside.

Step B Loosen Side-Screws

  • Loosen both the middle and bottom sets of side-screws by one turn.

Step C Adjust Stepover Height

  • Once the bottom and middle side-screws are loosened, slide the spacer(s) down to the bottom of the panel. Pull the adjustable seal extrusion(s) down and out to place it between the adjustable spacer and the adjacent crosspiece.
  • You can move the spacer(s) above or below the flap to raise or lower it until the desired flap height is achieved.

Step D Replace Side and Middle Screws

  • Once the desired flap height is achieved, replace and tighten the bottom side-screws and tighten the middle side-screws.

Step E Reattach Flap Frames

  • To reinstate the pet door assembly, sandwich the interior and exterior frames on either side of the pane how they came. Insert the four frame screws through the pet door frames.
  • Do not fully tighten the screws until all four are inserted and the pet door is leveled.
  • If the white connector pieces fall off of the Bottom Crosspiece, this step's diagram pictures how to orient the connector back onto both sides of the Bottom Crosspiece.

Step F Add Hole Plugs

  • Use the wooden of a hammer, a rubber mallet, or another non-metal tool to tap the hole plugs over the eight exposed frame screws.

How to Adjust Stepover Height

FAQ

What if my panel is slightly too tall?

You can trim up to 5/16" off the spring-loaded adjustment piece at the top. Remove the adjustment piece with a #2 Philips head screwdriver and use scissors to cut down the flanges. Be careful not to cut too low.

What if my panel is slightly too short?

We ofer height extensions that will add 1 1/2" to the top of the panel that you slide into the channel at the top. These are made from the same vinyl as the panel so the color will match exactly. If the extension makes the panel feel unstable, you can secure it with screws.

What if the panel is wobbling slightly back and forth?

If your track is wider than 1 1/2", you can use small wooden shims or extra weather-stripping to fill the gap inside the top and bottom tracks. By placing the material inside the tracks you won't be able to see it, but it will stabilize the panel.

Locking Your Door

Since you cannot lock your sliding glass door to the panel, we have provided you with a sliding door clamp lock to secure your home.

Installing the sliding door clamp:

This clamp as a screw that tightens by hand to prevent the sliding door from moving beyond the clamp's placement. For doors manufactured with the glass slider on the inside track, the lock can usually be installed on the door's raised track.

If you aren't able to use the lock that comes with the panel:

A great alternative to locking your sliding glass door is a Charley bar or dowel. Both block the slider from opening. When engaged, you cannot pull the sliding door away from the pet door panel.

My slider isn't closing evenly against the panel?

Your slider may not be level, which can happen in older houses. In that case, you may be able to adjust the wheels on the slider enough to line it back up. It will depend on your door, but you should be able to adjust a screw near the bottom of the door.

Turning the screw will adjust the wheels slightly. If the slider is level then it could be an issue with the metal height adjustment lock at the top of the panel. You can also use a rubber mallet to tap the curve into a straight line.

If the height adjustment lock is hitting the edge this can mean that the bottom of the panel is going further into the jamb that it can at the top. A gap appears that gets wider as you go down the panel. You can use wood shims or weatherstripping in the jamb to push out the bottom of the panel.

Videos

Adjusting the Stepover


Installation Video


How to Measure Your Door for a Sliding Glass Pet Door


How to Adjust the Magnet Strength of Your Endura Flap


The Leaf Blower Test


Endura Flap Dog Doors Durability

FAQ

Is this the same as the Thermo Panel 3e?

This is very similar in that it has the same height ranges, flap sizes, and Low-e glass. However, this vinyl panel is specifically made to fit better in the wider vinyl slider tracks. Read about the differences between vinyl and aluminum pet door panels here.

Will it fit all vinyl sliding glass doors?

This panel fits doors that have a recessed track at least 1-1/2" wide, with a rail in the bottom that is about the size of a pencil. The panel is made with a small channel that will case over that little rail

Does it lock?

We do include a c-clamp lock to lock the panel in place in your slider track. However, the panel does not mate with your existing sliding door lock. You can also use a Charley bar or wooden dowel for additional security.

Can an intruder remove it from the outside?

The thumbscrews are on the inside of the house so you cannot loosen them from the outside.

Does the flap lock?

The severe weather vinyl sliding door panel comes with a secure locking cover to block access to the flap when needed.

Does this panel insulate well?

Yes, it insulates very well. The flap is lined with magnets on three sides to stay shut in winds up to 50mph. The glass in the panel is Low-E for maximum insulation.

How do I measure for it?

You will want to measure from the deepest part (down past the little metal rail) in the bottom, then all the way up to the deepest part inside the top track for your track height.

Does it come in any color other than white?

No, but the vinyl can be painted to match your home.

What if my track is wider than 1-1/2"?

It will still work if your track is wider, but if the channel in the bottom, top, or side measures less than that you will not be able to fit it into place properly.

Does your door have to be vinyl?

No, this can work for aluminum sliders with tracks at least 1.5" thick.

Is the flap flexible?

It is flexible, but since it is two pieces sandwiched together it is a little stiffer and heavier than the more economical vinyl flaps.

Is the flap clear?

It is a little foggy, but it is see-through so it's easy for pets to use.

Will this form condensation like the aluminum panels?

Nope! One of the benefits of a vinyl panel is that it won't "sweat" in cold weather the way aluminum panels can.

My sliding door track has a triangular guide rail. Will this pet door still work?

Some sliding glass door tracks have a triangle-shaped guide rail instead of a cylindrical pencil rail running along the middle. This pet door panel has an arch along the bottom that is designed to sit on top of a cylindrical pencil rail. Pencil rails are shorter in height than triangular guide rails, which means that the pet door panel would wobble on top of it rather than sitting flush with the rest of the track. To accommodate the pet door panel you will need to build up the sides of the triangular guide rail so that the tip is less than ¼” tall. Please reach out to customer service if you have any questions about this process.

Will this panel work if my sliding glass door has a buried track?

Some sliding glass doors have buried tracks. Since this panel has an arch along the bottom that is designed to sit on top of a pencil rail, it will not be secure in a slider with a buried track without modifications. We recommend securing the panel to the track wall with L brackets or toenailing it to the track wall. Toenailing is the process of fastening the panel to the track by driving a nail at roughly a 45-degree angle into the panel and through the track wall. Please note that these modifications result in a semi-permanent installation. If you needed to remove the panel in the future you would first have to remove the L brackets or nails. Additionally, please note that this process would leave holes in the pet door panel and it would no longer be returnable. Please reach out to customer service to further discuss your options for a buried track.

I have a hurricane patio door. Will this pet door work for me?

Hurricane door track styles vary widely, so they are case-by-case. Please reach out to customer service to discuss your pet door options for your sliding door.

Will this pet door work with Anderson and Pella sliding doors?

Anderson and Pella sliding glass doors have an inner track wall but no outer track wall. Additionally, the pencil rail is on the outer edge of the track rather than in the middle. Since this pet door panel is designed to sit between two track walls and on top of a centered pencil rail, it cannot be installed in Anderson or Pella doors without modifications. We recommend building out your track and using L brackets or toenailing to secure the bottom of the panel to the inner track wall. Building out the track means adding a piece of wood or vinyl that is the same height as the pencil rail to the space next to the pencil rail. This creates a flat surface for the pet door panel to sit on. Next, you will need to secure the panel to the track wall. To do this, you can use L brackets or you can toenail the panel into the track wall. Toenailing is the process of fastening the panel to the track by driving a nail at roughly a 45-degree angle into the panel and through the track wall. Please note that these modifications result in a semi-permanent installation. If you needed to remove the panel in the future you would first have to remove the L brackets or nails. Additionally, please note that this process would leave holes in the pet door panel and it would no longer be returnable. Please reach out to customer service to further discuss this process or different options for an Anderson or Pella sliding door.

What do I do if my sliders meet in the middle?

You can install your panel in the middle and anchor one of your doors to it and leave the other one functional; essentially turning your two-door slider into one.

Warranty

Endura Flap products have a lifetime warranty against defects in materials and workmanship under standard regular use. Endura Flap® Pet Doors Are 100% Designed, Engineered, and Manufactured in the USA. They are handmade for quality work in San Luis Obispo, California.

We will replace any defective parts at no cost to you. Defective parts may include incorrectly sized flaps, bent or dented frames, or improperly fitted parts.

Customers living outside of the continental United States are responsible for shipping costs as well as duties and taxes (if applicable) for any replacement parts or services covered under the warranty policy regardless of the replacement part or service's original cost.

Important Note:

Endura Flap® pet doors have a lifetime warranty for normal wear & tear and manufacturing defects (dog-chewing is not covered).

Damage caused by not using the product as intended, improper installation, and chewing is not covered under this warranty.

Endura Flap Pet Doors used in a commercial application like a Kennel or Boarding facility have a three year warranty.

Customer Reviews

Customer Reviews
3.4 Based on 9 Reviews
5 ★
56%
5
4 ★
0%
0
3 ★
11%
1
2 ★
0%
0
1 ★
33%
3
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
KG
12/23/2023
Kalen G.
United States United States

Worth every penny!

Easy to install and seals so well I can leave it in at night during the winter without turning up the heat.

LB
07/30/2022
Lee B.
United States United States

This doggie door is God sent miracle!

No longer have to get up in the middle of the night to let my dogs out or in the morning before I go to work. It may take a little while for your dogs to get the hang of using it, but eventually they will. Some reviews said the foam around the edges is less than adequate. I didn’t have the same opinion. It seemed plenty thick enough for shipping the door. Oh remember to unscrew the chrome knobs a little to release the extension part. I forgot about that lol.

DM
07/11/2022
Derek M.
United States United States

Should of just bought a cheaper door

The quality of this door is terrible. For supporting an American made product I feel like I could have got the same quality from a Chinese made door. The screw holes in the extender piece below the door were in terrible shape when I received the door. It looked like a company with no quality control made the door. My sliding door measured 78.5” and the door didn’t even fit easily. I had to take the top adjustment piece off and jam foam weather seal tap into the top of the door. Also the foam weather seal they send you is junk! I ended up having to make another trip to Home Depot to buy $50 worth of quality rubber weather seal tape to finish the job correctly. You’d think for a “severe weather” friendly door they’d give you the best weather seal tape that also should have been white to match the white vinyl. Who ever made this door cut corners and gave me cheap material. I also should caulk around the extender bottoms piece below the door since I can see sunlight coming through it. Seriously disappointed in purchasing a premium American made dog door. Makes me sad how poorly made it was.

A Endura Flap® Customer
TM
05/24/2022
Tyler M.
United States United States

This is amazing

This is great. I almost didnt buy one after reading the other reviews but I'm glad I did. I dont know why some people have given this negative reviews other than not understanding how to install it properly. Some background - I live in the midwest where windy conditions are common. 30 mph with 50 mph gusts so days. My house faces north/south with my sliding door facing south. In the summer, this means that south wind is blowing against my door all the time. I had been through 3 big box store brand sliding glass door pet doors. None of them could handle the wind and they all started wearing out after 18-24 months. They never sealed very well which meant they let in cold air in the winter and hot air in the summer (as well as bugs in the summer). My endura flap extreme door has been worth every penny. Two days after I installed my door it was very windy and the flaps didn't budge - no air leakage at all. Yes, it was an investment to make but worth it for me.

DG
04/04/2022
David G.
United States United States

Not up to hope & expectation

Door does not close reliably. Old, much cheaper single flap door was better. The foam “seals” where the slider meets the fixed dog-door panel is a cheap and completely, self-defeatingly cheap, ****** solution. Had to tape around the top, bottom, and other side of there panel to prevent wicked draft and heat loss; the foam side is unremediable since it has to move and leaks cold very badly. Plus that cheap foam and standard double-stick tape will break down quickly. Tape is already coming unstuck, foam crumbling. Around “storm flap” of course, leaks heat and allows cold air in at least as badly as cheap, old door that this was Intended to replace. If this was inexpensive, it would still be a disappointment and failure, however, it was VERY expensive to boot, I would never recommend this item. Sales rep on phone was very nice and helpful, and called before shipping to let me know I had ordered an unnecessary and expensive additional part, which she removed from the order and refunded. At least.

Lifetime Warranty
Fast Shipping
100% Secure Checkout
Easy Returns
