Free U.S. Shipping & Lifetime Warranty
Great for Moderate Climates
Remodel-Worthy
Advanced Skills Installation
Single Flap:6"w x 11"h
The entry way your dog goes through.10 1/8"w x 16 3/4"h
The outer edge of the pet door.
8"w x 14 5/8"h
The size of the hole needed to fit your pet door into your wall.Single Flap:8"w x 15"h
The entry way your dog goes through.12 3/16"w x 20 3/4"h
The outer edge of the pet door.
10"w x 18 5/8"h
The size of the hole needed to fit your pet door into your wall.Single Flap:10"w x 19"h
The entry way your dog goes through.14 3/16"w x 24 3/4"h
The outer edge of the pet door.
12 1/8"w x 22 5/8"h
The size of the hole needed to fit your pet door into your wall.Single Flap:12"w x 23"h
The entry way your dog goes through.16 1/4"w x 28 7/8"h
The outer edge of the pet door.
14 3/8"w x 26 5/8"h
The size of the hole needed to fit your pet door into your wall.| Flap Size | Flap Dimension | Flap Style | Rough Cut Out | Outside Frame Dimension | Recommended Pet Height |
|---|---|---|---|---|---|
| Small | 6" w x 11" h | Single | 8" w x 14 5/8" h | 10 1/8" w x 16 3/4" h | 9" - 16" |
| Medium | 8" w x 15" h | Single | 10" w x 18 5/8" h | 12 3/16" w x 20 3/4" h | 9" - 22" |
| Large | 10" w x 19" h | Single | 12 1/8" w x 22 5/8" h | 14 3/16" w x 24 3/4" | 9" - 28" |
| Extra Large | 12" w x 23" h | Single | 14 3/8" w x 26 5/8" h | 16 1/4" w x 28 7/8" h | 9" - 36" |
Single flap or double flap? This is the single flap version. The single flap will be more than enough if you live in a more temperate climate. The flap would be on the inside of the wall on the same side as the locking cover. Double flaps will provide more insulation for your home, perfect for extreme climates. With a double-flap system, there is a flap on each side of the tunnel and dead air space in between to add extra insulation.
Note: Endura Flap pet doors are not recommended for use by kittens or very small dogs. Cats have been successful using Small; however, a few have found the Medium difficult to use. We would not recommend using the Large or Extra Large or any of the double flap versions for cats.
A
Pet Height: inches
B
Pet Width: inches
| Wall Mount Template Dimensions | ||
|---|---|---|
| Flap Size | Width | Height |
| Small | 8" | 14-5/8" |
| Medium | 10" | 18-5/8" |
| Large | 12-1/8" | 22-5/8" |
| Extra Large | 14-3/8" | 26-5/8" |
![](https://cdn.shopify.com/s/files/1/0271/5870/8303/files/Screen_Shot_2022-05-26_at_12.53.19_PM.png?v=1653594898")
|
Is this door available as double flap? Yes, the Custom Frame Color Endura Flap E2 Double Flap Wall Mount is available. |
|
Can I install this into my sliding glass door or screen door? Unfortunately, wall kit pet doors cannot be installed into screen or sliding glass patio doors. However, you can get the Thermo Panel 3e pet door insert, which will fit into the track of your sliding door. |
|
How easy is the door installation process? It's a simple DIY process, but it can be difficult for people who are not already handy. You should consider hiring professional help in order to make sure you don't ruin your interior or exterior walls. |
|
How do I know what flap size will fit my dog? When installing the Endura Flap extreme weather dog door wall mount you want it to clear the top of your dog's back by at least 1". You also want the step over to be comfortable, no more than 1/3 your pet's shoulder height. Lastly, you want the width to allow your pet to go through without touching the sides, so about 1" wider than them. |
|
Will this work for walls thicker than 7 3/4"? For walls thicker than 7 3/4", see the Endura Flap Pet Door for Deep Walls. The Deep Wall Mount does not have custom frame color options, so if you want to maintain that feature your can purchase this unit and build your own tunnel out of wood or sheet metal. |
|

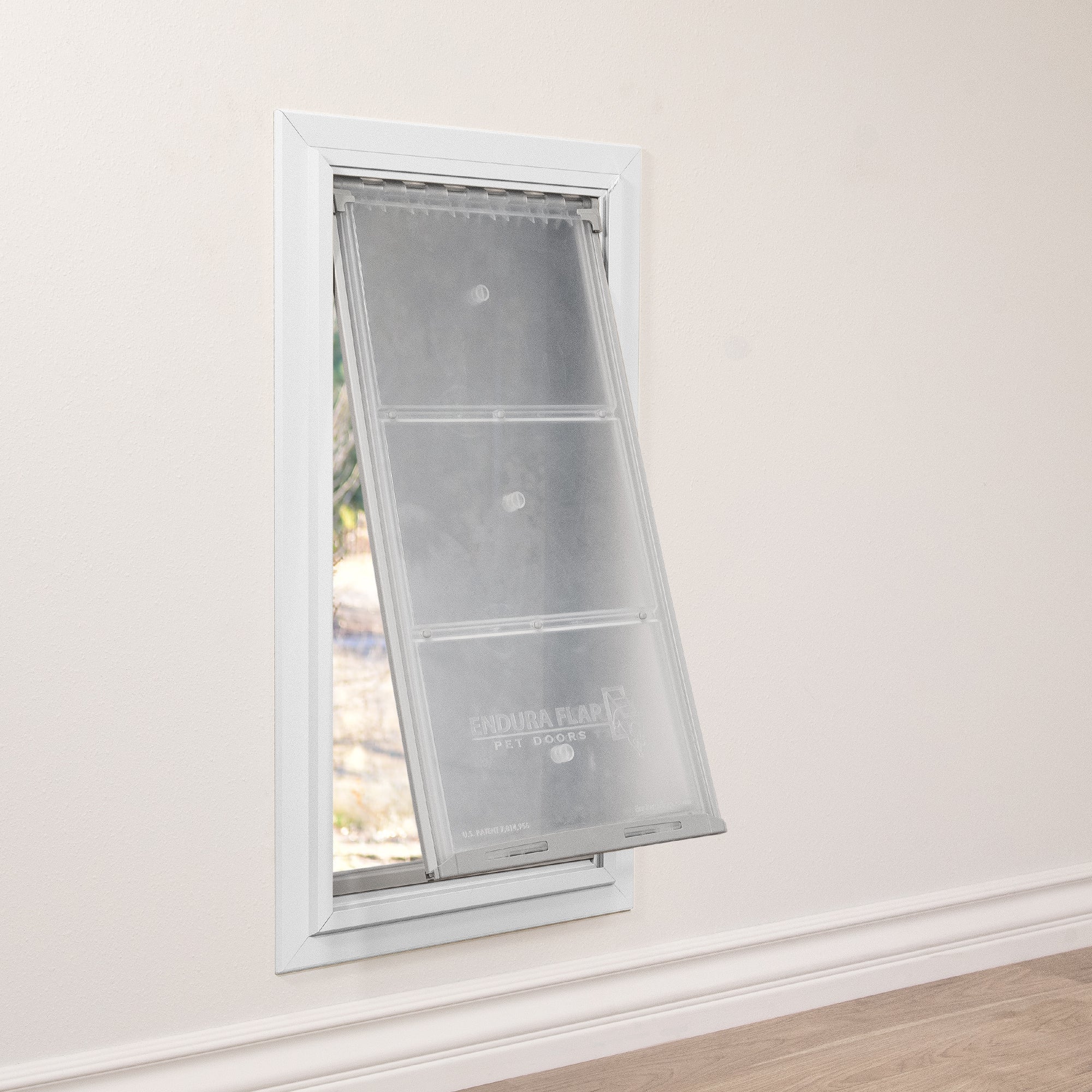

Is the flap flexible? Seems like it would trap a dog if it backed up. The Endura Flap is slightly more rigid than other economy-style flaps, but it is a safe, soft, flexible flap. |
|
Is the flap loud when the dog goes in or out? When the flap gets to its resting place there is a snapping sound when the magnets employ. This sound lets you know the door is doing its job sealing out the elements and keeping your heated or cooled air inside. |
|

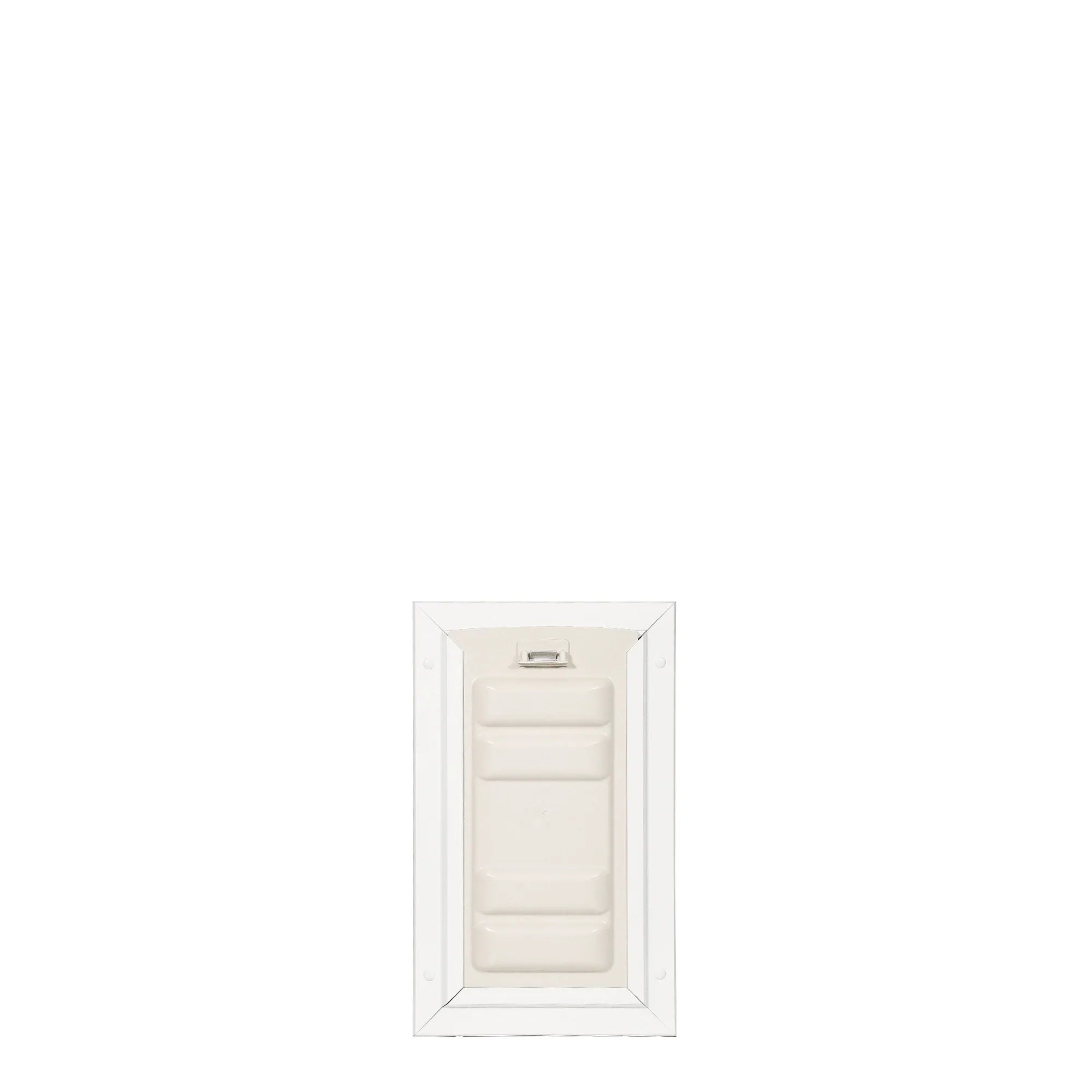

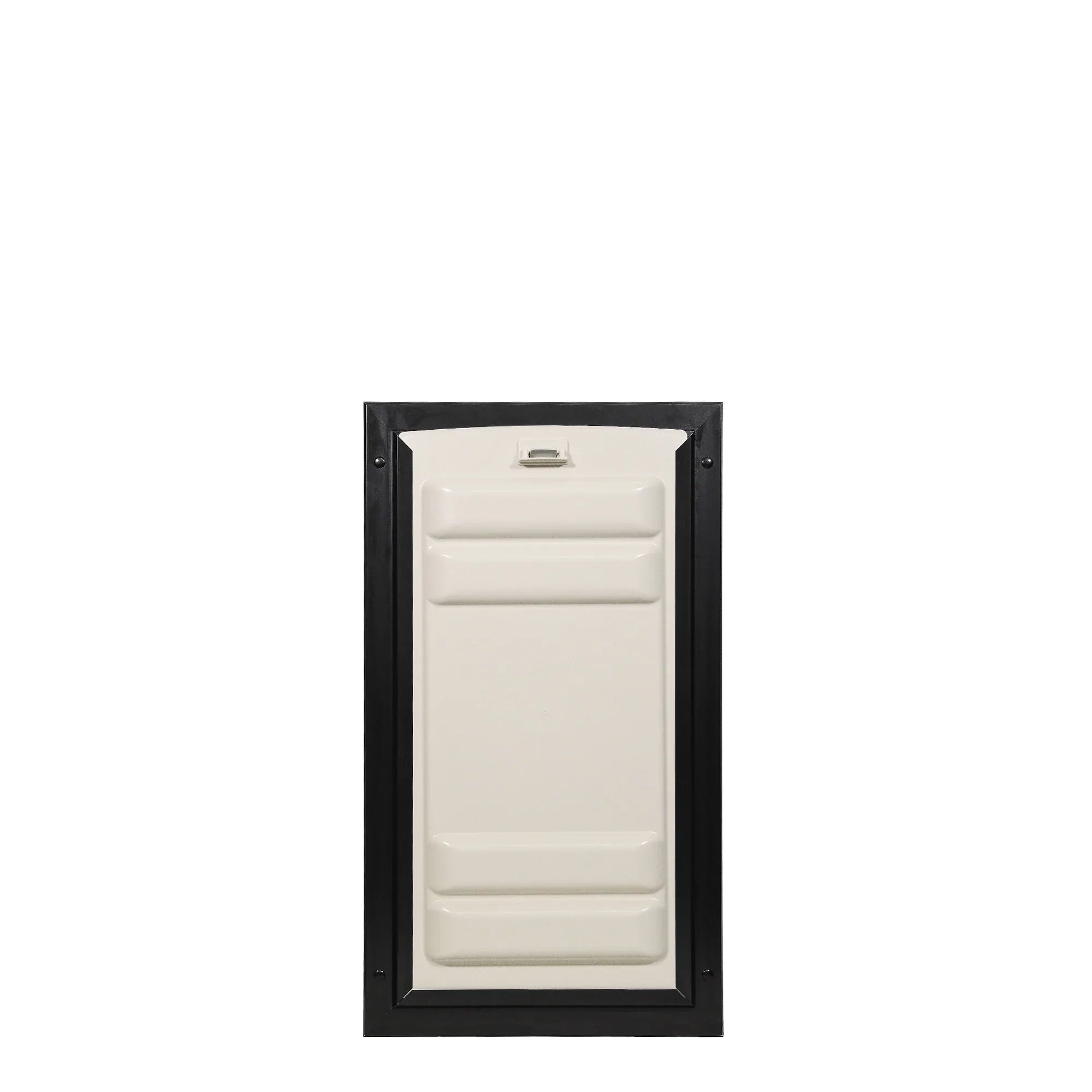

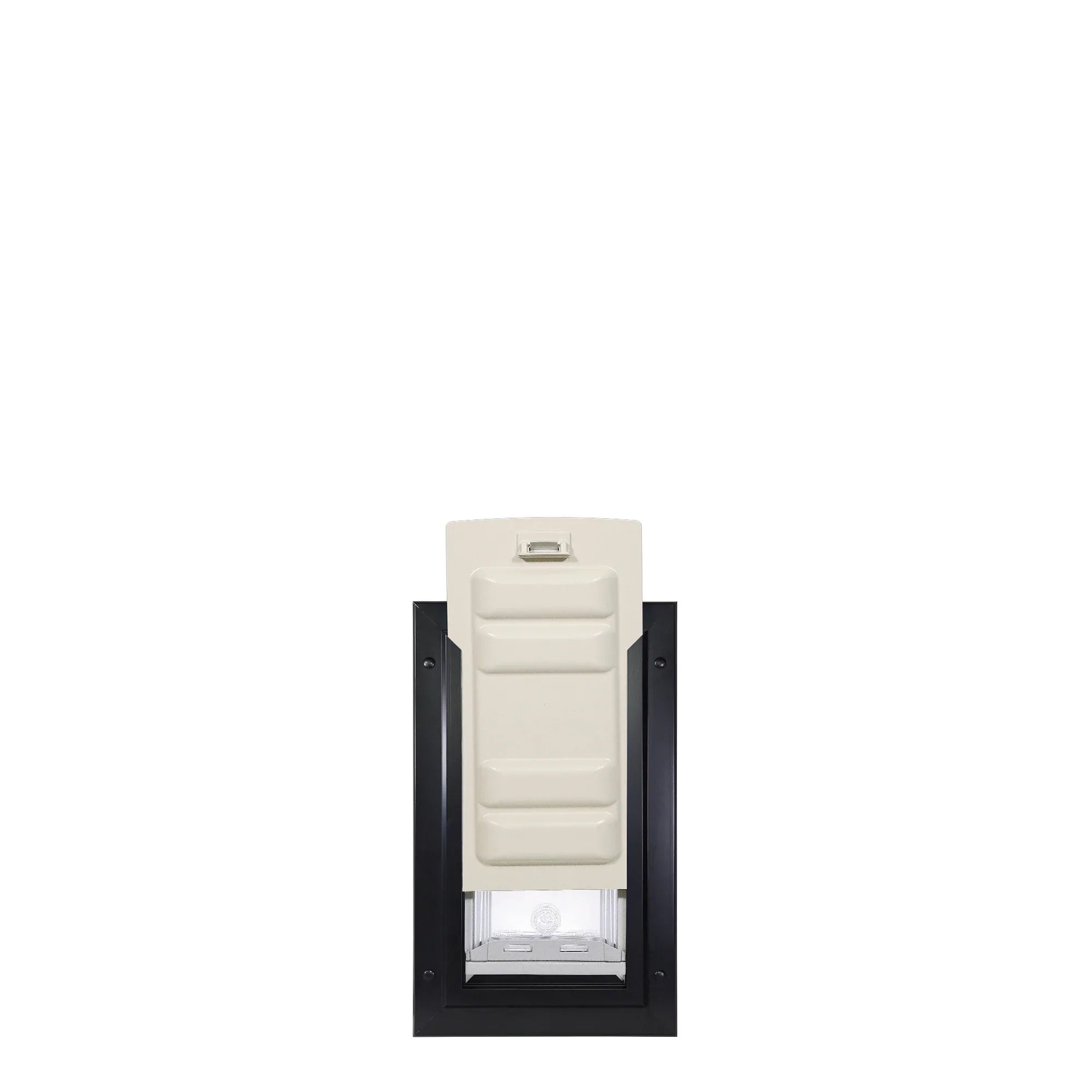

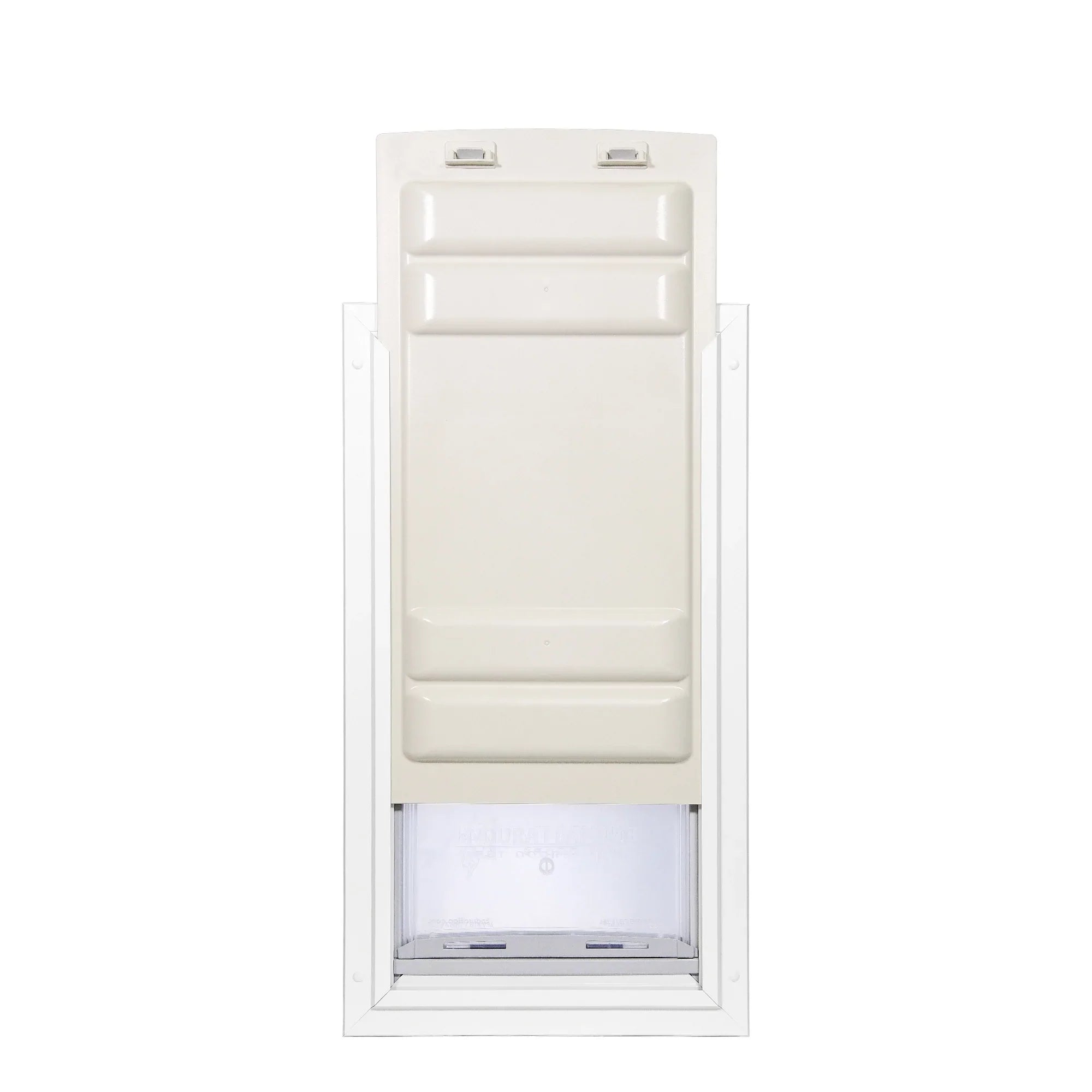

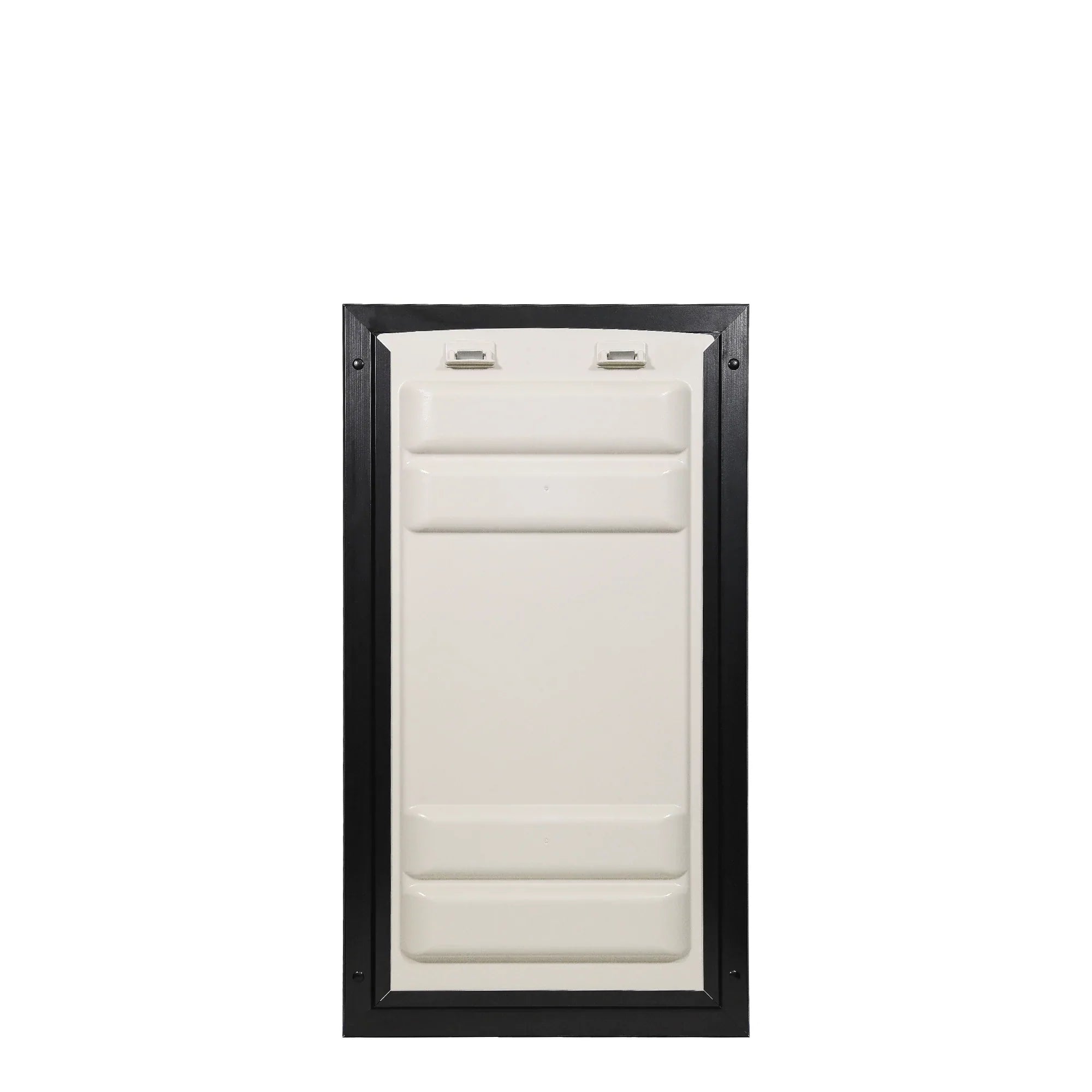

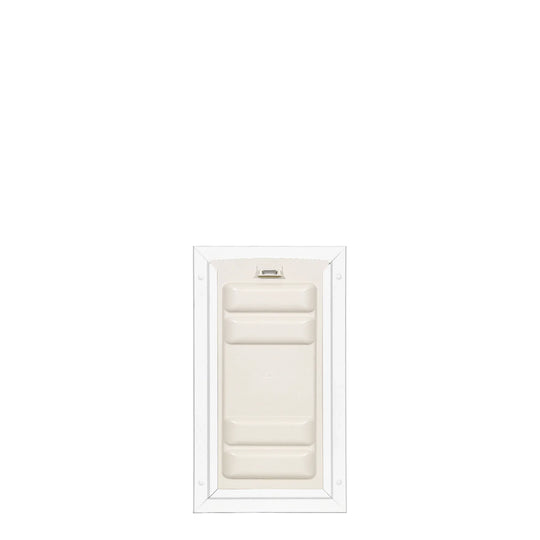

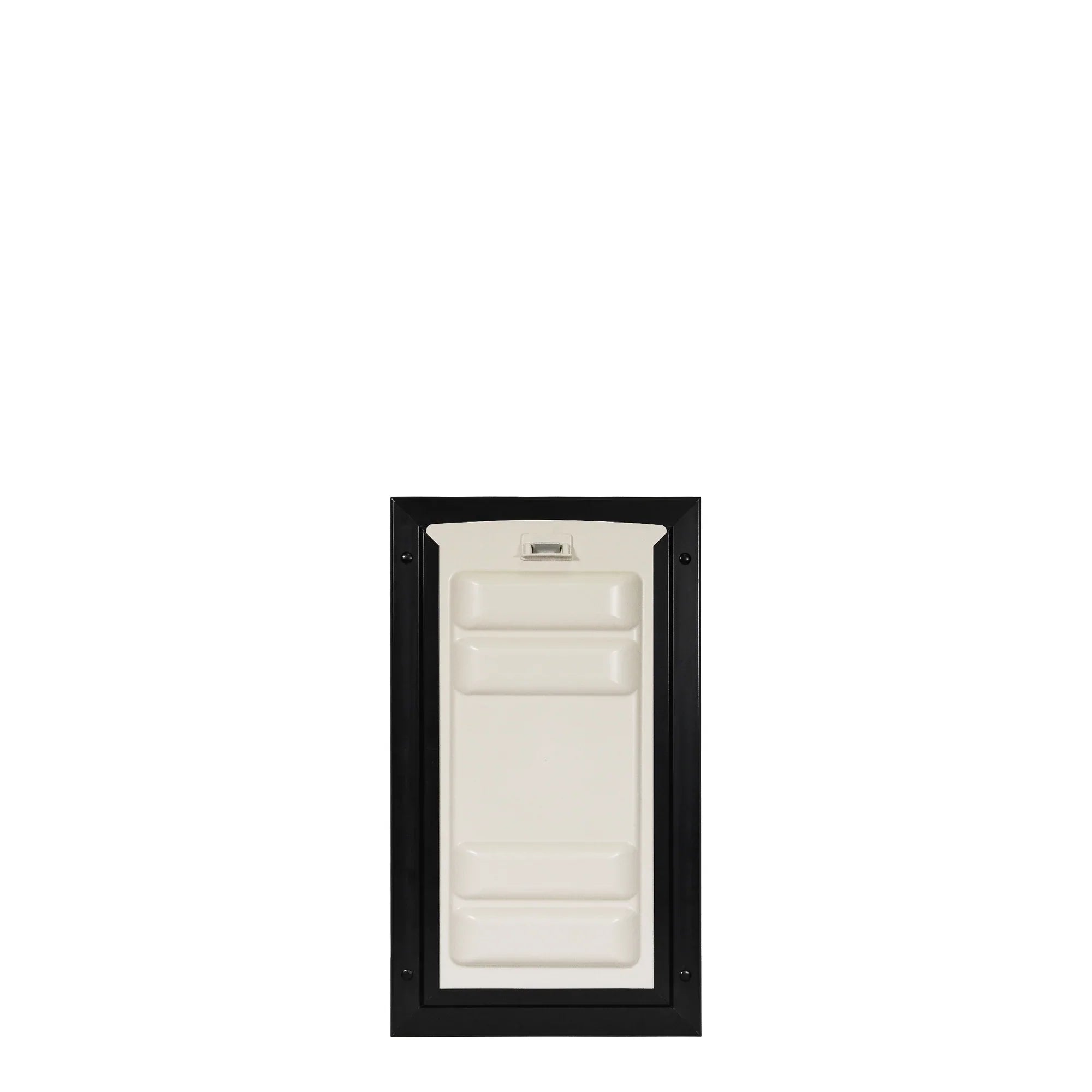

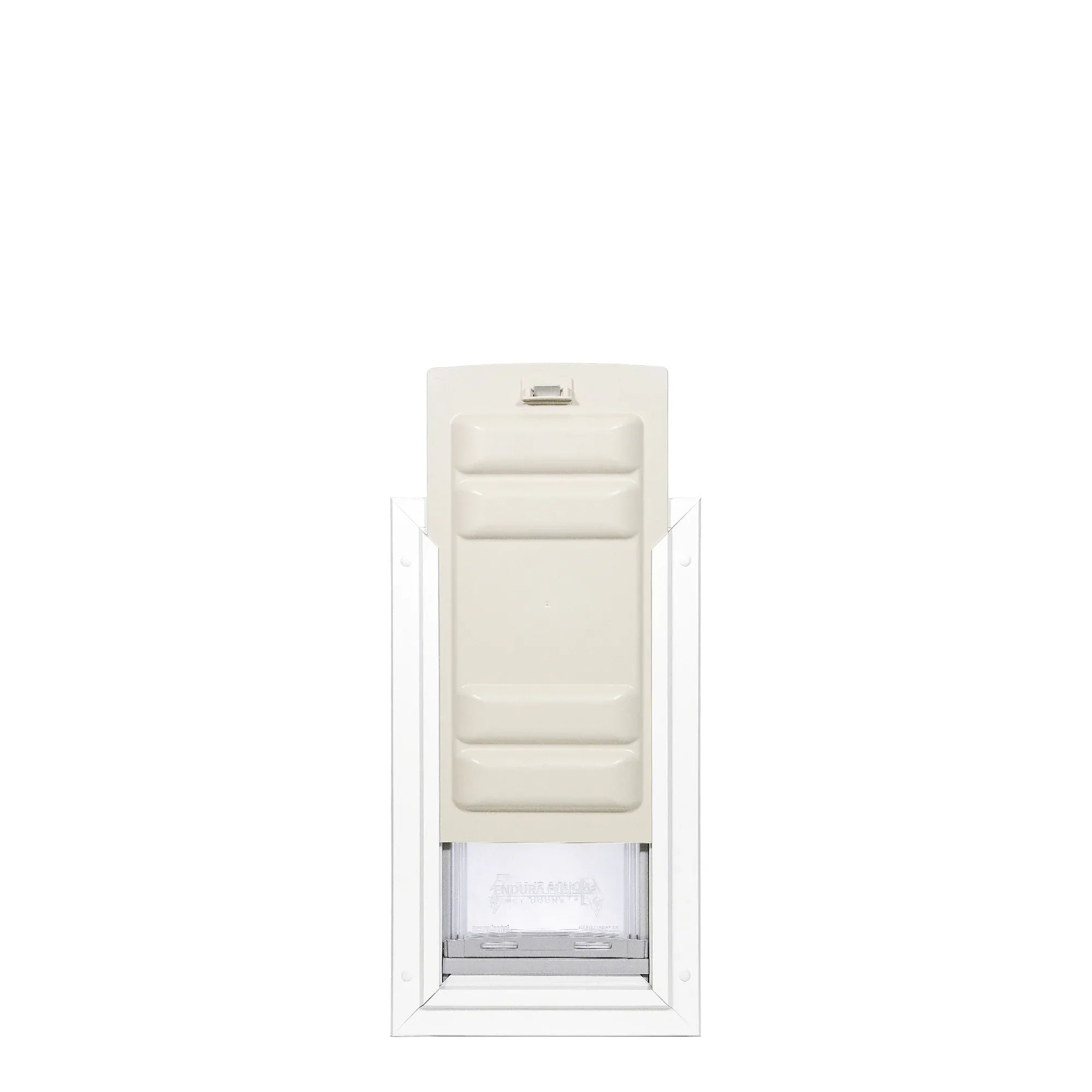

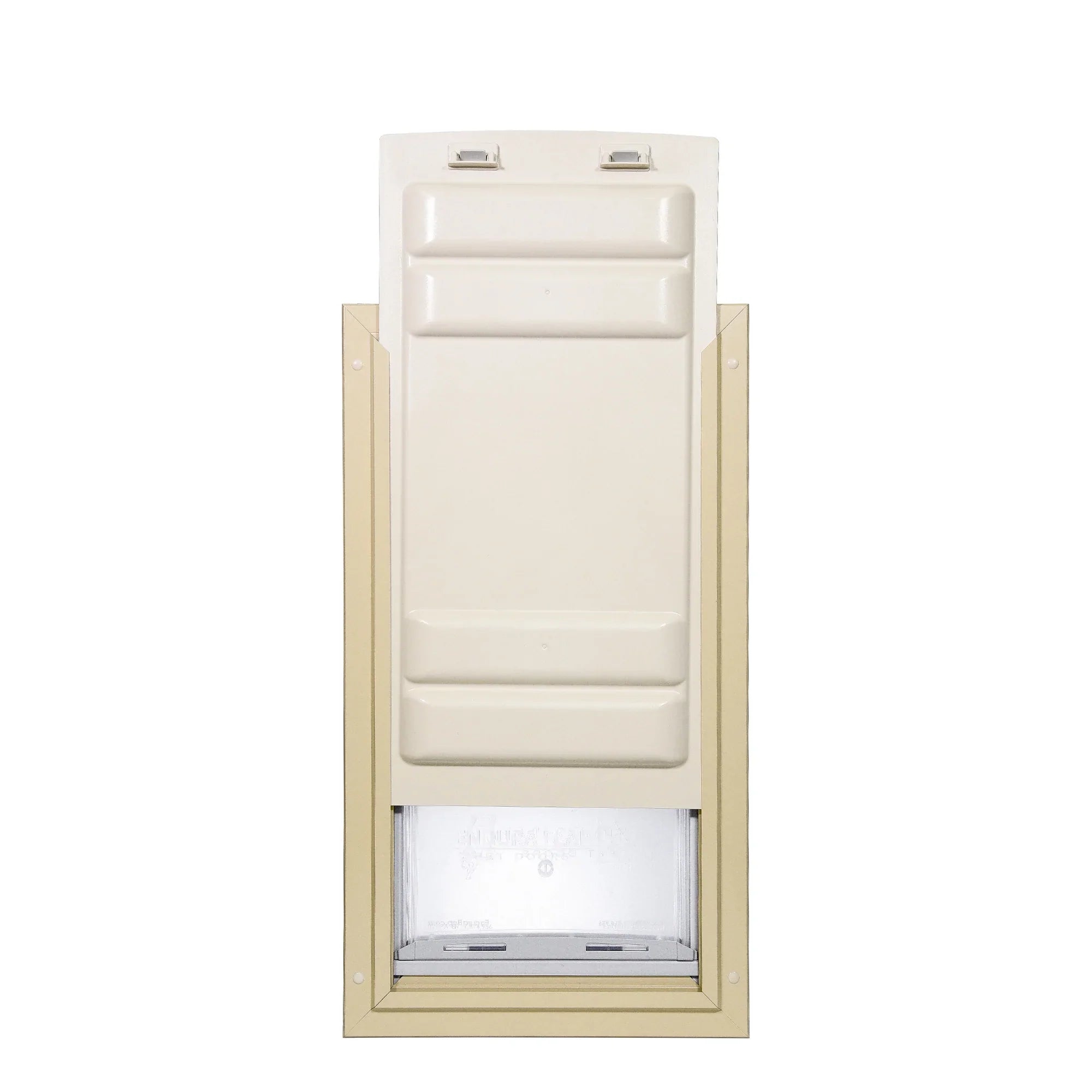

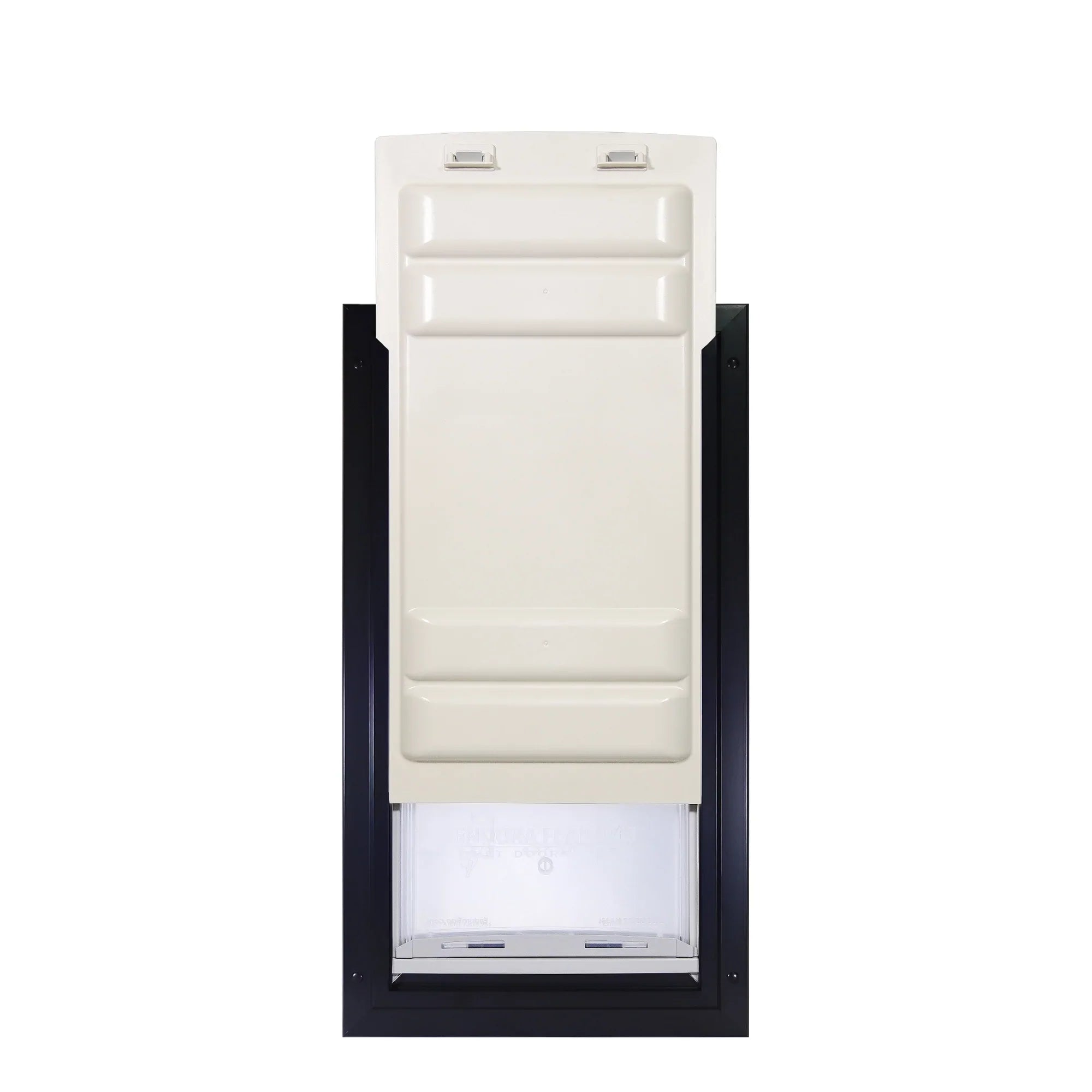

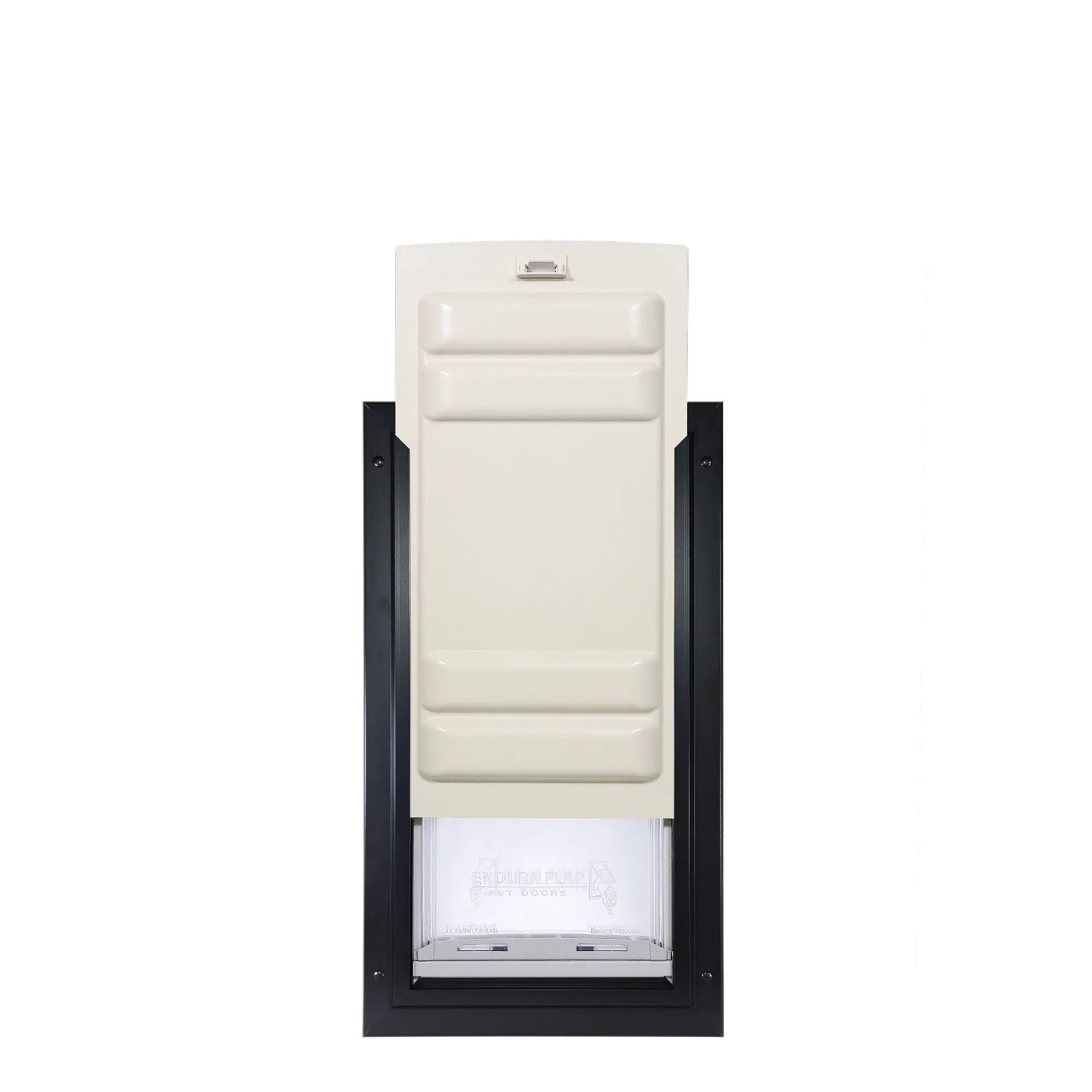

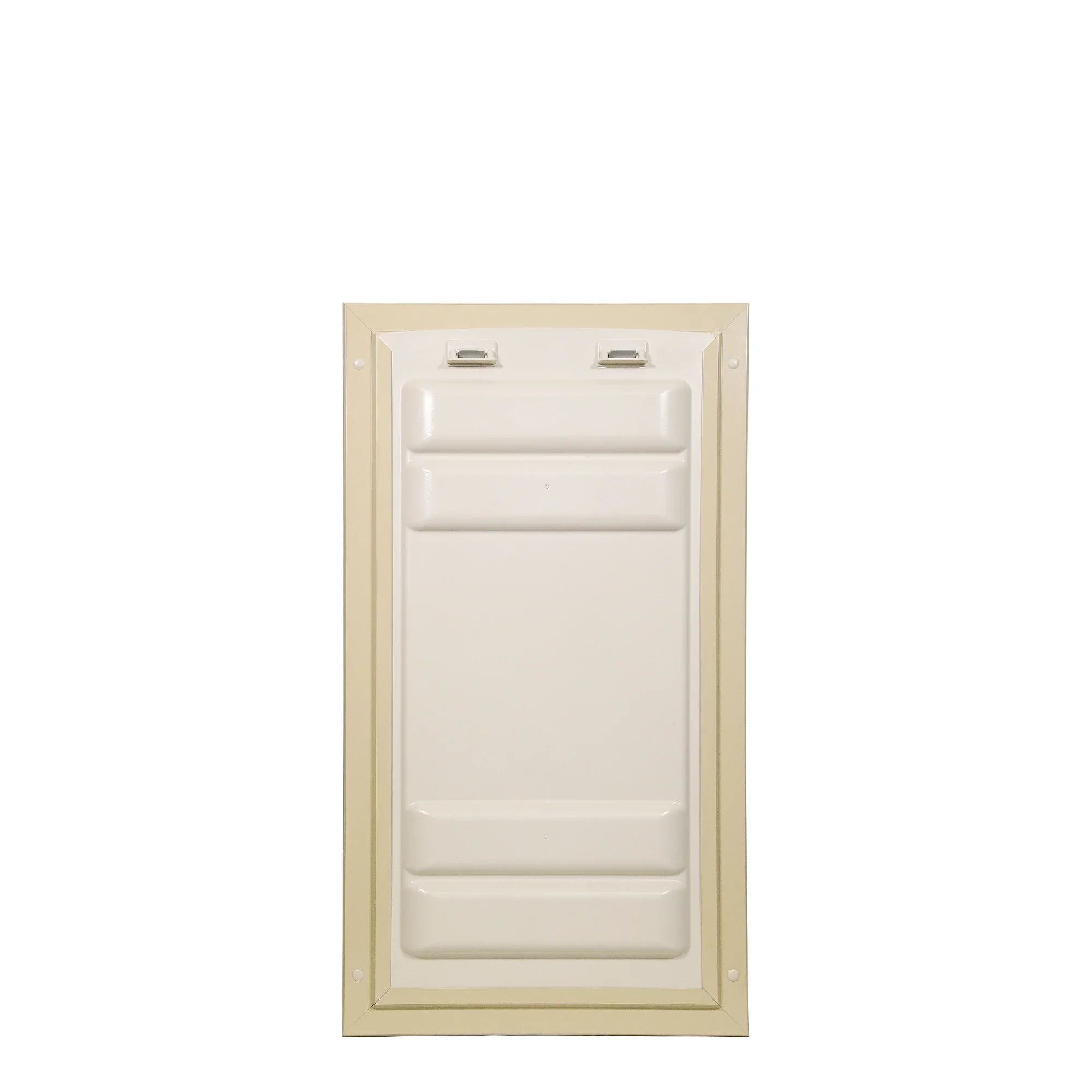

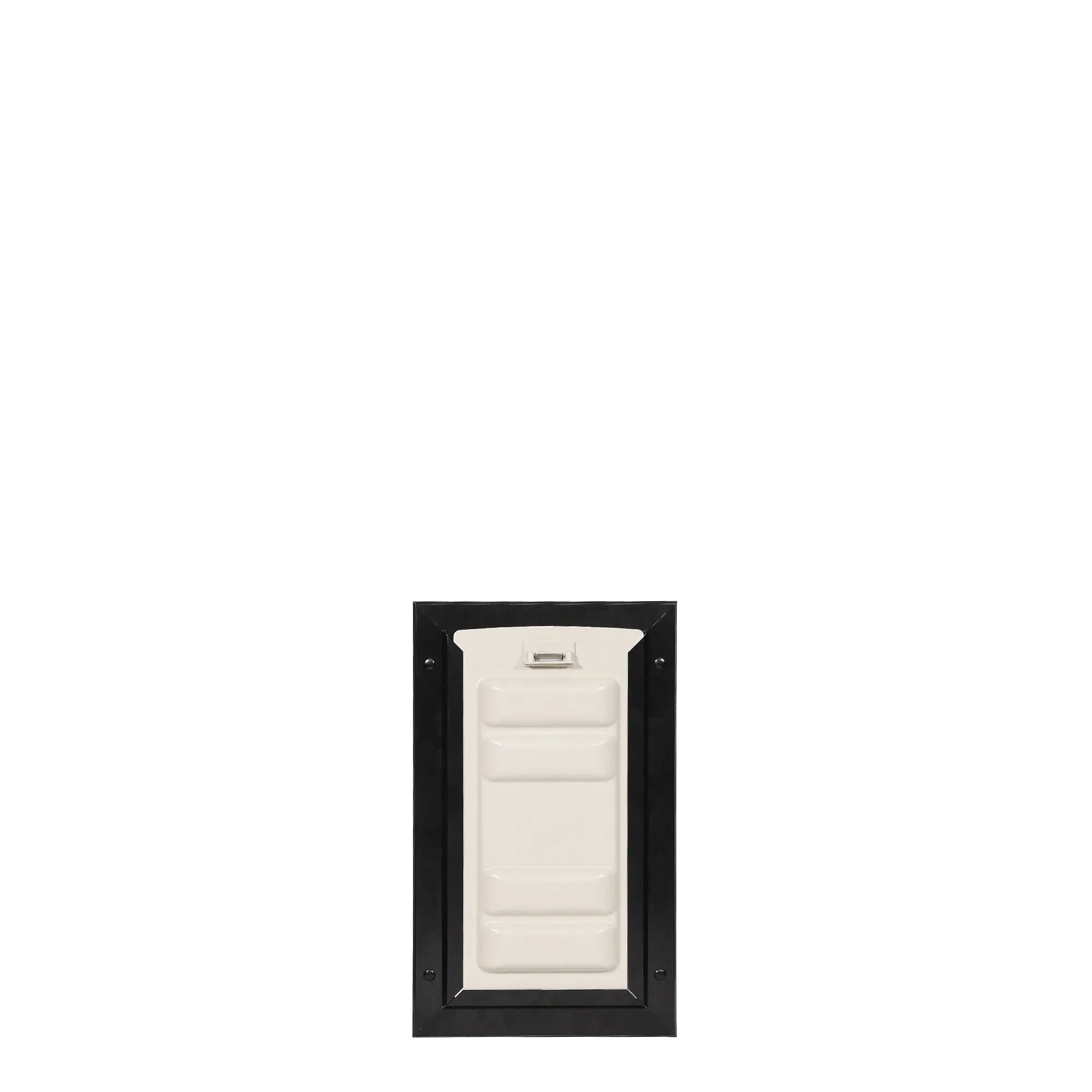

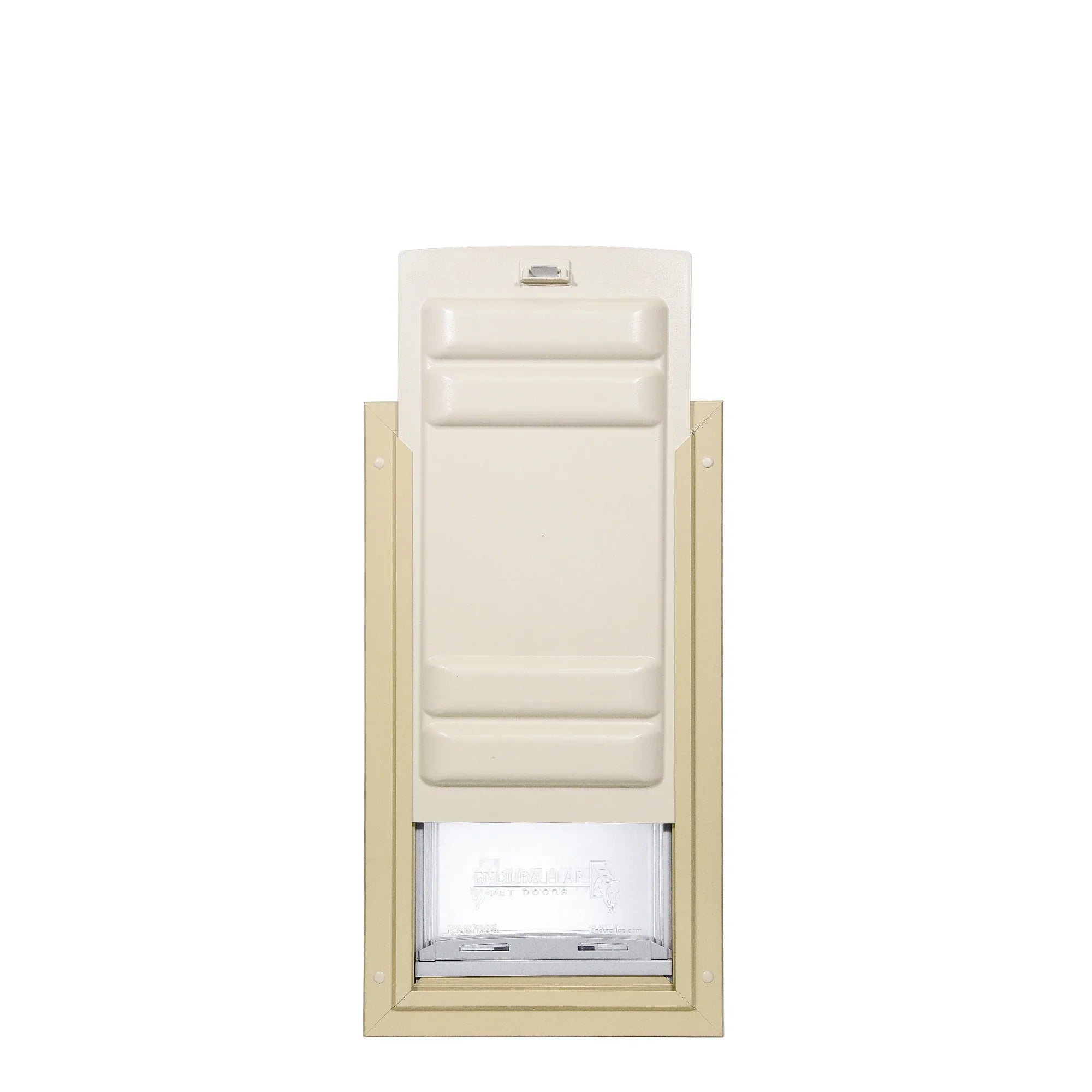

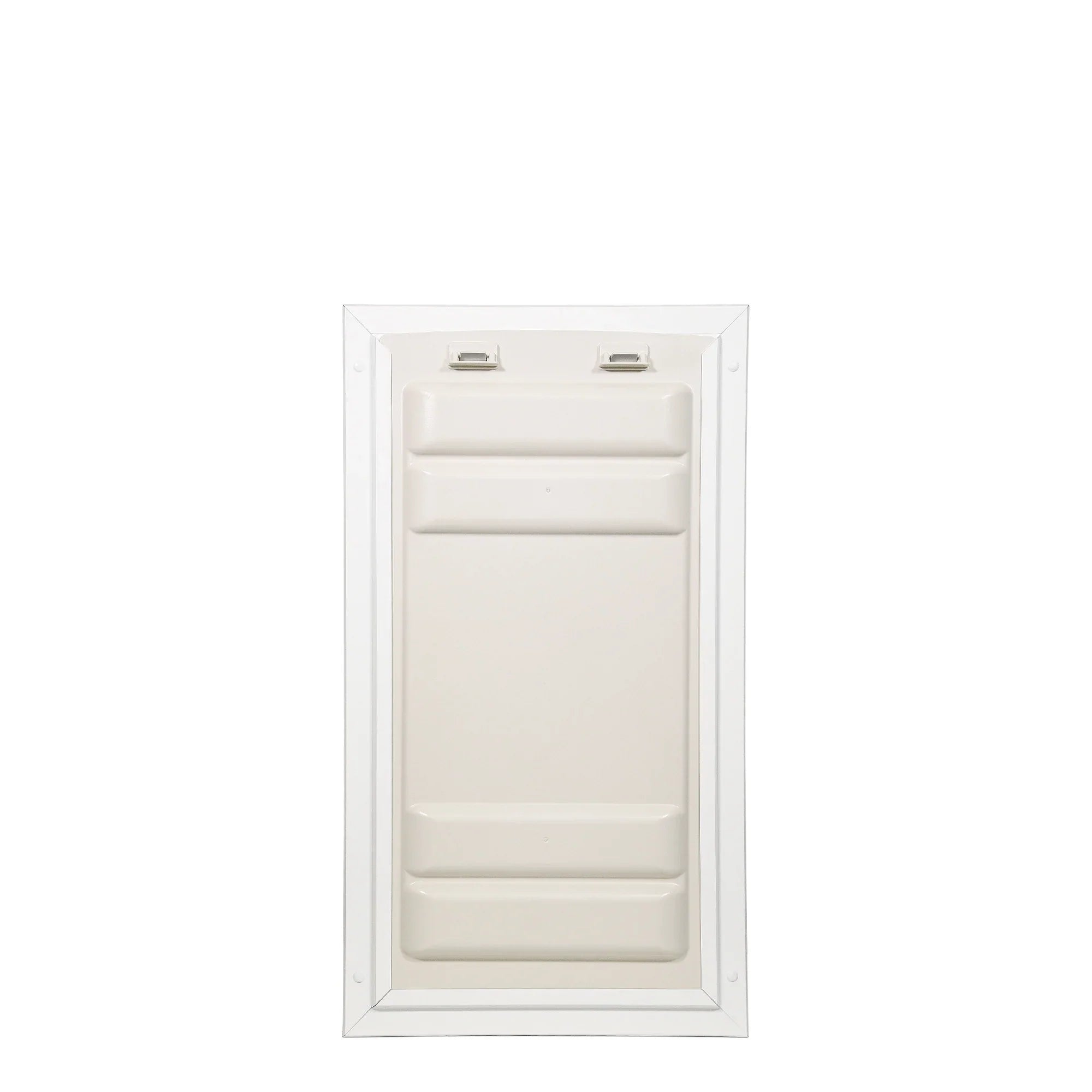

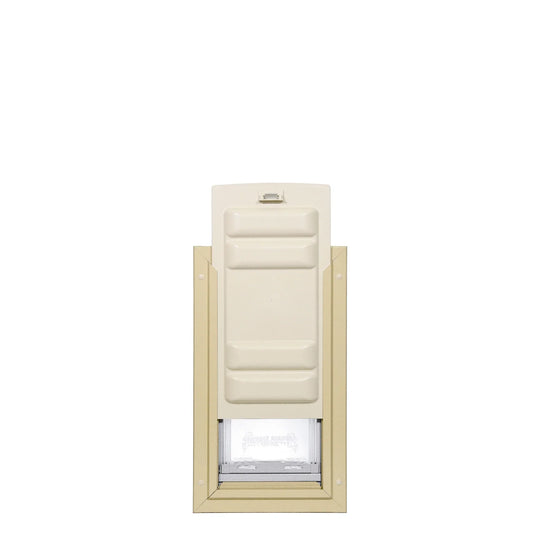

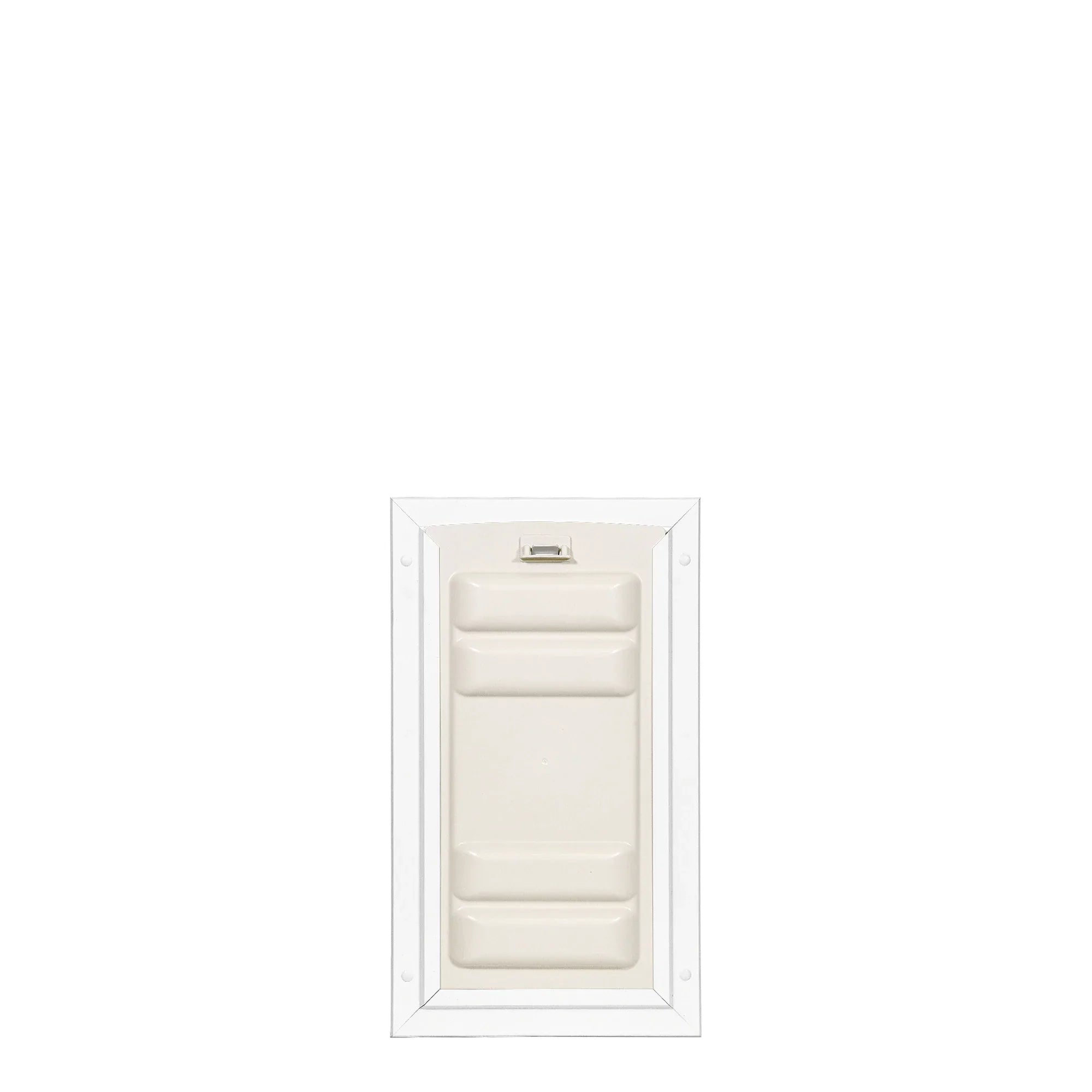

What side does the locking cover slide in? All locking covers slide in from the top. If you purchase a double flap model, the locking cover can be used on the inside or outside the frame. If you purchase a single flap, the locking cover is on the interior frame (the side closest to the inside of your home). |
|
Are replacement flaps available? Yes, we carry Endura Replacement Flaps. They will work for all Endura models (wall mount, doggy door mount, kennel doors, window sashes, and sliding glass door patio pet doors). |
|
I have a dog that I want to let out, but I want to prevent our cats from using it. Can the door be weighted to keep them from using it? You can increase the magnetic strength of the door by purchasing additional magnets here. Some people have found success doing this and keeping their cats inside. |
|

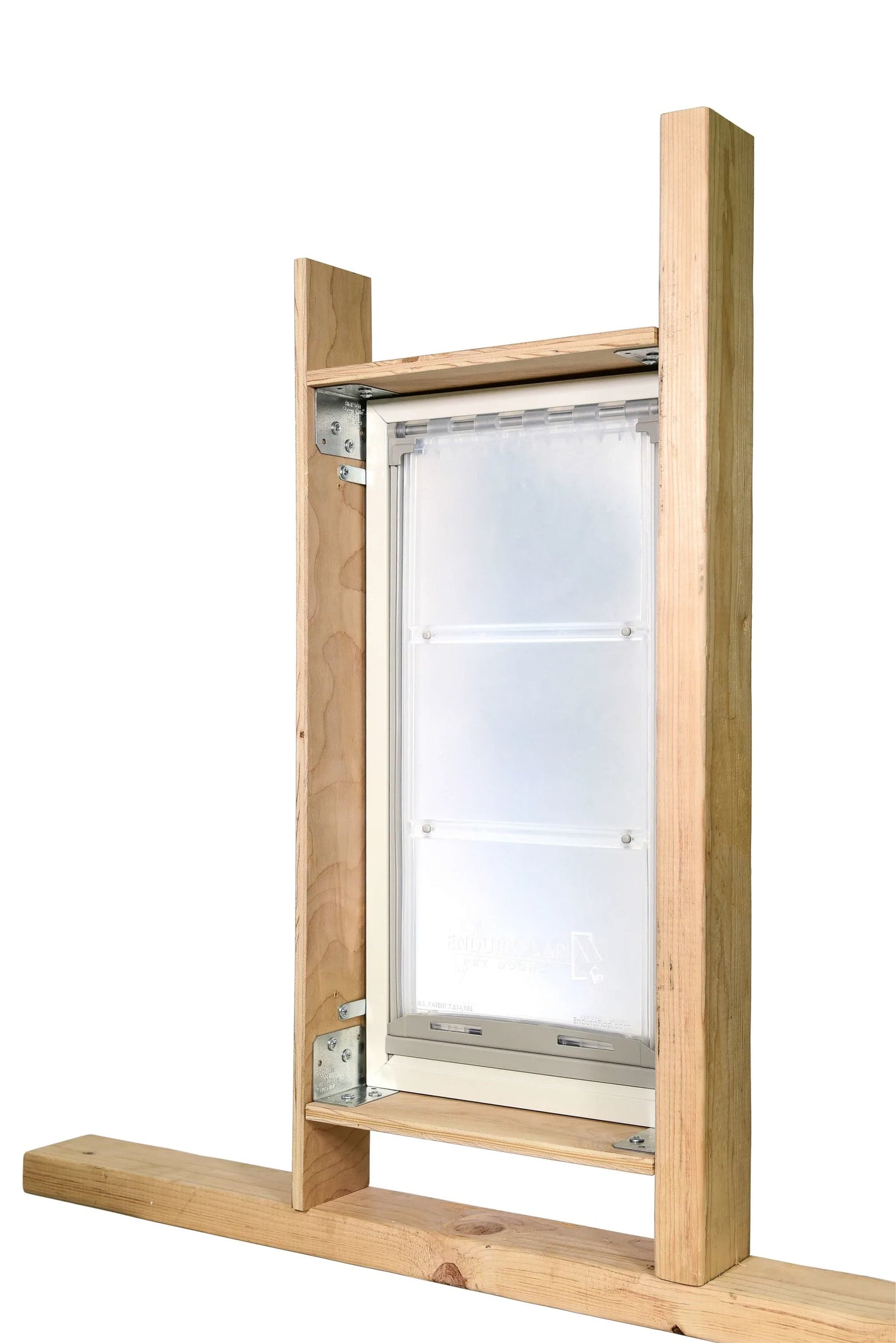

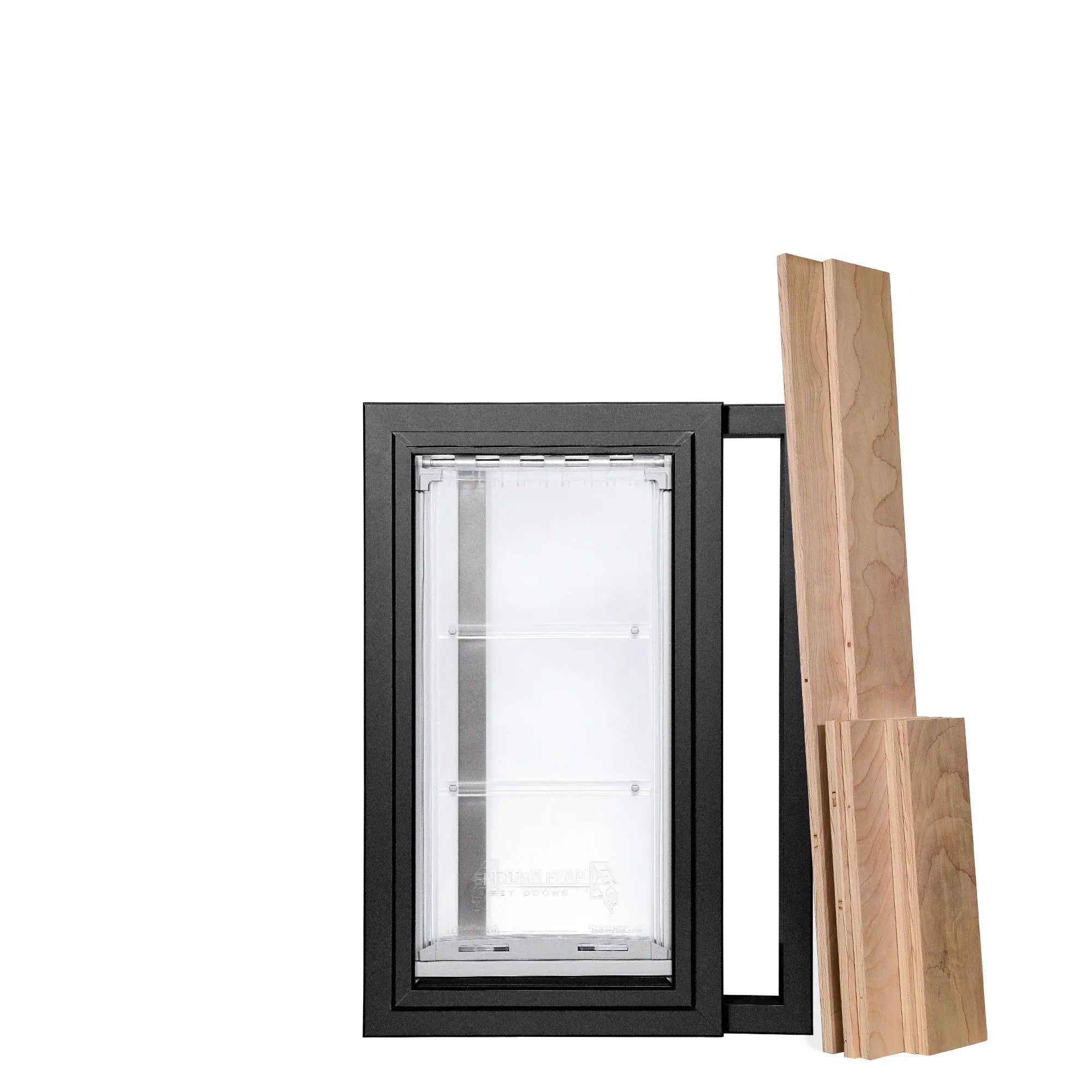

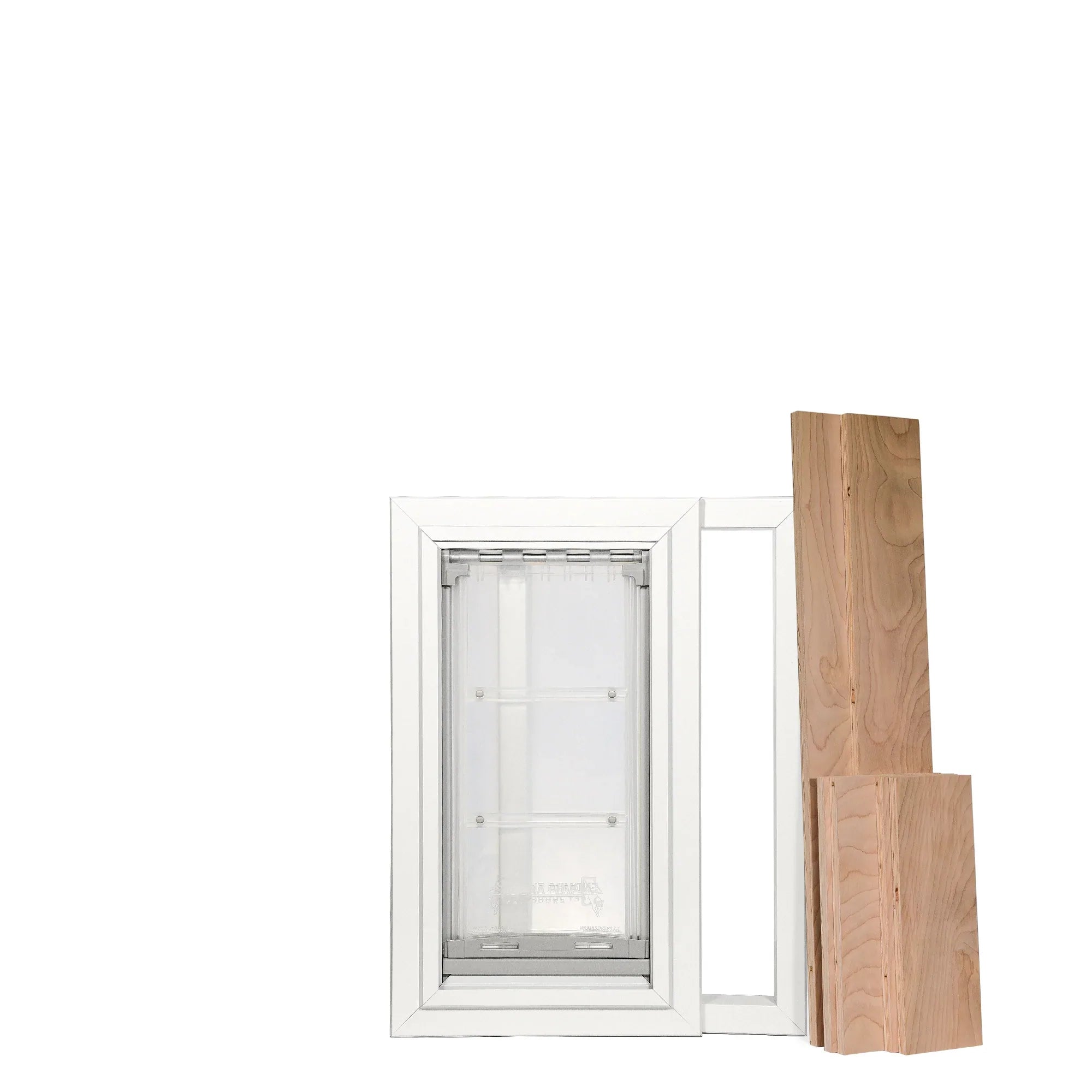

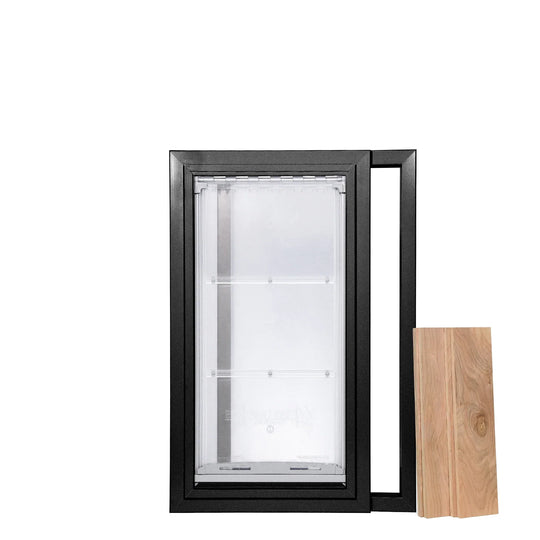

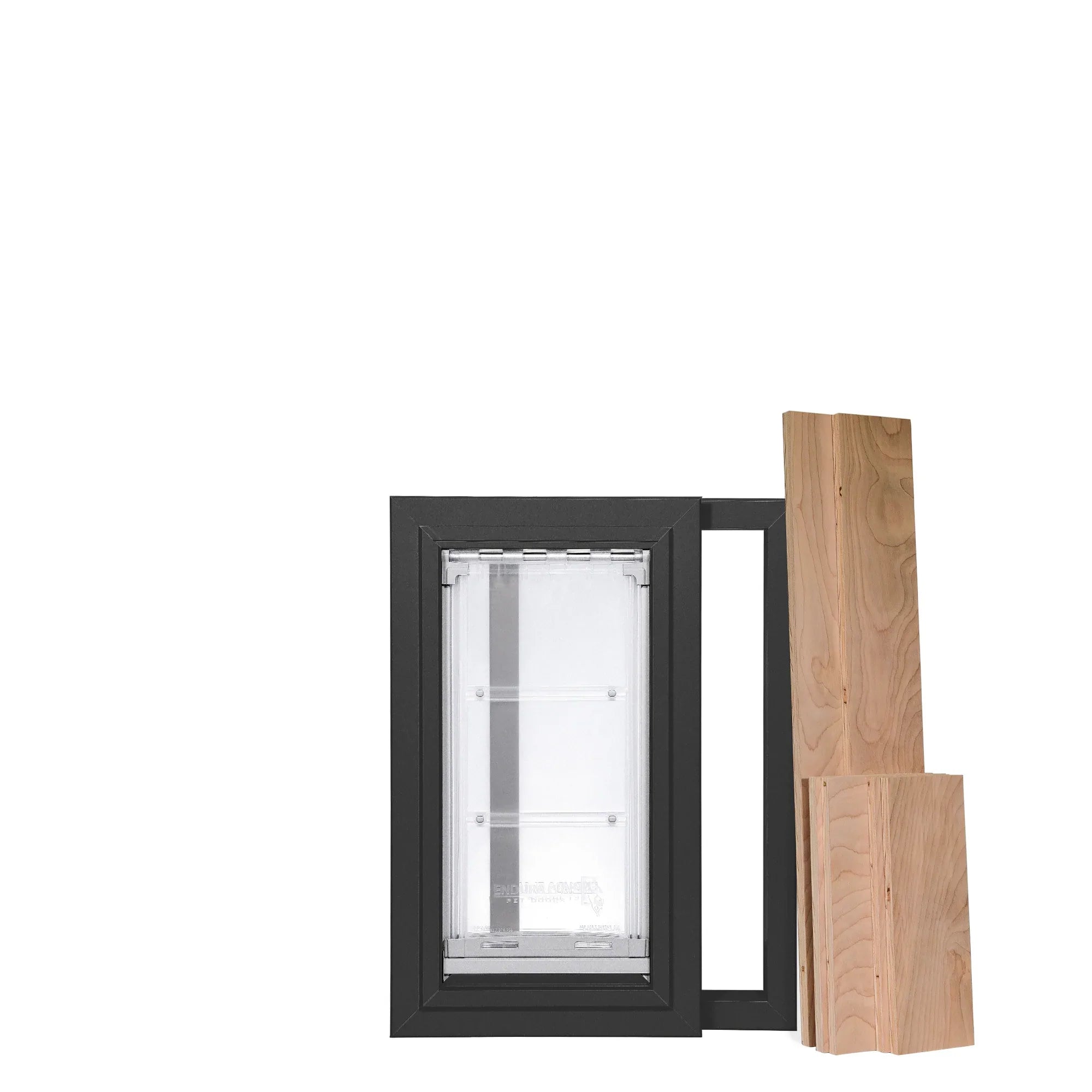

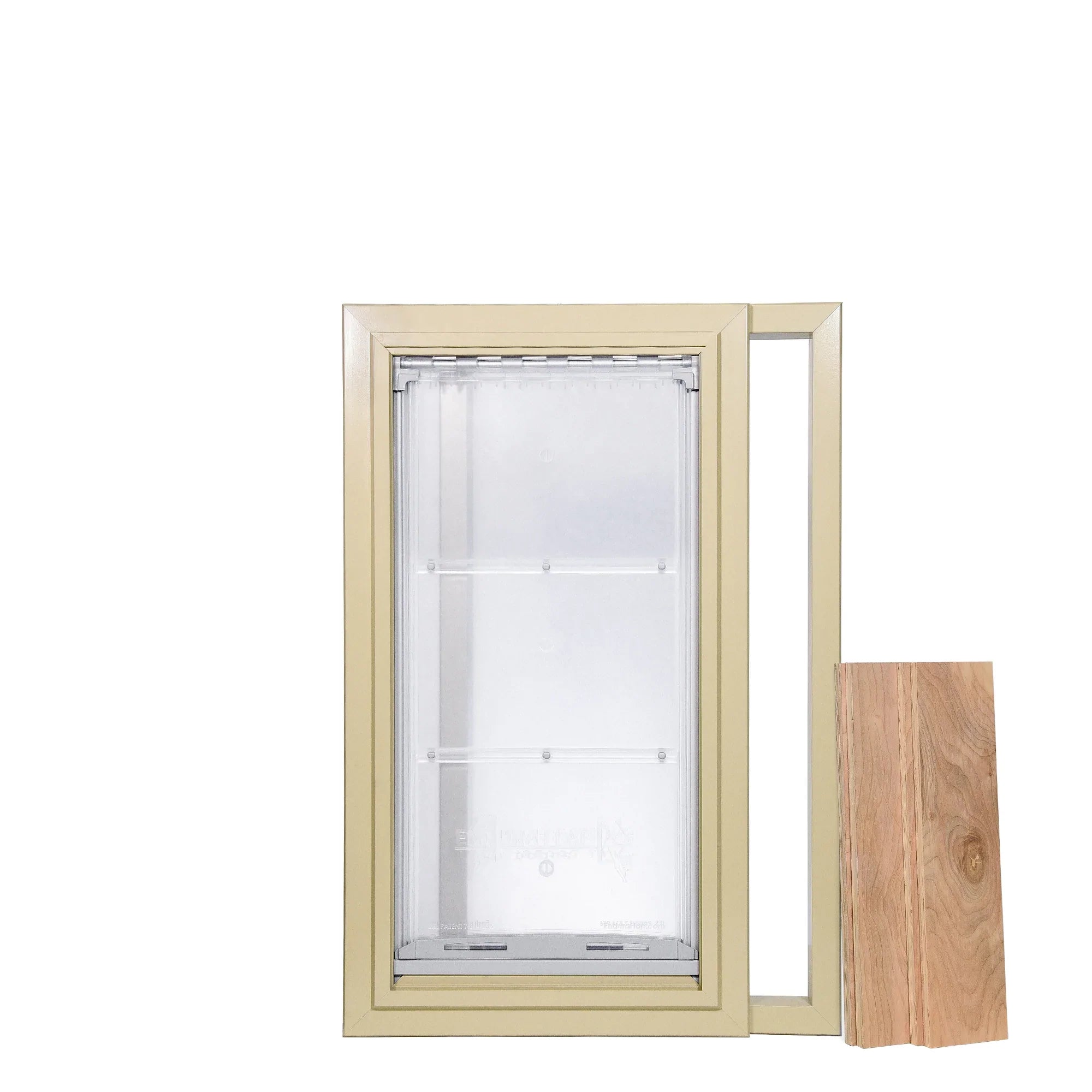

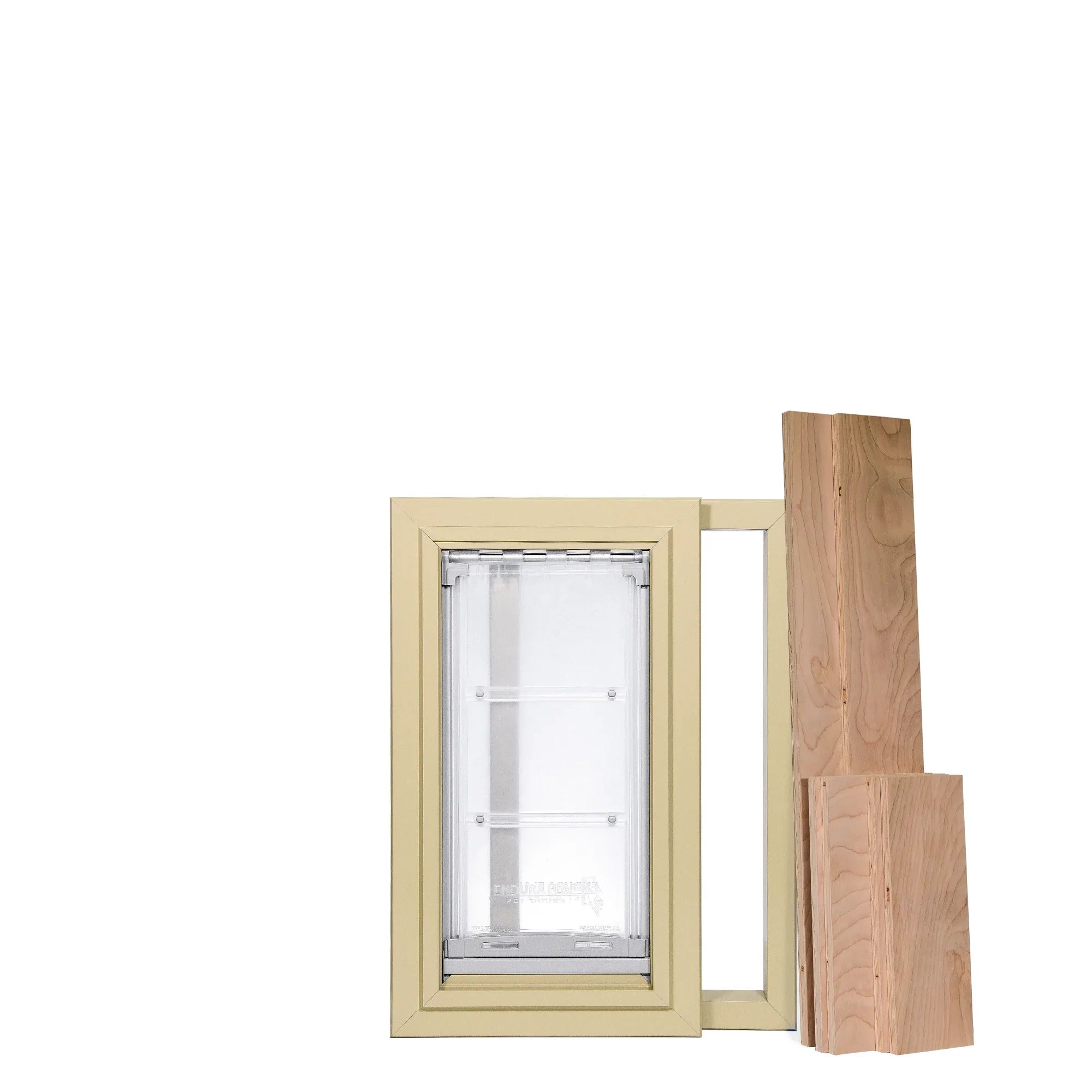

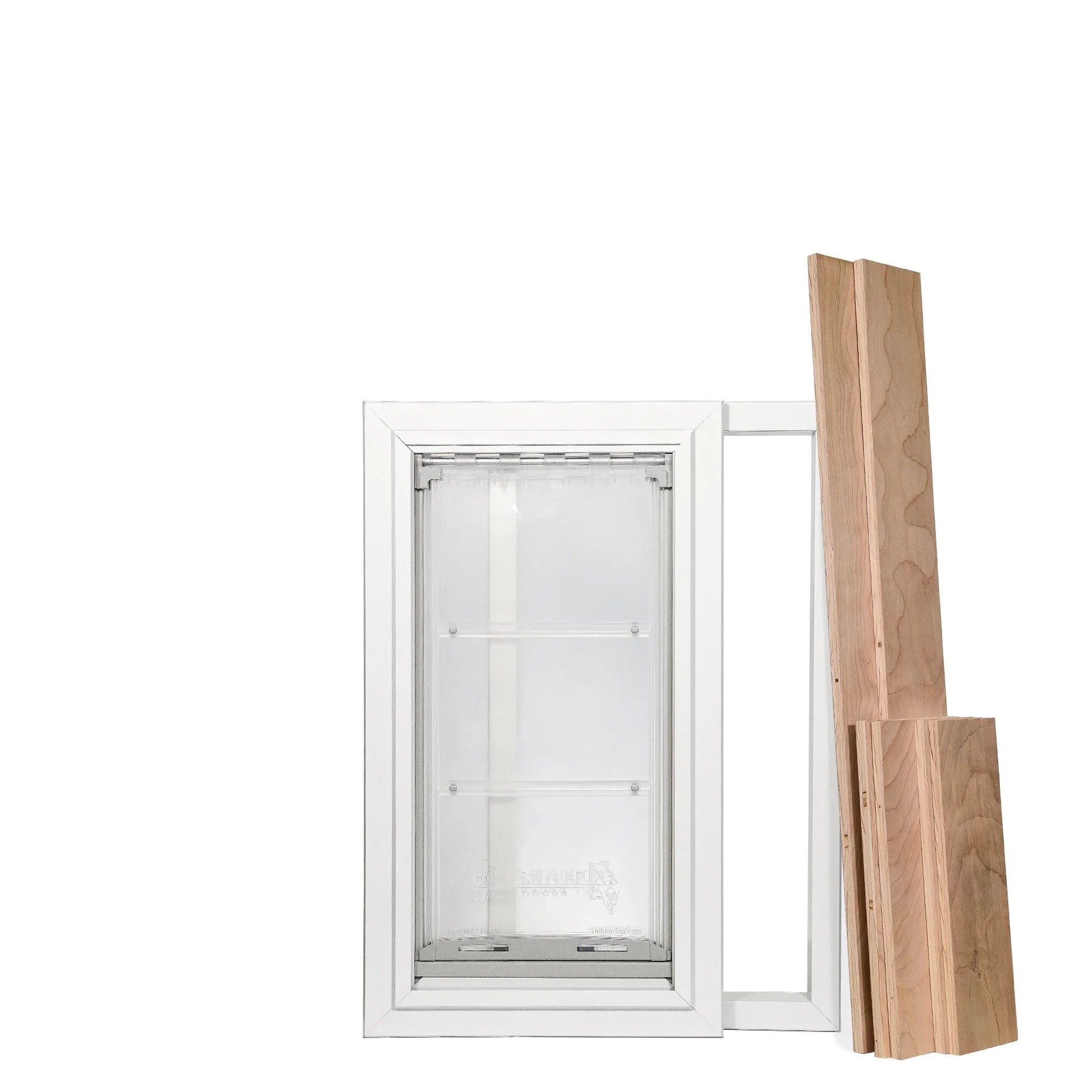

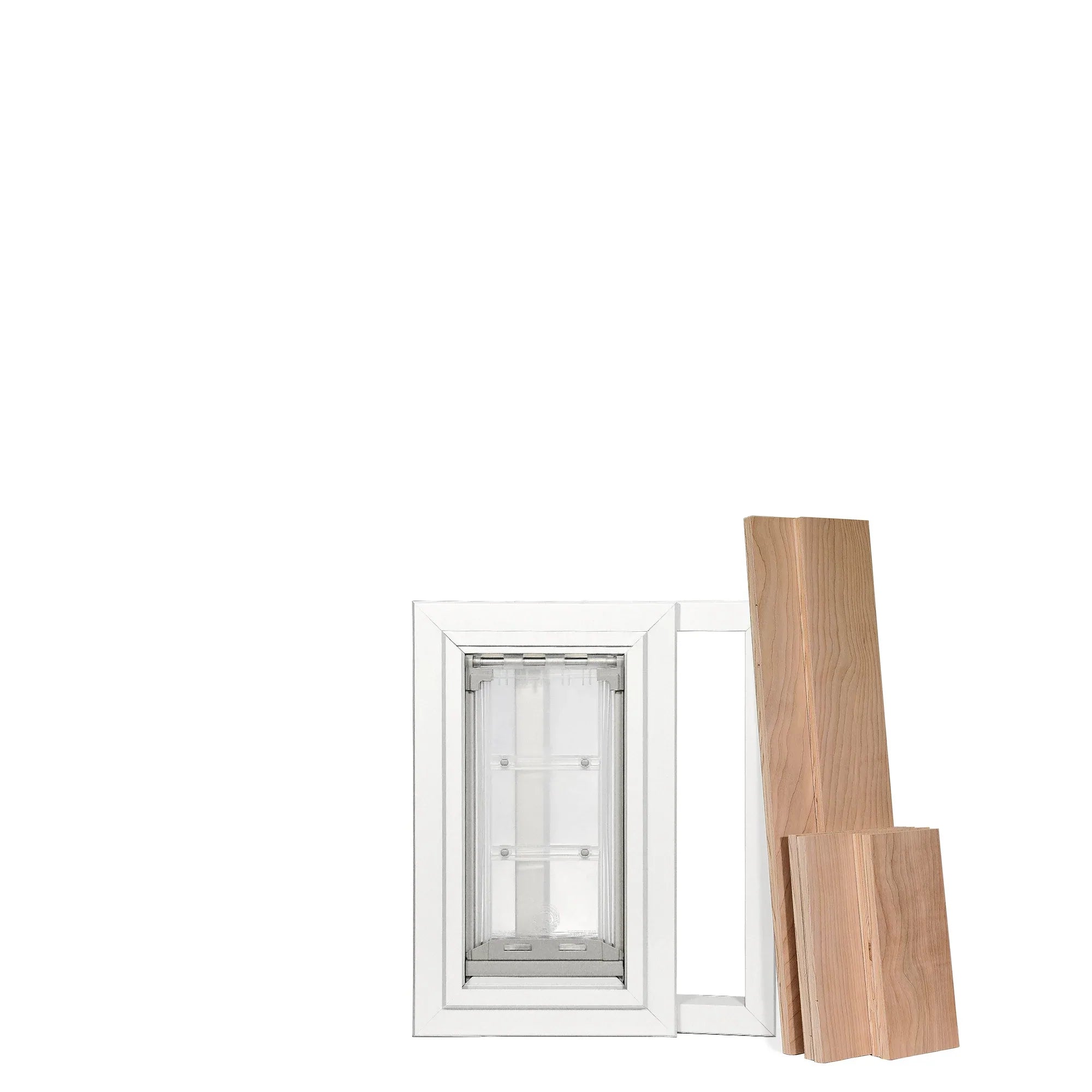

What material is the tunnel made It is made of durable wood that is sealed against the elements with tape. |
United StatesThis is a great choice for mixing frame colors to match the interior and exterior of your home accordingly. The single flap is not as insulating as the double flap option, but it’s a good choice for more moderate climates.
We've been using Endura Flaps for at least 20 years. We had excellent performance from a large sized double flap door for 25 years without having to change anything in the original installation. During that time we always had at least two dogs, either greyhounds or salukis who banged in and out countless times often with considerable enthusiasm. The double flap was absolutely protective against all weathers, including on those rare occasions when we had unusual freezes with outside temps in the single digits (we live in Bellingham, WA). When the last of our large animals passed on, we went over to MiniSchnauzers but only last year did we change our original installation, opting for the single flap to facilitate ease of in and out for an 18 pound canine instead of our 40 pound former athletes. The new single flap works perfectly and, given its construction, will surely be as weather insulating as the former set. Brilliant technology! Complete satisfaction in every respect.
I purchased my first Endura Flap Dog Door in 2008. It has been used for over the years by several dogs, a 90 lb black lab and two basset hounds. It keeps out all bad weather and is easy for the dogs to use. I’m in the process of installing new decks and decided that it was time to treat myself and my present 65 lb basset hound to a beautfiul new Endura Dog Door.
We have had these doors in our home for 15 years and I only had to replace the flaps once. Our home burned down last August and has been rebuilt so the only choice was to put in new dura flaps. Our summer temps in Yuma AZ teach out To 120+ so we have a dual flap on the outside wall and a single works fine on the interior wall of the workshop to the house to keep everything comfy inside.
I live in No Nevada where it gets WINDY! This door does not fly open like the other ones we have had. Excellent door and great customer service.
Single Flap:6"w x 11"h
The entry way your dog goes through.10 1/8"w x 16 3/4"h
The outer edge of the pet door. 8"w x 14 5/8"h
The size of the hole needed to fit your pet door into your wall.Single Flap:8"w x 15"h
The entry way your dog goes through.12 3/16"w x 20 3/4"h
The outer edge of the pet door. 10"w x 18 5/8"h
The size of the hole needed to fit your pet door into your wall.Single Flap:10"w x 19"h
The entry way your dog goes through.14 3/16"w x 24 3/4"h
The outer edge of the pet door. 12 1/8"w x 22 5/8"h
The size of the hole needed to fit your pet door into your wall.Single Flap:12"w x 23"h
The entry way your dog goes through.16 1/4"w x 28 7/8"h
The outer edge of the pet door. 14 3/8"w x 26 5/8"h
The size of the hole needed to fit your pet door into your wall.| Flap Size | Flap Dimension | Flap Style | Rough Cut Out | Outside Frame Dimension | Recommended Pet Height |
|---|---|---|---|---|---|
| Small | 6" w x 11" h | Single | 8" w x 14 5/8" h | 10 1/8" w x 16 3/4" h | 9" - 16" |
| Medium | 8" w x 15" h | Single | 10" w x 18 5/8" h | 12 3/16" w x 20 3/4" h | 9" - 22" |
| Large | 10" w x 19" h | Single | 12 1/8" w x 22 5/8" h | 14 3/16" w x 24 3/4" | 9" - 28" |
| Extra Large | 12" w x 23" h | Single | 14 3/8" w x 26 5/8" h | 16 1/4" w x 28 7/8" h | 9" - 36" |
Single flap or double flap? This is the single flap version. The single flap will be more than enough if you live in a more temperate climate. The flap would be on the inside of the wall on the same side as the locking cover. Double flaps will provide more insulation for your home, perfect for extreme climates. With a double-flap system, there is a flap on each side of the tunnel and dead air space in between to add extra insulation.
Note: Endura Flap pet doors are not recommended for use by kittens or very small dogs. Cats have been successful using Small; however, a few have found the Medium difficult to use. We would not recommend using the Large or Extra Large or any of the double flap versions for cats.
A
Pet Height: inches
B
Pet Width: inches
| Wall Mount Template Dimensions | ||
|---|---|---|
| Flap Size | Width | Height |
| Small | 8" | 14-5/8" |
| Medium | 10" | 18-5/8" |
| Large | 12-1/8" | 22-5/8" |
| Extra Large | 14-3/8" | 26-5/8" |
|
Is this door available as double flap? Yes, the Custom Frame Color Endura Flap E2 Double Flap Wall Mount is available. |
|
Can I install this into my sliding glass door or screen door? Unfortunately, wall kit pet doors cannot be installed into screen or sliding glass patio doors. However, you can get the Thermo Panel 3e pet door insert, which will fit into the track of your sliding door. |
|
How easy is the door installation process? It's a simple DIY process, but it can be difficult for people who are not already handy. You should consider hiring professional help in order to make sure you don't ruin your interior or exterior walls. |
|
How do I know what flap size will fit my dog? When installing the Endura Flap extreme weather dog door wall mount you want it to clear the top of your dog's back by at least 1". You also want the step over to be comfortable, no more than 1/3 your pet's shoulder height. Lastly, you want the width to allow your pet to go through without touching the sides, so about 1" wider than them. |
|
Will this work for walls thicker than 7 3/4"? For walls thicker than 7 3/4", see the Endura Flap Pet Door for Deep Walls. The Deep Wall Mount does not have custom frame color options, so if you want to maintain that feature your can purchase this unit and build your own tunnel out of wood or sheet metal. |
|
Is the flap flexible? Seems like it would trap a dog if it backed up. The Endura Flap is slightly more rigid than other economy-style flaps, but it is a safe, soft, flexible flap. |
|
Is the flap loud when the dog goes in or out? When the flap gets to its resting place there is a snapping sound when the magnets employ. This sound lets you know the door is doing its job sealing out the elements and keeping your heated or cooled air inside. |
|
What side does the locking cover slide in? All locking covers slide in from the top. If you purchase a double flap model, the locking cover can be used on the inside or outside the frame. If you purchase a single flap, the locking cover is on the interior frame (the side closest to the inside of your home). |
|
Are replacement flaps available? Yes, we carry Endura Replacement Flaps. They will work for all Endura models (wall mount, doggy door mount, kennel doors, window sashes, and sliding glass door patio pet doors). |
|
I have a dog that I want to let out, but I want to prevent our cats from using it. Can the door be weighted to keep them from using it? You can increase the magnetic strength of the door by purchasing additional magnets here. Some people have found success doing this and keeping their cats inside. |
|
What material is the tunnel made It is made of durable wood that is sealed against the elements with tape. |
United StatesThis is a great choice for mixing frame colors to match the interior and exterior of your home accordingly. The single flap is not as insulating as the double flap option, but it’s a good choice for more moderate climates.
We've been using Endura Flaps for at least 20 years. We had excellent performance from a large sized double flap door for 25 years without having to change anything in the original installation. During that time we always had at least two dogs, either greyhounds or salukis who banged in and out countless times often with considerable enthusiasm. The double flap was absolutely protective against all weathers, including on those rare occasions when we had unusual freezes with outside temps in the single digits (we live in Bellingham, WA). When the last of our large animals passed on, we went over to MiniSchnauzers but only last year did we change our original installation, opting for the single flap to facilitate ease of in and out for an 18 pound canine instead of our 40 pound former athletes. The new single flap works perfectly and, given its construction, will surely be as weather insulating as the former set. Brilliant technology! Complete satisfaction in every respect.
I purchased my first Endura Flap Dog Door in 2008. It has been used for over the years by several dogs, a 90 lb black lab and two basset hounds. It keeps out all bad weather and is easy for the dogs to use. I’m in the process of installing new decks and decided that it was time to treat myself and my present 65 lb basset hound to a beautfiul new Endura Dog Door.
We have had these doors in our home for 15 years and I only had to replace the flaps once. Our home burned down last August and has been rebuilt so the only choice was to put in new dura flaps. Our summer temps in Yuma AZ teach out To 120+ so we have a dual flap on the outside wall and a single works fine on the interior wall of the workshop to the house to keep everything comfy inside.
I live in No Nevada where it gets WINDY! This door does not fly open like the other ones we have had. Excellent door and great customer service.
