Additional Magnet Kit for Endura Flap Pet Doors
- Endura Flap Additional Magnet Kit
- Includes two dog door magnets
- Add magnets to adjust the current magnet strength of your pet door
- Provides maximum wind resistance
- Available in Small or Large to fit your door
Adjust Level of Difficulty
Allows Pets to Share
Quick Installation
Product Details

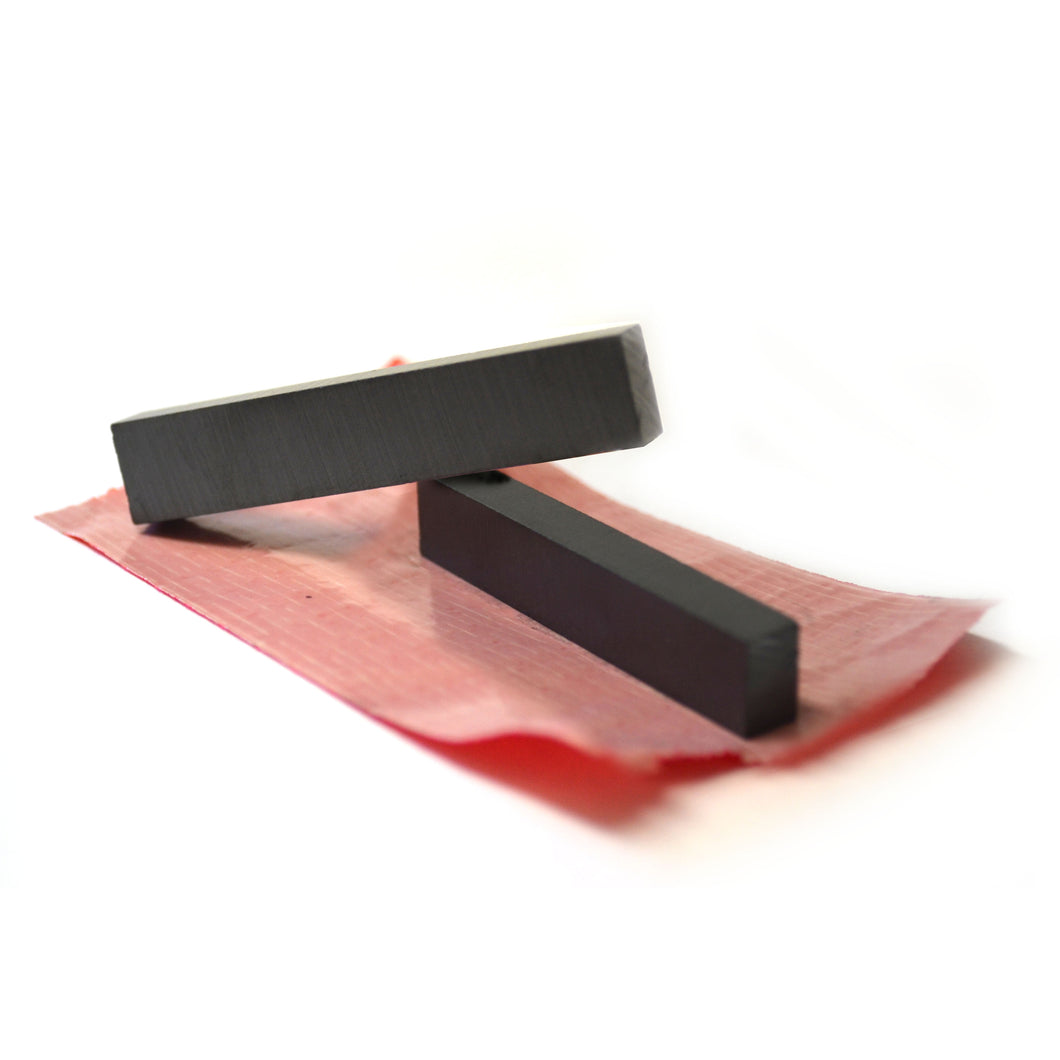

This kit includes two flap magnets that can increase the weather resistance of your Endura Flap pet door. One magnet is installed in the channel of the flap under the flap retainer clip and the other magnet with tape is installed inside the threshold. The small magnet is used for the small size Endura flap. The large magnet is used for Medium, Large, and Extra-Large flap sizes. The suggested quantity of magnets is below:
- Small flap: 1 Small magnet
- Medium flap: 1 Large magnet
- Large flap: 2 Large magnets
- Extra Large flap: 2 Large magnets
Size Chart
| Flap Size | Flap Dimension | Rough Cut Out | Outside Frame Dimension | Empty Magnet Pair Spaces |
|---|---|---|---|---|
| Small | 6" w x 11" h | 8 3/8" w x 15" h | 9 7/16" w x 15 3/4" h | 2 |
| Medium | 8 " w x 15" h | 10 1/2" w x 19" h | 11 1/2" w x 20" h | 2 |
| Large | 10" w x 19" h | 12 1/2" w x 23" h | 13 9/16" w x 23 5/8" h | 2 |
| Extra Large | 12" w x 23" h | 14 5/8" w x 27 1/8" h | 15 5/8" w x 28" h | 2 |
Use the Small Magnet Kit for small Endura Flap doors. Use the Large Magnet Kit for medium, large, and extra-large Endura doors.
Installation Instructions
Difficulty
Easy
Steps
06
Time Required
0.5 hours
Sections
01
Flags
00
Parts
- Flap Magnets
- Wrapped Magnet
Tools
- Pencil
Step 1 Remove the Threshold
- Remove the threshold from the bottom of the pet door frame.
Step 2 Remove the Retainer Clip
- Remove the retainer clip from the flap.
Step 3 Install the Flap Magnets
- Add the additional magnet in one of the slots in the bottom of the flap and put the retainer bottom back on.
- Make sure the retainer bottom is pushed all the way up so that the molded nubs are sticking through the cut out in the retainer clip.
Step 4 Locate the Wrapped Magnet
- Take the magnet that is wrapped and stick it onto the bottom of the flap so that it is attracting to the one that you just inserted into the flap.
Step 5 Install the Wrapped Magnet into Threshold
- Slide the wrapped magnet into the threshold.
- Use a pencil to push it into the threshold so that when the threshold is installed back in to the frame the new magnet will line up with the one in the flap.
- You can easily gauge how far to push the magnet by using the pencil to measure.
Step 6 Reinstall the Threshold
- Push the threshold back into the frame.
Videos
How to Adjust the Magnet strength of an Endura Flap
How to Put the Retainer Bottom back on the flap
FAQ
|
Which dog door models do these work with? This works for all Endura Flap pet doors, including door and wall mount models, sliding door dog door panels, and window panel dog doors. |
|
How do I add magnets to my dog door? You can follow the instructions on this video. |
|
Can I use these as replacement magnets for my dog door? Yes, but make sure it’s for your Endura Flap dog door. It will not work with other pet door brands. |
|
Do these doggie door magnets make it harder for your pet to open the flap? Magnetic pet doors are generally harder to open than regular pet doors, so adding more magnets can make it even harder for smaller pets. That’s why the Endura Flap has removable magnets to better tailor our doggy doors to your pet’s needs. |
